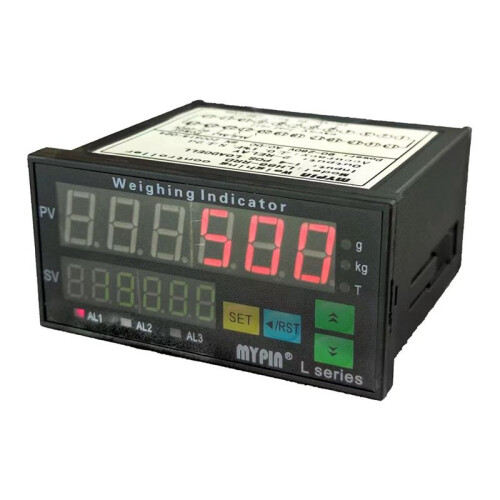

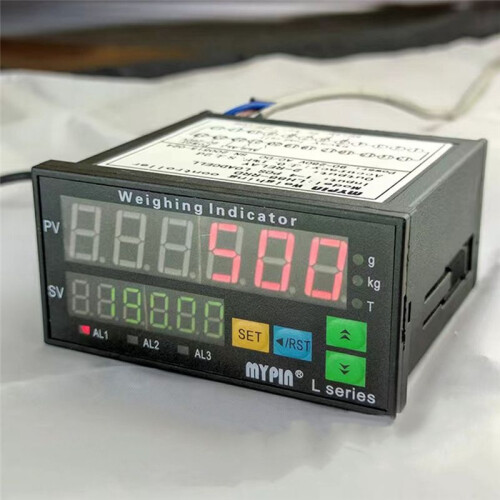

MYPIN LH86-NND Digital Weighing Controller Meter Filling Control Instrument LED Display Controller 1-4 Load Cell
Značka Tlily
New
2 225,74 Kč
Podobné produkty, které by se vám mohly líbit
Would you like us to let you know when it's back?
Popis a podrobnosti
Shrnutí
- 1. Directly connected with the load cell or other load cell, fast response, high precision, stable measurement, with adjustment functions such as tare weight removal, display correction, etc., with 6-way switch control for start/stop, fast forward/ It can be used for automatic control of various industries such as quantitative/batching/floor scale/weighbridge, cement, food packaging, chemical batching, etc., Filling control table, with terminal reset and start function.
- 2. Input: It can be directly connected to one or four weighing (force measuring) sensors, or other signals such as 0-70mV 4-20mA 0-10V, with 4 relay outputs, high/low/fast/slow.
- 3. Analog output: isolated current transmission output 4-20mA or 0-10V, the output range can be set arbitrarily; Digital output: up to 6 channels of various control outputs can be set arbitrarily, used for various ingredients and force measurement control, with complete functions;
- 4. External power supply for isolated sensors, +12/40mA or 150mA or two-wire 24V/30mA, etc.
- 5. Accuracy: five digits 0.1% or six digits 0.05%, floating decimal setting, accurate and stable measurement
MYPIN LH86-NND Digital Weighing Controller Meter Filling Control Instrument LED Display Controller 1-4 Load Cell Popis
1. Directly connected with the load cell or other load cell, fast response, high precision, stable measurement, with adjustment functions such as tare weight removal, display correction, etc., with 6-way control for start/stop, fast forward/ It can be used for automatic control of various industries such as quantitative/batching/floor scale/weighbridge, cement, food packaging, chemical batching, etc., Filling control table, with terminal reset and start function.
2. Input: It can be directly connected to one or four weighing (force measuring) sensors, or other signals such as 0-70mV 4-20mA 0-10V, with 4 relay outputs, high/low/fast/slow.
3. Analog output: isolated current transmission output 4-20mA or 0-10V, the output range can be set arbitrarily; Digital output: to 6 channels of various control outputs can be set arbitrarily, used for various ingredients and force measurement control, with complete functions;
4. External power supply for isolated sensors, +12/40mA or 150mA or two-wire 24V/30mA, etc.
5. Accuracy: five digits 0.1% or six digits 0.05%, floating decimal setting, accurate and stable measurement
6. Wide power supply: Conventional: 90-260V AC/, with RS485, RS232 communication interface
type:LH86-NND
Colour:black
Material:ABS+metal
Size:96 x 48 x 80mm

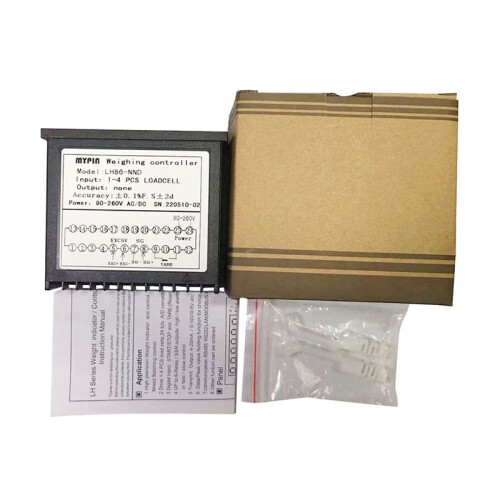

Package Contents:
1 x Weighing Controller Meter
2 x Bracket
1 x English manual
Podrobnosti
| OPC | PTQGH2V |
|---|---|
| Značka | Tlily |
| Kódy | 4712293727309 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 6cm |
|---|---|
| Width | 10cm |
| Length | 11cm |
| Weight | 0.1995kg |
| Colour | Black |
| Size | LH86-NND |
| Material | ABS+metal |
