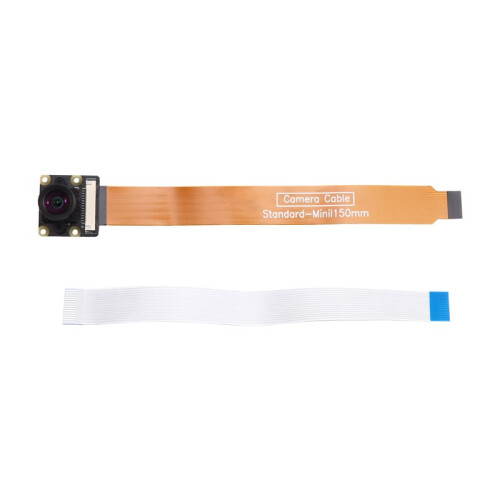

OV9281 Camera Module for Raspberry Pi5 4 4B 3B+ ZERO 2 W 1280x800 1MP Black White Global Shutter 110 Degrees

OV9281 Camera Module for Raspberry Pi5 4 4B 3B+ ZERO 2 W 1280x800 1MP Black White Global Shutter 110 Degrees Popis

1. OV9281 monochrome global shutter camera module, 1MP resolution 1280*800, supports to 120FPS high-speed capture. Perfect match for Raspberry Pi 5,4,4B,3B+,Zero 2W single-board computers.
2. Global shutter design effectively eliminates motion blur for fast-moving object shooting. Multiple viewing-angle options available to satisfy machine vision and high-speed monitoring project requirements.

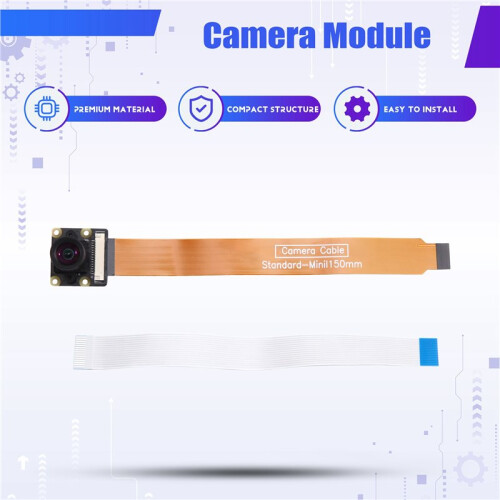

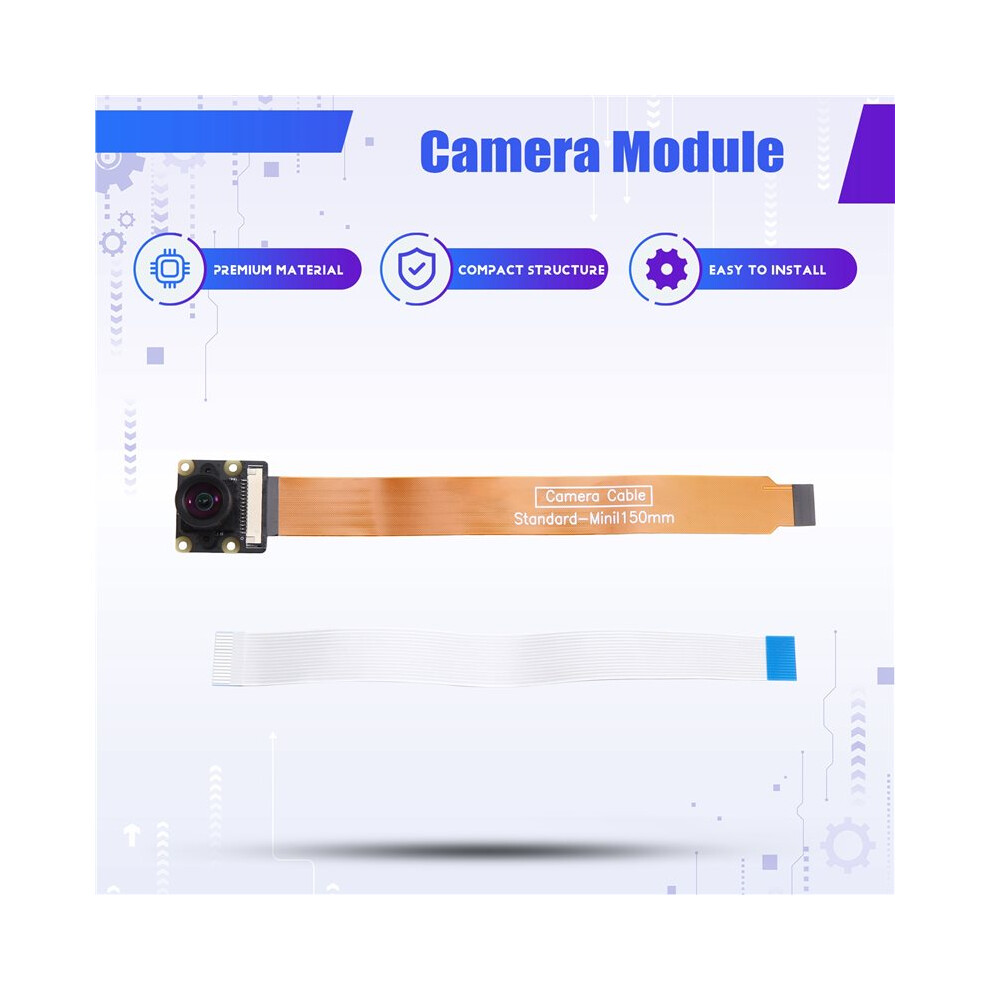

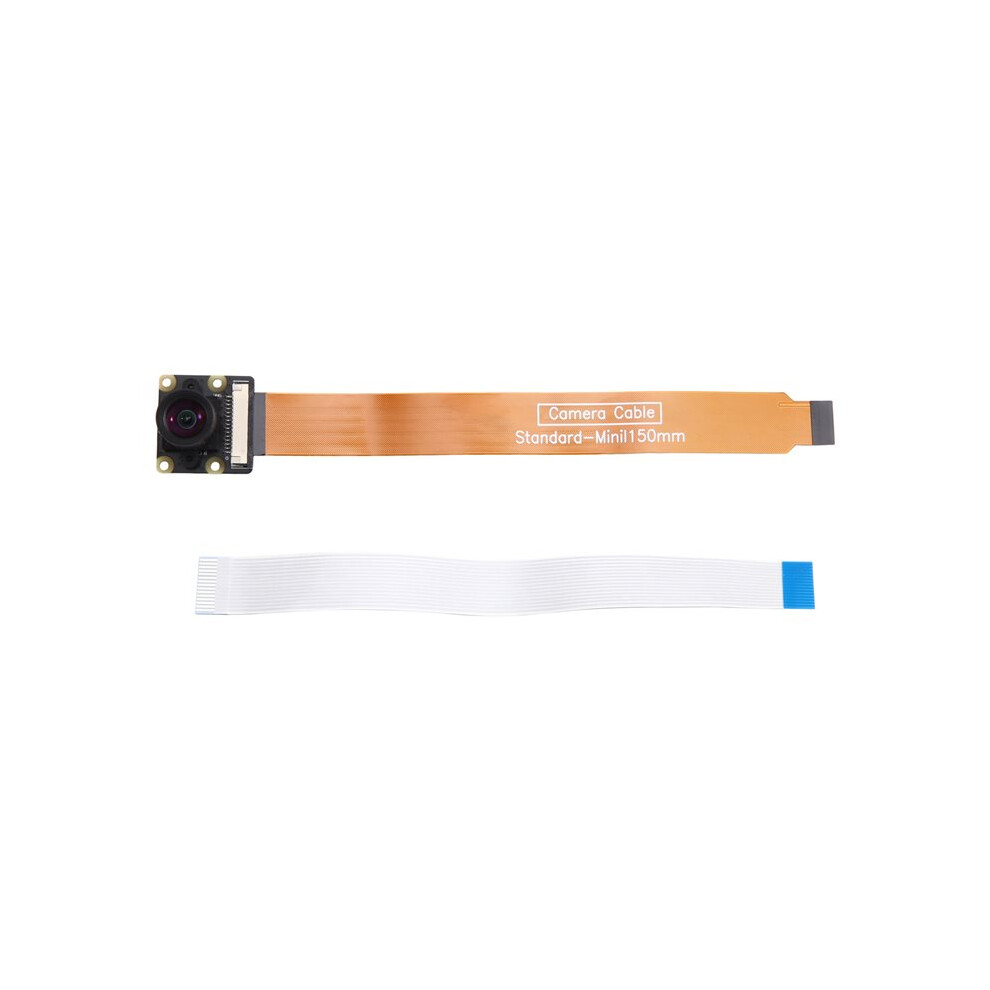

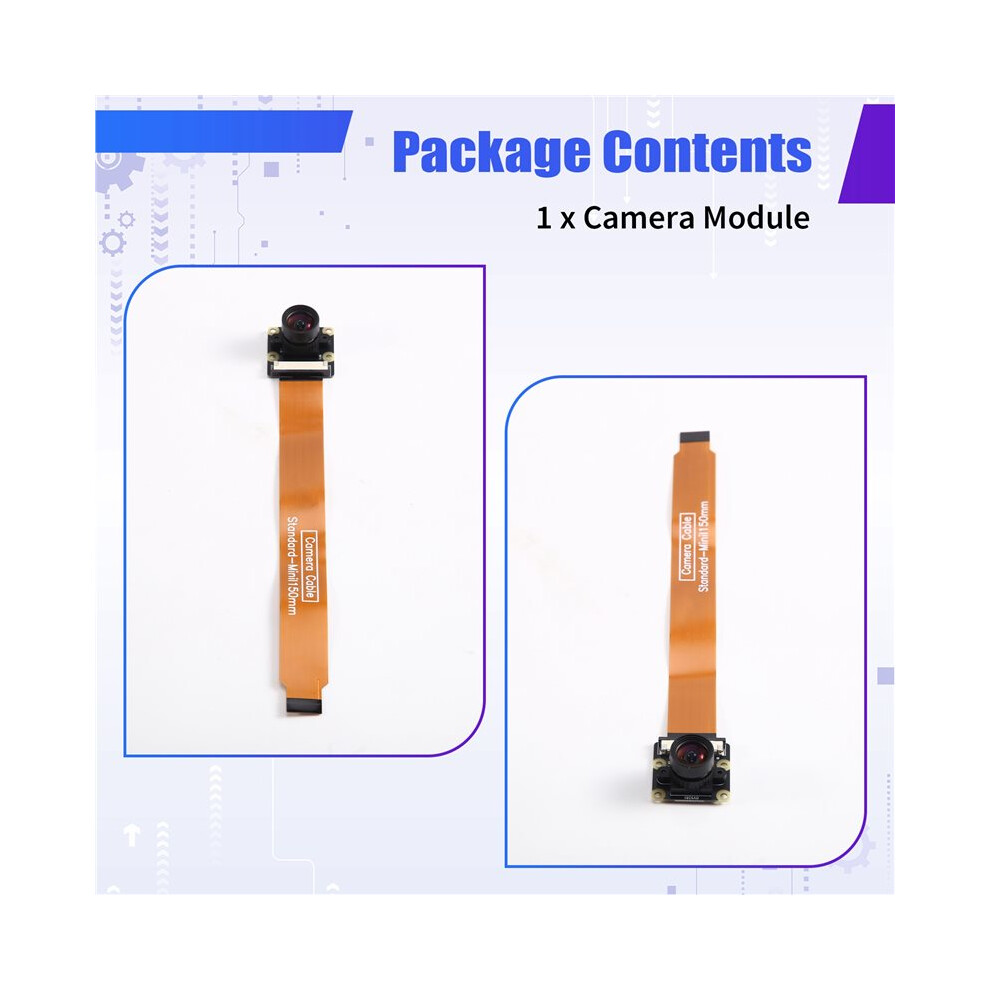

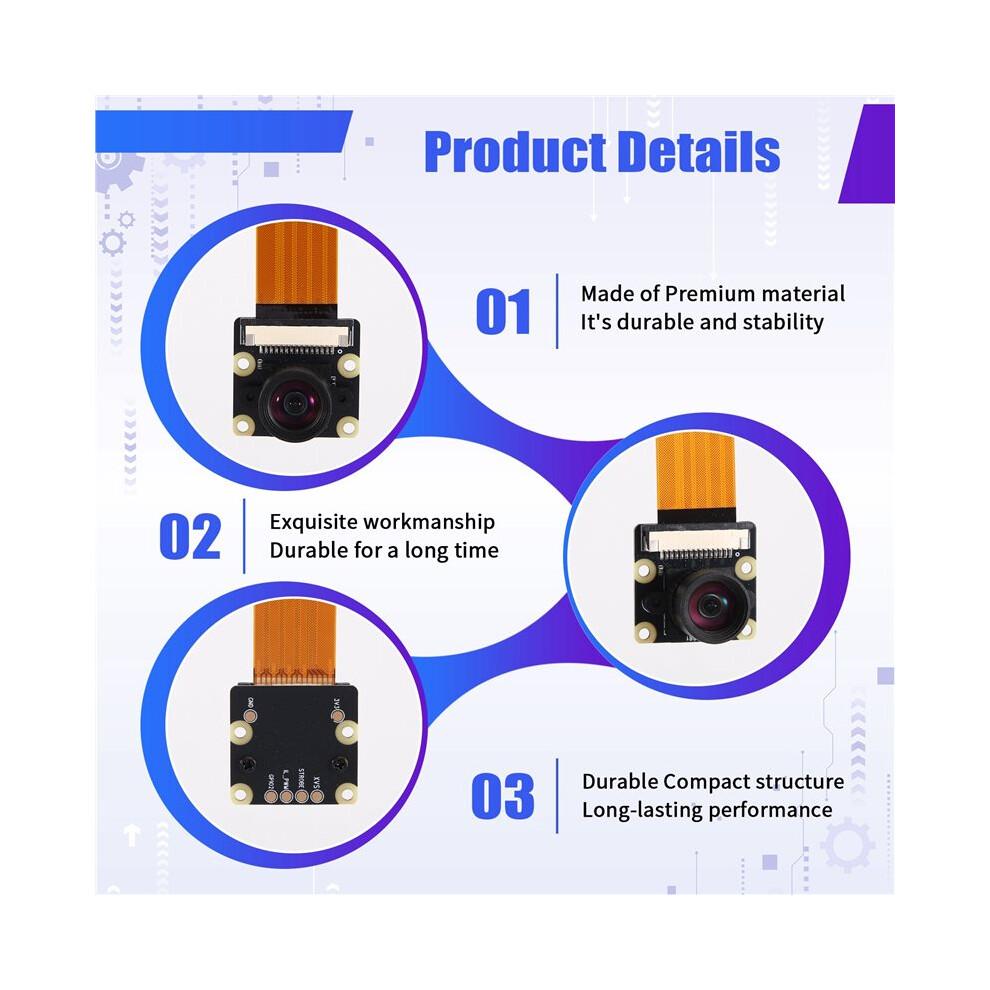

3. Comes with dedicated flexible ribbon cable for easy connection. Compact PCB layout, convenient for embedded installation, DIY robotics and industrial vision development work.
4. Pure black-white imaging sensor delivers higher sensitivity than color sensors. Suitable for object recognition, motion detection, AI vision projects and various Raspberry-Pi-based experimental development.

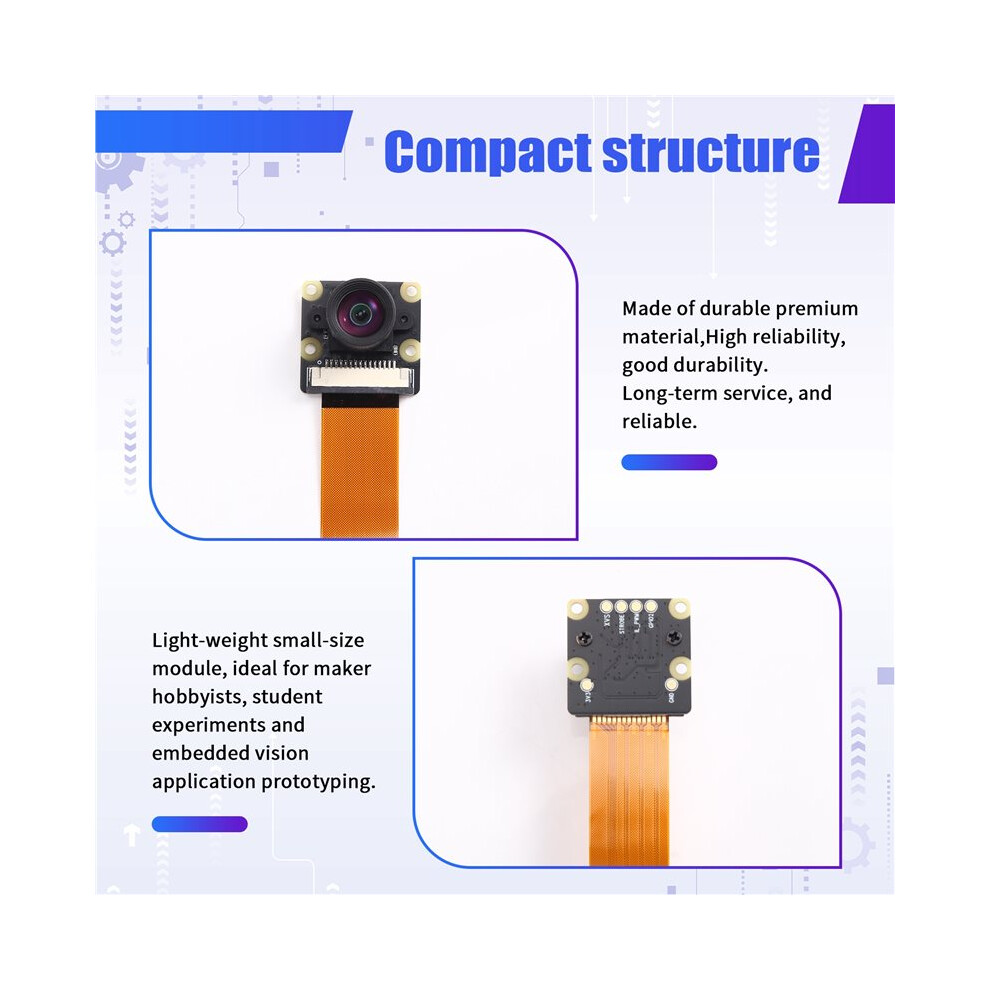

5. Simple driver compatibility, works well under Raspberry Pi system. Light-weight small-size module, ideal for maker hobbyists, student experiments and embedded vision application prototyping.

Core Sensor Technology

Sensor Model: OV9281 Global Shutter Sensor

Optical Size: 1/4 inch (Diagonal Length: 4.604mm)

Effective Pixels: 1296 (H) x 816 (V) / 1280 (H) x 800 (V)

Pixel Size: 3µm (H) x 3µm (V)

Model: CAM129 (110 Wide Angle View)

Optical Parameters: 110 diagonal / 93 horizontal / 70 vertical. length 2.1mm, equipped with a large F/2.2 aperture to adapt to a wider shooting environment. Designed for wide-area monitoring, with optical distortion less than 1%.

Optimal Applications: Ideal for indoor environmental monitoring, robot machine vision, SLAM visual navigation, and panoramic image capture.

Key advantages: Provides a wider field of view, capturing a significantly increased spatial area, making it ideal for projects that require expanded peripheral vision and do not w
