PLC Industrial Board FX3U-14MT High Speed with Analog Programmable Controller FX3U-14MT

PLC Industrial Board FX3U-14MT High Speed with Analog Programmable Controller FX3U-14MT Popis

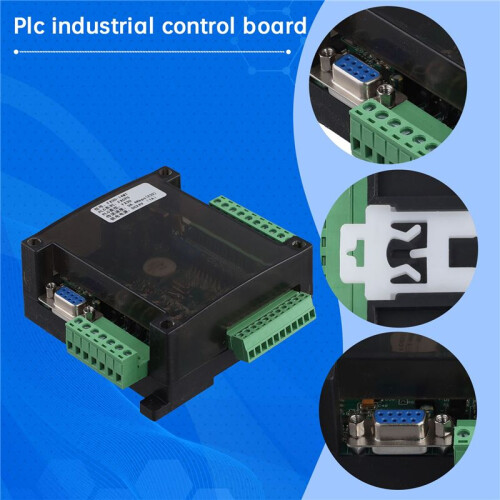

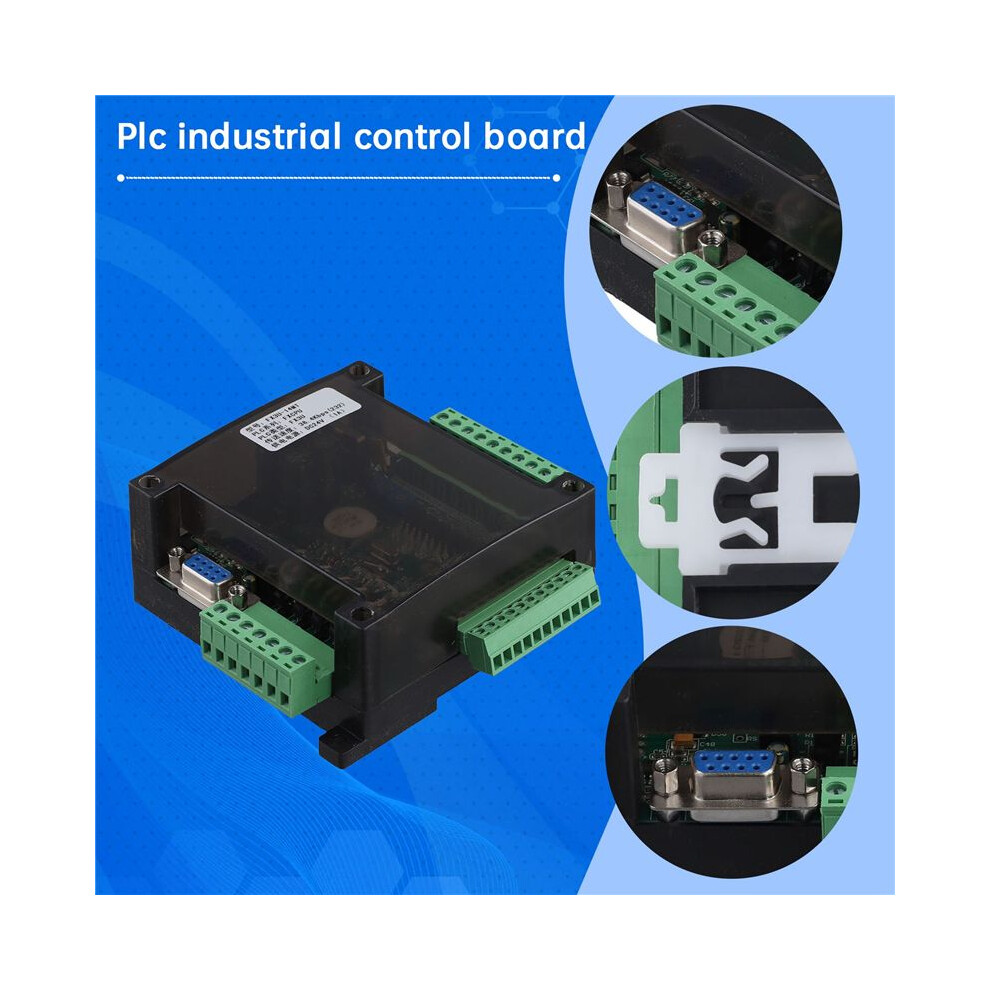

name:Plc industrial control board
Output Type:FX3U
Output:Transistor

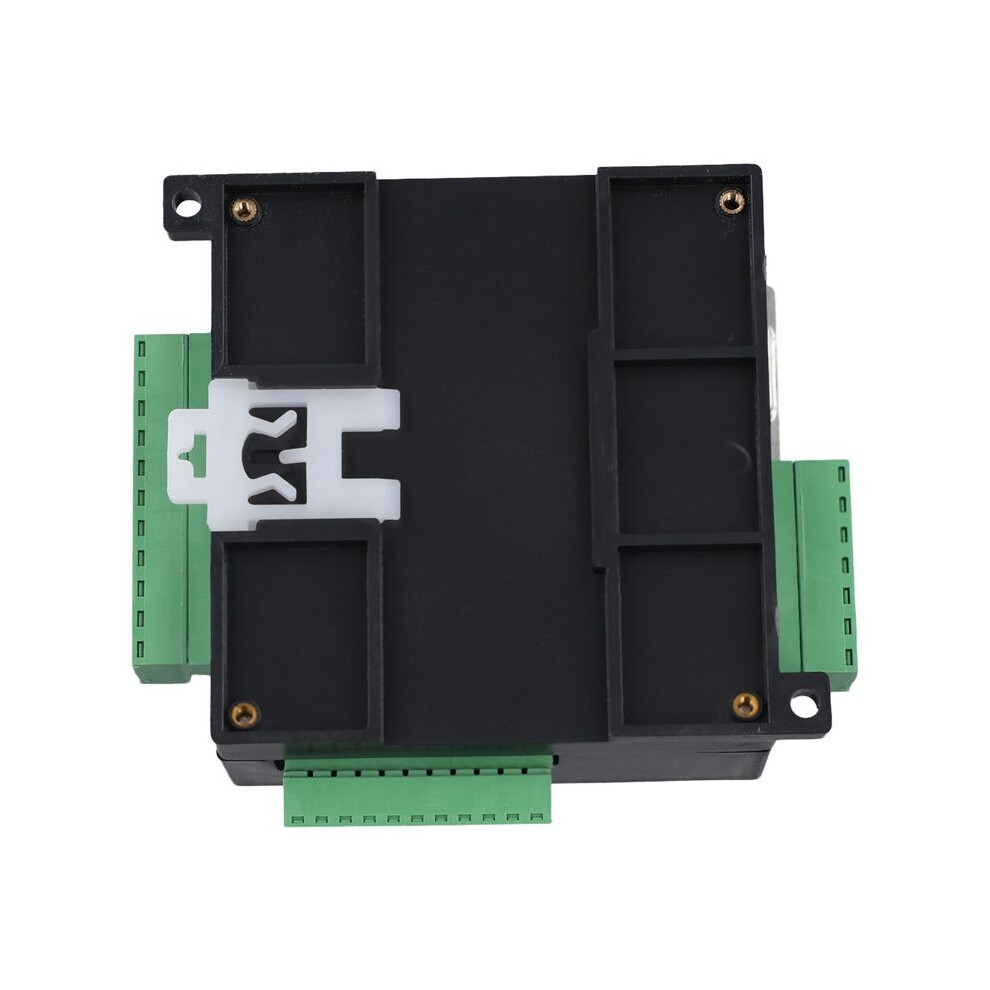

Installation:Guide Rail

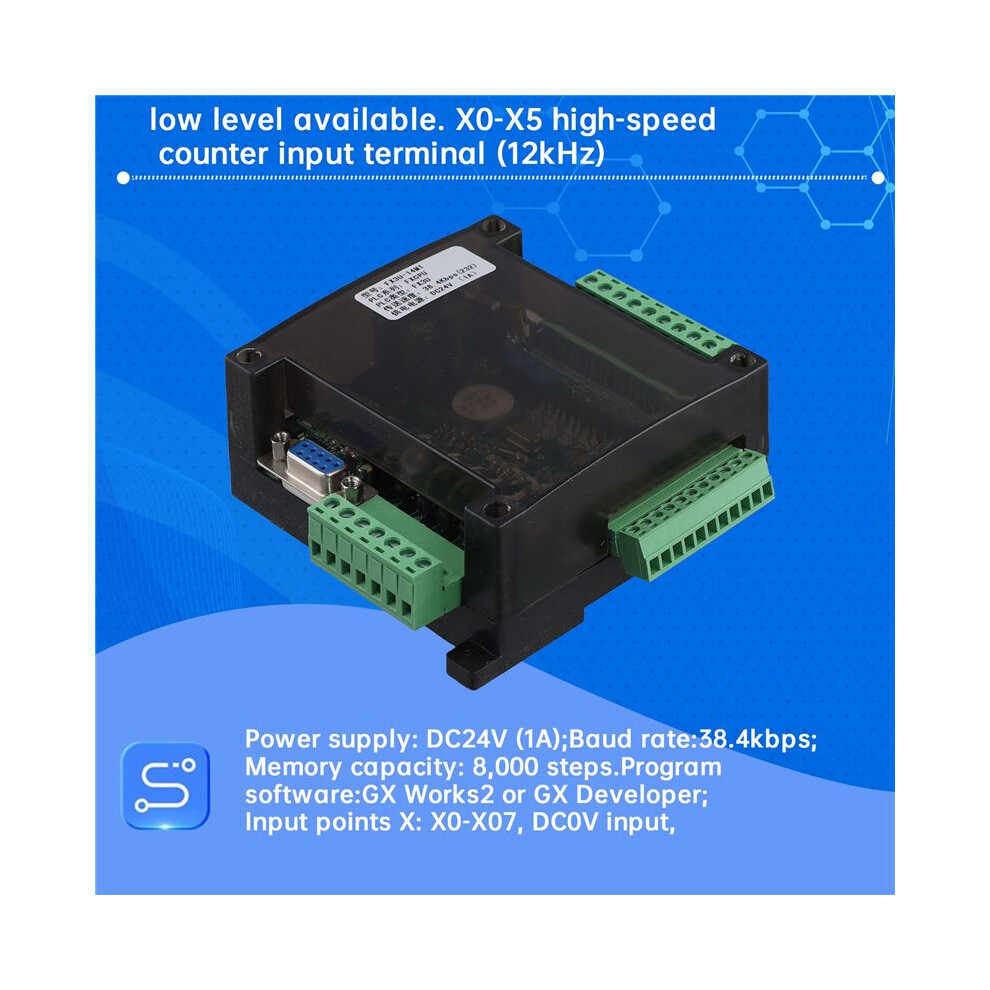

Power supply: DC24V (1A);Baud rate:38.4kbps;Memory capacity: 8,000 steps.Program software:GX Works2 or GX Developer;Input points X: X0-X07, DC0V input, low level available. X0-X5 high-speed counter input terminal (12kHz)

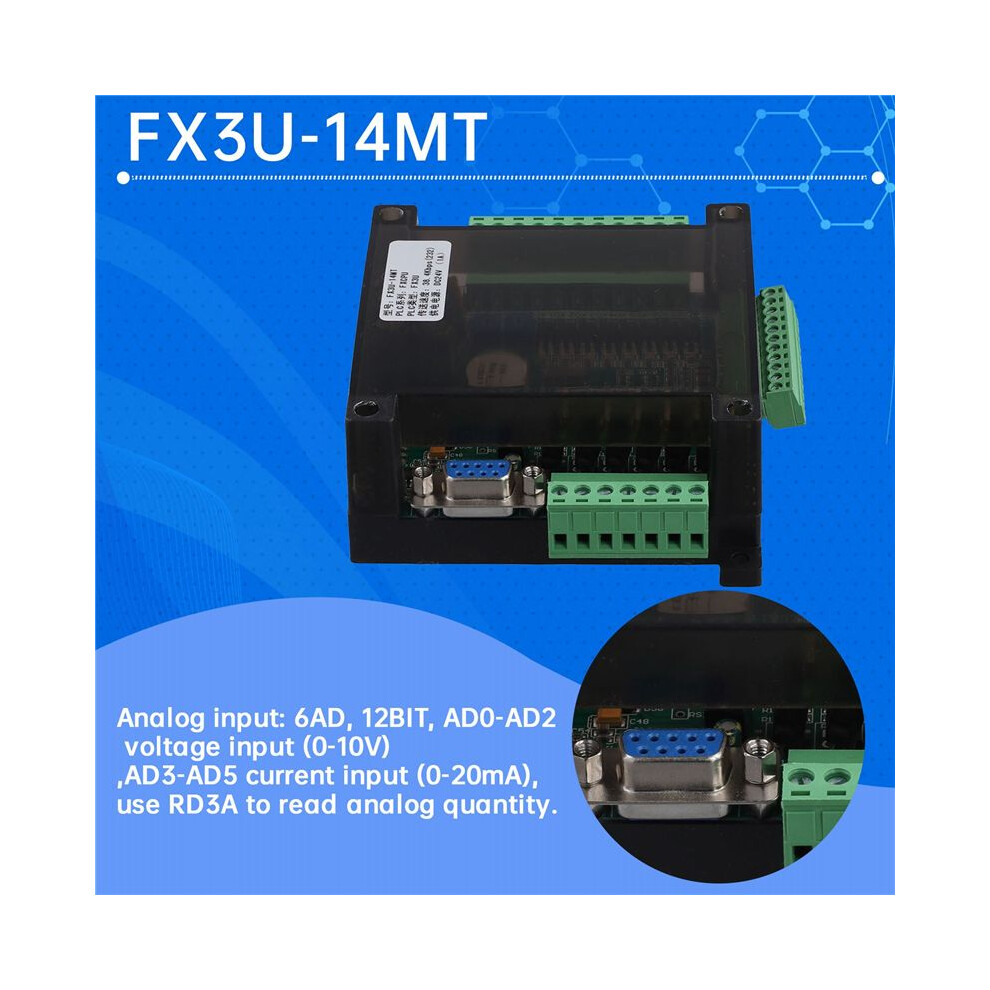

Analog input: 6AD, 12BIT, AD0-AD2 voltage input (0-10V), AD3-AD5 current input (0-20mA), use RD3A to read analog quantity.
Intermedia relay M:M0-M3071, power down storage range M0-M1023
Step point S: S0-1023, power down storage range S0-1023
100Ms timer: T0-T199, Accumulated power-down storage T184-T199
10Ms timer: T200-T249, Accumulated power-down storage T246-T249
1Ms timer: T250-T383, Accumulated T250-T255
16BIT counter: C0-C199, power down storage C100-C199
32BIT counter: C200-C219, power down storage C220-C234
32BIT high-speed counter: C235-C255; C235-C240 single phase counter non-doubling, C241-C246 single phase counter 2C, C247-C249 biphase counter non-doubling, C250-C252 biphase counter 2C, C253-C255 biphase counter 4C
Register D: D0-D7999, power down storage D0-D7999
Indirect addressing point: V0-7, Z0-7
Sub-program skip: P0-63
I interrupt: X0-5, external interrupt, timer interrupt, counter interrupt
Special component: M8000 NC when working, M8002 power- pulse, M8011 10Ms pulse, M8012 100Ms pulse
FX3U-14MT output points: Y0-Y5 transistor output. Y0-Y1 100K pulse output. Should add reverse diode when connecting Y0-Y1 to high load. Y2-Y5 could be connected to high load directly. For long working, current not higher than 3A.
Colour:Green
Material:plastic

Package Contents:
1 * Plc industrial control board
