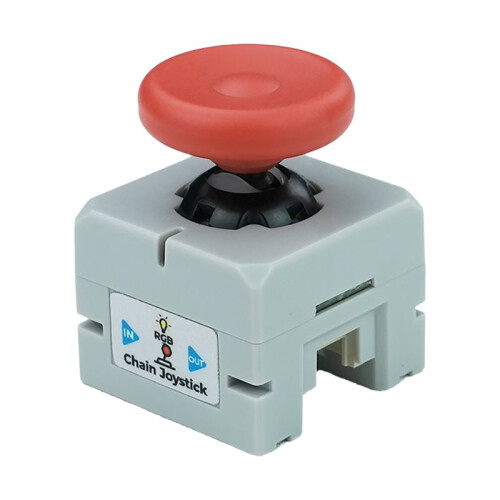

Programmable Expansion Chain Joystick High-Precision Hall Electromagnetic Joystick X/Y/Z Three-Axis Input UART Serial

Programmable Expansion Chain Joystick High-Precision Hall Electromagnetic Joystick X/Y/Z Three-Axis Input UART Serial Popis

The ChainJoystick is a high-precision Hall effect electromagnetic joystick input node. It supports three-axis control signal input, including analog input for the X/Y axes and digital input via buttons for the Z axis.
The device uses a Hall effect electromagnetic joystick, achieving high-precision control by detecting changes in the magnetic field. It features non-contact operation, wear resistance, high precision, and strong anti-interference capabilities, ensuring product stability and long lifespan.
It also integrates a programmable RGB LED for status indication and interactive display. Suitable for human-machine interaction, robot control, and other applications.
The ChainJoystick series of devices integrates the STM32G031G8U6 core controller and adopts the UART serial port cascading communication protocol. Through two HY2.0-4P expansion interfaces, more Chain series devices can be added to build richer interactive applications.

High-Precision Hall Electromagnetic joystick
STM32G031G8U6 core controller
X/Y/Z three-axis input
1X RGB LED
Uses UART serial cascade communication protocol
2x HY2.0-4P expansion interface, expandable to Chain series devices

Specifications
MCU: STM32G031G8U6
Input power: 5V
Communication interface: UART
Interface specification: 2x HY2.0-4P
RGB LED: 1x WS2812C
Power consumption: 25.4mA
Operating temperature: 0~40C
Color: Random Color
Material: plastic

Package Contents:
1* Chain Joystick
