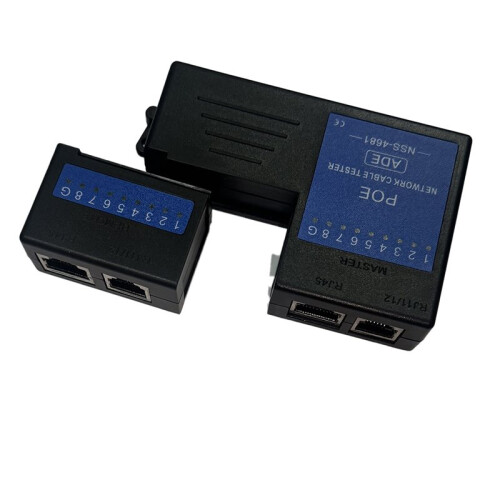

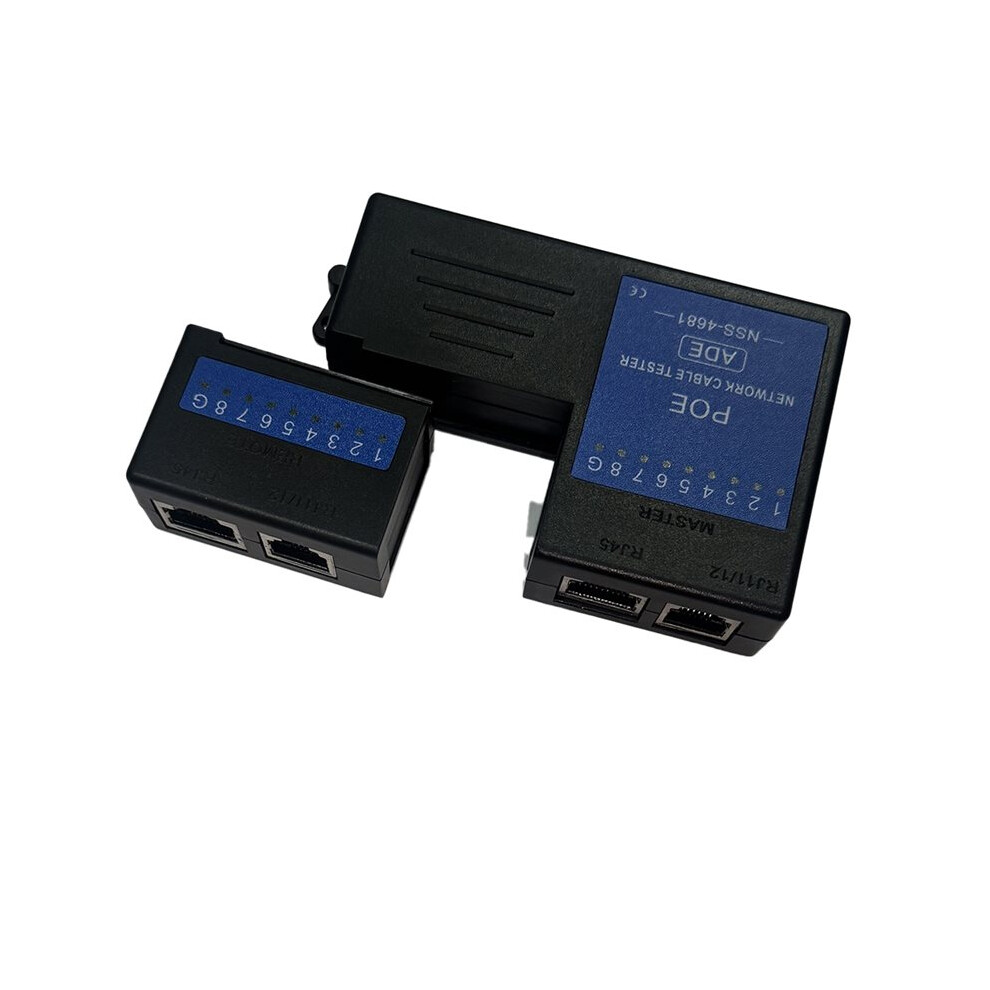

RJ45 Cable Tester Lan Ethernet Network RJ11 RJ12 CAT5 6 7 UTP LAN Cable Testing Tester Networking Tool Support PoE

RJ45 Cable Tester Lan Ethernet Network RJ11 RJ12 CAT5 6 7 UTP LAN Cable Testing Tester Networking Tool Support PoE Popis

Color: As shown in the picture
Material: Plastic
Test of double-twisted cables: the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn sequently form 1 to G.

Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G RJ45
1-2-3-4-5-6 RJ11
Following are abnormal connections:
If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn .
If several cables are not connected, several lights will not turn respectively. If less than two cables are conntected, none of the lights is .
If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays :
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
If two cables are short circuited, neither of the corresponding lights is of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is .
If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.
Color: As Shown
Material: plastic

Package Contents:
1* RJ45 Cable Tester(1*9V battery not included)
