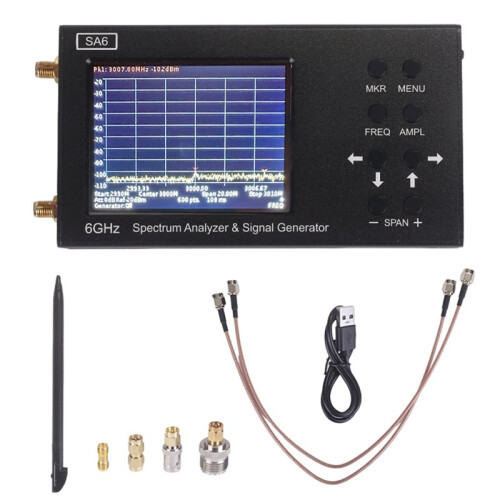

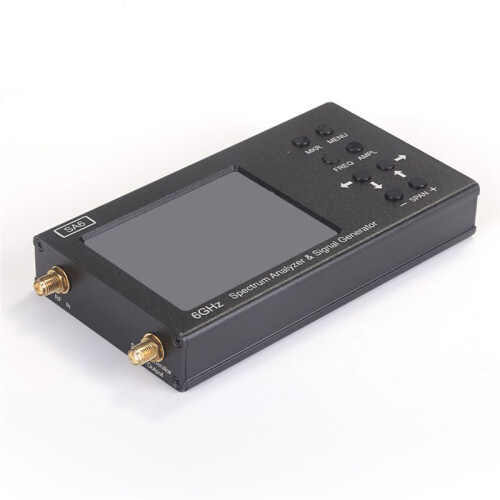

SA6 Handheld Spectrum Analyzer Signal Generator with Tracking Signal Source 35-6000MHz 3.2inch Touchscreen

SA6 Handheld Spectrum Analyzer Signal Generator with Tracking Signal Source 35-6000MHz 3.2inch Touchscreen Popis

Wide frequency coverage: 35 MHz-6000 MHz; supports mainstream wireless signals such as 2G, 3G, 4G, LTE, Wi-Fi, CDMA, GSM, GPRS, and GLONASS.
Easy operation: Supports direct control via device buttons and a 3.2-inch color resistive touchscreen; all measurements can be performed without an external computer.
Built-in tracking generator (-15 to -25 dBm output); when used with an external directional coupler, it can measure the frequency response, SWR, and return loss of filters and amplifiers.
High sweep speed and measurement accuracy: Sweep for a 100 MHz span is less than 0.25 seconds, ensuring fast and efficient full-span scanning. Accuracy is 2 dB within the dynamic range, with a maximum dynamic range of 75 dB (35-3000 MHz).
Standard adjustable attenuator (0-30 dB) accommodates signals of varying strengths; maximum input is +20 dBm (with 20 dB attenuation).

Display frequency range: 35 - 6000 MHz
Measurement frequency range: 35 - 4500 MHz (full performance)
Dynamic range:
35-3000 MHz: 75 dB
3000-4500 MHz: 70 dB
Maximum sweep span: 5965 MHz (corresponding to 35-6000 MHz)
Resolution bandwidth: 200 kHz (fixed)
Sweep speed:
100 MHz span < 0.25 seconds
Noise floor:
3000 MHz: < -90 dBm
3000-4500 MHz: < -85 dBm
4500-6000 MHz: < -80 dBm
Input impedance: 50 Ω
VSWR (operating frequency range):
