SAA-2N Antenna Analyzer VNA 50KHz -3GHz Vector Network Analyzer 4" Inch LCD, VHF UHF Measuring S Parameters

SAA-2N Antenna Analyzer VNA 50KHz -3GHz Vector Network Analyzer 4" Inch LCD, VHF UHF Measuring S Parameters Popis

Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
4.0 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.

Main material: PCB+iron
Color: black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: 2ppm
Frequency stability: 0.5ppm
System dynamic range (calibration): 70dB ( to 1.5GHz), 60dB ( to 3GHz)
S11 noise floor (calibration): -50dB ( to 1.5GHz), -40dB ( to 3GHz)
Sweep rate: 100 points / second
Display: 4.0 inch, 320 * 480
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweep points ( device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
Material: Metal

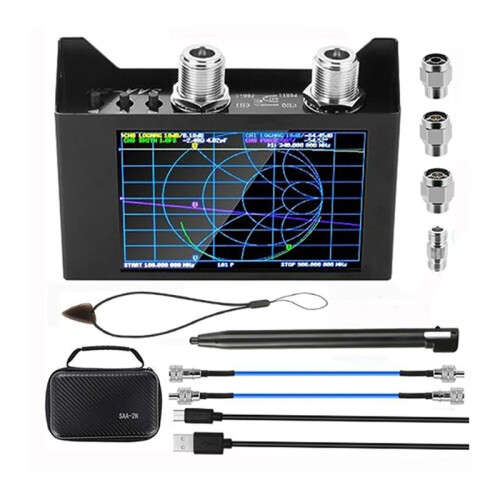

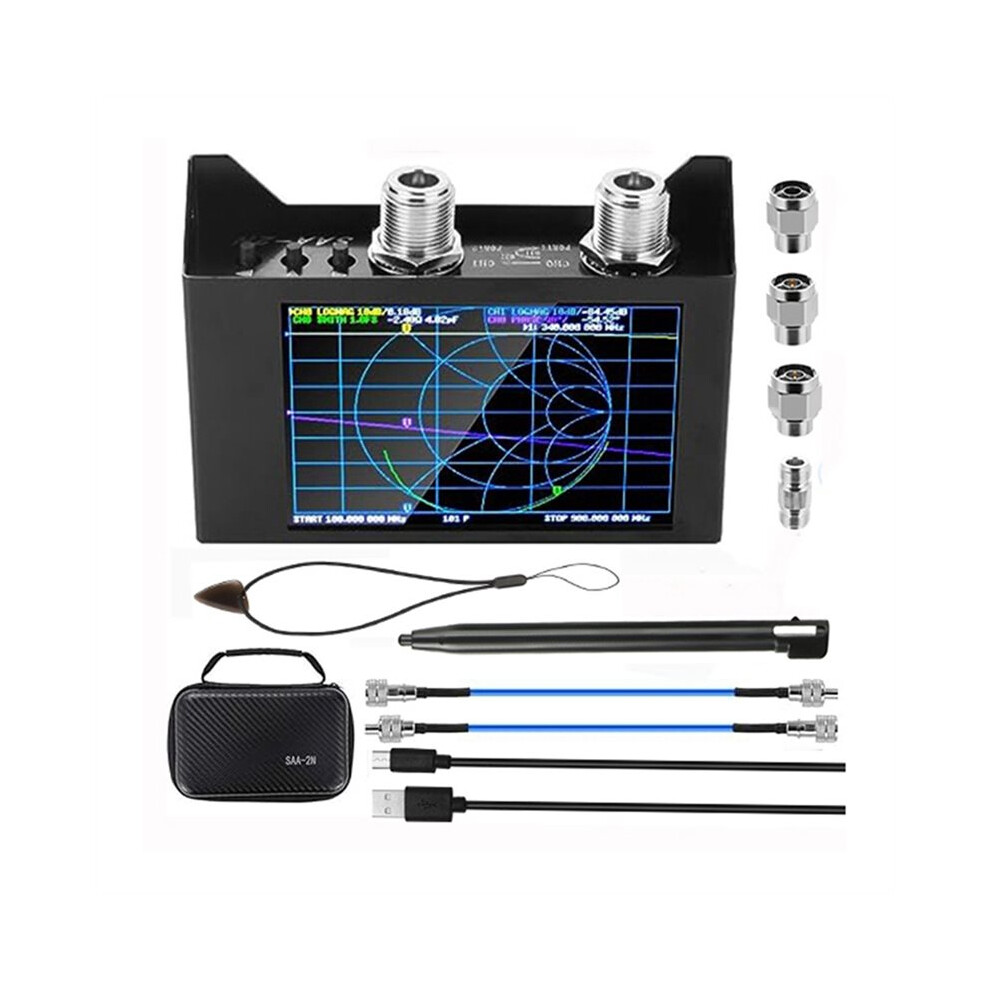

Package Contents:
1 * SAA-2N Host
1 * Micro USB Data Cable
2 * 500mm N-type Male to Male RG142-PUR RF Cables
1 * N-ABERTO Male Connector Calibration Kit
1 * N-type Short Male Connector Calibration Kit
1 * N-type Male Connector Calibration Kit - Large Size
1 * N-type Female to Female Connector
1 * EVA Storage Bag
1 * Stylus Pen
1 * Lanyard
