SI4732+BGA427 Modification Module Filter Amplified Version for Quansheng UVK5/UVK6 Intercom Modification Module

SI4732+BGA427 Modification Module Filter Amplified Version for Quansheng UVK5/UVK6 Intercom Modification Module Popis

Applicable models:For quansheng uvk5/k6
1. The kit is a DIY product.Corresponding hands- soldering ability is required. Please ask professionals to do this.
2. The finished product effect is closely related to objective factors such as equipment, personal welding technology, firmware, etc. The kit cannot guarantee the finished product effect, please forgive me.

Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Instructions:
The soldering pad has been tinned, please remove the chip the machine

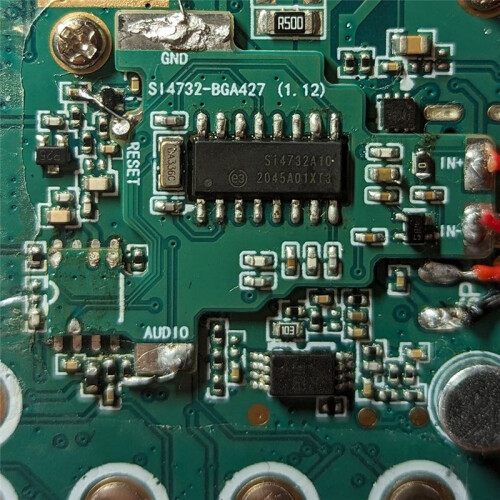

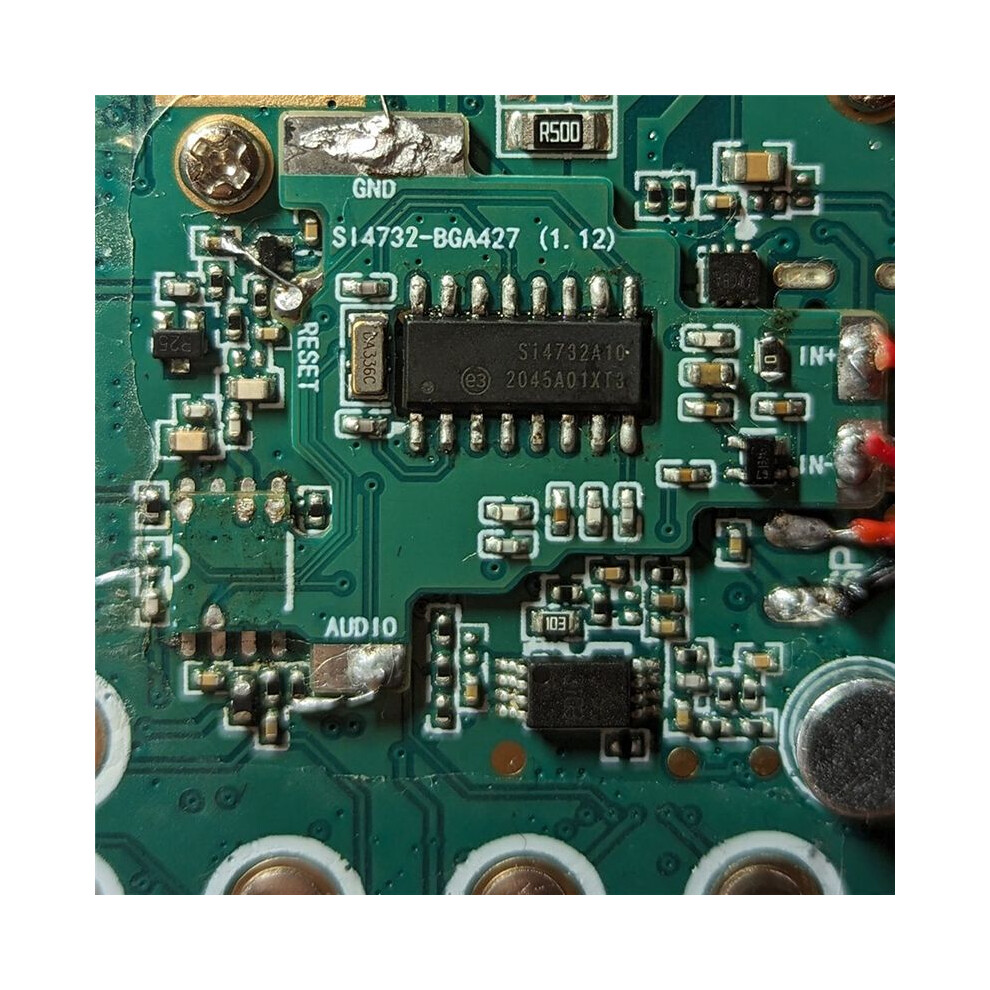

Align well, directly heat the soldering pad with a soldering iron to tin, so that the tin is connected to the soldering pad 2,5,6,8
The antenna is connected to in+, and in-, GND is connected to the ground wire of the machine circuit.

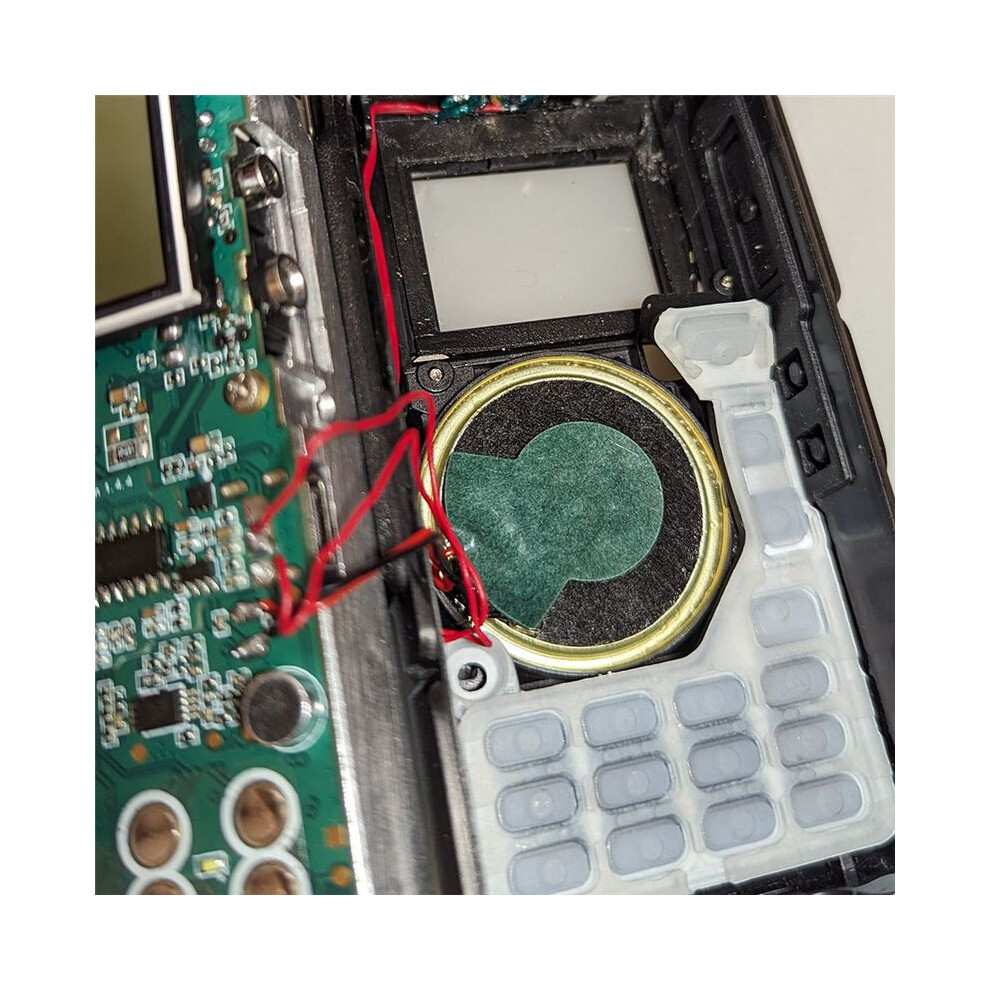

Reset and audio are connected to the machine as shown in the picture
Flash cec firmware to use
Basic operation instructions: F+0 enters the radio
The following operations are all instructions in the radio mode
Short press F to shortwave AM and FM
Long press F to single sideband
Short press 0 to select the frequency band
Short press x to adjust the frequency increase or decrease step
Short press 8 to enter the frequency
EXIT to exit
Material:PCB
Colour:Green

Package Contents:
1x Module
