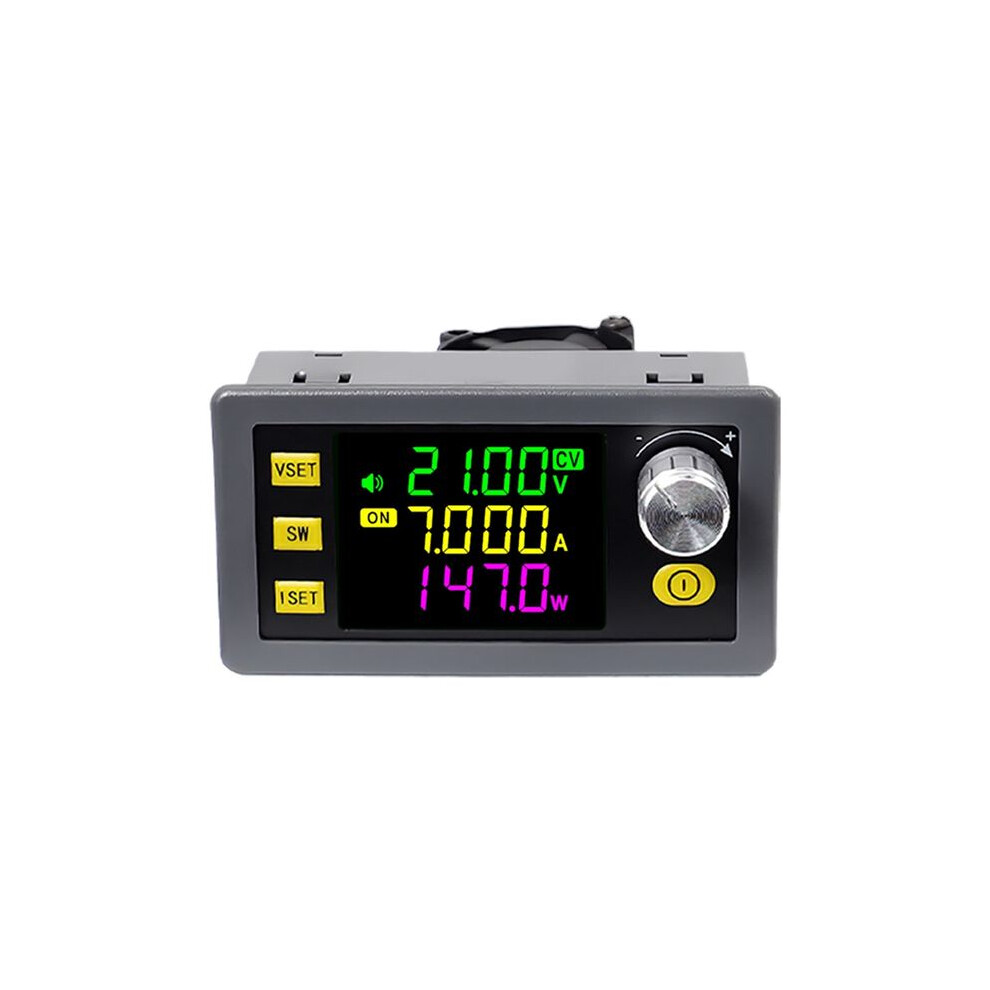

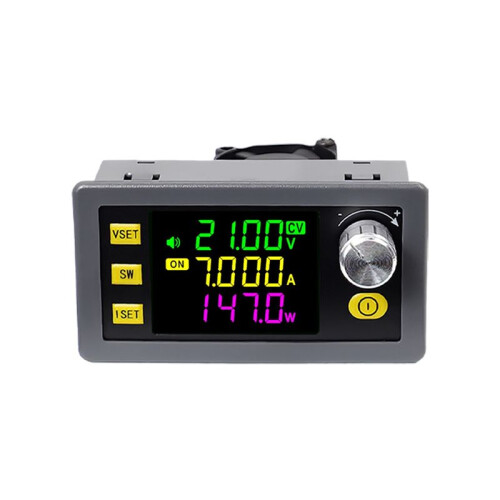

SK150 CNC Buck Boost Adjustable Voltage Regulator Power Supply 7A/150W Constant Voltage Current Solar Charging Module

SK150 CNC Buck Boost Adjustable Voltage Regulator Power Supply 7A/150W Constant Voltage Current Solar Charging Module Popis

Multiple protections: anti-backflow, undervoltage protection, overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, timeout protection, overcapacity protection, and super protection.
With MPPT function, supports MPPT solar charging.

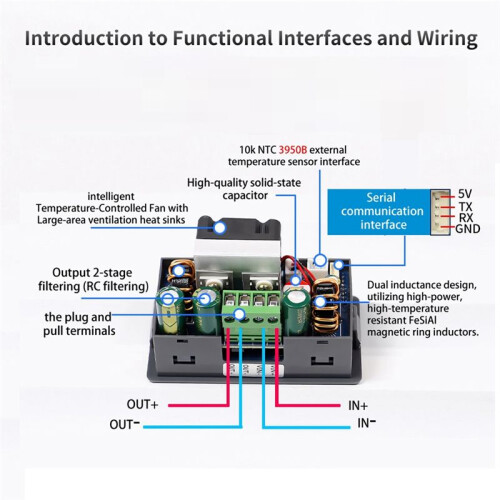

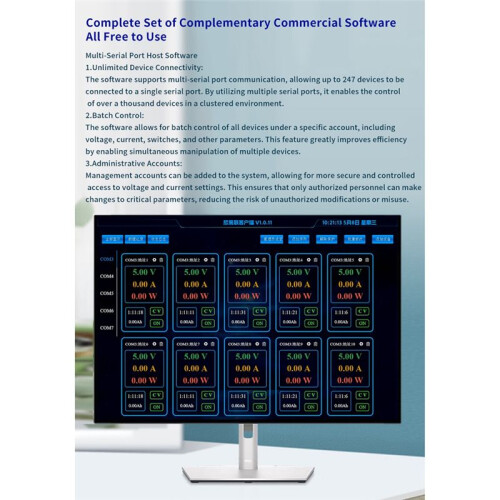

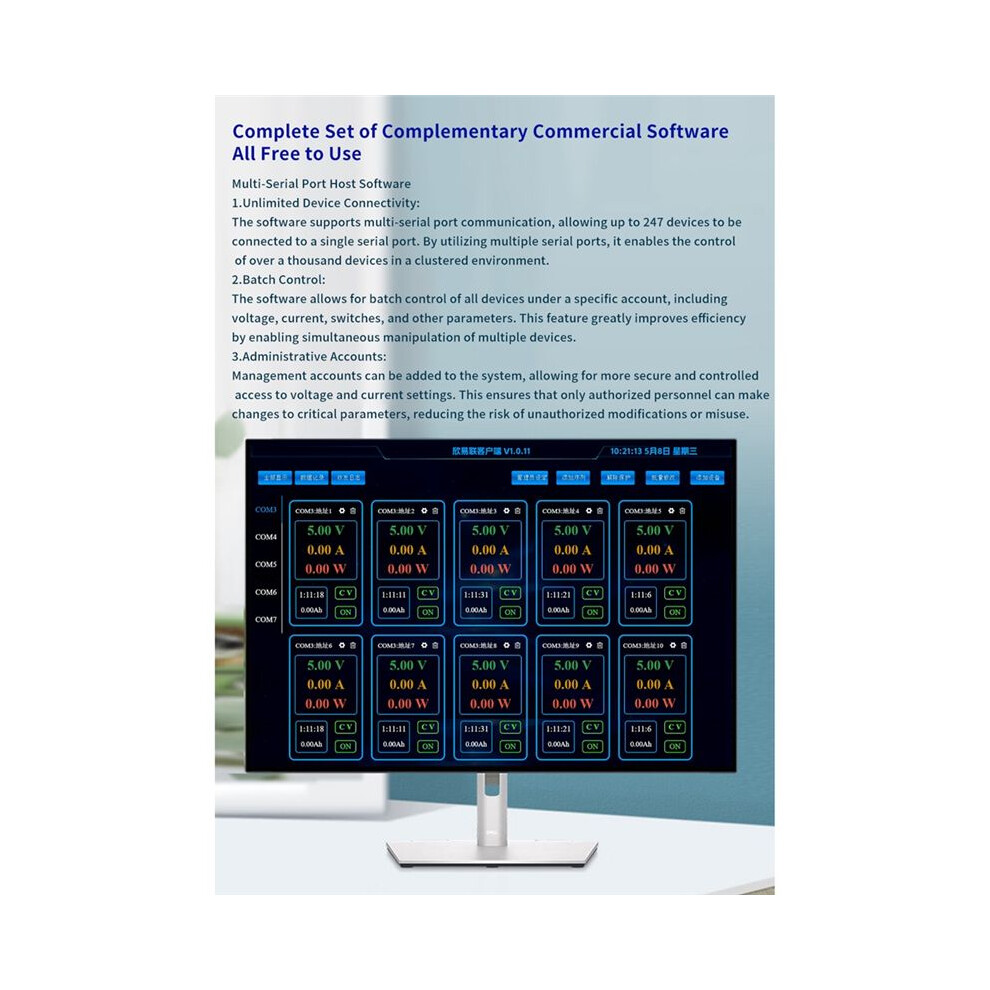

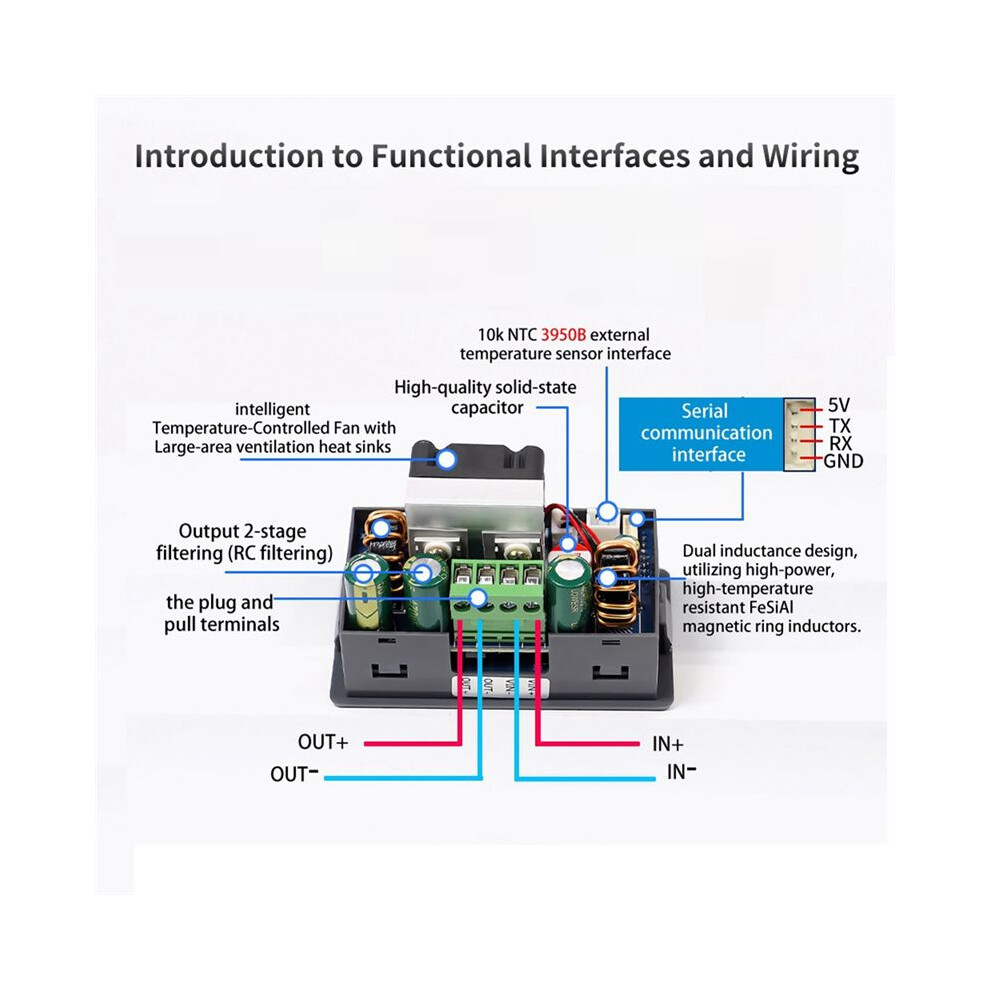

Support serial communication, standard Modbus protocol.
Adopt one-piece injection molding shell, flame retardant material, safer!
Parameters:Product model: SK150;Input voltage: 6.0~36V;Output voltage: 0~36V;Output current: 0~7A;Output power: 150W;Voltage accuracy: 0.5%+1 word;Current accuracy: 0.5%+3 words;Voltage resolution: 0.01V;Current resolution: 0.001A

Parameters:

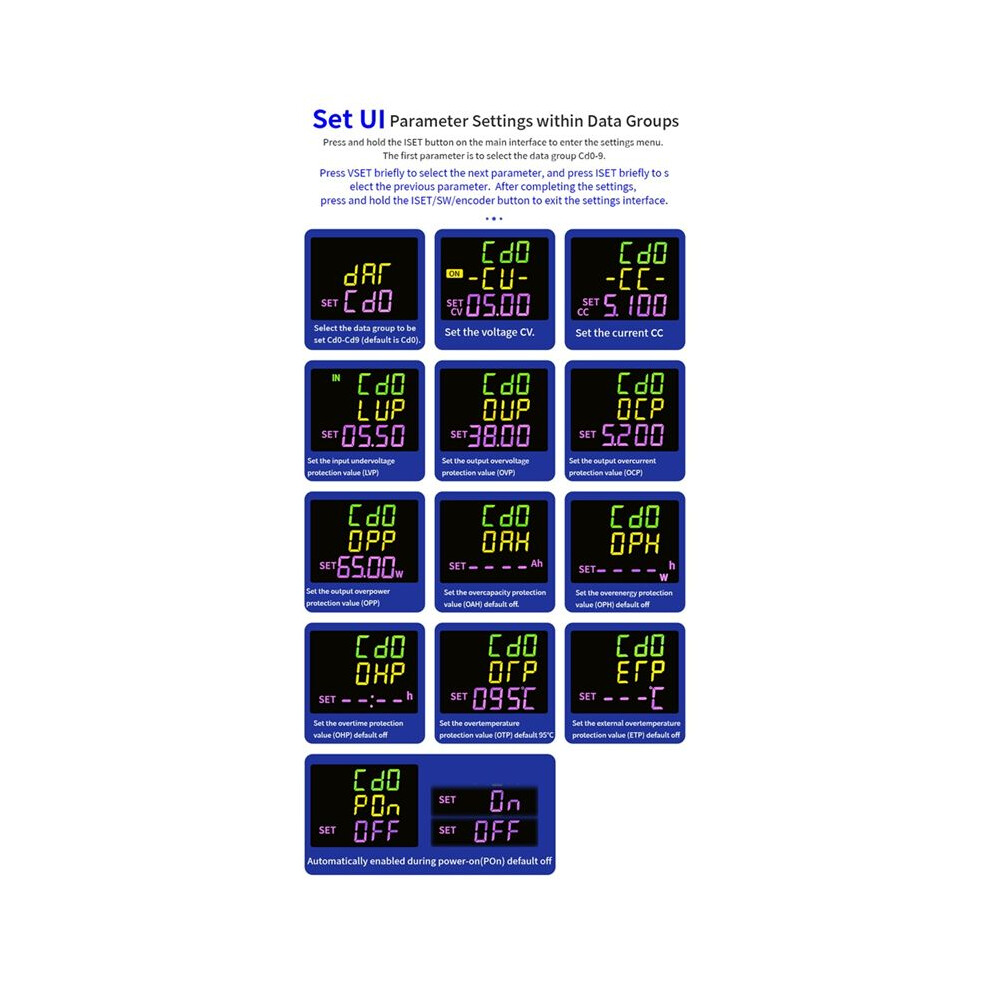

Storage data group: 10 groups
Number of buttons: 5
Screen size: larger than 1. 8-inch LCD, 38x29mm visible range
Buzzer: Yes
Soft start: Yes
Conversion efficiency: about 88%
Output ripple typical value: vpp-150mv
Protection mechanism:
Input reverse connection protection: Yes
Output anti-backflow: Yes
Input undervoltage protection: 5. 5-36V adjustable, default 5. 5V
Output overvoltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0-7.2A adjustable, default 7.2A
Output overpower protection: 0-180W adjustable, default 160W
Overtemperature protection: 0-110C adjustable, default 95C
Timeout protection: 1minute-99H 59minutes adjustable, default off
Overcapacity protection: 0~9999AH adjustable, default off
Overenergy protection: 0~4200WH adjustable, default off
Colour:As Shown
Material:plastic
Note:
This product has no output reverse connection protection. Reverse connection of the positive and negative poles of the battery will damage the equipment. Battery charging requires certain professional knowledge. Non-professionals should not charge directly to prevent
