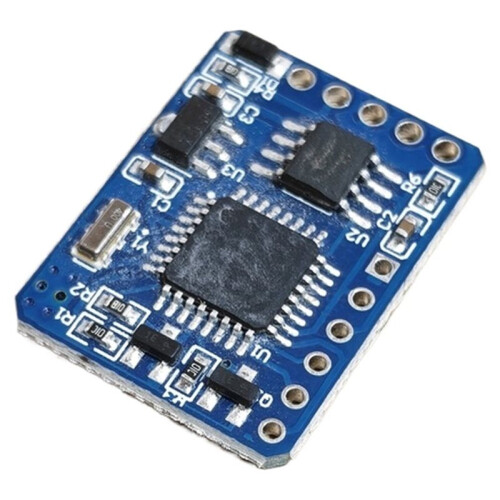

Speed Signal Simulator Module TACHOEMU for , ,

Speed Signal Simulator Module TACHOEMU for , , Popis

With TACHOEMU you can easy solve this problem. The TACHOEMU allows the removal of the factory Tachograph from for , for and for vehicles while retaining the normal operation of the speedometer.
Many for , for and for light commercial vehicles are fitted with digital tachograph (usually digital Actia smartach) . some vehicles, converted for personal use, the Tachograph is an unneccessary annoyance.
Unfortunately, simply removing the Tachograph is not possible because the Tachograph also produces a speed signal for the Engine ECU and speedometer.
Installation guide not included, we strongly recommend you seek professional installation.
Please check as much as possible to make sure the item is what you need.

tachograph skip emulator
compatible with these vehicles:
for : Ducato (2007+);
for : Boxer (2007 +);
for : Jumper (2007+), Relay (2007+);
This tachograph emulator can convert tachograph speed sensor signal to digital signal for instrument cluster speedometer.
How to install:
remove tachograph from car and disconnect all connectors from it;

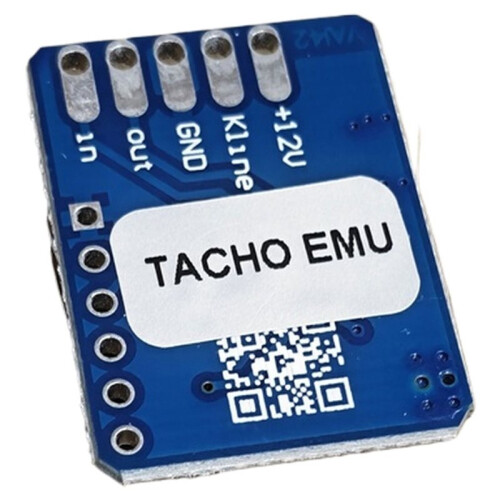

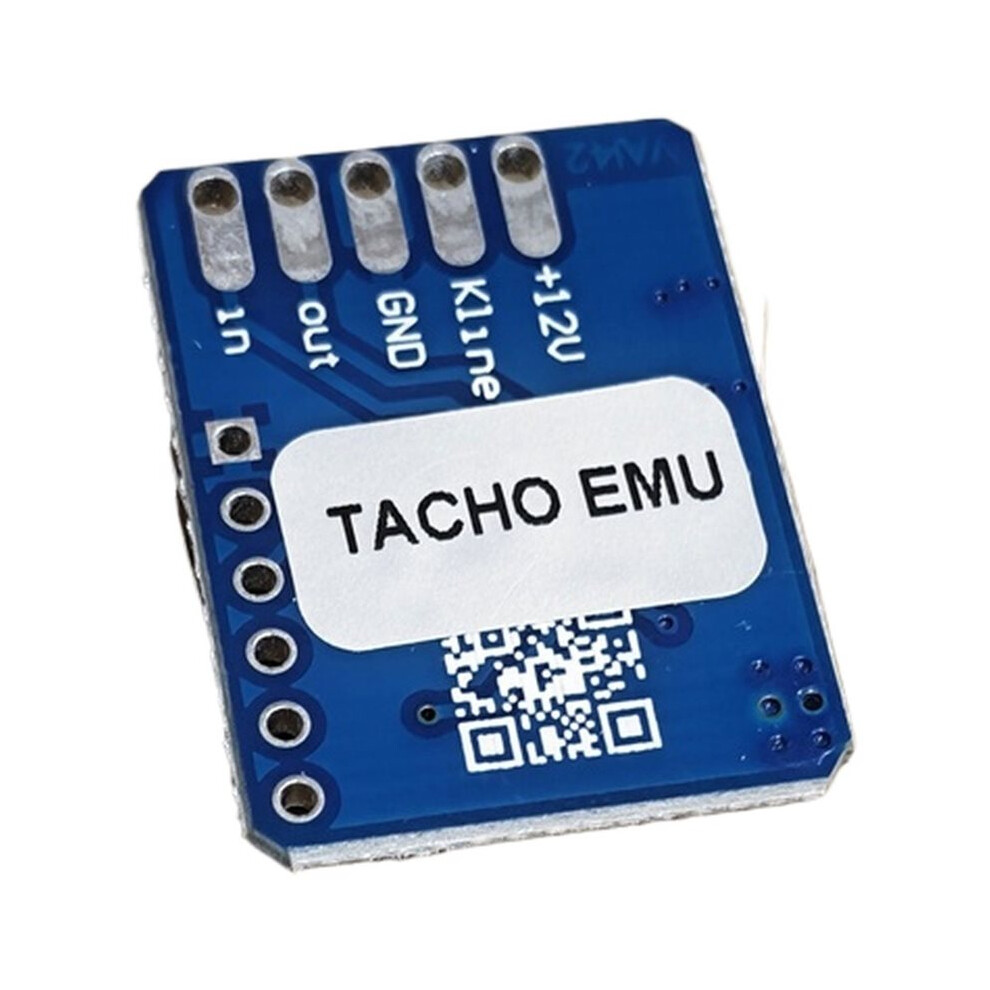

A connector find pin A5 (-Batt), connect it (short wires) with connector B2 (Sensor-) wire and with TACHOEMU pin GND;
A connector find pin A3 (+Ignition 15), connect it (short wires) with connector B1 (Sensor+) wire and with TACHOEMU pin +12V;
wire from pin B3(Speed Signal) connect with TACHOEMU pin out;
wire from pin B7(Speed Out) connect with TACHOEMU pin in;
If speedometer show incorrect speed after TACHOEMU instalation:
You can change K-factor (speed impulse / kilometer) . Connect TACHOEMU to car and make driving test. If vehicle speed not correspond speedometer - change K-factor.
Default programmed TACHOEMU K-factor is 5100 imp/for .
You can change K-
