TOF of Flight Laser Range Sensor Module UART Serial / I2C Port for / Raspberry Pi / ESP32

TOF of Flight Laser Range Sensor Module UART Serial / I2C Port for / Raspberry Pi / ESP32 Popis

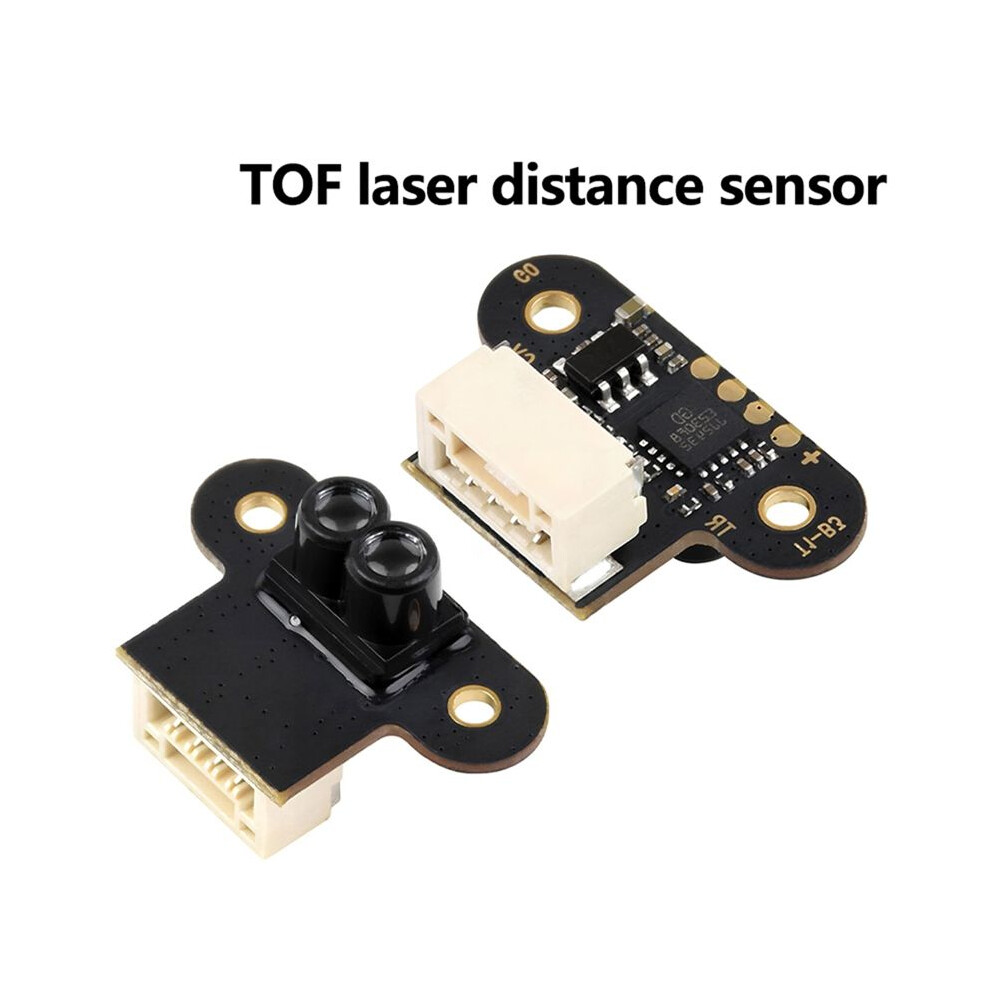

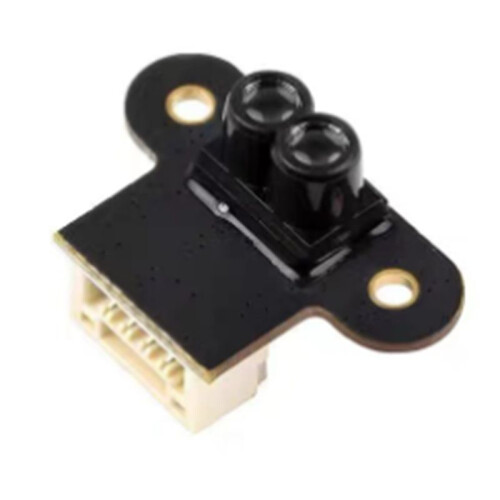

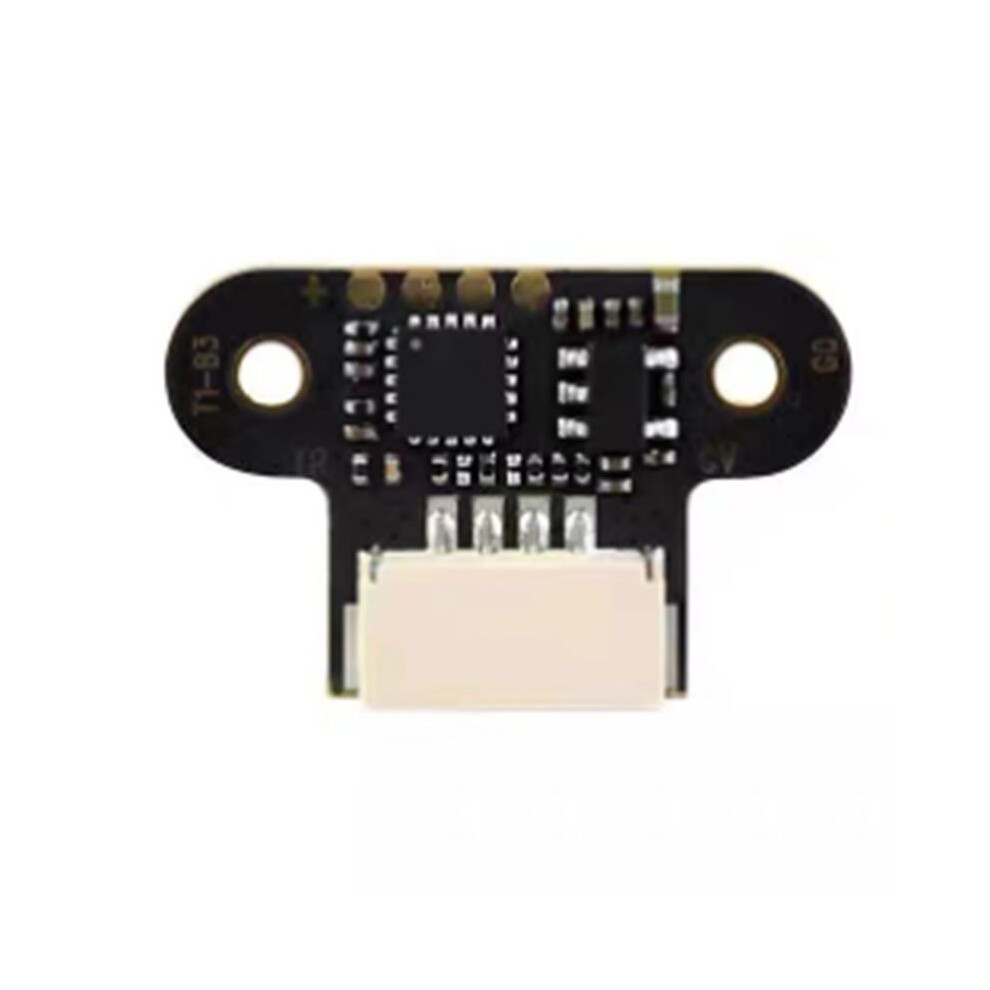

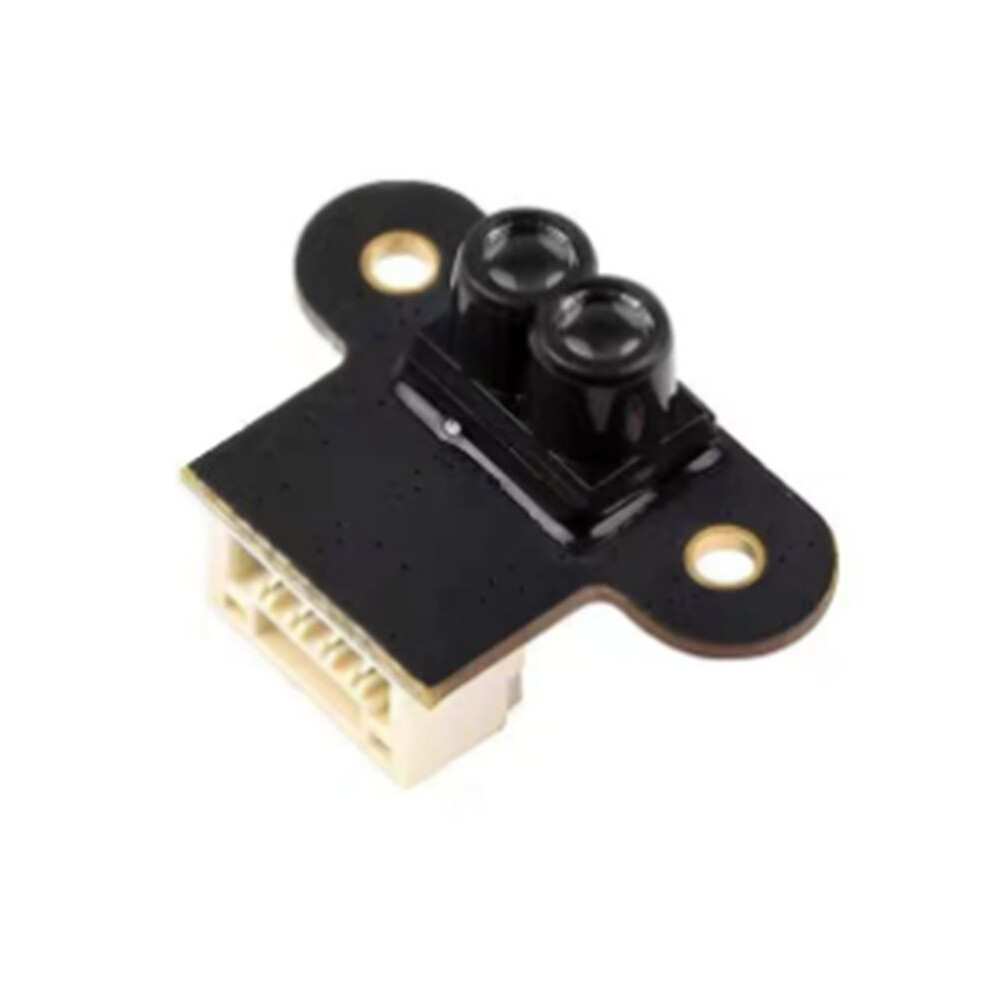

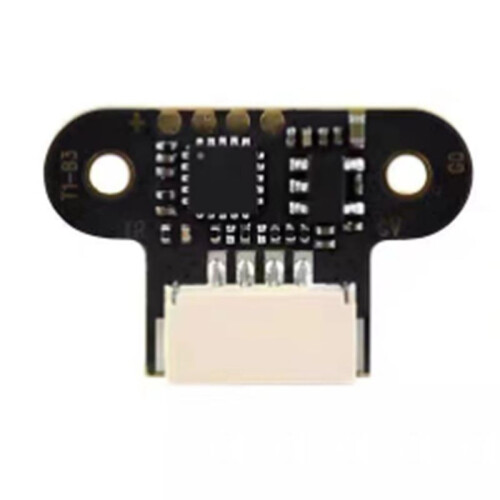

This is a TOF-based ( of flight) laser ranging sensor with embedded MCU and ranging algorithm, which the measuring range is to 7.8m and the accuracy is to 4cm.
It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is to 100K LUX.

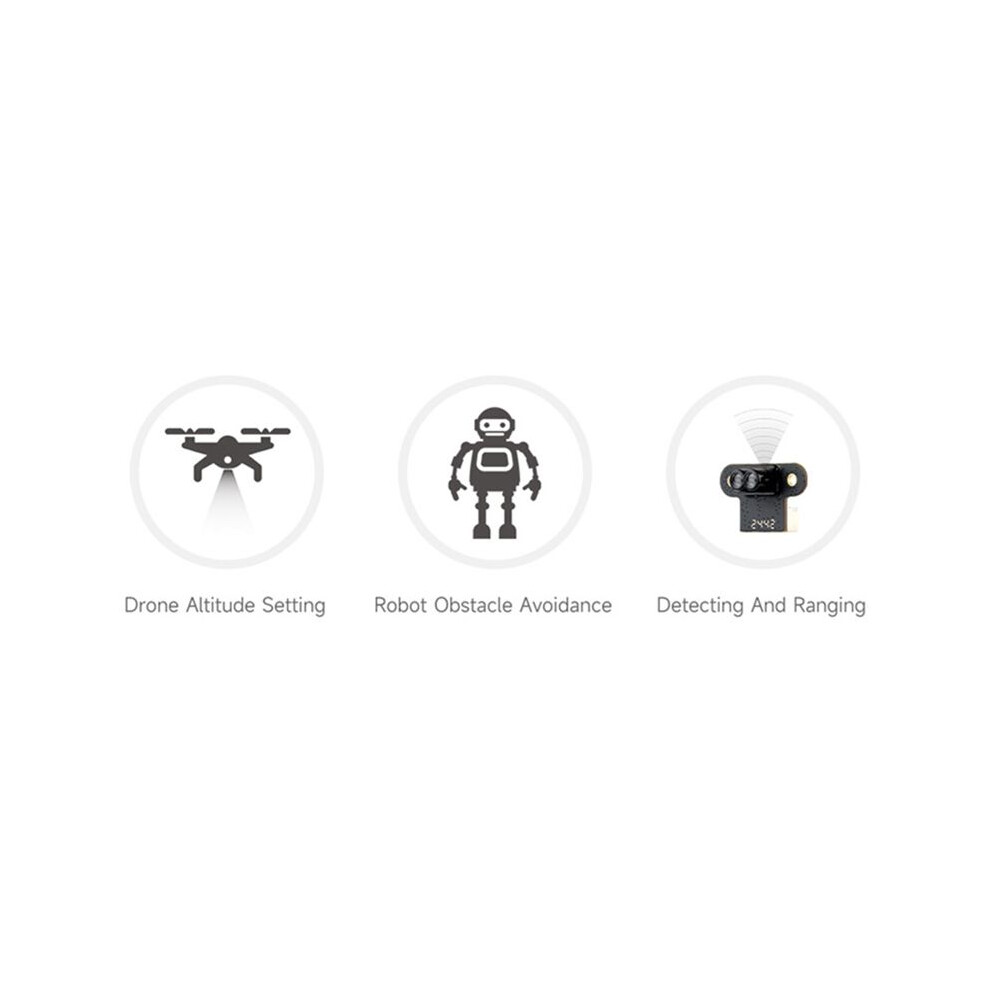

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...
Cost Effective Solution:0.02 - 7.8m Long Range Low Cost Ranging Module,High Stability, High Accuracy, High Sensitivity Ranging

TYPICAL MEASURING RANGE:0.02m -7.8m
WAVELENGTH:940nm
FIELD OF VIEW (FOV):2-3
COMMUNICATION INTERFACE:
Default: UART (3.3V TTL signal level)
12C(cascading support, the slave address is 0x08+module ID)
complementary 1/O level output (distance parameter is not available in thís mode)
BAUDRATE:
UART: 4.8Kbps-3000Kbps (921.6Kbps by default)
12C: to 400Kbps
POWER SUPPLY:4.3-5.2V
Colour:As Shown
Material:PC

Package Contents:
1 x TOF of Flight Laser Range Sensor (Due to different product batches, the appearance may vary, which does not affect the use)
