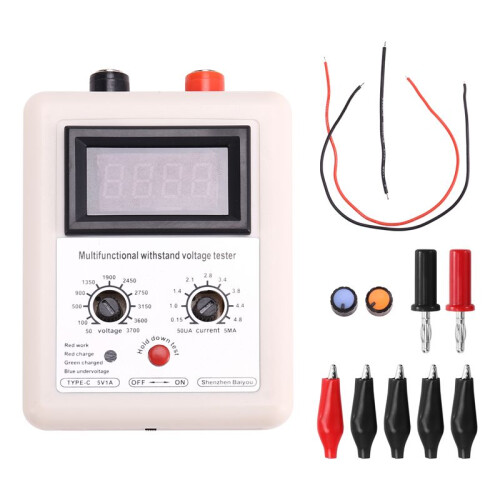

Transistor Voltage Tester 0V-3500V Diode MOS Triode MOV LED Voltage Capability Transistor Withstand Voltage Tester Red

Transistor Voltage Tester 0V-3500V Diode MOS Triode MOV LED Voltage Capability Transistor Withstand Voltage Tester Red Popis

1. It can also test the insulation voltage of objects. For example, insulation voltage testing between the two pins of switches, buttons, and connectors.
2. Compact product
3. Convenient to carry and store
4. Insulation testing between windings is also very convenient, such as for electric motors, power frequency , high-frequency , phase to phase insulation, and insulation testing of the outer shell iron core
5. Widely applicable and measurable: NIMOS/PMOS/IGBT/transistor/unidirectional thyristor/voltage regulator diode/light-emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/electrolytic capacitor/withstand voltage value

Voltage display accuracy: 0.3%
Output voltage error: 50V, resistance error, actual output 3650-3750V
Adjustable output current: 50uA-5mA
Output mode: constant voltage, constant current output
Maximum power of the entire machine: 5
Voltage meter resolution: 0.1V below 100V, 1V above 100V
Battery capacity: 700mA lithium battery
Charging current: 550mA
Charging interface: TYPE-C (red light for charging, green light for full charge)
Charging adapter: 5V1A mobile phone charger can be used for charging
Protection function: 80 over temperature protection (high temperature light)
Lithium battery undervoltage: light when the battery is below 3.3V
the label words the product are random, Cannot be chosen the specific words. The actual product may have slight differences or color differences.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Word Display Colour:Red
Material:plastic

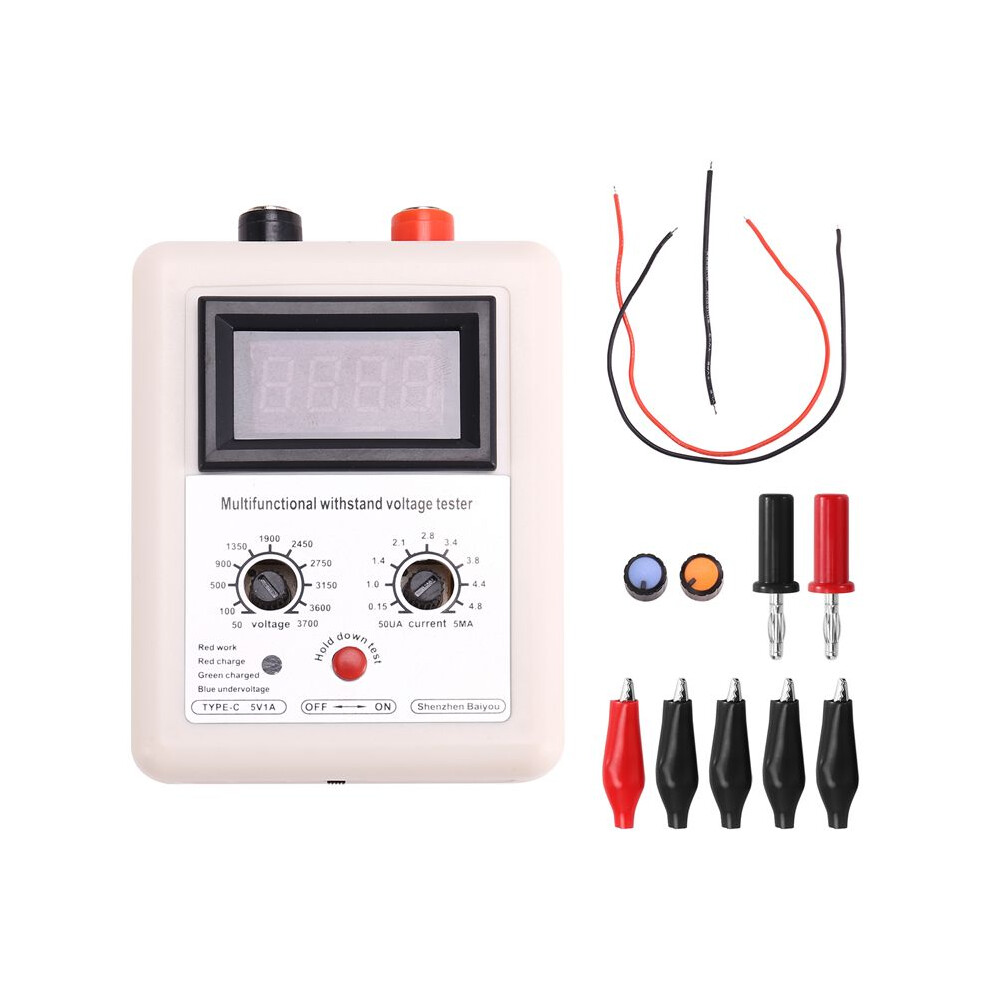

Package Contents:
1 x Tester With accessory
