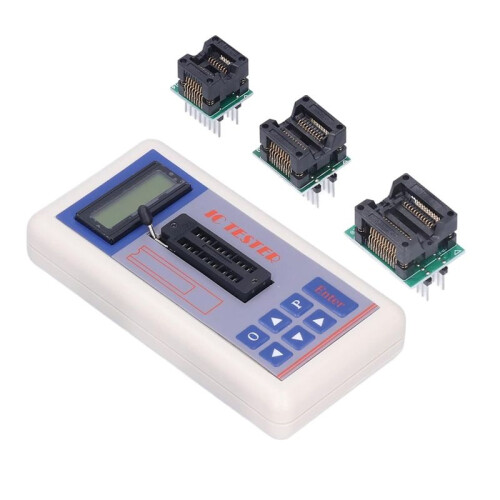

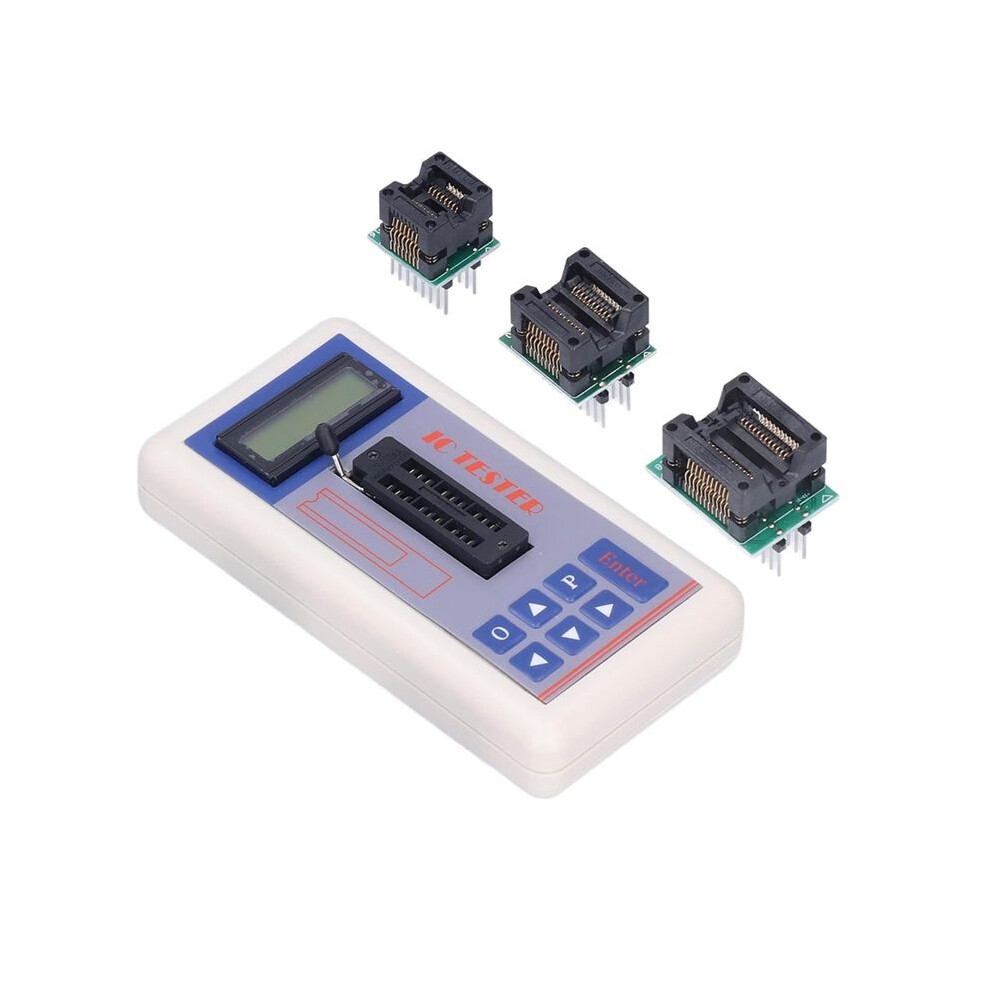

TSH‑06F Integrated Circuit Tester IC Transistor Meter with 5V 3.3V AUTO Modes for Microelectronics Engineers

TSH‑06F Integrated Circuit Tester IC Transistor Meter with 5V 3.3V AUTO Modes for Microelectronics Engineers Popis

Multifunction integrated circuit tester is a professional instrument designed for microelectronics engineers and maintenance personnel. Different test modes can be selected, such as 5V mode, 3.3V mode, AUTO mode, etc.
Test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic transistor identification, voltage regulator voltage identification, etc.
With more than 1,300 types of built in chip data and more than 420 types of transistor data , covering most common devices within 24 pins, greatly reduce workload and improve work efficiency.
Include logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage value test, optocoupler.
The integrated circuit tester will automatically shut down after 60 seconds without any . Small and portable design, suitable for circuit testing.

Item Type: Integrated Circuit Meter
Model: TSH-06F
Battery: 2 x 1.5V AA Battery (Battery Not Included)
Uses: Test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic identification of the most body tube, identification of the voltage value of the voltage regulator tube, etc.
Test Type: Logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage test, optocoupler.
How to Use:
With 7 buttons the panel which are , down, left, right and Enter, and shortcut keys O and P.
and down keys are used to adjust the catalog and change the model number, left and right keys are used to move the cursor left and right to select the item to be changed. Enter key is used to the machine and execute test commands. Open the battery back cover, put in 2p
