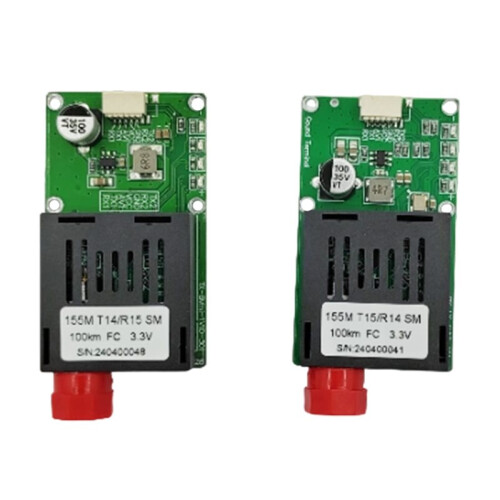

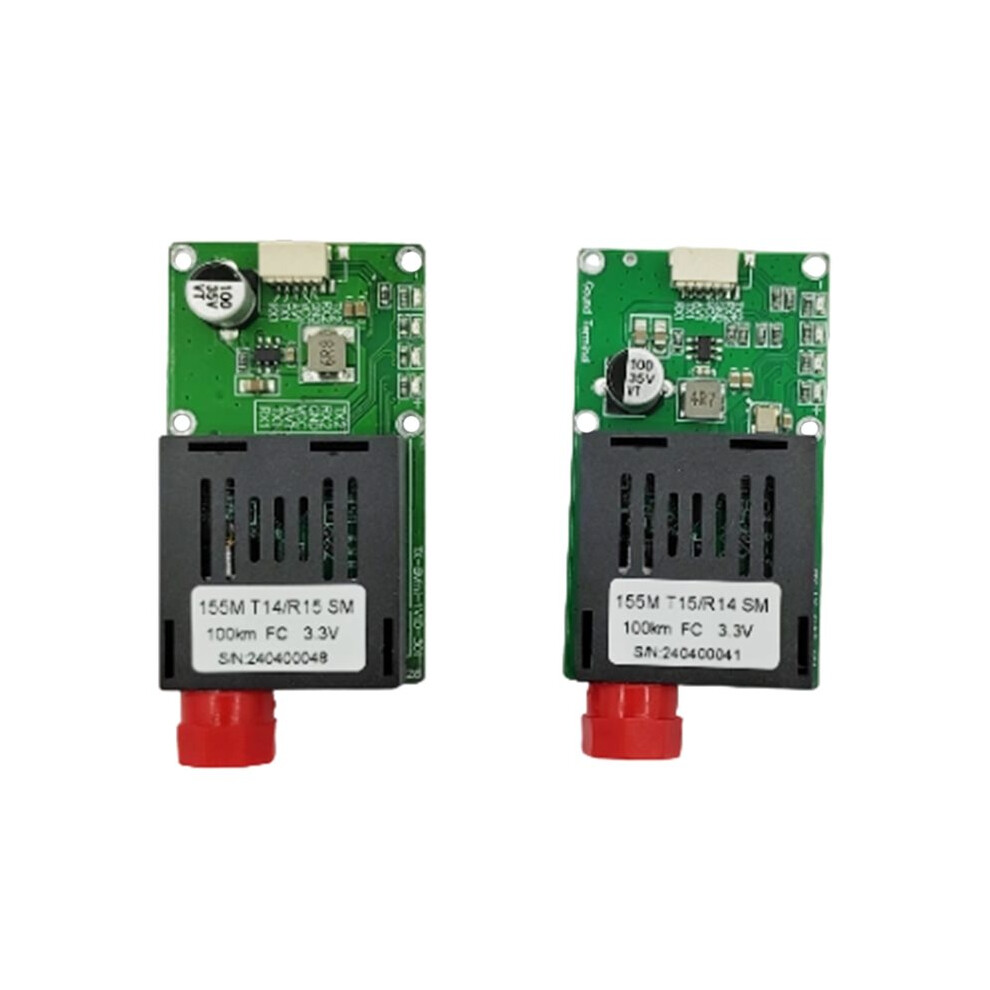

TTL Optical Transceiver Module 100KM Optical End Device Dedicated Optical Port Interface Module UART/SBUS

TTL Optical Transceiver Module 100KM Optical End Device Dedicated Optical Port Interface Module UART/SBUS Popis

The wavelength of the fiber the sky side is 1490nm, The wavelength of the fiber the ground side is 1550nm
The interface is defined as: RX/TX/AV/VCC/GND
RX is connected to the CRSFTX of the flight control, and TX is connected to the CRSFRX of the flight control
The AV the sky side is connected to the AV signal output port of the flight control, and the VCC power supply voltage is 5.5V-26V
The AV the ground side is output to the AV signal input port of the display or VTX, and the VCC power supply voltage is 5.5V-26V

Specifications:
Dimensions: length x width x height - 50mmx30mmx8.5mm:
Power supply: 5.5V-26V: (2S-6S battery)
Power consumption: less than or equal to 5W:
Communication interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port
Fiber optic interface: FC: Communication distance: maximum 100KM
Note: The product indicator lights from top to bottom are: power light, fiber optic light, video light, data light; GND is the ground wire, VCC is the power supply, AV is the video, TX is the TTL signal output, and RX is the TTL signal input.
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color:Green
Material:PC+Plastic

Package Contents:
1 * Transmitter Module
1 * Receiving Module
