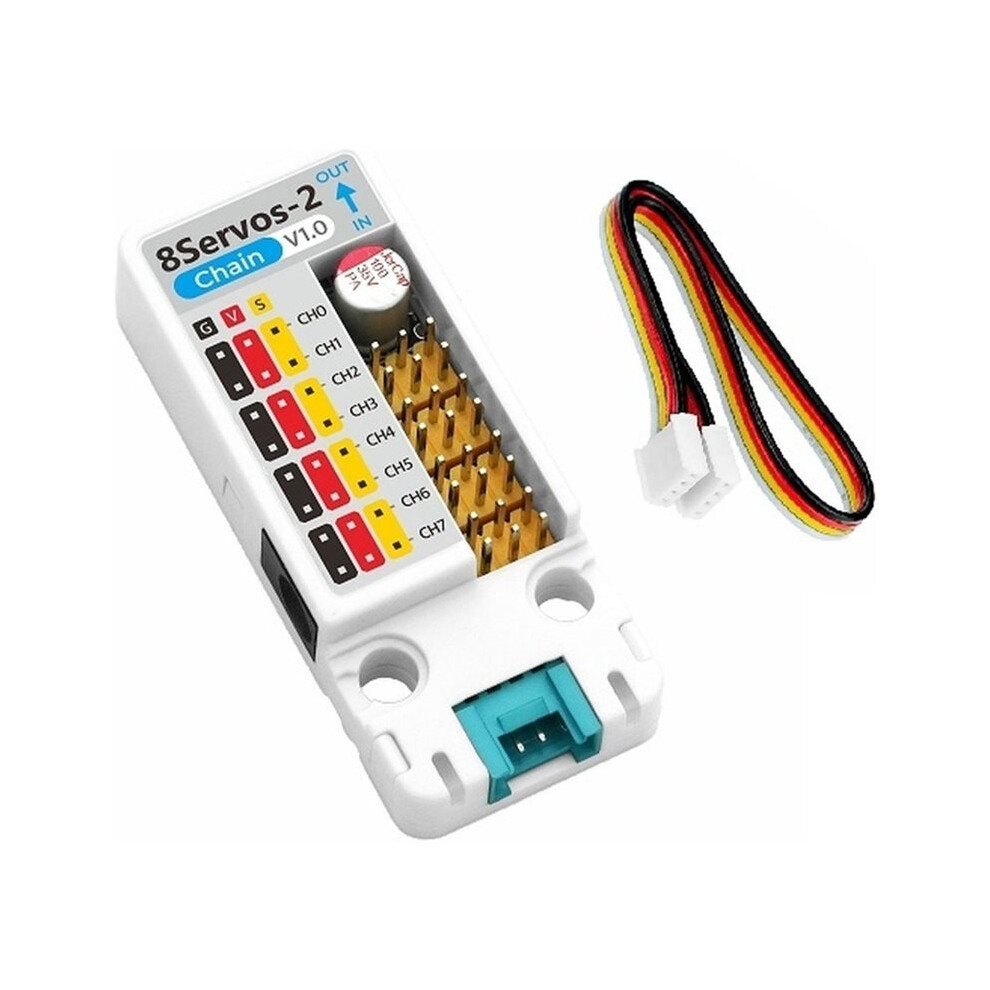

Unit 8Servos2-Chain 8-Channel Servo Cascade Control Unit STM32G031G8U6 Controller UART Communication Interface
Skladem
Proč si zamilujete nakupování na OnBuy:
- Získejte Cashback při každém nákupu – využijte jej okamžitě při další objednávce
- Doprava zdarma – u milionů položek na celém webu
- Zákazníci nás mají rádi – 137,000 recenzí s hodnocením “Vynikající”
Ceny zboží prodávaného na OnBuy jsou zobrazeny včetně DPH.
Možnosti platby bez úroků k dispozici
Zobrazit kompletní popis a podrobnosti o produktu
Doručení: Standardní (121,00 Kč) | stř 4 - pon 9 lis
Prodává: CocoRabbit
Vrácení zboží: 30 dní
180denní ochrana platby
Shrnutí
- Unit 8Servos2-Chain is an 8-channel servo cascade control unit with an integrated STM32G031G8U6 core controller. It adopts a UART communication interface and is compatible with the Chain series UART serial cascade communication protocol.
- It provides 8x configurable IO channels that support configuring multiple operating modes: servo control, digital input/output, ADC input, RGB LED control, and PWM mode.
- Two onboard HY2.0-4P interfaces serve as the input and output interfaces of the Chain series protocol, enabling chained connections of multiple devices. This unit supports DC 9 ~ 24V input and integrates an SY8303AIC step-down circuit to provide a 5V supply, with a maximum total output current of 3A.
- An onboard INA199A1DCKR current detection circuit can sample the total servo current.
- And input voltage and 5V supply voltage sampling circuits, a DC power interface status indicator, and a HY2.0-4P interface undervoltage status indicator are also provided, making it suitable for application scenarios such as multi-servo control, robot joint drive, and smart toys.

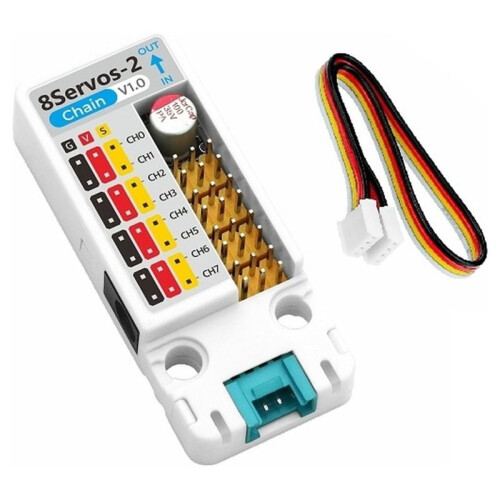

Unit 8Servos2-Chain 8-Channel Servo Cascade Control Unit STM32G031G8U6 Controller UART Communication Interface Popis
Unit 8Servos2-Chain is an 8-channel servo cascade control unit with an integrated STM32G031G8U6 core controller. It adopts a UART communication interface and is compatible with the Chain series UART serial cascade communication protocol.
It provides 8x configurable IO channels that support configuring multiple operating modes: servo control, digital input/output, ADC input, RGB LED control, and PWM mode.
Two onboard HY2.0-4P interfaces serve as the input and output interfaces of the Chain series protocol, enabling chained connections of multiple devices. This unit supports 9 ~ 24V input and integrates an SY8303AIC step-down circuit to provide a 5V supply, with a maximum total output current of 3A.
An onboard INA199A1DCKR current detection circuit can sample the total servo current.
And input voltage and 5V supply voltage sampling circuits, a power interface status indicator, and a HY2.0-4P interface undervoltage status indicator are also provided, making it suitable for application scenarios such as multi-servo control, robot joint drive, and toys.
Status indication
Red indicator: power interface status indicator (lights when the interface voltage is higher than 8.5V)
Green indicator: HY2.0-4P interface undervoltage status indicator (lights when the interface voltage is lower than 4.5V)
Applications
Multi-servo control
Robot joint drive
toys
STEAM education
Specification
MCU: STM32G031G8U6
Configurable IO Channels: 8, supports operating modes: servo control, digital input/output, ADC input, RGB LED, PWM mode
IO Channel Interface: 8 x 2.54-3P
Communication Interface: UART @ Chain Series Communication Protocol (IN / OUT)
Power Input Interface: Input voltage: 9 ~ 24V, spec: 5.5 x 2.1mm, polarity: center positive, outer negative
Step-Down C
Podrobnosti
| OPC | PYQH2FH |
|---|---|
| Kódy | 4711225858319 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 1.3cm |
|---|---|
| Width | 9.3cm |
| Length | 13.8cm |
| Weight | 0.0171kg |
| Colour | White |
| Material | plastic |
