-WIFI Pro with Card-Reader Module Run ESP WebDev Onboard USB to Serial Chip Wireless Transmission for S6 F6 Turbo

-WIFI Pro with Card-Reader Module Run ESP WebDev Onboard USB to Serial Chip Wireless Transmission for S6 F6 Turbo Popis

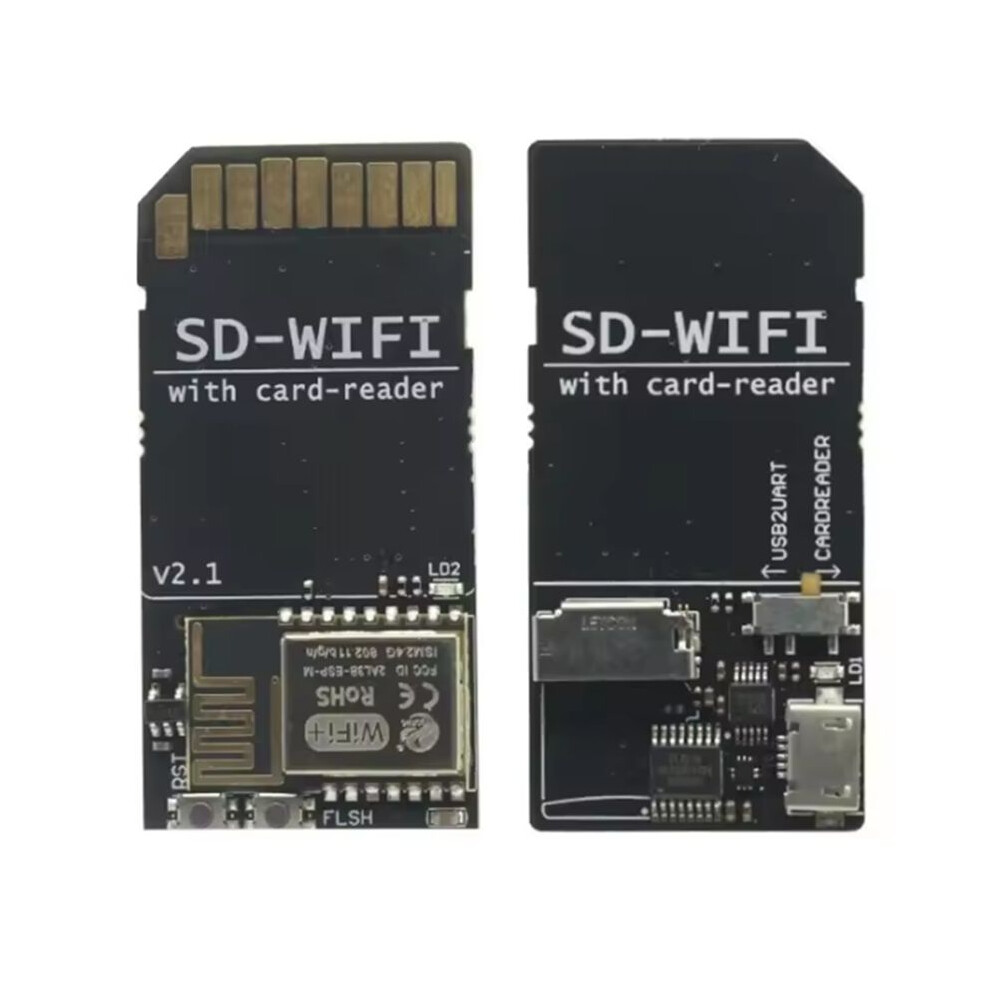

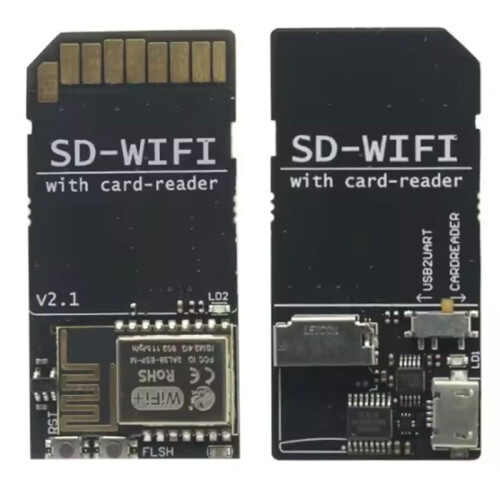

-board card reader (for card reading via USB)
Onboard USB to serial chip (used for wifi configuration via serial port)

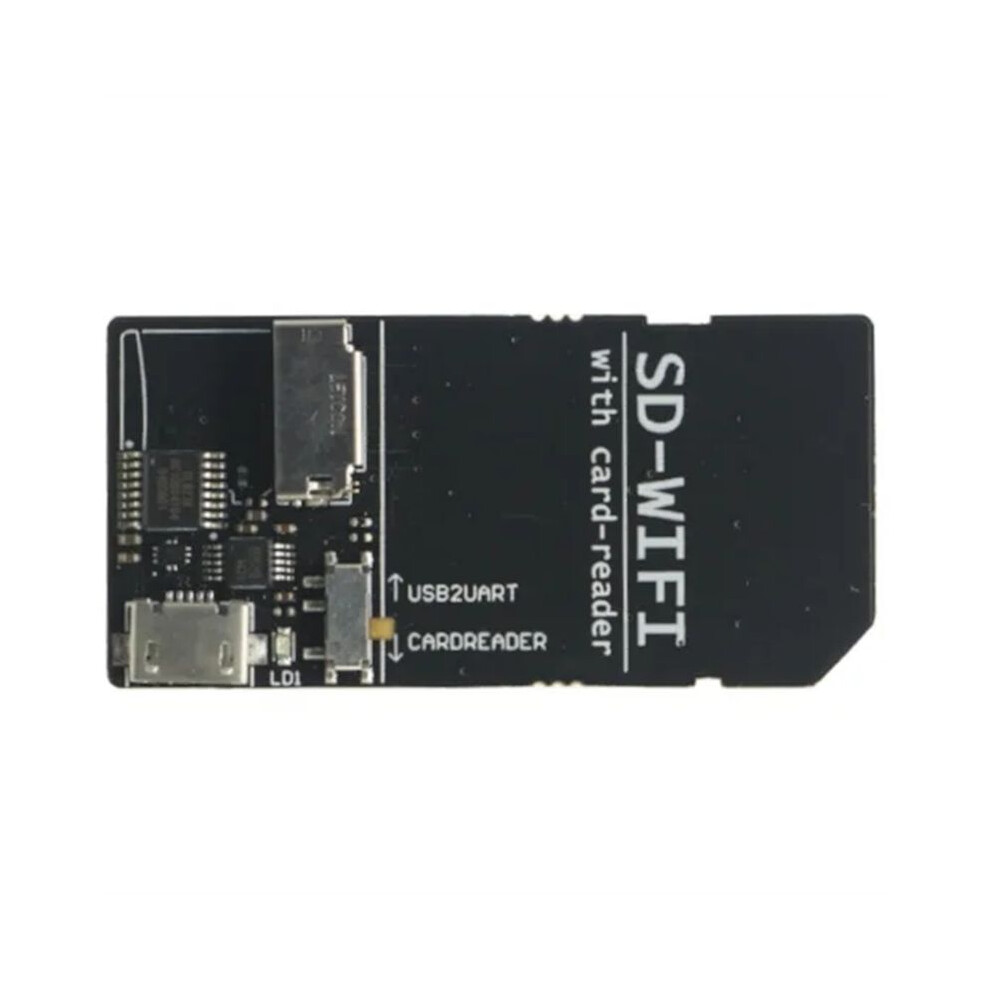

USB toggle (between card reader and serial chip)
3.3V 600mA LDO (used when WIFI module power supply is plugged in USB)

Introduction:

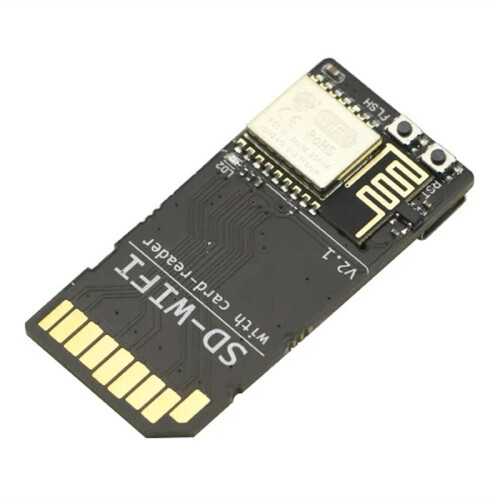

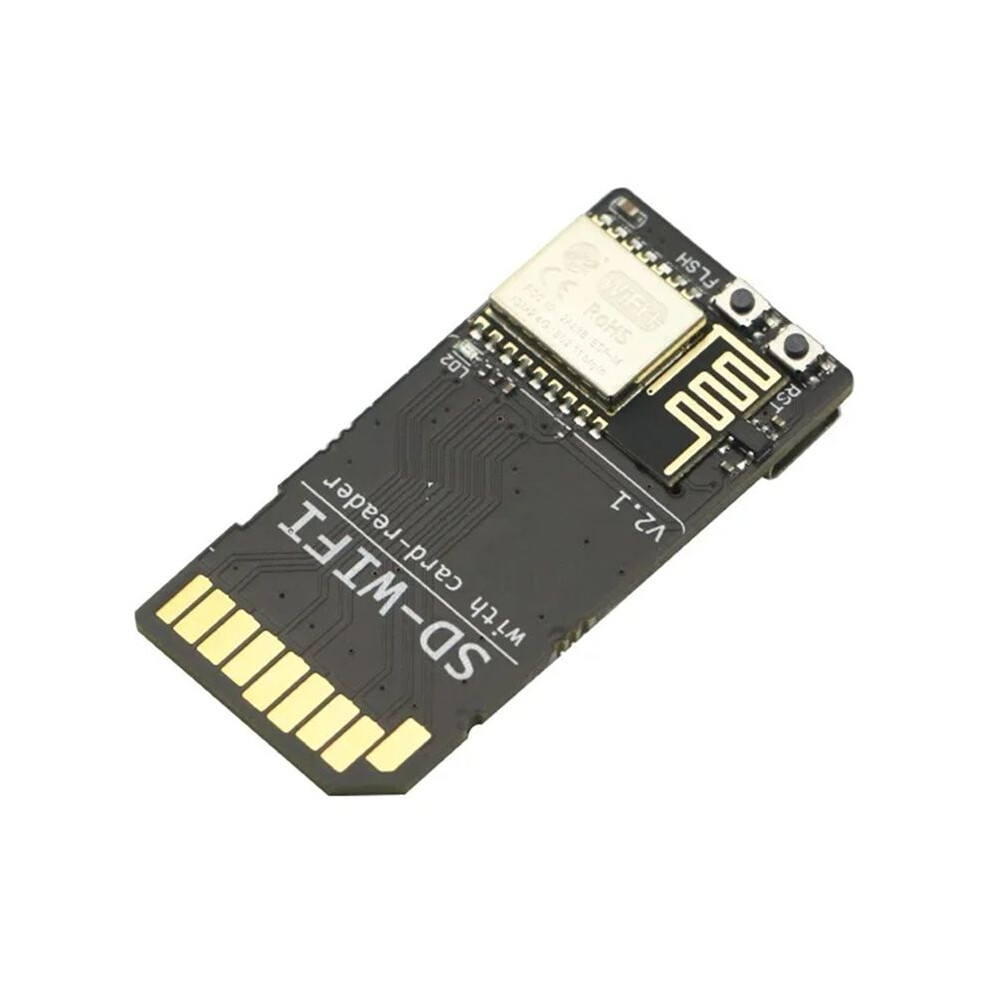

-WIFI is a module that can run ESPwebDev. We made it into the shape of an card so it can be directly inserted into an existing card slot and powered.
You can connect it to the router using the serial command we provided, and then write down the returned IP address.
Then, a WebDAV client like Windows can access the file system the card like a cloud disk and allow remote replication / Paste / delete files card.
If you have used Flash-Air card for , you should understand this method. But Flash-Air cannot be connected to the router because it is running as an AP, and only one device can be connected to it.
For example, if your computer is connected to it, you can no longer connect to the Internet at the same . However, our module is used as a client to access the LAN, and all devices in the network can access it without affecting the connection.
Operating Voltage:3.3V(Via Finger)/5V(Via USB)
USB to serial chip:CH340E
Max Current:600mA
Size:49.5mm x 24mm
Color:As Shown
Material:PCB

Package Contents:

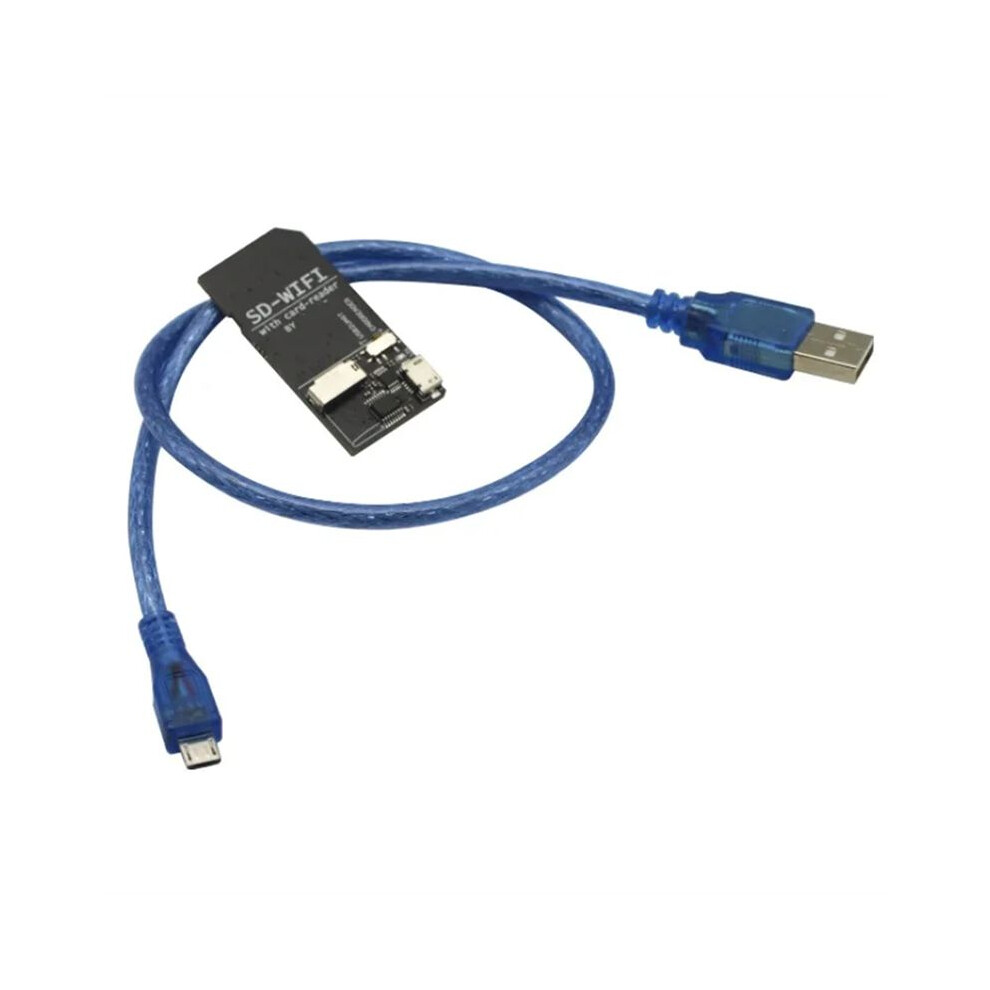

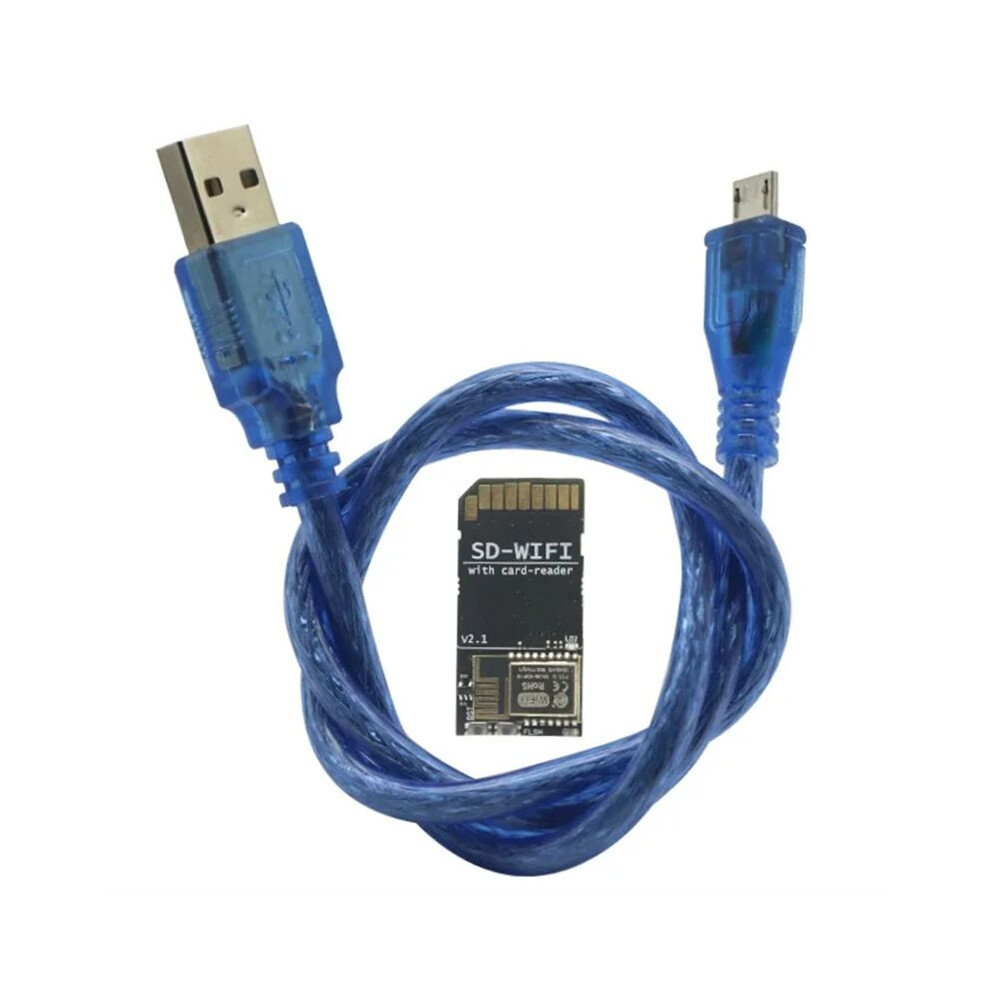

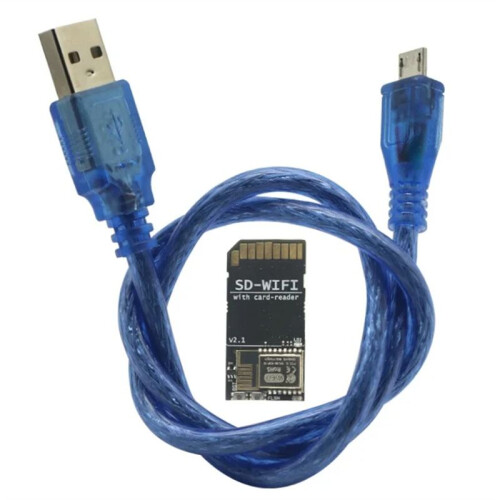

1 * -WIFI card module
1 * data cable
