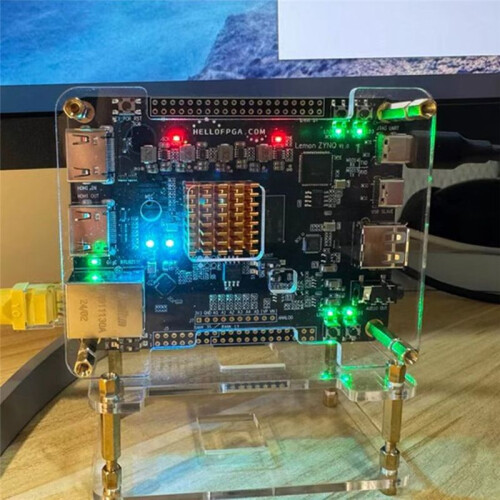

ZYNQ7020 Development Board Can Run PYNQ Image XC7Z020 FPGA Minimum System Board Supports -Compatible
New
6 975,61 Kč
Would you like us to let you know when it's back?
Popis a podrobnosti
Shrnutí
- 1.Industrial-grade ZYNQ7020 chip: XC7Z020 brand new, 8-layer gold-immersion process, stable and reliable
- 2.Rich peripheral resources: 512MB DDR3, TF card slot, 16MB QSPI Flash, Gigabit Ethernet, HDMI output, USB Host/Slave
- 3.Ready to use out of the box: Support for Xillinux, PYNQ images, adapt to third-party IP cores, and all data is open source
- Minimum System Board
- PYNQ Development Board
ZYNQ7020 Development Board Can Run PYNQ Image XC7Z020 FPGA Minimum System Board Supports -Compatible Popis
1.Industrial-grade ZYNQ7020 chip: XC7Z020 new, 8-layer gold-immersion process, stable and reliable
2.Rich peripheral resources: 512MB DDR3, TF card slot, 16MB QSPI Flash, Gigabit Ethernet, output, USB Host/Slave
3.Ready to use out of the box: Support for Xillinux, PYNQ images, adapt to third-party IP cores, and all data is open source
[Hardware Configuration]Master control: Xilinx ZYNQ7020 (industrial grade, PS+PL architecture)
Storage: 512MB DDR3 + 16MB QSPI Flash + 2KB EEPROM
Communication: Gigabit Ethernet (PL end), UART, USB 2.0 (support Host/Device)
Expansion: 68-way PL end GPIO (differential routing), independent BANK voltage regulation
Others: Onboard 50MHz crystal oscillator, ESD static protection, 3 user buttons
Suitable for: FPGA developers, embedded engineers, image processing/communication project development
Color: Black
Material: ABS
Package Contents:
1 x Development Board
Podrobnosti
| OPC | PWTNVCN |
|---|---|
| Kódy | 6032047656333 (EAN) |
| Informace o produktu a bezpečnosti |
Produktová data
| Height | 5cm |
|---|---|
| Width | 15cm |
| Length | 16cm |
| Weight | 0.2565kg |
| Colour | Black |
| Material | ABS |
