1 Pcs 6V 12V 24V 28V 3A 80W Motor Speed Controller & 1 Pcs 12V Delay Relay Turn / Delay Turn Off Module

1 Pcs 6V 12V 24V 28V 3A 80W Motor Speed Controller & 1 Pcs 12V Delay Relay Turn / Delay Turn Off Module Beschreibung

1 pcs Motor Speed Controller & 1 pcs 12V Delay Relay
With 8 shorter selected ranges 0.1 s to 1 hour
Protection against power reversal protection diode, better protection module
Large load current can be accessed (250V AC 10a or 30V 10a)
With delay clockwise potentiometer adjustment, longer adjustment

Motor Speed Controller:
Color: black
Material: ABS,Plastic,metal
Size: 5 x 3.2 x 1.5cm.
The 1203BB Motor Speed Regulator controls the speed of a motor by adjusting Pulse-Width-Modulated (PWM). It provides a continuous current of 3A to your motor or other load. Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of motor by .
The input power range is DC6-28V.
Control the forward or reverse direction and the stop of motor by .
Potentiometer with function.
The cable length 15cm.
Operating instruction
Before you attempting to wire the controller, make sure that the power is off.
1. Connect wires refer to the wiring diagram.
2. Turn the power, and adjust the potentiometer.
3. The LED indicates the and the speed of motor.
Warning: Do not reverse positive and negative power loads. This will damage the controller!
Delay Relay:
Electrical parameter:
Input voltage: 12V
Quiescent dissipation: 5.5 ma
Maximum power consumption: 42mA
colour:
Material: PCB
size: 56x29mm

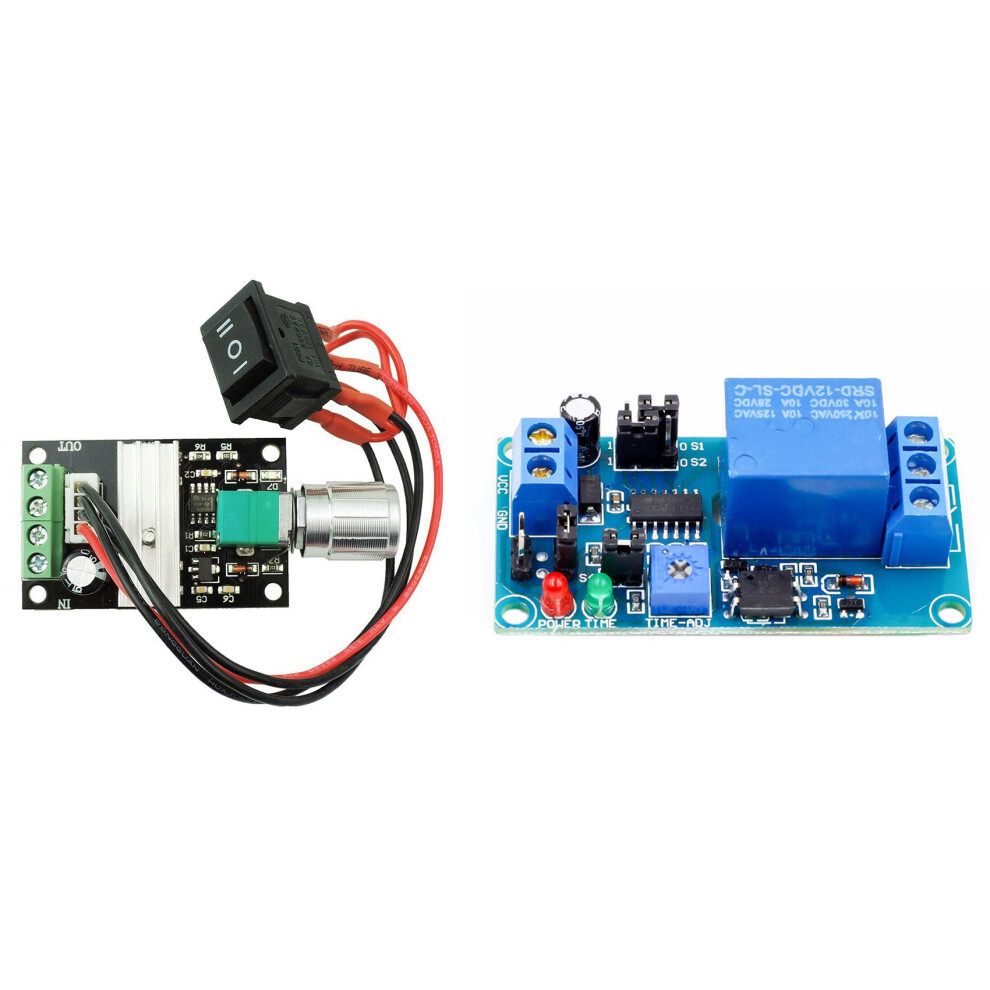

Package Contents:
1 x Motor Speed Controller (PWM)
1 x Delay Relay
