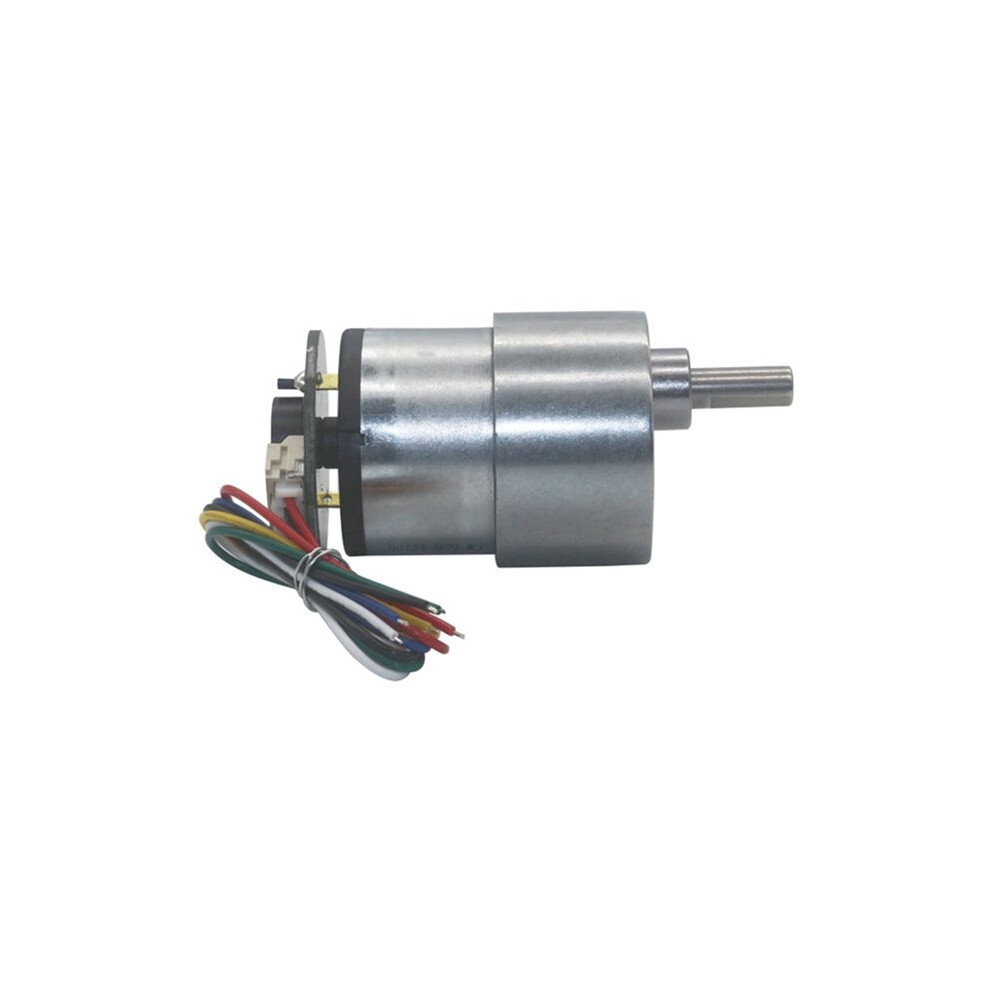

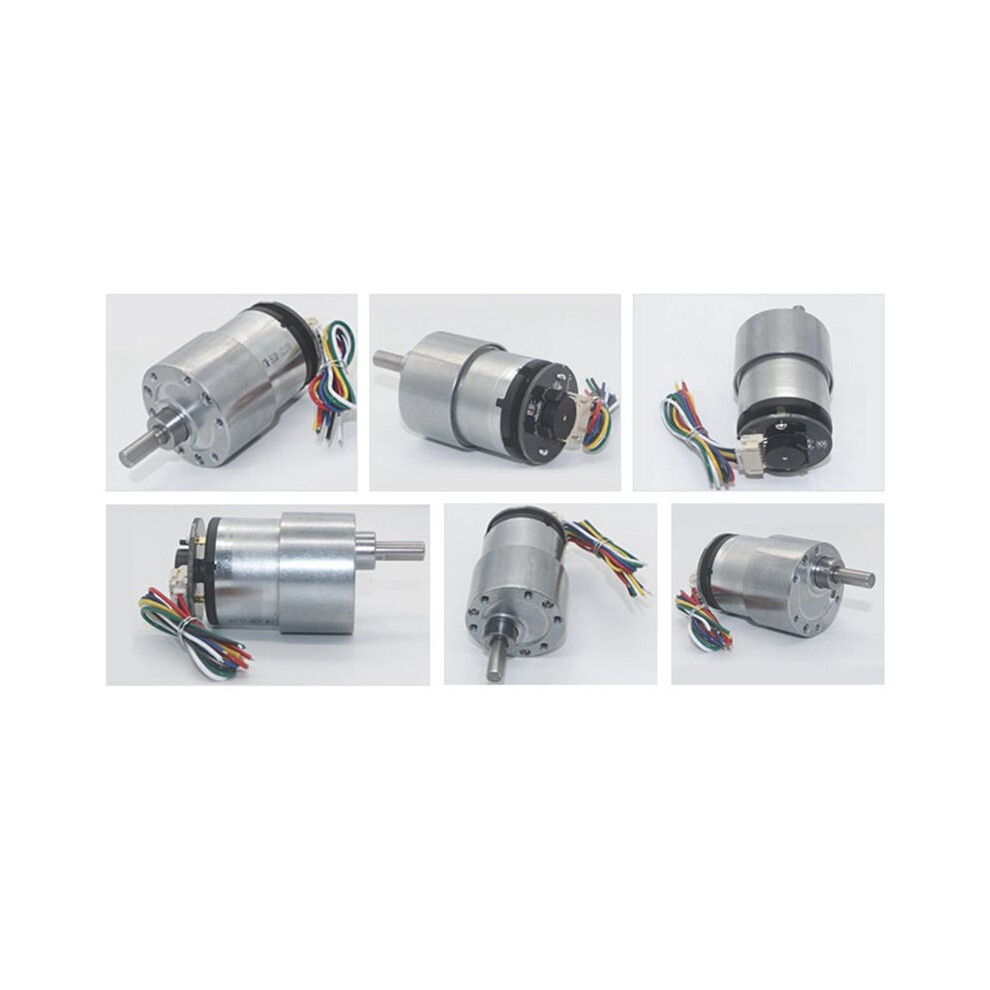

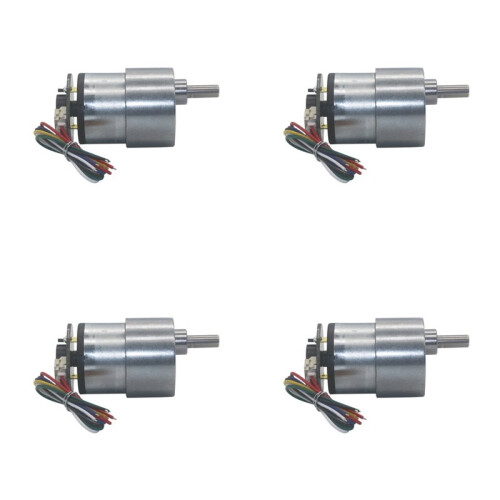

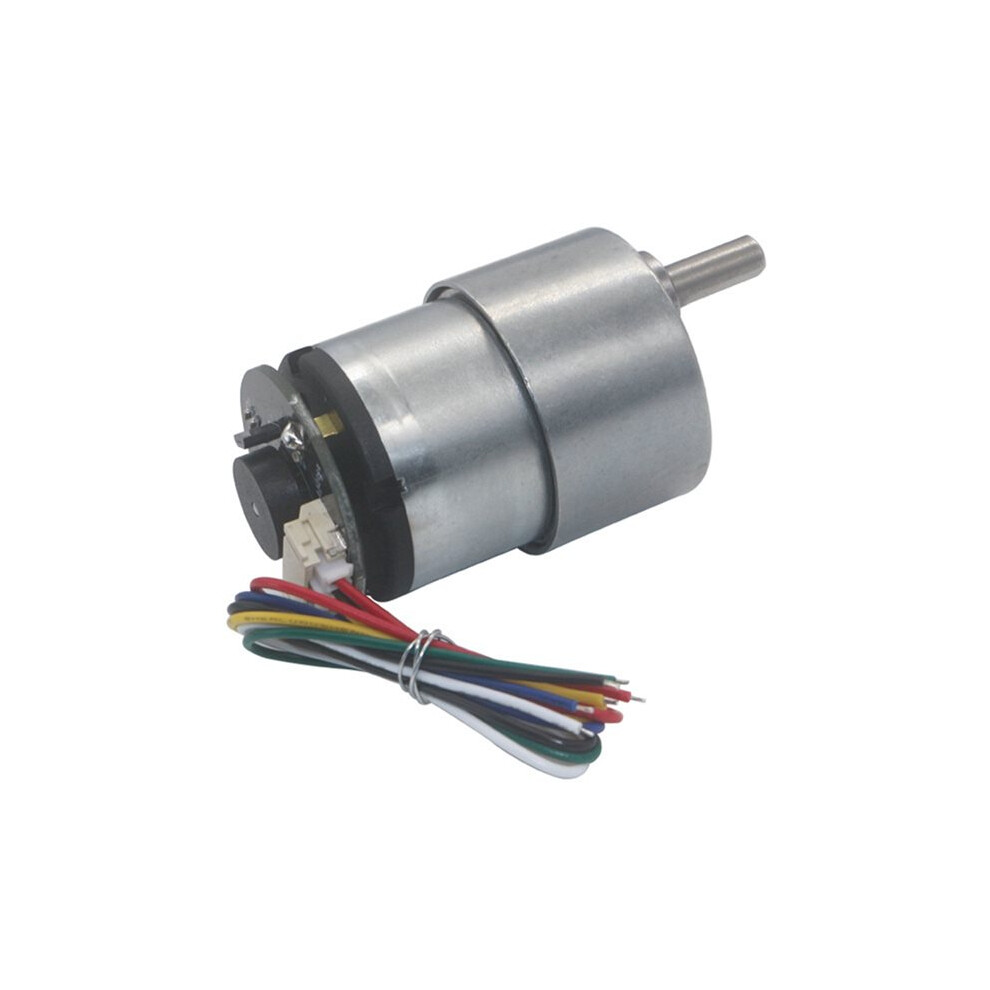

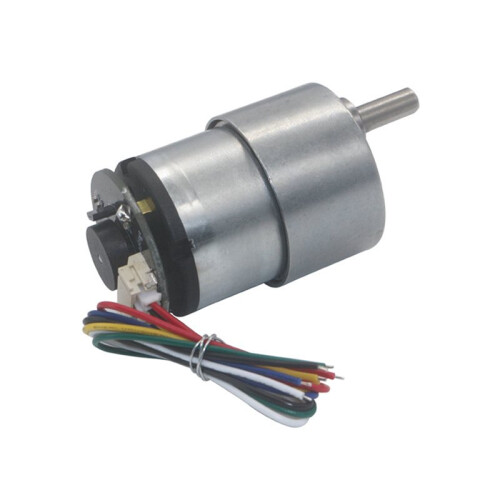

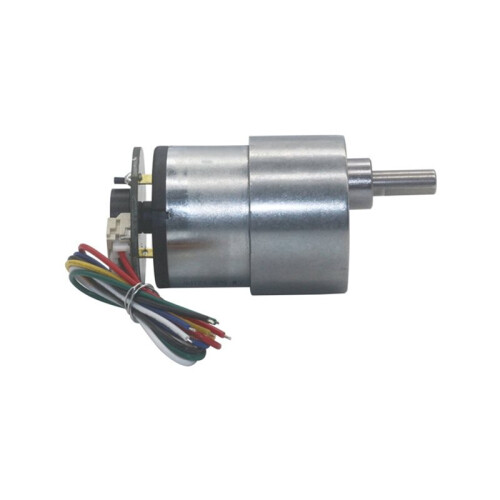

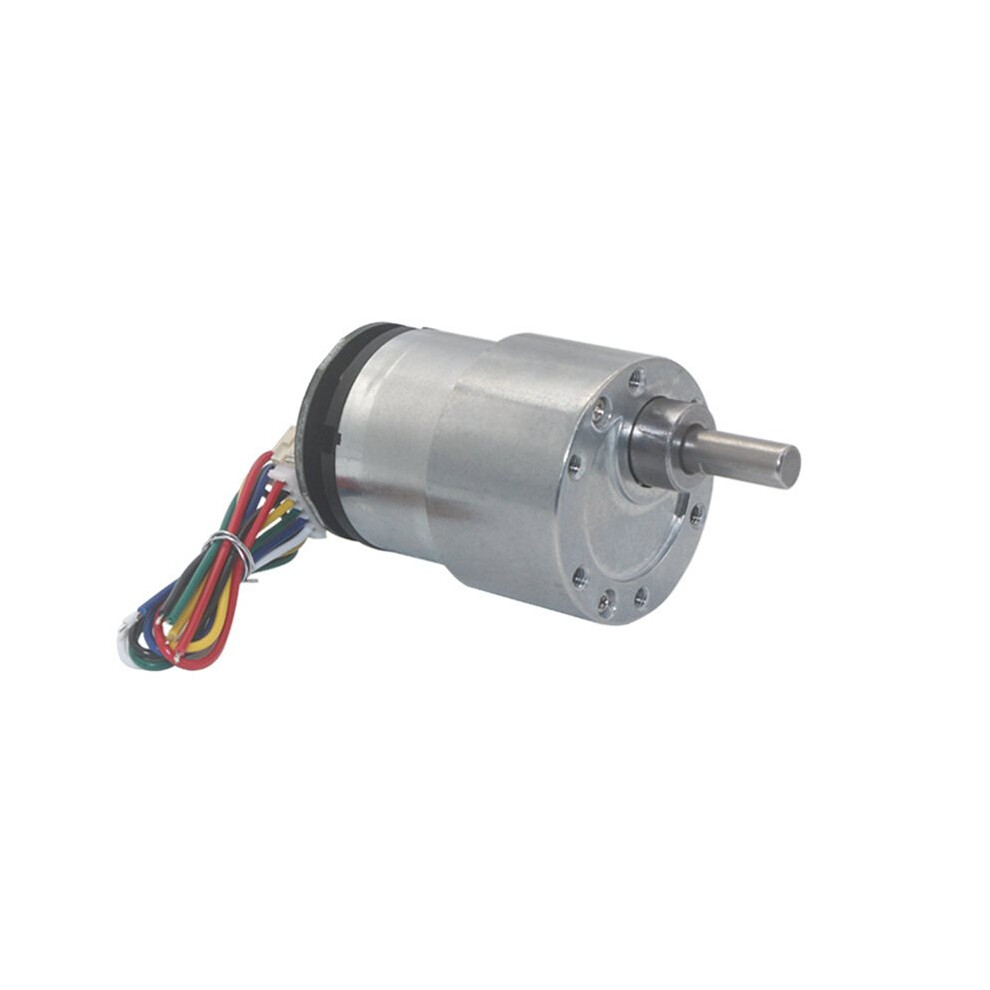

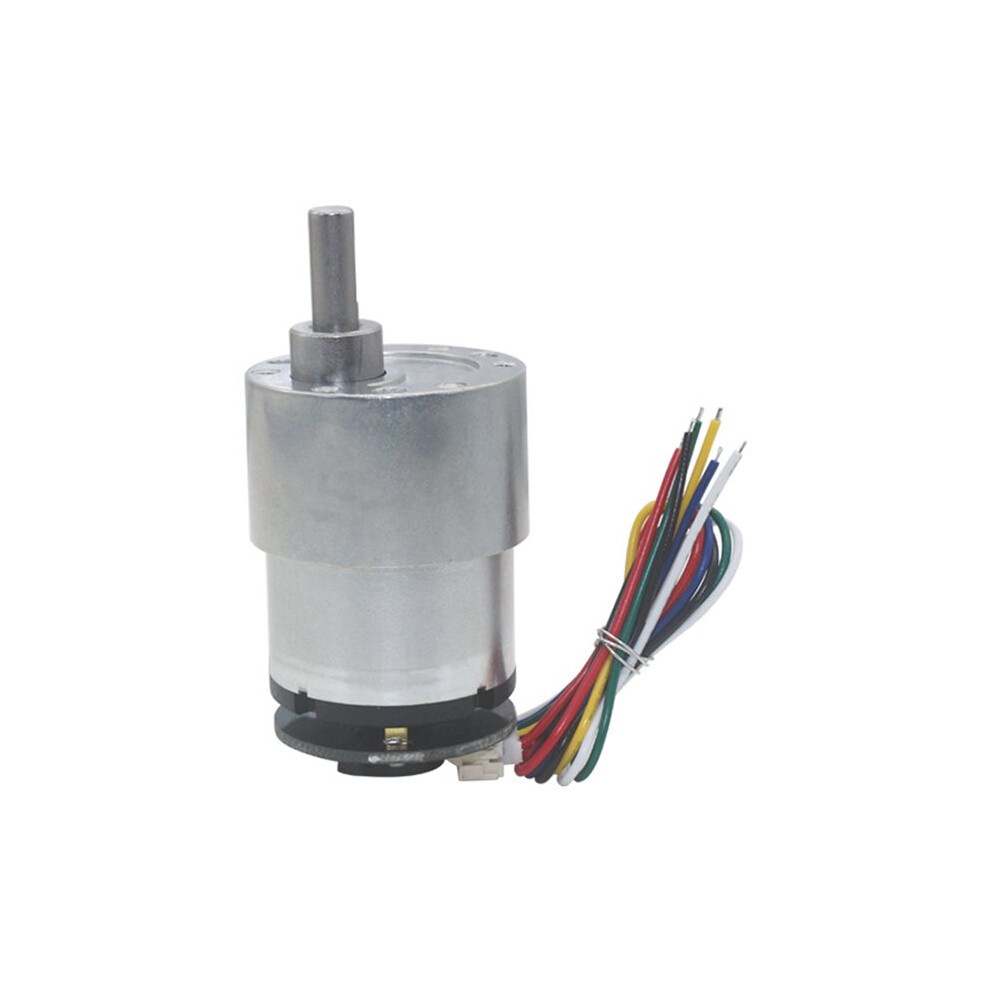

4X JGB37-520 Reduction Motor with Hall Encoder Car Motor DC12V 333RPM for Self Balancing Car with Speed Measurement

4X JGB37-520 Reduction Motor with Hall Encoder Car Motor DC12V 333RPM for Self Balancing Car with Speed Measurement Beschreibung

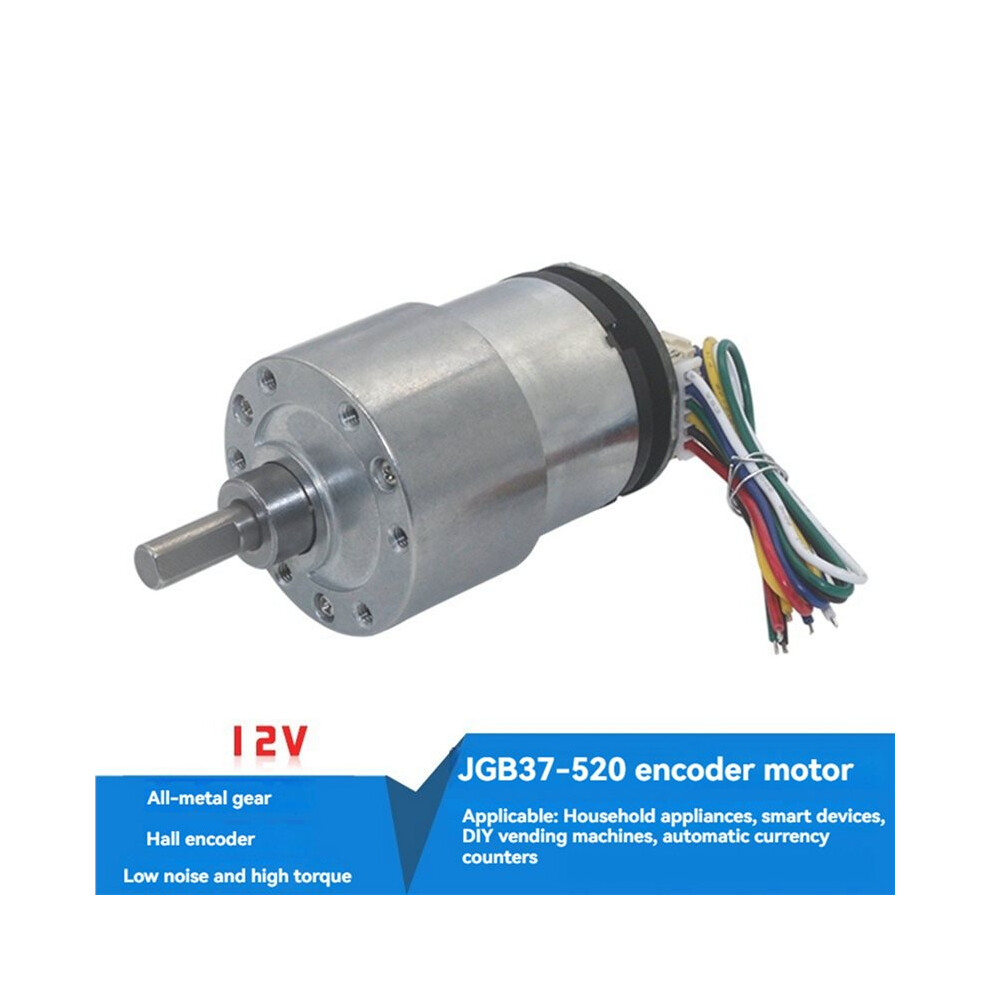

JGB37-520 encoder-equipped geared motor, mainly used in speed measuring vehicles, two-wheeled self-balancing vehicles, racing vehicles, -following vehicles, maze robots, and related fields. The speed encoder uses a Hall encoder for stable performance.

Voltage: DC12V
No-Load Speed: 333rpm
Reduction ratio (gear ratio): 30
No-load current MA: 120
Rated torque Kg,cm: 3.5
Rated speed rpm: 250
Rated current A: 1
Maximum torque: 5.0
Stopping current A: 2.3
[Shaft Length]15.5mm, D-length 12mm
[Shaft Diameter]6mm, D-shaped shaft
[Voltage]Operating voltage 6V-12V

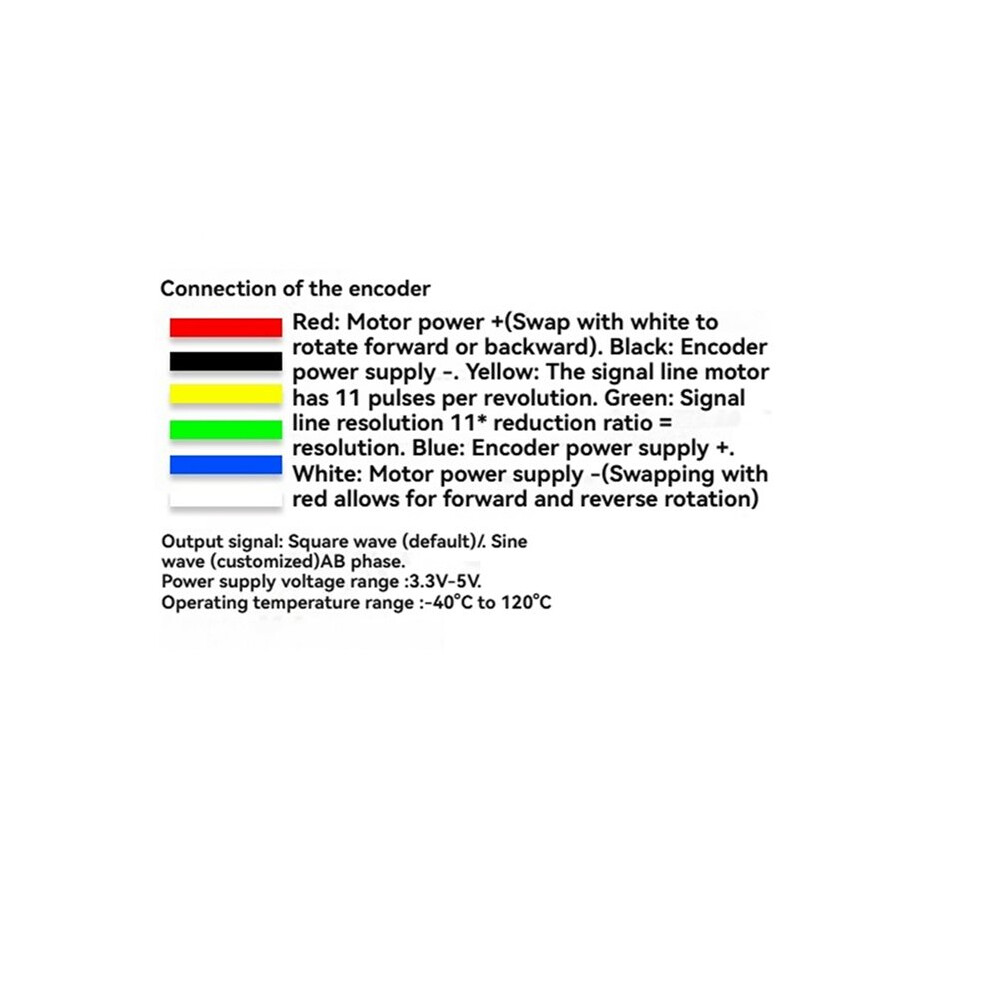

[Wiring Method]--Also marked the encoder disc
1. M1 Motor power interface
2. GND Encoder power negative input port
3. C1 Encoder A-phase output
4. C2 Encoder B-phase output
5. 3.3V Encoder power positive input port (compatible with 3.3V and 5V)
6. M2 Motor power interface
Color: Silver
Material: Metal

Package Contents:

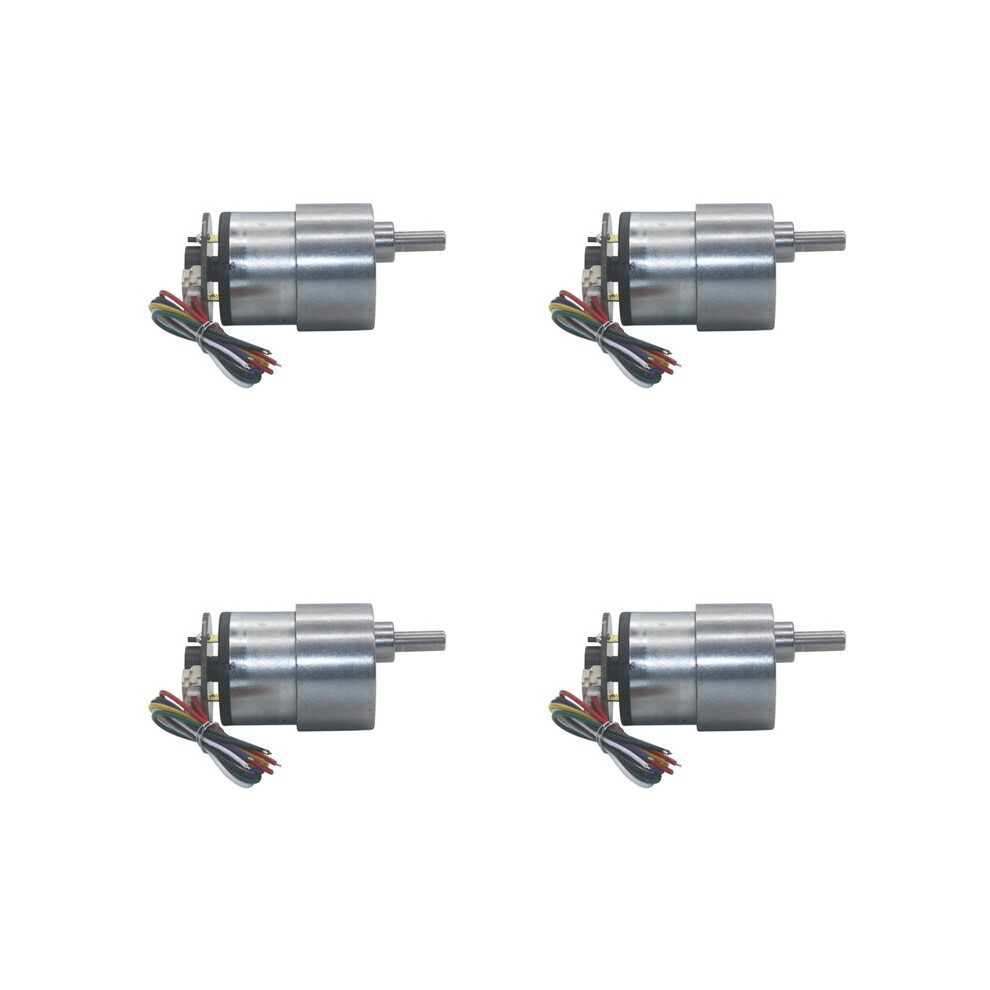

4 x Gear Motor
