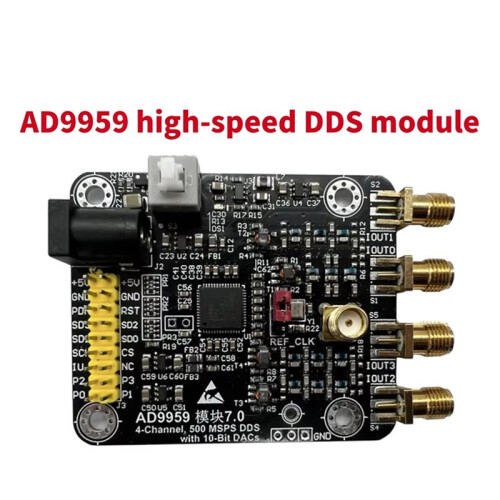

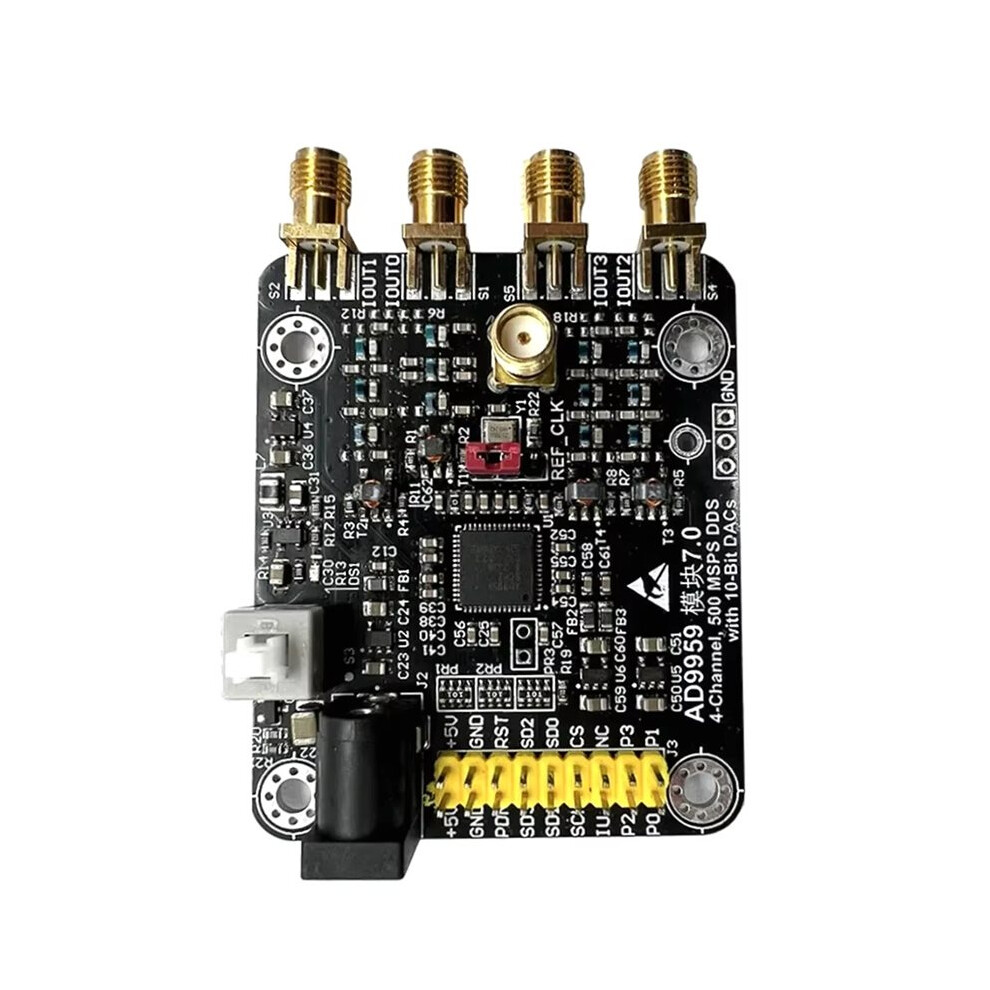

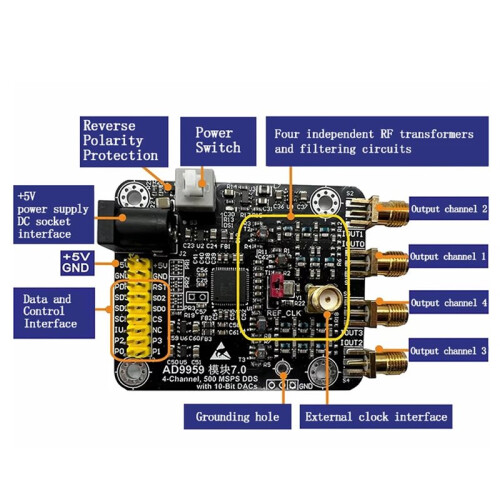

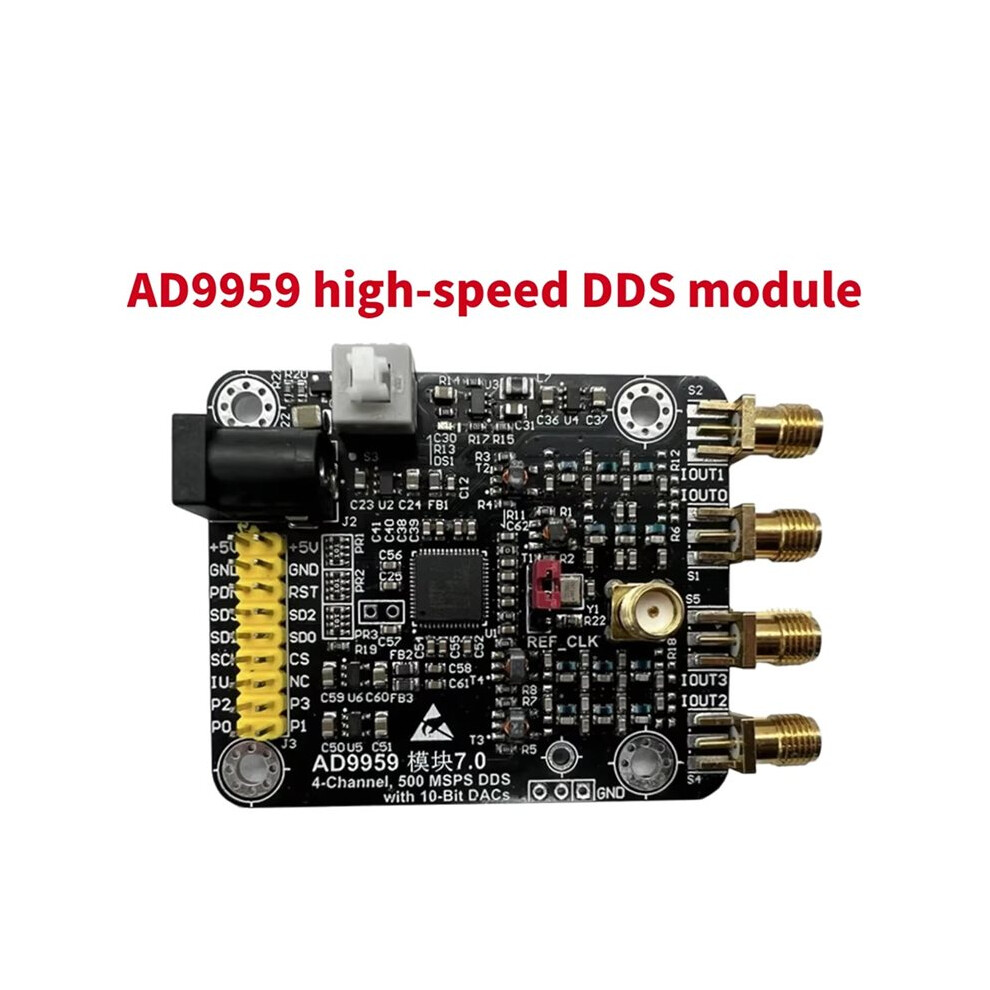

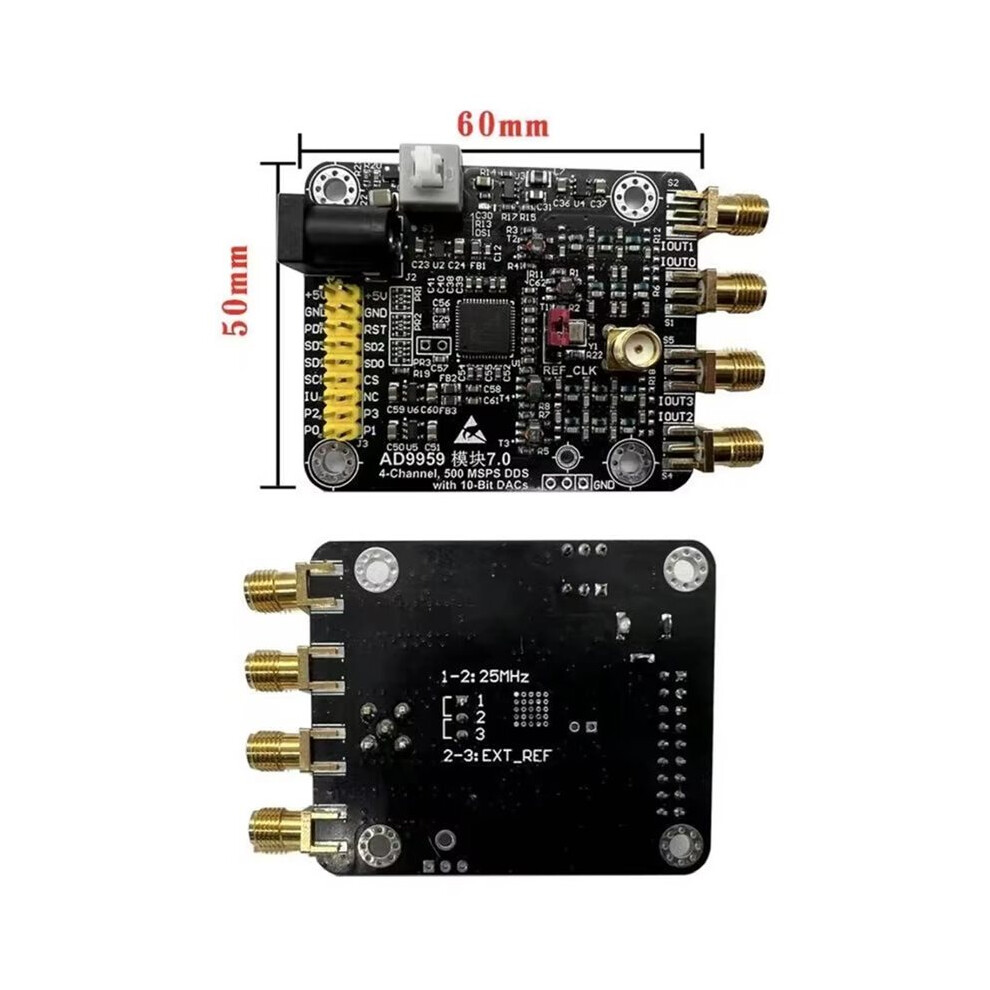

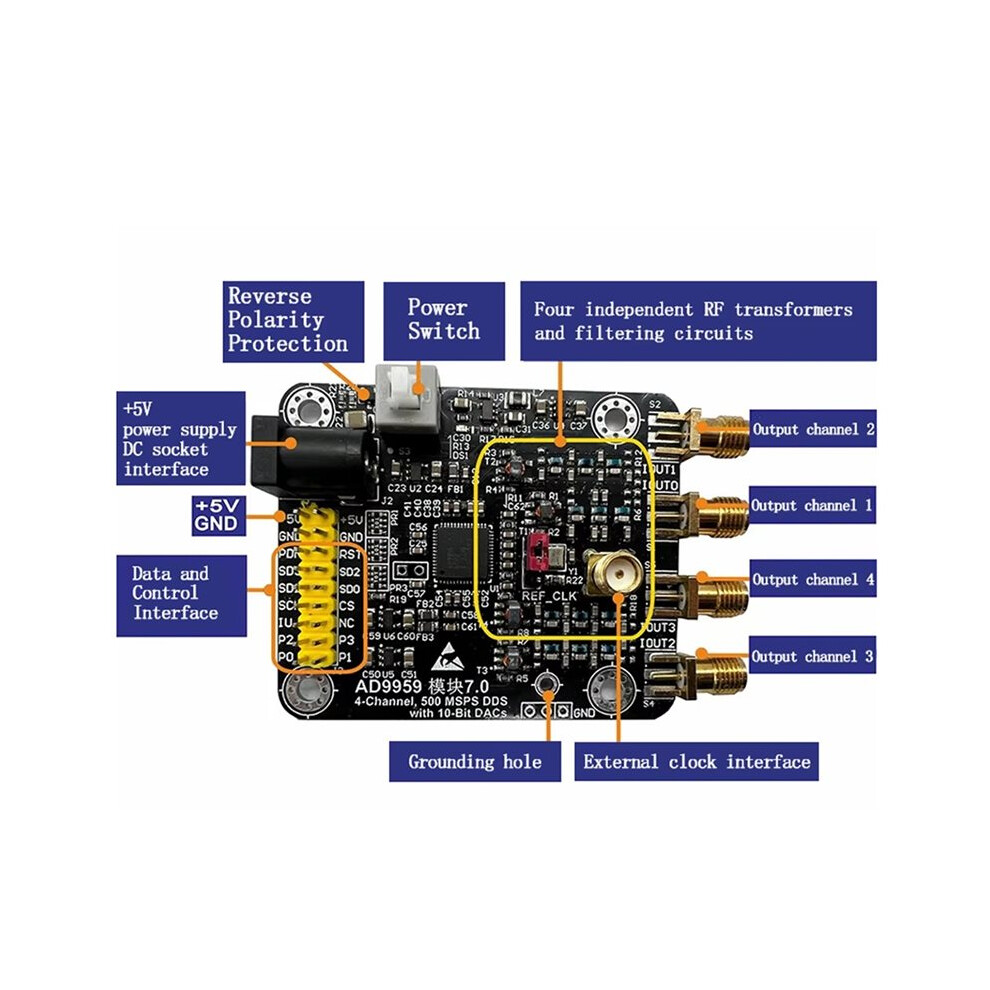

OpenSourceSDRLab AD9959 Module, High-Speed DDS Module, Four Channels, 200M with 4 RF , Signal Generator

OpenSourceSDRLab AD9959 Module, High-Speed DDS Module, Four Channels, 200M with 4 RF , Signal Generator Beschreibung

Four independent DDS cores for flexible frequency, phase, and amplitude control
High-speed 10-bit DAC for each channel ensuring high-quality signal output
Dedicated 32-bit frequency control word for precise frequency generation
Supports to 16 orders of frequency, phase, or amplitude modulation (FSK, PSK, ASK)
Synchronization across multiple devices with a common system clock, linear frequency, amplitude, or phase scanning capabilities
The AD9959 consists of four direct digital frequency synthesizer (DDS) cores, each of which can provide independent frequency, phase, and amplitude control (i.e. adjustable). Each channel is equipped with an independent high-speed 10 bit DAC, a dedicated 32-bit frequency control word, a 14 bit phase offset, and a 10 bit output proportional multiplier. Can be used to correct imbalances between signals caused by analog processing such as filtering, amplification, or PCB layout mismatches. AD9959 can perform linear frequency, amplitude, or phase scanning suitable for applications such as and instrumentation.
Color: Black
Material: Metal + PCB

Package Contents:
1*AD9959 Module
