0.1-6GHz RF SP4T RF High Isolation 1/4 Microwave Electronic RF

0.1-6GHz RF SP4T RF High Isolation 1/4 Microwave Electronic RF Beskrivelse

Microwave , also known as radio frequency , realizes the function of controlling microwave signal channel conversion. This module adopts SP4T single-pole four-throw mode to realize the switching of four-way signals.
Because of its low insertion loss, wide frequency band, and high isolation, it is widely used In communication system equipment, CNC structures are used Shell, easy to install, stable and reliable performance.

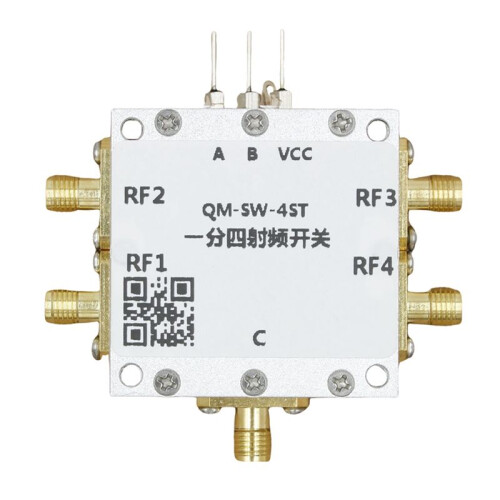

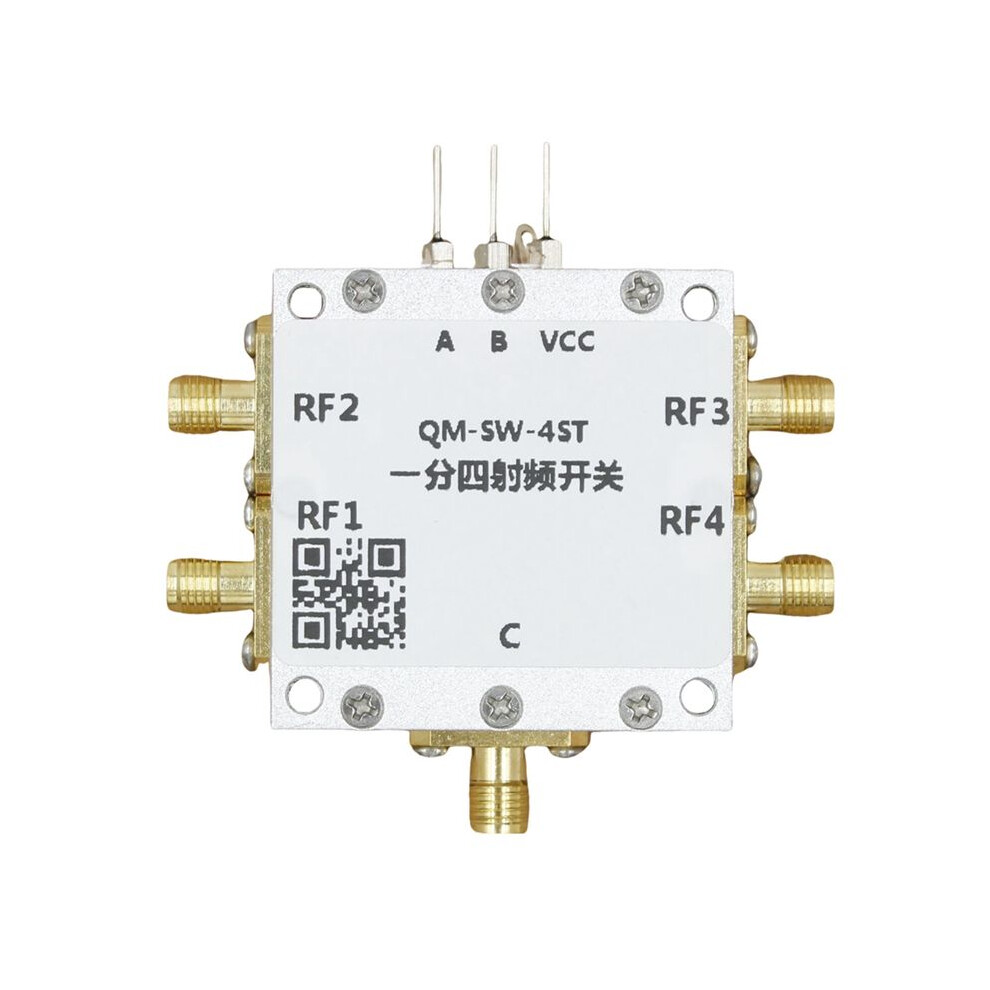

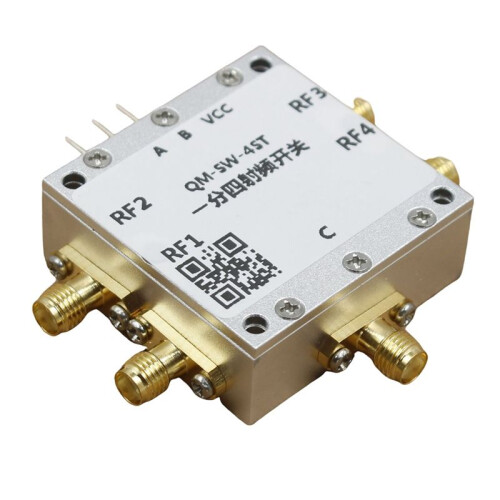

Model:QM-SW-4ST
Working frequency:0.1-6G
Working mode:choose four from one

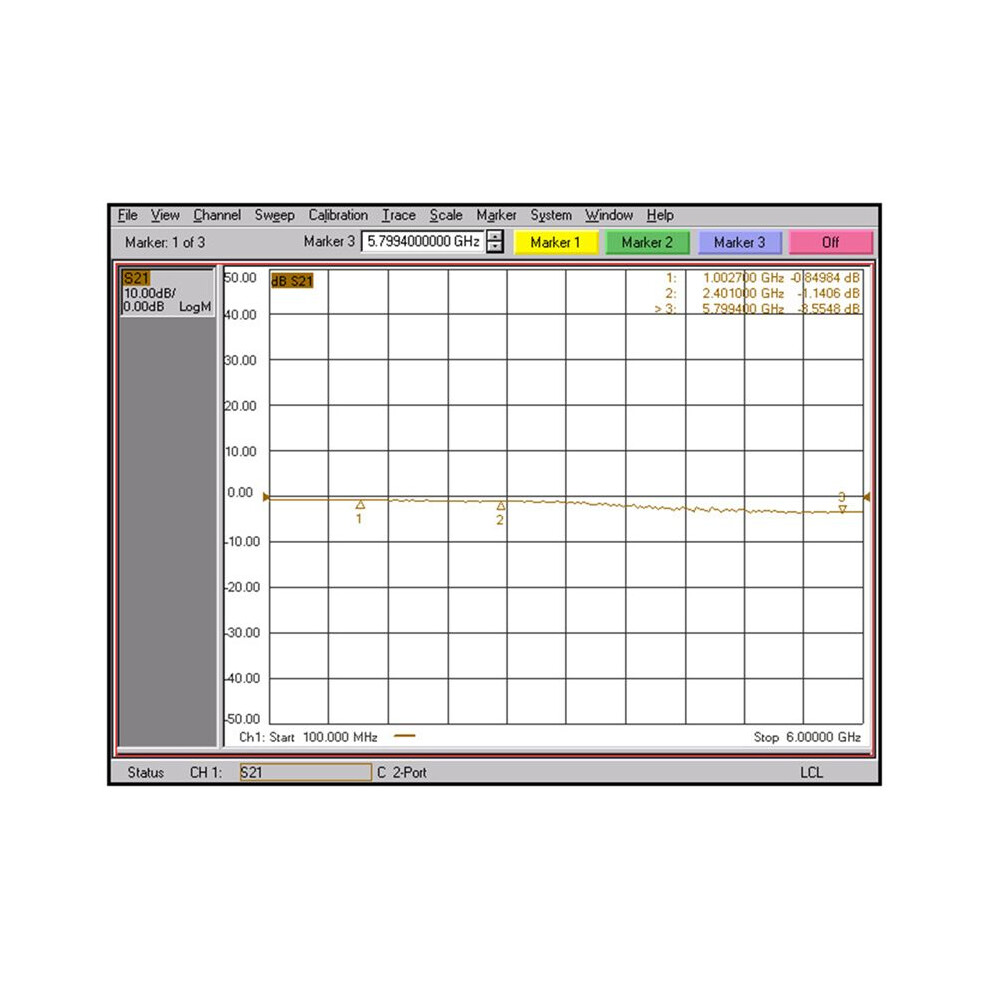

Typical insertion loss:1dB

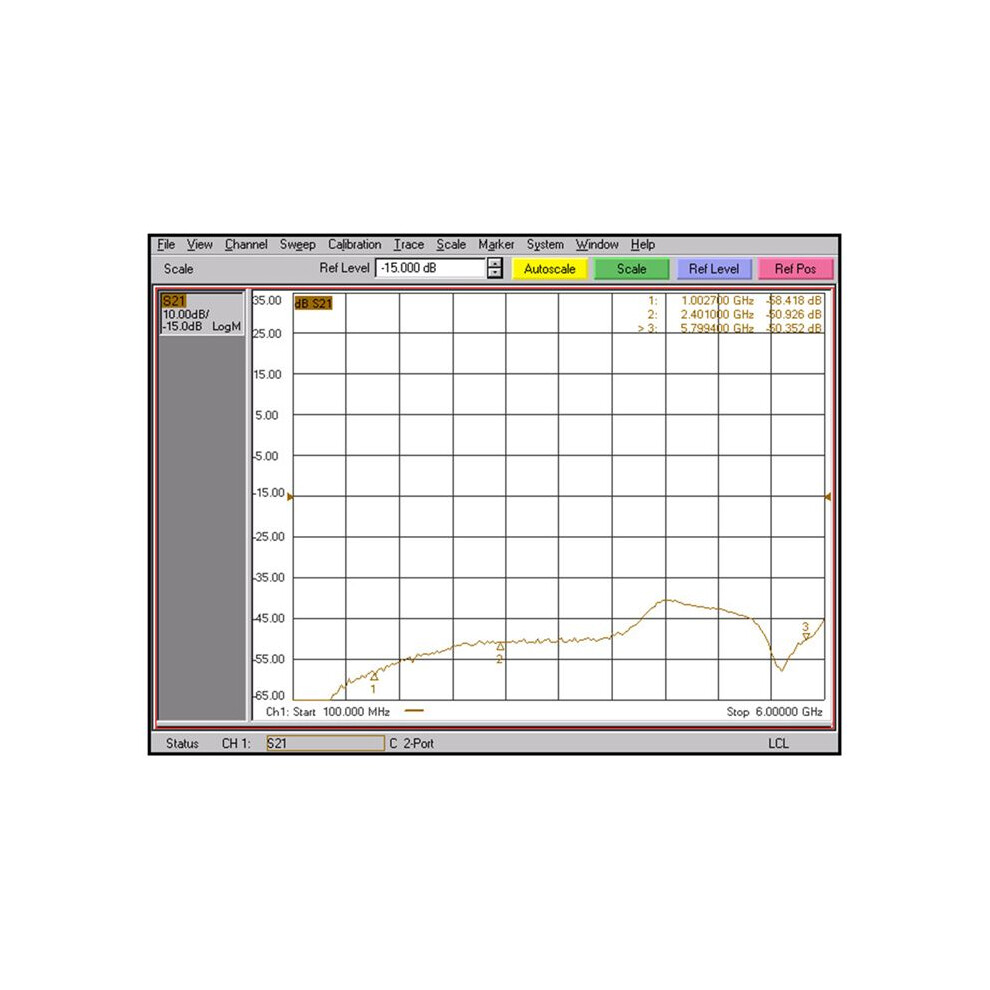

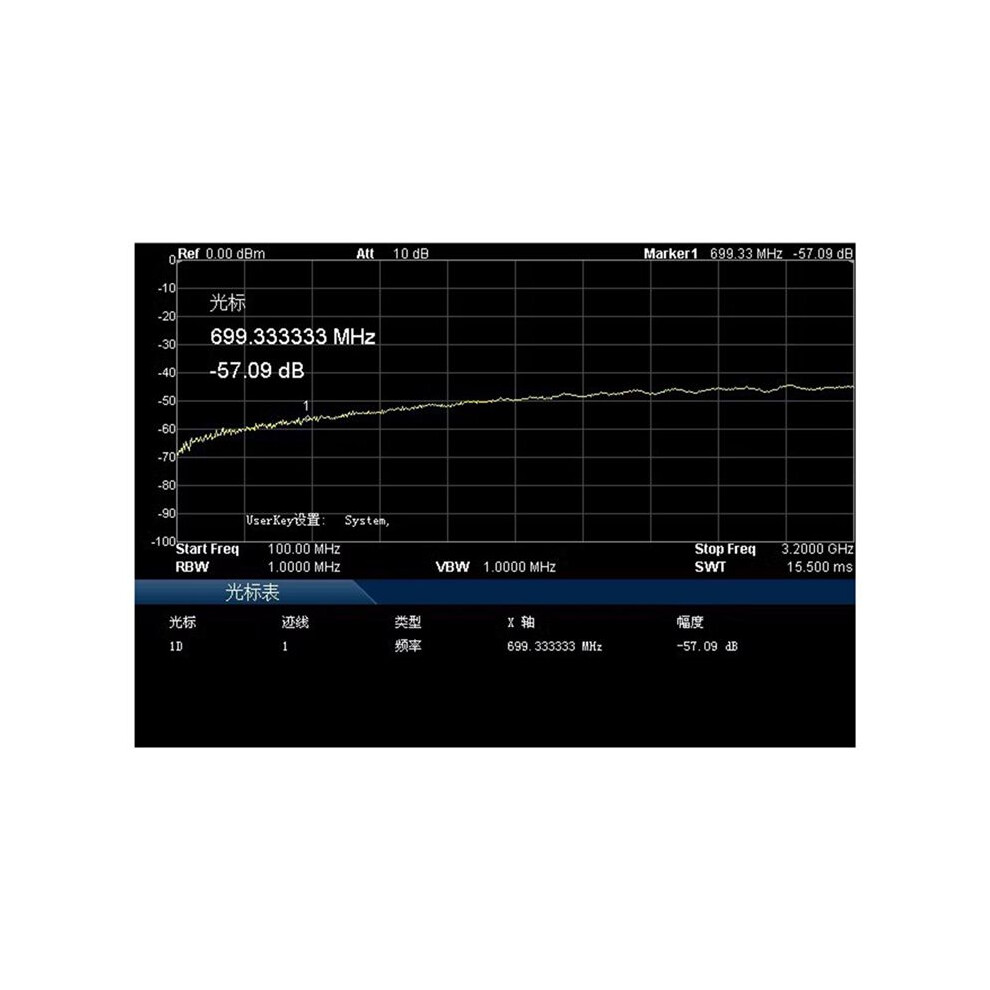

Port isolation:45dB typical value
Impedance:50ohm
Maximum input power:28dBm
switching :150ns
Power supply:+3.3 to +5V

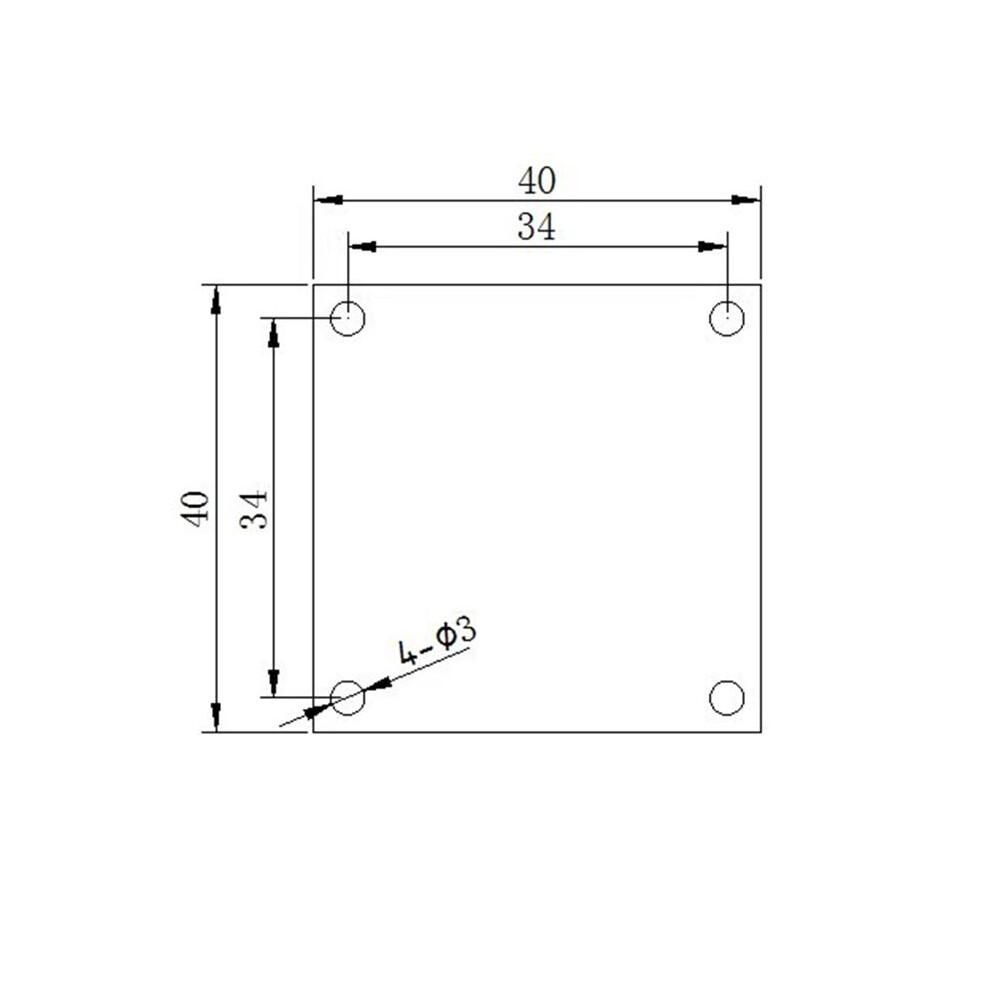

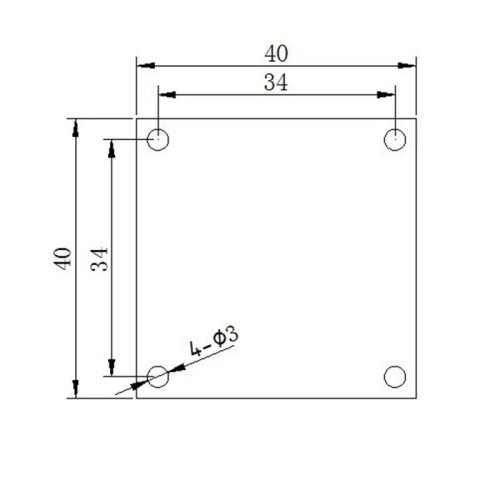

With mounting positioning holes
Weight:80 grams
Control method:
Control port A: L, control port B: L RF output to RF1;
Control port A: H, control port B: L RF output to RF2;
Control port A: L, control port B: H RF output to RF3;
Control port A: H, control port B: H RF output to RF4;
(External voltage control, H: 3.3-5V, L: 0V or ground)
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.

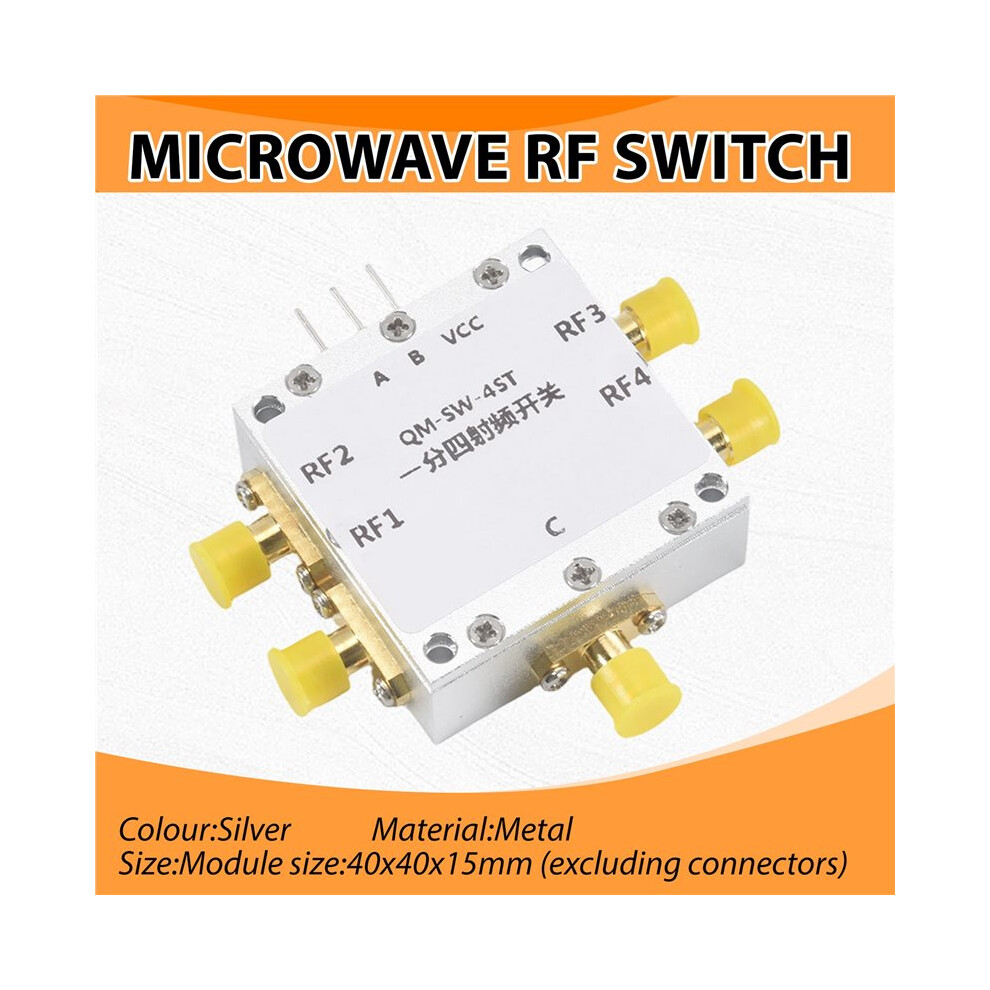

Colour:Silver
Material:Metal

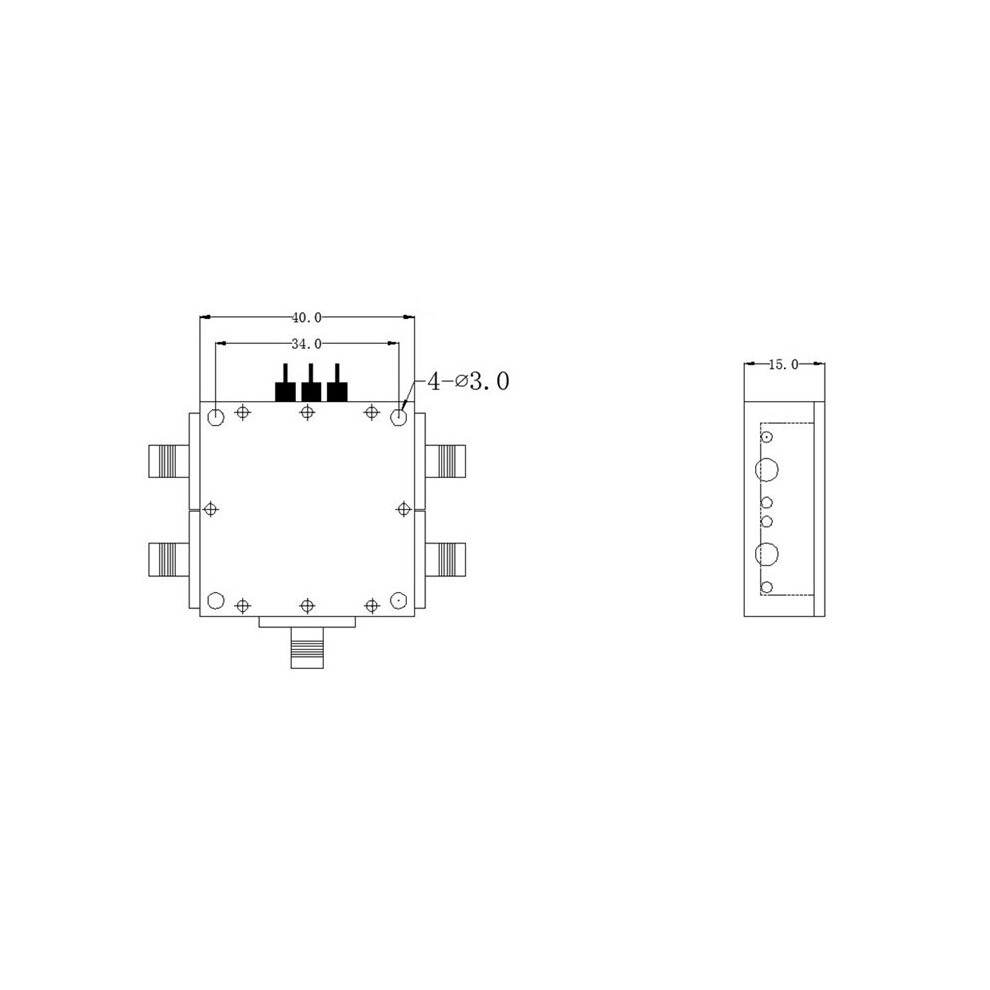

Size:Module size:40x40x15mm (excluding connectors)

Package Contents:
1 * RF
