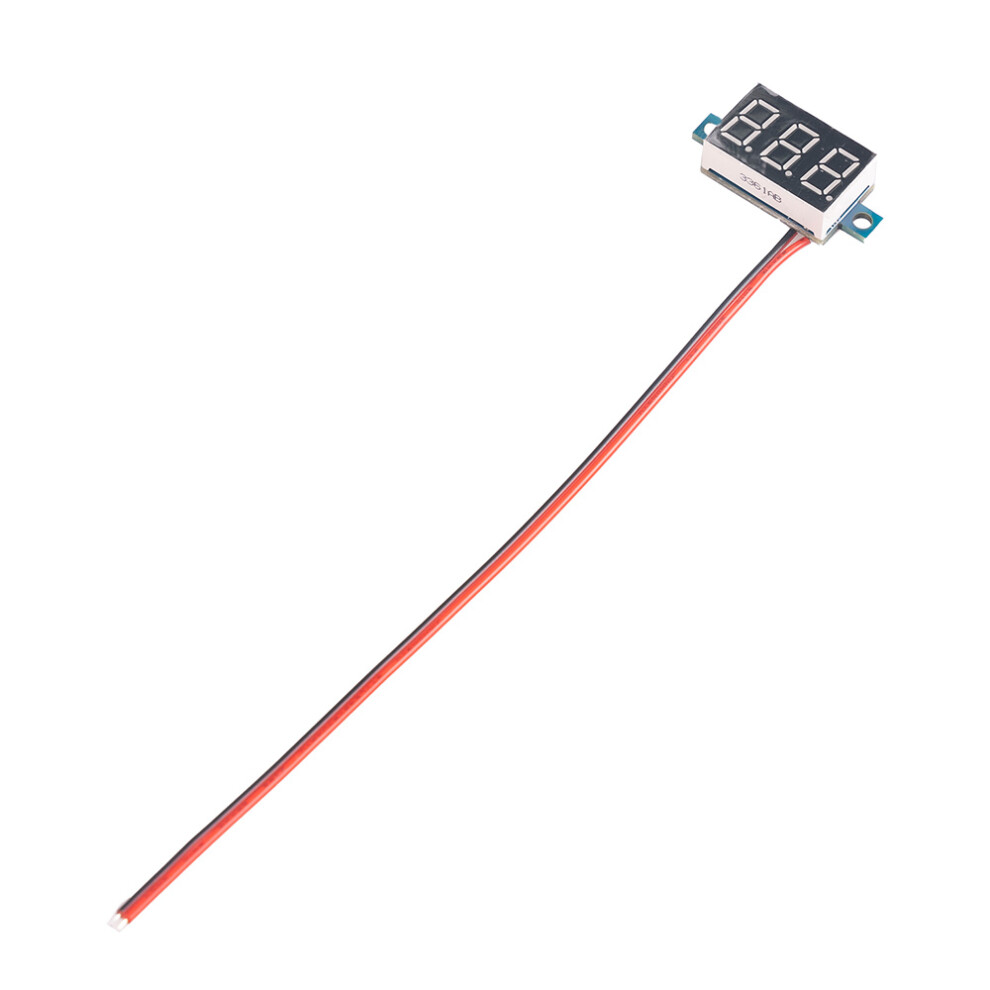

0.36 Inch Digital Voltmeter 2.5-40V 0V-100V 2 Lines 3 Digit Voltage Panel Meter Voltage Meter Display LED Color

0.36 Inch Digital Voltmeter 2.5-40V 0V-100V 2 Lines 3 Digit Voltage Panel Meter Voltage Meter Display LED Color Beskrivelse

The volume of this voltmeter is 0.36 inches, the range is 0-40V, 2-wire access, breaking the conventional voltmeter, is the latest design, can directly work in 5V, 9V, 12V, 24V and other circuits, without voltage regulator.
Equipped with two wires, It is convenient to connect to the inside the car/battery car/motorcycle. It has the function of reverse connection protection, and the will not burn if it is reversed.
It is used to monitor the battery voltage, grasp the battery voltage status in , and can also be used for other product voltage measurement purposes.
Note that the maximum input voltage for 2-wire use cannot exceed 40V, otherwise there is a risk of burning.
Note: The operating voltage should be within 40V (many peers can only be within 30V, and the price of 30V is also lower).

Ultra-low startup voltage, 3.0V. If conditions permit, it is recommended to use the best voltage range 4V-30V.
Good product stability and high measurement accuracy.
Appearance adopts standard size, easy to install.
The power supply adopts polarity protection circuit.
Product parameters:
Product Name: Digital Voltmeter
Input voltage: DC4~40V
Working current: Less than 20mA
Working temperature: -10~+65
Working humidity: 10~80% (no condensation)
Working air pressure: 80~106kPa
Measurement rate: greater than equal 320mS/
Display accuracy: 0.01
Error: 1%
Input Impedance: Greater than 100K ohm
Display mode: 0.36 inch LED, red green
Mounting hole: center hole distance 27.5-28mm hole diameter: 3mm
Dimensions: total length 33mmxwidth 14.1mmxthickness 9mm
Display digital color:
Material:Plastic + Metal
colour:As Shown

Package Contents:
1 x Digital Voltmeter
