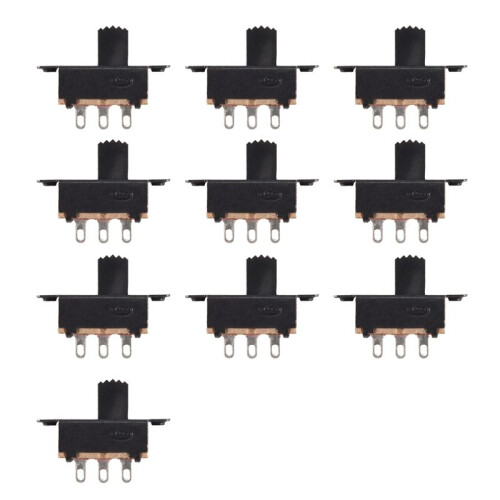

10 Pcs SS22F25-G7 2 Position DPDT 2P2T Panel Mount Slide Solder Lug

10 Pcs SS22F25-G7 2 Position DPDT 2P2T Panel Mount Slide Solder Lug Beskrivelse

Product Name : Slide ;Model : SS22F25;Action Type : DPDT;Positions : 2 Positions
Terminal Quantity : 6 Pcs;Working Power : 0.5A 50V ;Contact Resistance : 30mohm Max
Insulation Resistance : 100mohm Min at 500V ;Withstand Voltage : AC 500V for 1 min;Terminal Length : 4mm/ 0.16"
Total Size : 23 x 7.5 x 21mm/ 0.9" x 0.29" x 0.83"(L*W*H);Knob Size : 5 x 3.5 x 7mm / 0.2" x 0.14" x 0.28"(L * W * H);Material(External) : Plastic, Metal
Main Color : Silver Tone, Black;Weight : 20g
Easy Structure, Body, 6 Terminal, Vertical Handle,2 Pole 2 Position, Sliding Knob Actuator.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights.etc.
Also a great component for DIY.
Package Content : 10 x Slide
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
