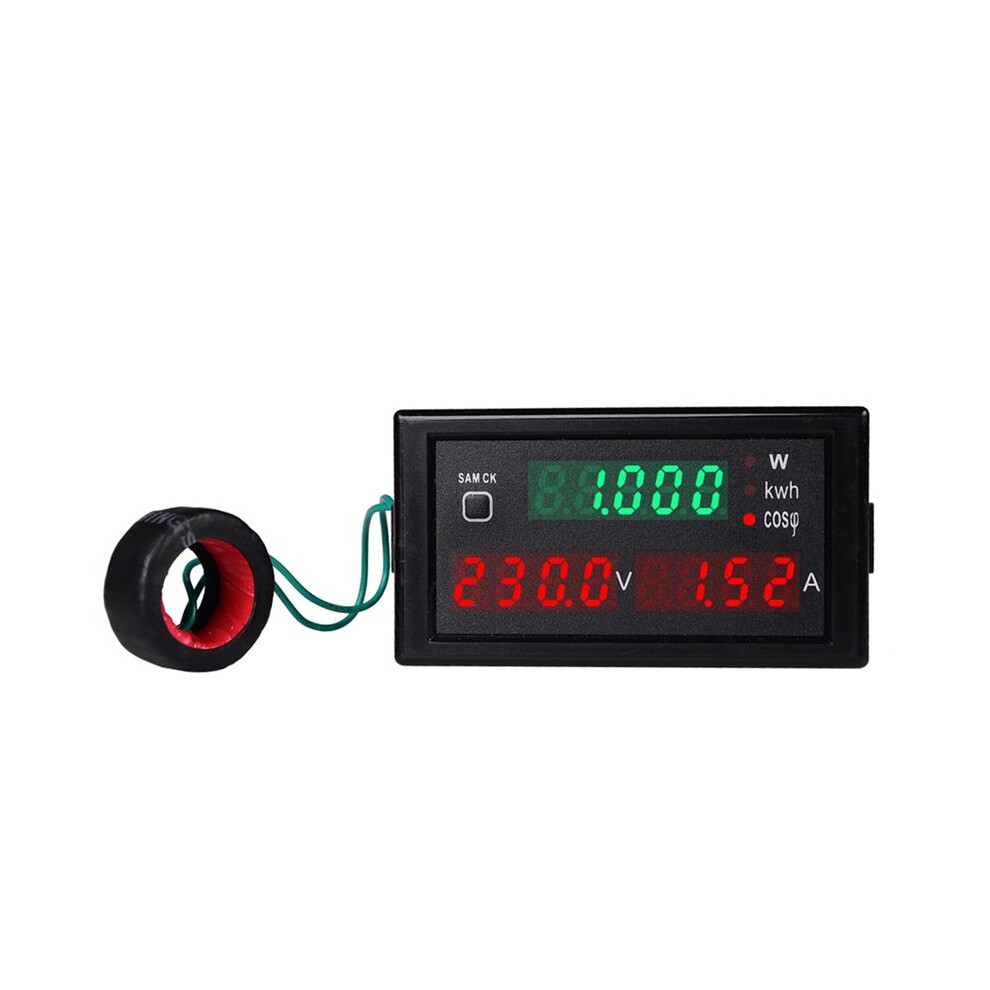

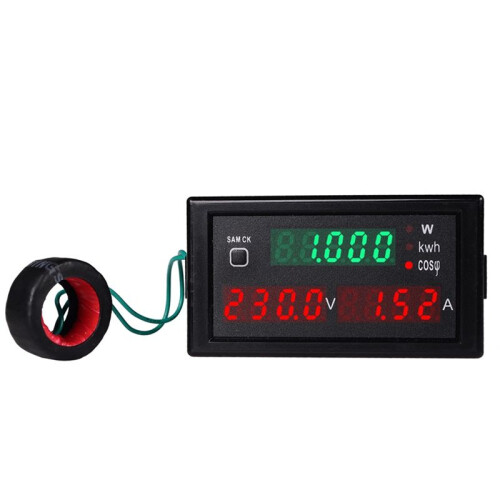

100A AC Electric Display Voltage Current Active Power Factors KWH Voltmeter Ammeter Panel Meter Wattmeter Reset,B

100A AC Electric Display Voltage Current Active Power Factors KWH Voltmeter Ammeter Panel Meter Wattmeter Reset,B Beskrivelse

Accuracy: 1.5% 2 words
Speed: 2 times per second
Size: 79x43x48mm
Installation Size: 76x39mm
Auto-saving: when power off, the electric will be saved. The saved electric will be accumulated continue when the meter power- next .

Range:
AC current: AC 0-99.99A, minimum resolution is 0.01A
Power frequency: 45.0Hz-65.0Hz
Power factor: 0.00-1.00PF
Active power: 0-30000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
Electric : 0-99999kwh, when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh, when between 10000.0 and 99999kwh, the display accuray is 1kwh.
Application Method:
1. According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.
2. Supply power and start to measure and display the result.
3. Press down the button last for 5 second, the electric will to be zero.
Attentions:
1. The meter will be destroyed when you make wrong connection method with voltage
2. The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input (green terminal) and secondary current transformer ( terminal). measure square wave, output of inverter and correction sine wave.
Specification:B: AC80-300V 100A
Color:Black & Red
Material:Plastic

Package Contents:
1set * SPM001 AC LED digital voltmeter
