10Pcs AM312 Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules 2.7V to 12V

10Pcs AM312 Human Sensor Module IR Pyroelectric Infrared PIR Motion Sensor Detector Modules 2.7V to 12V Beskrivelse

The AM312 human sensor module is a digital intelligent automatic control product that is based passive body infrared technology, which is highly sensitive and reliable to use.
They are widely applied for all kinds of automatic induction electrical equipment.
These human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output.
After high sensing output, during the delay , if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low

Product model: AM312
Working voltage: 2.7V - 12V
Static power consumption: less than 0.1mA
Delay : 2 seconds
Blocking : 2 seconds
Trigger mode: repeatable
Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend the specific lens)
Working temperature: -20 Celsius to +60 Celsius
PCB size: approx. 10 x 8mm
Model: Miniature human body sensor module PIR
Power: 5W
colour:Green
Material:PCB
size:25 x 12 x 12 mm

Package Contents:

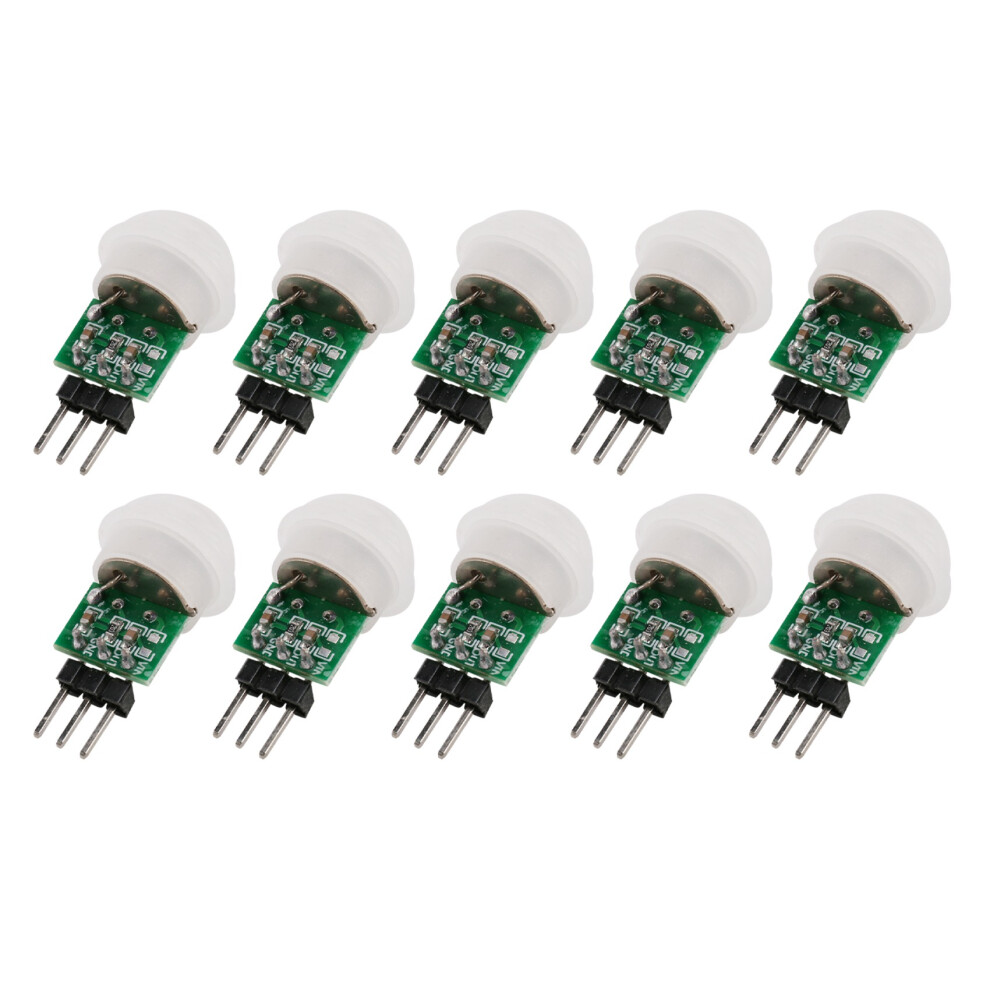

10 x PIR module
