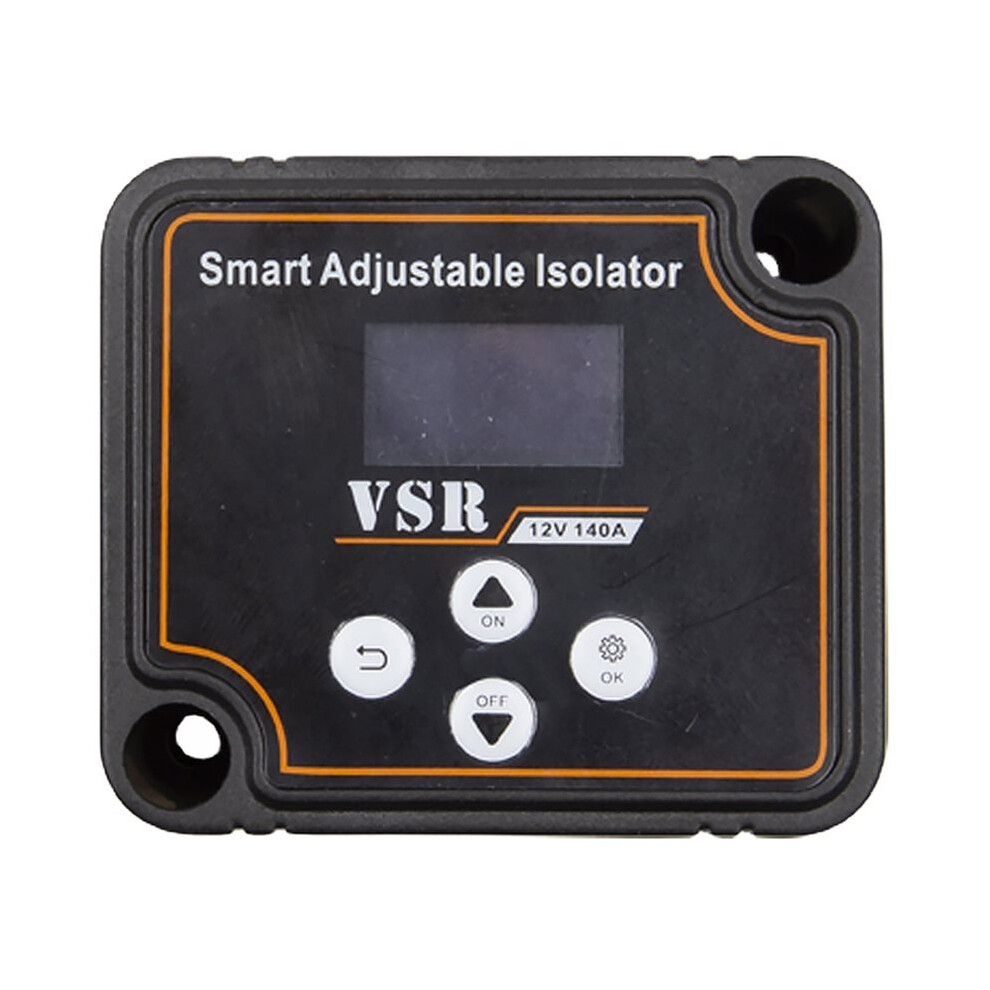

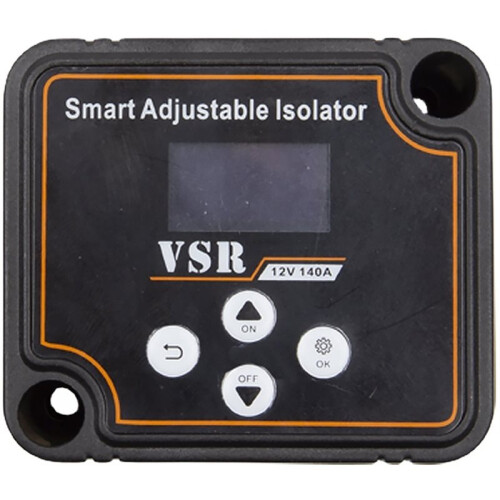

12V 140A Dual Battery Isolator LCD Display VSR Car Relay Digital Voltage Sensitive Setting Split Charge Relay

12V 140A Dual Battery Isolator LCD Display VSR Car Relay Digital Voltage Sensitive Setting Split Charge Relay Beskrivelse

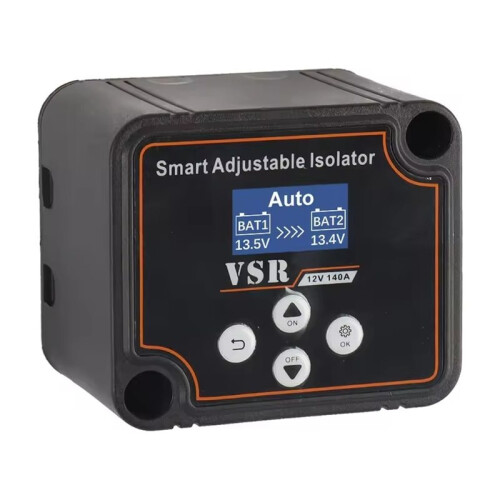

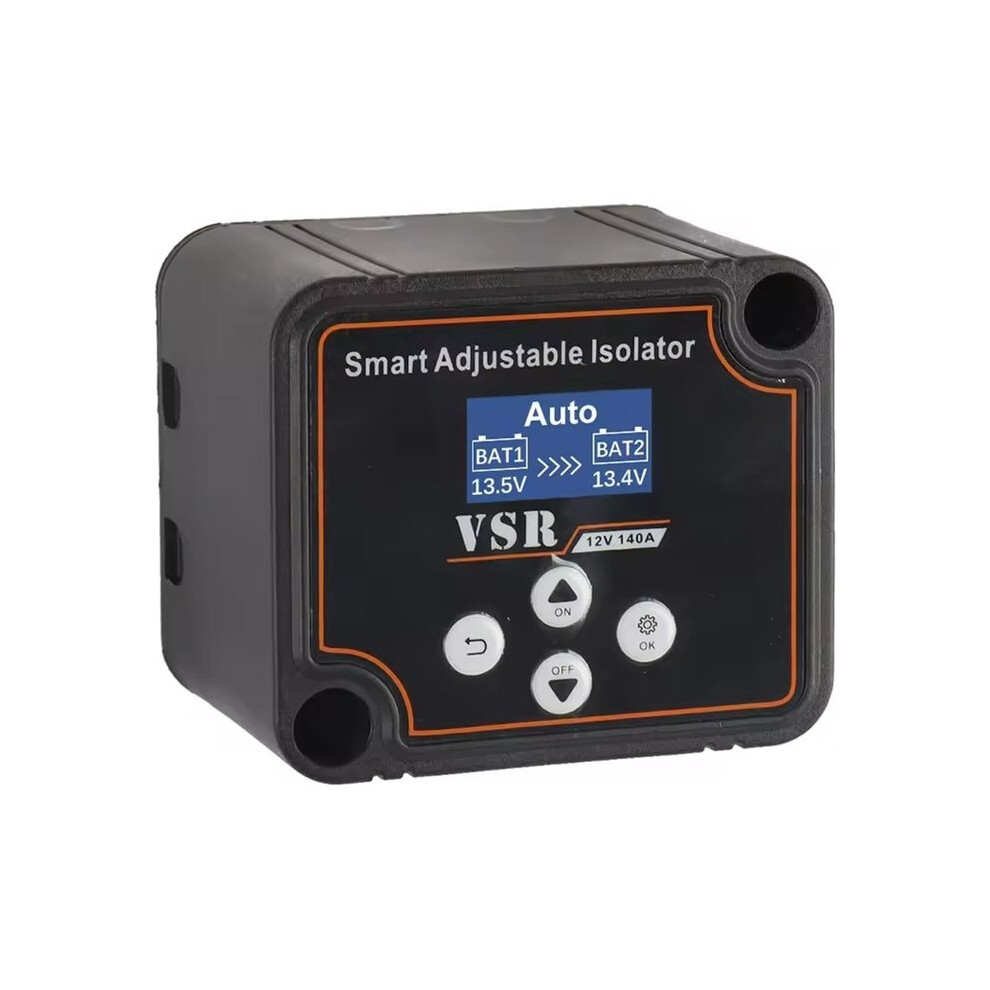

1. Intuitive LCD Display: The upgraded adjustable dual battery isolator comes with a built-in LCD screen that displays real- voltage readings for BATT1 and BATT2, ranging from 4.5V to 20V, allowing for instant monitoring of your batteries' status.
2. Customizable Voltage Control: Featuring an efficient voltage management system, the voltage sensitive relay allows you to adjust the CUT-IN/CUT-OUT voltages for different battery types. It offers a primary battery adjustable voltage range from 11.0V to 14.0V to suit your specific power needs.
3. Delay Functionality for Enhanced Life: The advanced dual battery isolator includes a newly added delay feature that prevents the frequent switching of the isolator due to unstable current, thus extending both the isolator and battery life. Delay can be set from 3s to 60s, with a recommended delay of 15s.
4. Manual/Automatic Operational Modes: This third-generation voltage sensitive split charge relay integrates both automatic and manual modes, giving you the flexibility to between modes according to your requirements, whether for maintenance or specific power management.
5. Flexible & Protective Design: With the VSR car relay, safeguard your vehicle's batteries from excessive drain. Its state-of-the-art design not only offers adjustable settings to match your power demands but also protects against battery failure, ensuring reliable performance and peace of mind the road.

Specification:
Type: Intelligent adjustable voltmeter battery isolator
Rated voltage: 12V
Continuous current: 100-140A
Instantaneous current: 160A
Current consumption-charging: 250mA
Anti-reverse connection function: support
Ambient temperature: -20-50
Detachment delay: 5-10 seconds
Recommended fuse: 80Amp
Power stud: M6 copper screw nut
Surge protecti
