12V 4 Wire PWM Fan Temperature Control Speed Controller Governor Regulator for PC Computer CPU Fan Cooler Alarm

Oversigt

• 1. The controller only controls the speed of the four line standard specification Intel PWM fan, do not turn off the fan. With full digital control, accurate temperature setting and precise control. It integrates manual speed regulation and automatic temperature control and speed regulation function. Manual speed control from 10%-100%, each 5% is a gear. Automatic temperature control speed from 30 degrees Celsius, there are 49 kinds of temperature zone combination.

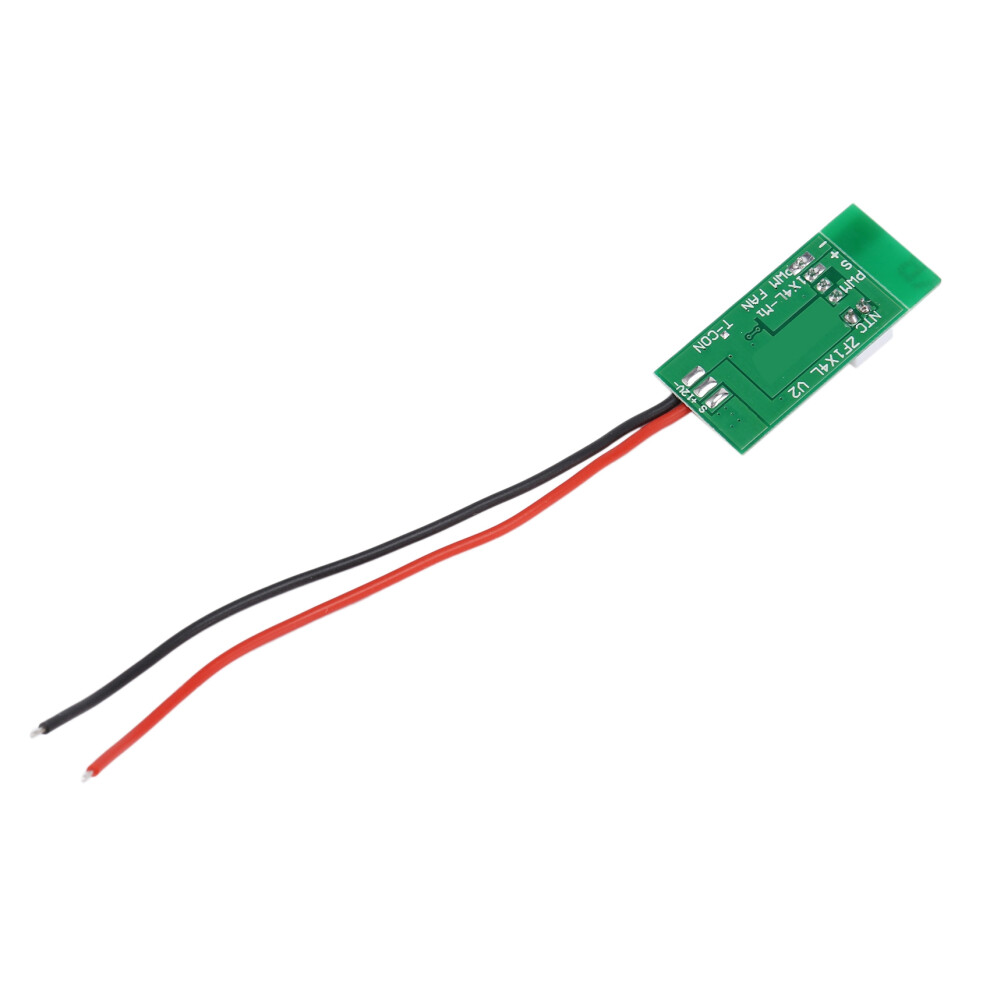

• 2. Input line: red black power line is only welding 12V positive and negative power cord, as a general use. The three wire connector is equipped with a 2510-3P plug, which is used to measure the speed of some main board three wire fan ports. Large 4P interface facilitates power acquisition from chassis.

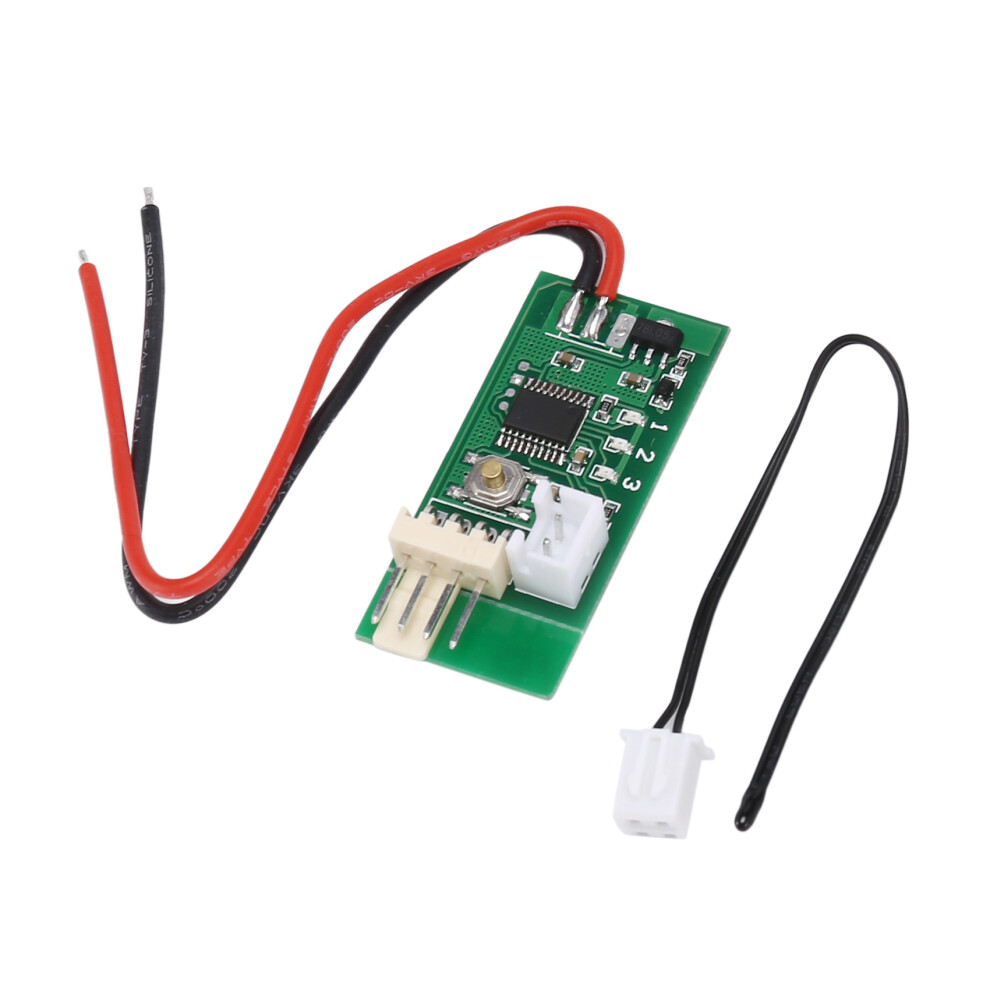

• 3. Temperature probe: small black line's head is short, low heat capacity. It is suitable for testing narrow space and air temperature, and the response is relatively fast. The ring probe is enclosed inside a ring metal head with a diameter of 4.2mm. It is suitable for mounting on the radiator or other heating object surface with screws.

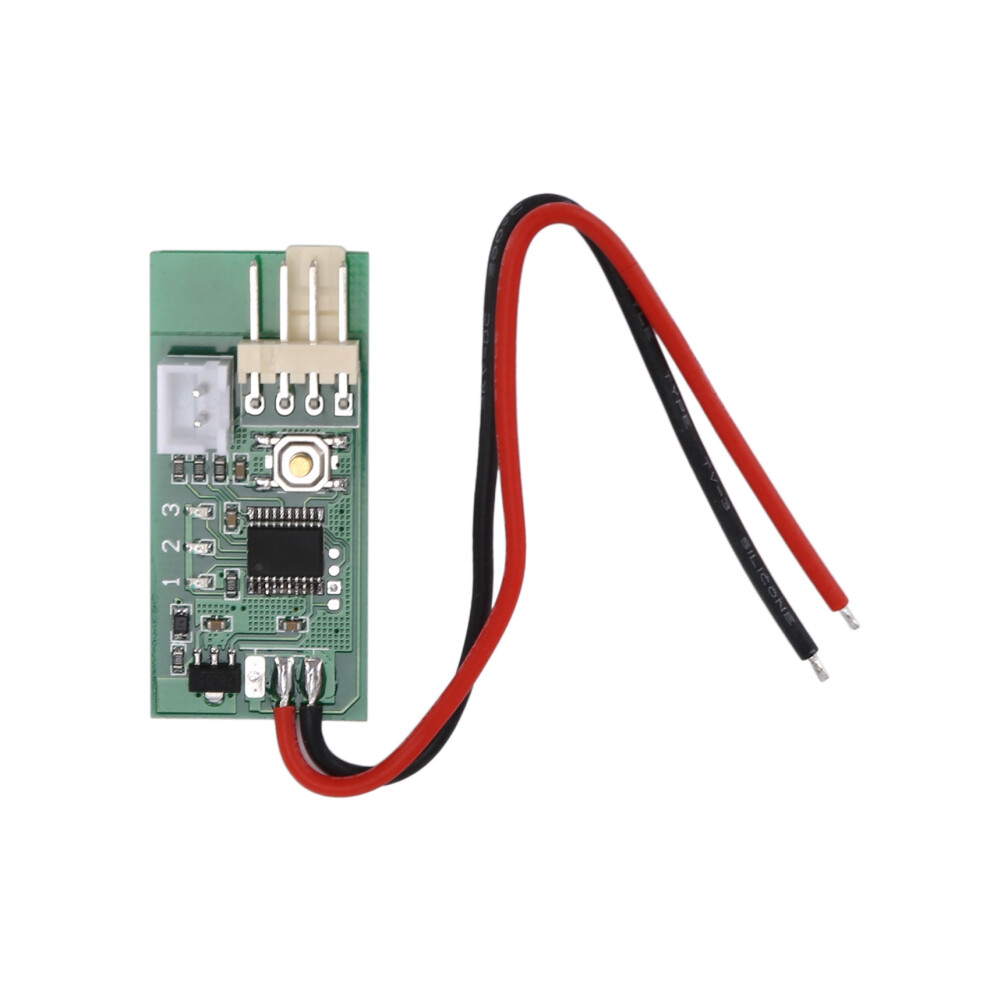

• 4. Manual automatic integration control: Manual control without temperature probe. Click / double-click button up / down gear. Each shift continues after 20 seconds, and the gear is automatically stored. The No. 2 indicator flashes rapidly in 20 seconds (when the temperature control is invalid). When the flash is stopped, it indicates that the file has been stored. The 3 /1 indicator light is always on when you can not continue to increase / not continue to reduce the position.
• 5. When the temperature probe is installed, the manual speed is used as the initial low speed (bottom line speed). When the temperature exceeds the accelerating temperature, the fan speed accelerates smoothly with the increase of temperature. When the temperature reaches and exceeds the sum of the acceleration temperature and the acceleration width (full speed temperature), the fan runs at full speed.
