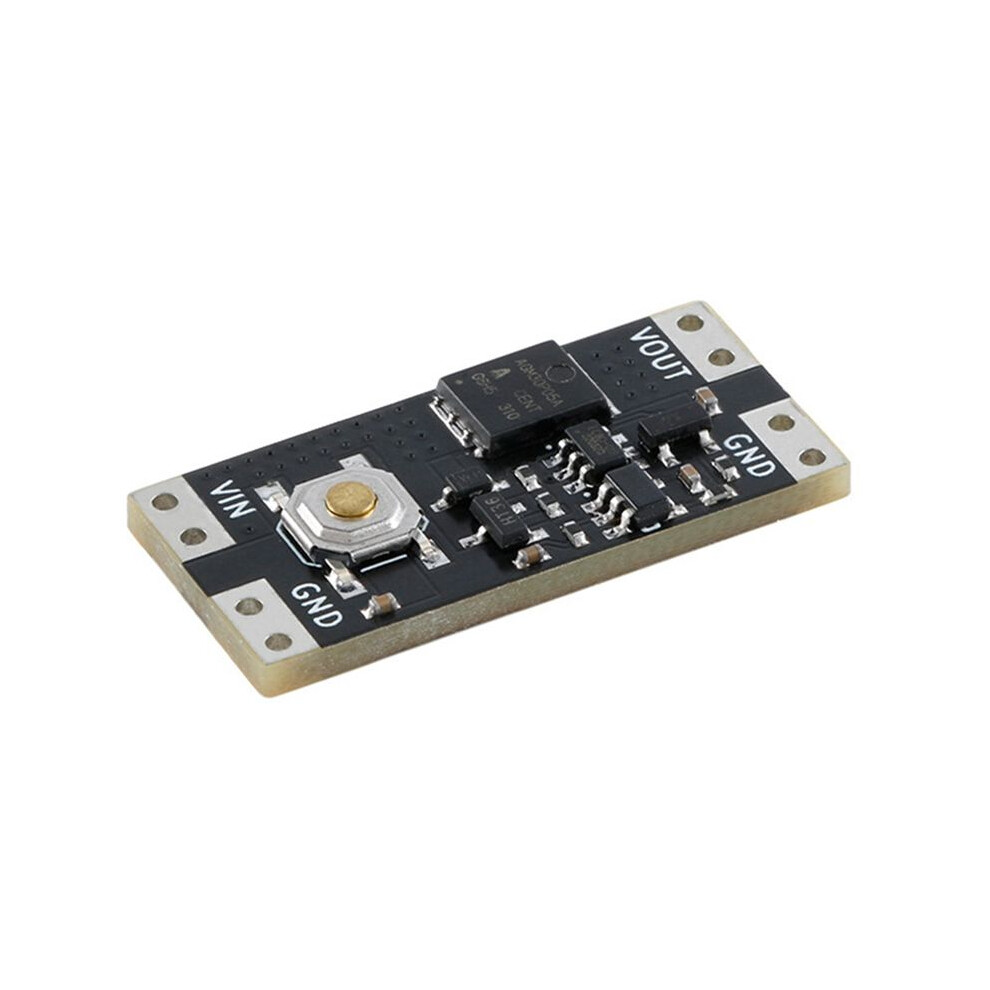

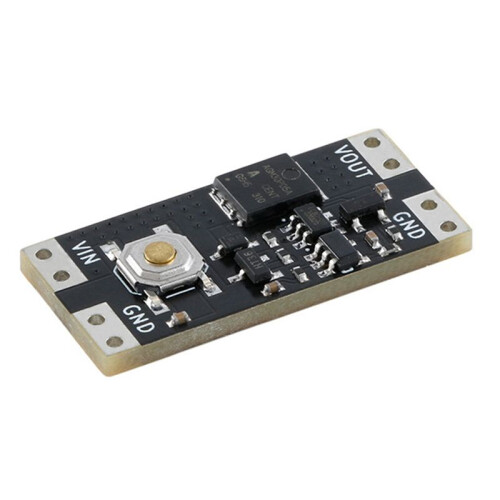

1Pcs Single Bond Button Bistable Module 4.5-26V 1.3UA Load 10A Low Power Wide Voltage One Key Module

1Pcs Single Bond Button Bistable Module 4.5-26V 1.3UA Load 10A Low Power Wide Voltage One Key Module Beskrivelse

The XL-10AH is wide voltage versions. This modules can achieve the same function as self-locking switches by lightly touching the to turn and off the power.
It can support a load with a maximum current of 10A, can support a wide range voltage of 4.5-26V, and the static power consumption in the off state is about 1.3ua.
The excellent performance of the module covers the working voltage and operation required for most loads. The small size design also does not take too much space your device.
For the button part, if you want to use other styles of buttons, you can also connect various other styles of touch buttons to our control board through wires.

Model: XL-10AH
Working voltage: 4.5-26V
Static power consumption: 1.3ua (12V voltage measurement)
Load current: 10A (12V voltage test for 30 minutes)
Pressure drop: 120mv (12V 10A measurement)
Colour:Black
Material:PCB

Package Contents:
1 x XL-10AH Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
