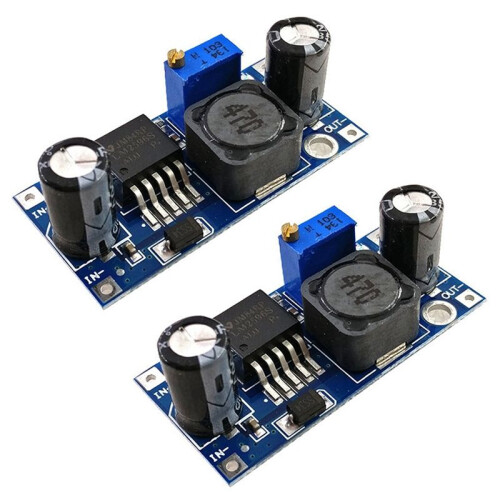

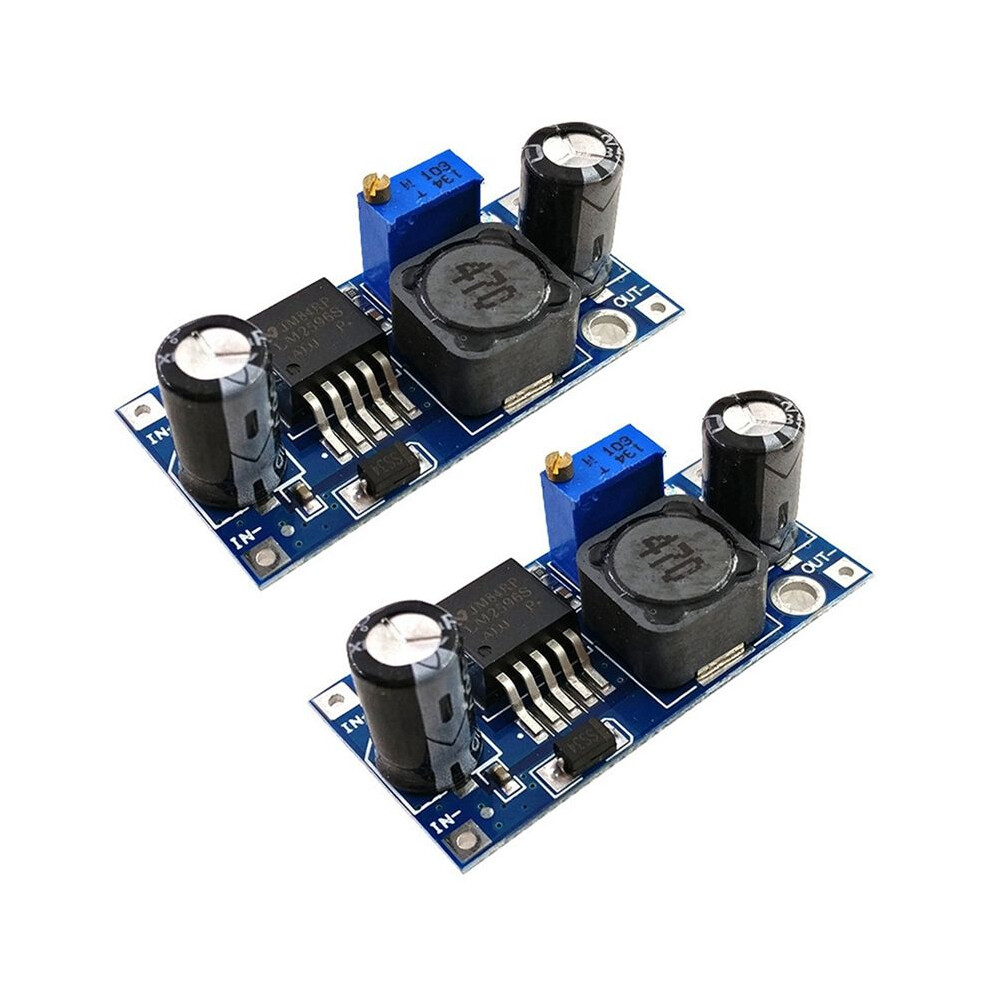

2 Pcs LM2596S-ADJ 3-40V - Adjustable Step-Down Voltage Regulator Powers Module Board 3A Buck Converter -Black

2 Pcs LM2596S-ADJ 3-40V - Adjustable Step-Down Voltage Regulator Powers Module Board 3A Buck Converter -Black Beskrivelse

The module uses high-quality LM2596 chip, with high efficiency ( to 92%), low heat generation, and can easily carry more than 3A (short ) current
This module uses machine mounting and reflow soldering. At the same , each module has undergone two hours of aging test before shipment
board stabilized voltage power supply, just connect the input terminal of this module to the cigarette lighter for power supply, and then adjust the potentiometer to supply power for your mobile phone and other devices
It can be inserted into the pin through the lead or the hole board for use; Or directly solder PCB after adding pins.
System working voltage test. This module can be used to debug the working voltage range of various voltage test systems

Module nature: non isolated buck
Rectification mode: asynchronous rectification
Color: black
Material: PCB
Input voltage: 3.2V-40V
Output voltage: 1.25V-35V
Output current: 3A (maximum)
Conversion efficiency: 92% (maximum)
Switching frequency: 150KHz
Output ripple: 30mV (maximum)
Load adjustment rate: 0.5%
Voltage regulation rate: 2.5%
Operating temperature: - 40 to+85
Overall dimension: 43 x 21 x 14 (L x W x H) (mm)
Matters needing attention:
1. For long- operation, it is recommended to use the current within 2.5A and add the heat sink (output above 10W); As it is a step-down module, please keep the minimum 1.5V differential pressure to ensure stable output.
2. This module is an adjustable step-down module. The output voltage can be changed by adjusting the adjustable resistor the module. The input and output differential voltage is 2V, and the minimum output voltage is 1.25V.
3. The IN - (negative input), IN+(positive input), OUT - (negative output), OUT+(positive output) marked the m
