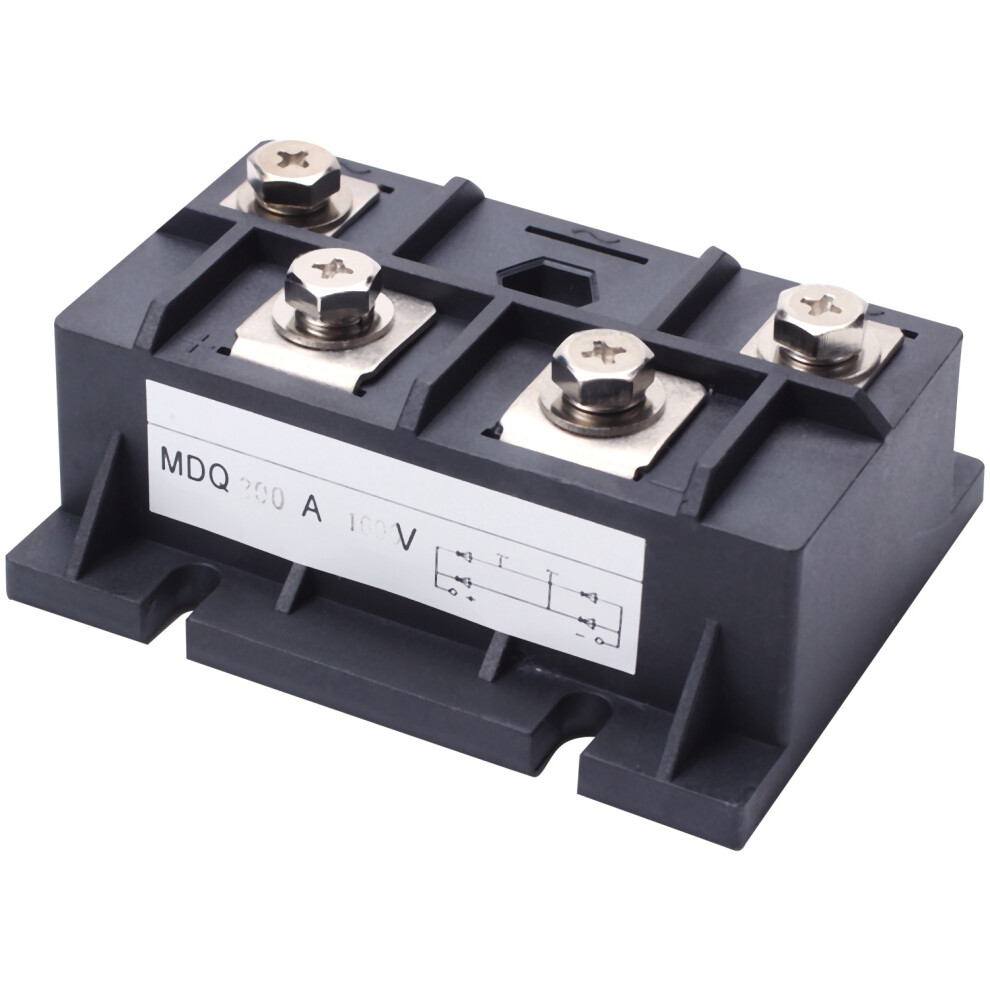

200A 1600V Diode Module Single Phase Bridge Rectifier MDQ-200A
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (157,09 kr.) | fre. 19. - tor. 25. jun.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Power Inverters
Oversigt
- Power Diode Module MDQ-100A is designed for single phase Half wave rectification, which has four diodes connected in a one phase bridge configuration.
- Output DC current is 200Amp Repetitive peak reverse voltage is up to 1,600V. Isolated mounting base, High reliability by unique glass passivation.
- Applications: DC power supply for instrument equipment , Input of PWM frequence converter rectifying power supply , Excitation power supply for DC motor, Input of switch power supply and auxiliary current Inverter current.
- MDQ-200A Bridge Rectifier
- Diode Module Bridge Rectifier
200A 1600V Diode Module Single Phase Bridge Rectifier MDQ-200A Beskrivelse
Power Diode Module MDQ-100A is designed for single phase Half wave rectification, which has four diodes connected in a one phase bridge configuration.
Output current is 200Amp Repetitive reverse voltage is to 1,600V. Isolated mounting base, High reliability by unique glass passivation.
Applications: power supply for instrument equipment , Input of PWM frequence converter rectifying power supply , Excitation power supply for motor, Input of power supply and auxiliary current Inverter current.
Product Name : Bridge Rectifier
Model : MDQ-200A
Max. Average Forward Rectified Current : 200A
Repetitive Reverse Voltage : 1600V
Phase : Single Phase
Terminals : 4
Dimension : 95 x 75 x 40mm/ 3.7" x 3" x 1.6" (L*W*T)
Mounted Hole Dia. : 5mm / 0.2"
Material : Metal, Plastic
Color : Black, Silver Tone
Package Content : 1 x Bridge Rectifier
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
Detaljer
| OPC | PV9YPX9 |
|---|---|
| Koder | 6031264436148 (EAN) |
Produktdata
| Height | 6cm |
|---|---|
| Width | 10cm |
| Length | 11cm |
| Weight | 0.432kg |
| Colour | Black& Silver Tone |
| Material | Metal, Plastic |
