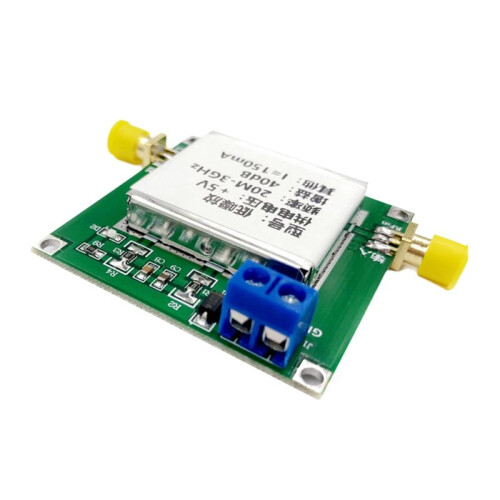

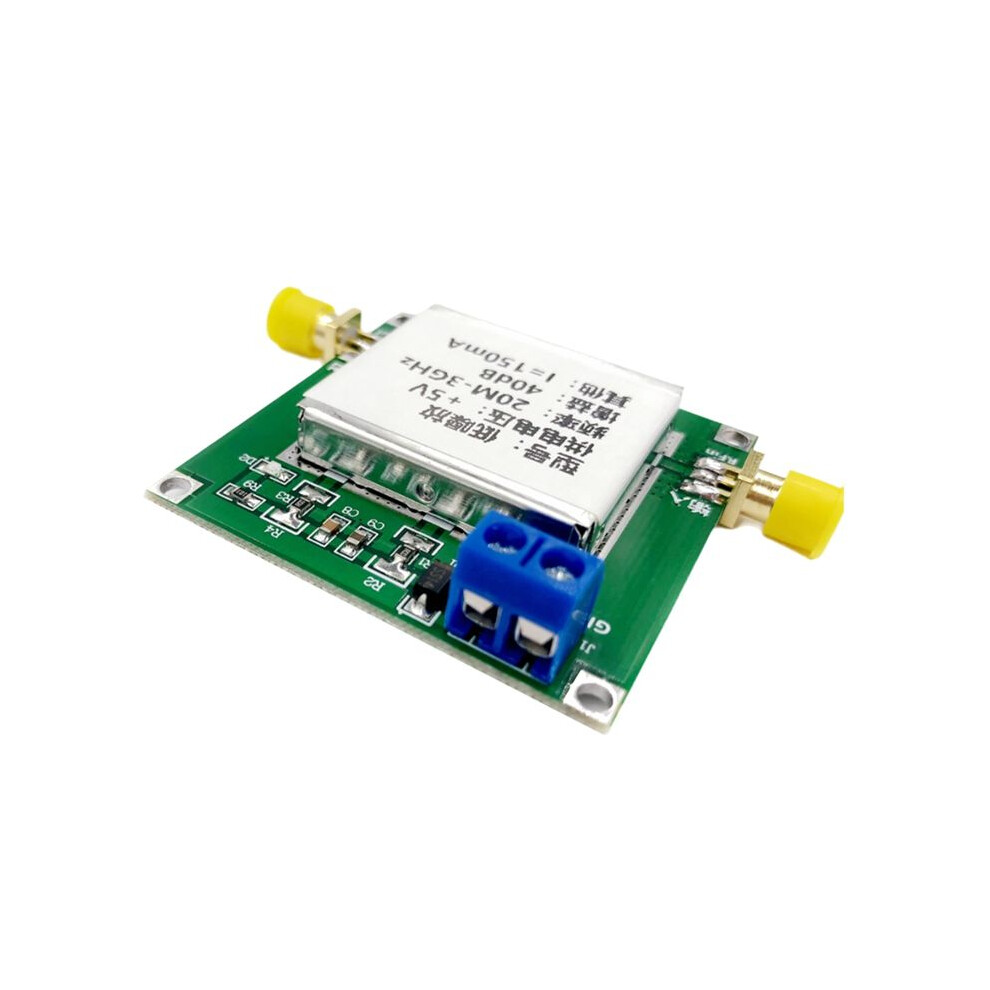

20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 128,000 anmeldelser med vurderingen “Fremragende”
308,11 kr.
+36,00 kr. levering
1%
Tjen 3,08 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (36,00 kr.) | man. 20. - lør. 25. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Signalforstærkere til mobiltelefoner
Beskrivelse og detaljer
Oversigt
- The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
- Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G Bluetooth, WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
- RF Amplifier Module
- Module
- Amplifier Module
20M-3G 40DB RF Low Noise Amplifier 5V High Flatness Noise Coefficient 1.3dB Module Beskrivelse
The amplifier has wide frequency range, stable gain, small noise figure and large dynamic range (+ 19 5dBm 1dBP )It is especially suitable for all kinds of RF receiving front-end circuit, increasing communication distance!
Widely used in short wave, FM broadcasting, remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G , WiFi receiver RF front end and other places that need low noise and small signal RF amplification! The amplifier has a shielding case and a protection diode against reverse connection.
1. Power supply voltage: 5V (typical current value I Less than 150mA)
2. Gain: 40dB, input and output impedance: 50 ohm
3. Maximum output power: 19dbm (under 6vpp / 50 ohm load)
4. Input signal: Less than 20dbm (output signal has been distorted when input is greater than - 20dbm)
5. Bandwidth: 20MHz to 3GHz (gain varies with frequency, please refer to S21 curve index for details)
6. Noise figure: 1.3db (measured at 1.5GHz)
Color: As Shown
Material: ABS
Package Contents:
1 x Low noise amplifier module
Detaljer
| OPC | PWD5VKQ |
|---|---|
| Koder | 6031447452019 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.02kg |
| Colour | As Shown |
| Material | ABS |
