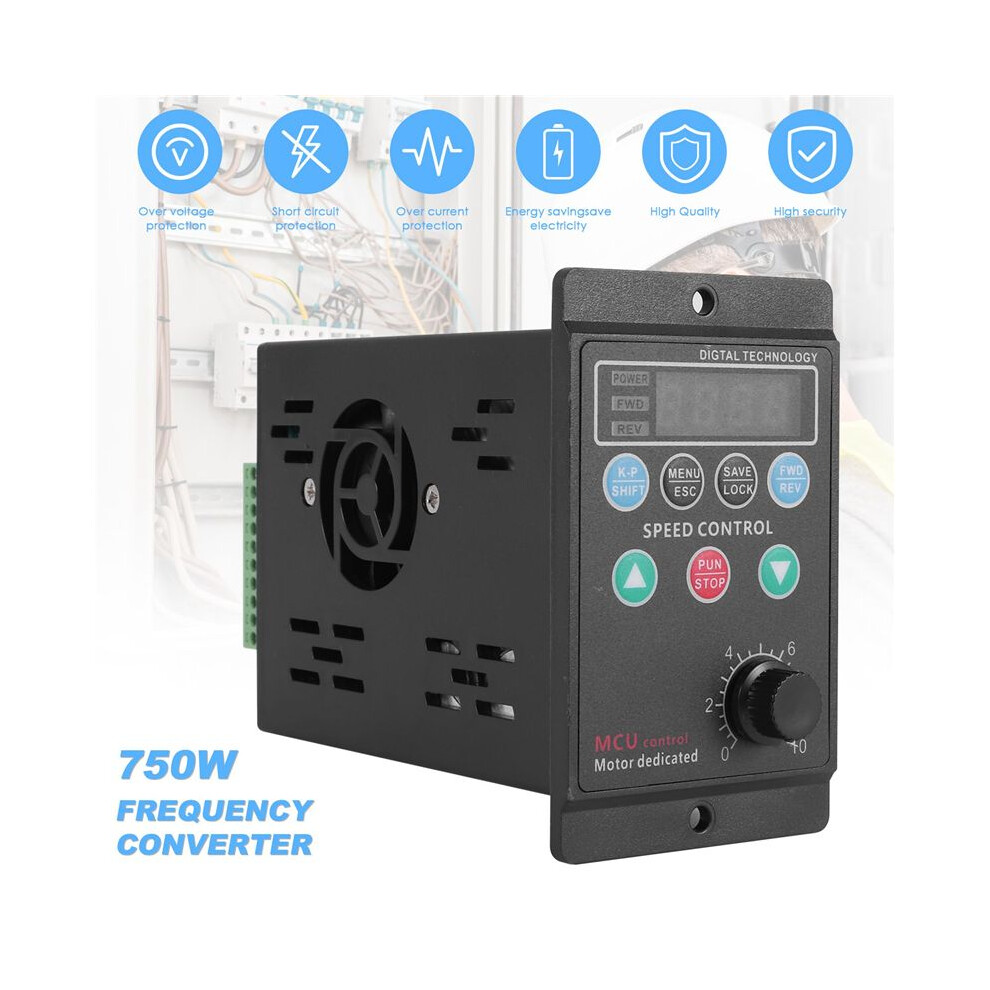

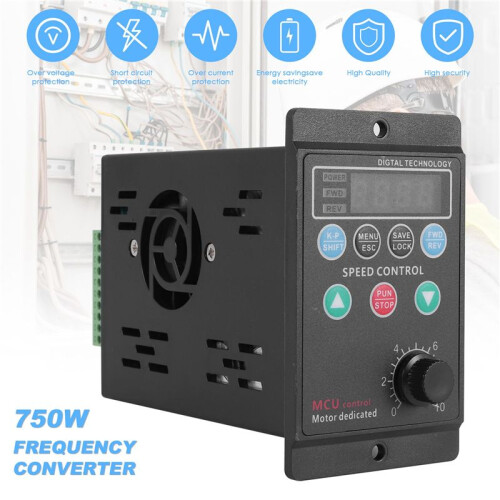

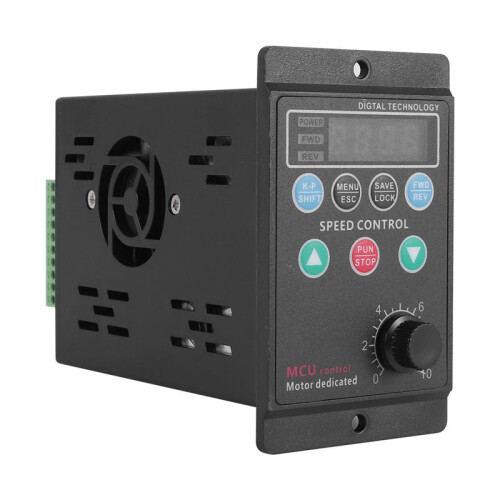

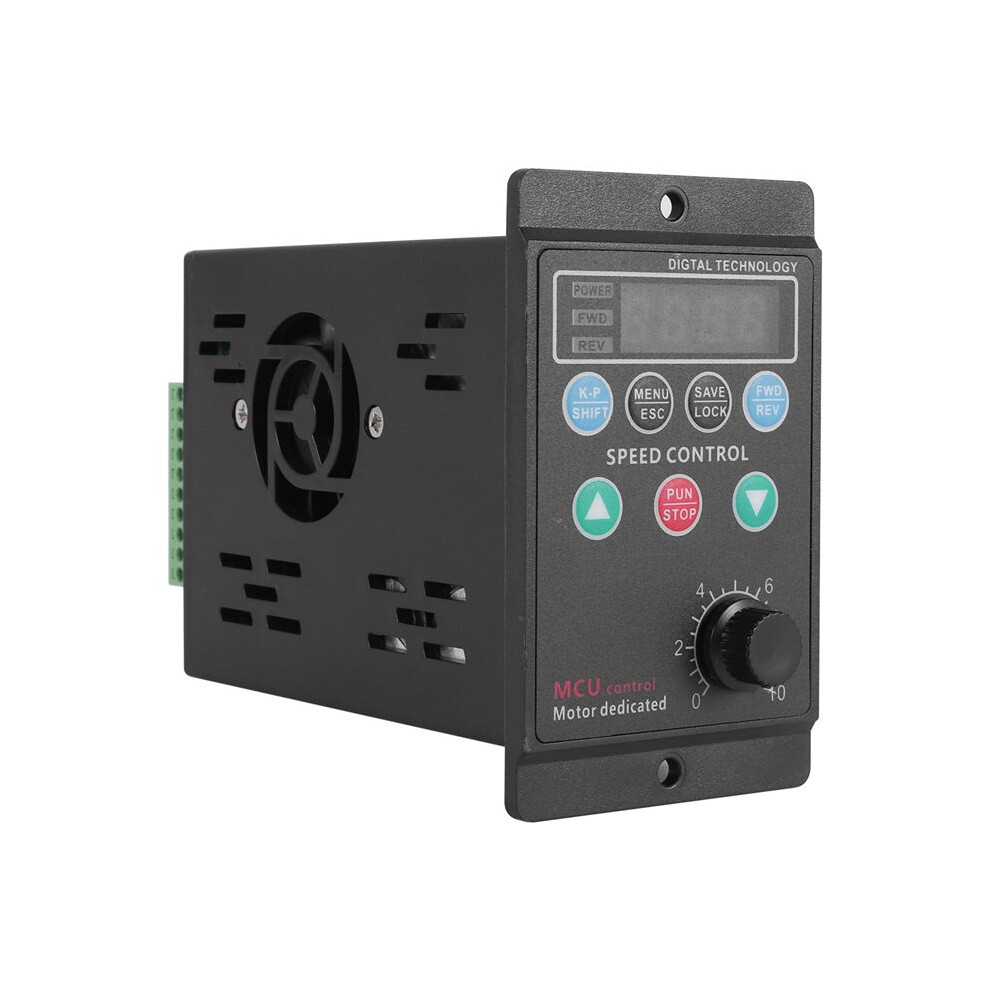

220V 750W Single-Phase Input 3-Phase Output Motor Driver Frequency Converter with Four-Digit Digital Tube Display

220V 750W Single-Phase Input 3-Phase Output Motor Driver Frequency Converter with Four-Digit Digital Tube Display Beskrivelse

The is a single-phase 220 V voltage input frequency converter to drives a three-phase motor (be sure to convert the connection method into a t-riangle type).
Four-digit digital tube display, you can see the data clearly.
Support display radiator temperature value, current current value, direct current master voltage value, motor speed, operating frequency value.
Output 1.0-99.0Hz, in order to improve the output voltage, this product uses SVPWM modulation mode, carrier-frequency 8.0KHz.
The frequency converter can arbitrarily change the V/F curve by setting the V/F compensation frequency and the voltage ratio at the frequency.

By setting the maximum value of V/F curve, according to the load situation, to maximize the use efficiency of electric , reduce the heat of the motor, prolong the servicelife of the motor and frequency converter.
Low frequency high torque, 220 V single-phase input, 220 V three-phase output, saving and electricity saving.
Overheating and over-voltage protections.
Specifications:
Name: Frequency Converter
Power: AC220V +/- 20%
Input speed: 3000rpm
Output speed: 0-3000rpm
Speed adjustable-range: 0-1800rpm
Rated power: 0.75KW
Temperature: -10 to 55
Humidity: 0-65%
Item size: 143 x 100 x 61mm / 5.63 x 3.94 x 2.40in
Item weight: 362g / 12.77ounce / 0.80lb
Colour: black
Material: ABS + electronic components

Package Contents:
1 x Frequency Converter
1 x English manual
