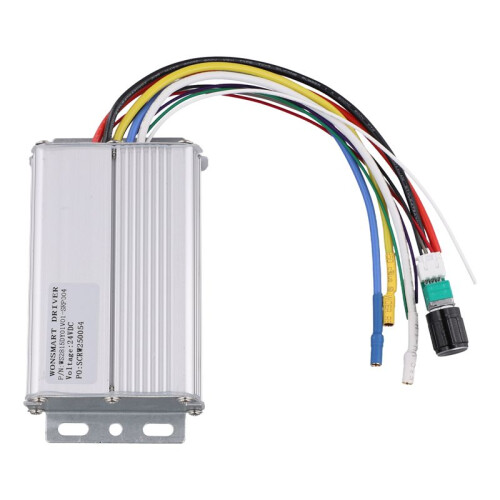

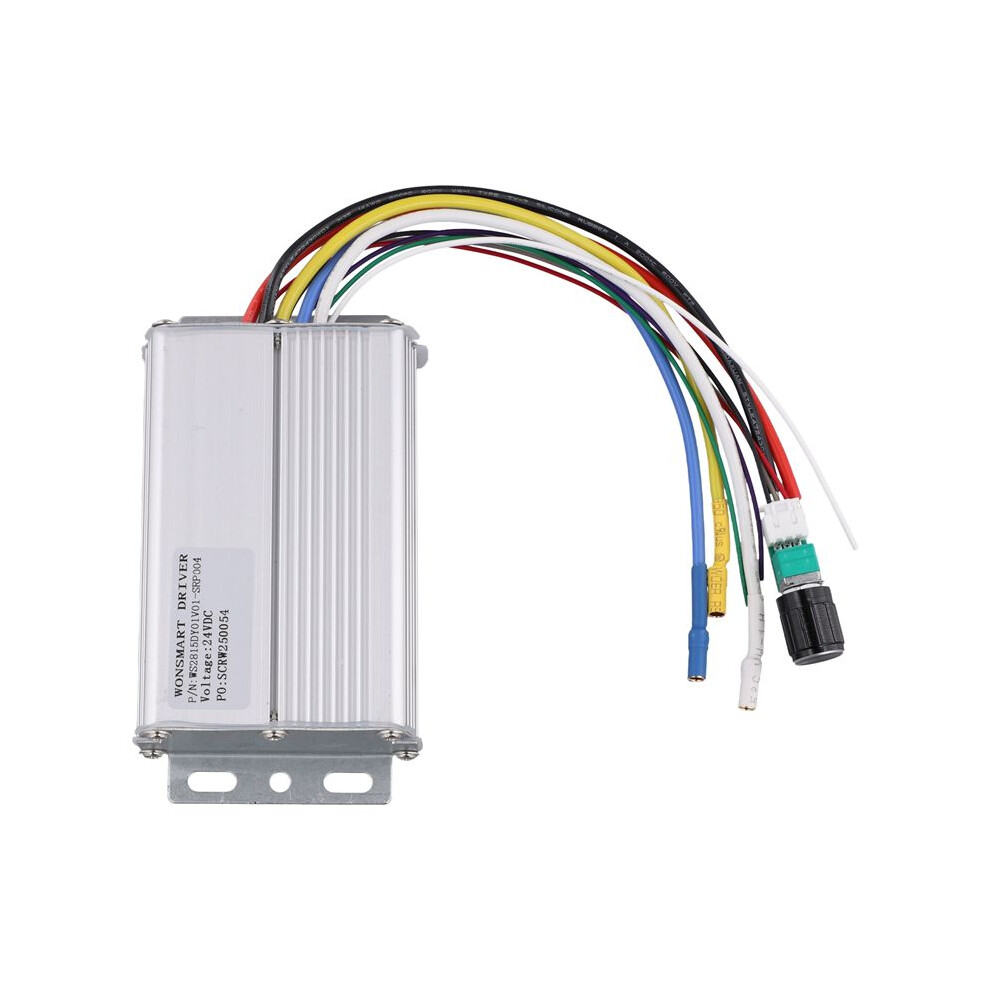

24V 15A 360W Blower Driver PWM Speed Regulating Brushless Motor Controller with
New
331,67 kr.
Lignende produkter, vi tror du vil kunne lide
Would you like us to let you know when it's back?
Beskrivelse og detaljer
Oversigt
- Blower DC Motor Controller
- Working voltage: DC24V
- Maximum current: 15A
- Speed Regulating Brushless
- Blower Speed Motor Controller
24V 15A 360W Blower Driver PWM Speed Regulating Brushless Motor Controller with Beskrivelse
Blower Motor Controller
Working voltage: DC24V
Maximum current: 15A
Control Connection:
PG: Speed Pulse Output
FR: High or not connected=CCW, Low or connected to GND=CW
EN: High or not connected=running, Low or connected to GND=Stop
VSR:Input 0-5VDC voltage or PWM pulse (2-50 kHz/5V) to change motor speed,please make sure the speed pot the driver is set the max to get full speed.
Colour:Silver
Material:aluminum alloy
Package Contents:
1 x Brushless Motor Driver
Detaljer
| OPC | PVB7Q6T |
|---|---|
| Koder | 6034004511662 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 10cm |
|---|---|
| Width | 20cm |
| Length | 30cm |
| Weight | 0.386kg |
| Colour | Silver |
| Material | aluminum alloy |
