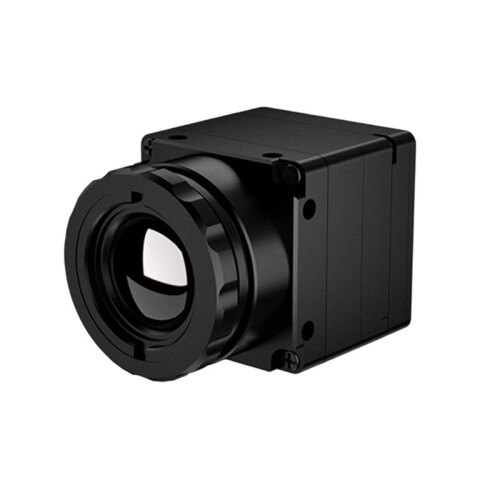

256x192 Infrared Thermal Imaging Module HD Camera with CVBS Interface, UAV Drone Thermal Imager Sensor for Night Vision
Would you like us to let you know when it's back?
Oversigt
- Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Array Detector
- Thermal Imaging Module
- Drone Thermal Camera
- Thermal Module
- Industrial Thermal Imager
256x192 Infrared Thermal Imaging Module HD Camera with CVBS Interface, UAV Drone Thermal Imager Sensor for Night Vision Beskrivelse
Detector Type: Vanadium Oxide Uncooled Infrared Plane Array Detector
Resolution: 256x192
Pixel Pitch: 12μm
Spectral Band: 8-14μm
NETD: 40mK
Frame Rate: 50Hz
Shutter: Auto Shutter Correction
Length: Adjustable Focus
Aperture: f/1.0
Lens: 9mm
FOV (H*V): 17.6x13.2
Detection Distance (Recognition): Humans: 1000m
Vehicles: 2389m
Detection Distance (Detection): Humans: 250m
Vehicles: 597m
Pseudo-Color Mode: Incandescent / Incandescent
Analog Video: PAL
Output Type: CVBS
Overall Module Voltage: 4.5-18V
Power: 600mW
Operating Temperature: -40~+80
Storage Temperature: -50~+85
Dimensions: 21*21MM
Color: Black
Material: plastic
Package Contents:
1*Infrared thermal imaging module
Detaljer
| OPC | PTRGYJV |
|---|---|
| Koder | 4713063277635 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 9cm |
| Length | 9cm |
| Weight | 0.0635kg |
| Colour | Black |
| Material | Plastic |
