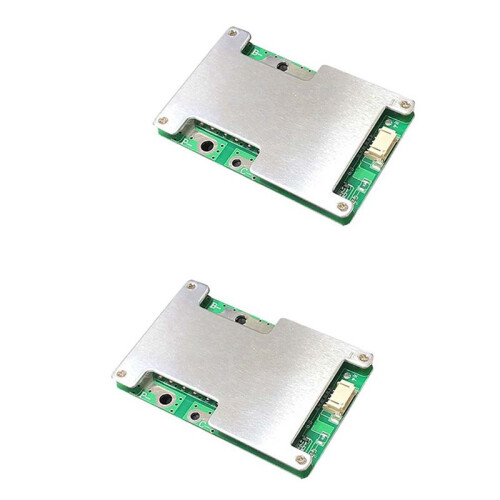

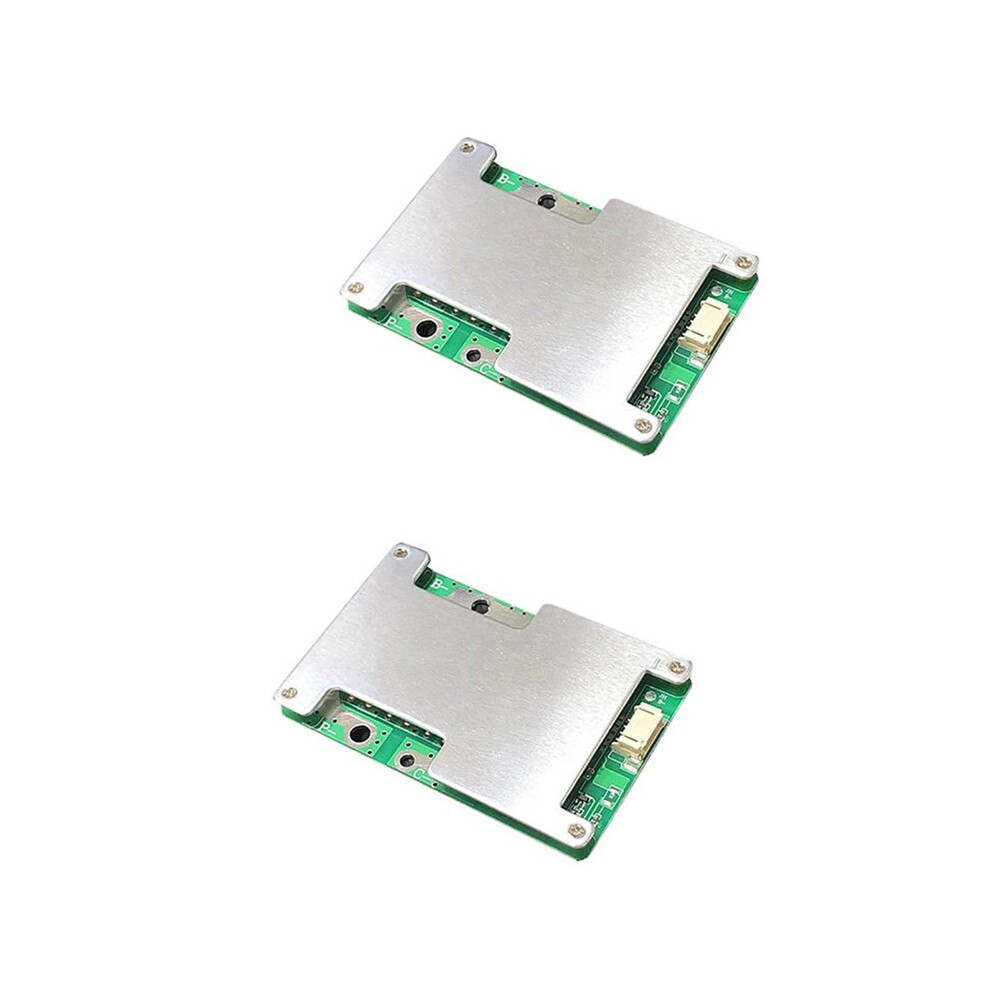

2Pcs 4S 12V 100A BMS LiFePo4 Lithium Iron Phosphate Battery Protection Circuit Board with Balanced Charging
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 134,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (40,52 kr.) | man. 28. sep. - lør. 3. okt.
Solgt af: Hoeappt
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- power battery Protection
2Pcs 4S 12V 100A BMS LiFePo4 Lithium Iron Phosphate Battery Protection Circuit Board with Balanced Charging Beskrivelse
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Discharge:
Continuous discharge current: 0.1~100A(max)
Instantaneous discharge current: 150A
Charging:
Charging Voltage(Standard): 15V
Charging current: 0.1~10A(max)
Overcharge Protection:
Overcharge detection voltage: 3.750.025V
Overcharge protection delay: 0.3S
Overcharge release voltage: 3.600.05V
Balance:
balance detection voltage: 3.600.025V
balance release voltage: 3.600.025V
balance current: 425mA
Over-discharge Protection:
Over-discharge detection voltage: 2.00.1V
Over-discharge detection delay: 0.1S
Over-discharge release voltage: 2.30.1V
Overcurrent Protection:
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9mS
Overcurrent Protection current: 20010A
Overcurrent Protection release condition: Disconnect the load
Short circuit Protection:
Short circuit detection delay: 250μS
Short circuit Protection release condition: Disconnect the load
Main circuit conduction internal resistance:15mΩ
Self-consumption current:20uA
Operating temperature:-30~80
Wiring:
Please test three series of battery voltage balance then cascade
Don't need connect B+
C-: Charging -
P-: Just can as discharge -
color:As shown
Material:PC+Metal
size:56 x 86 x 9mm
Package Contents:
2 x Lithium Battery Charger Protection Board
Detaljer
| OPC | PXQH9HM |
|---|---|
| Koder | 6031066248505 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.105kg |
| Colour | As shown |
| Material | PC+Metal |
