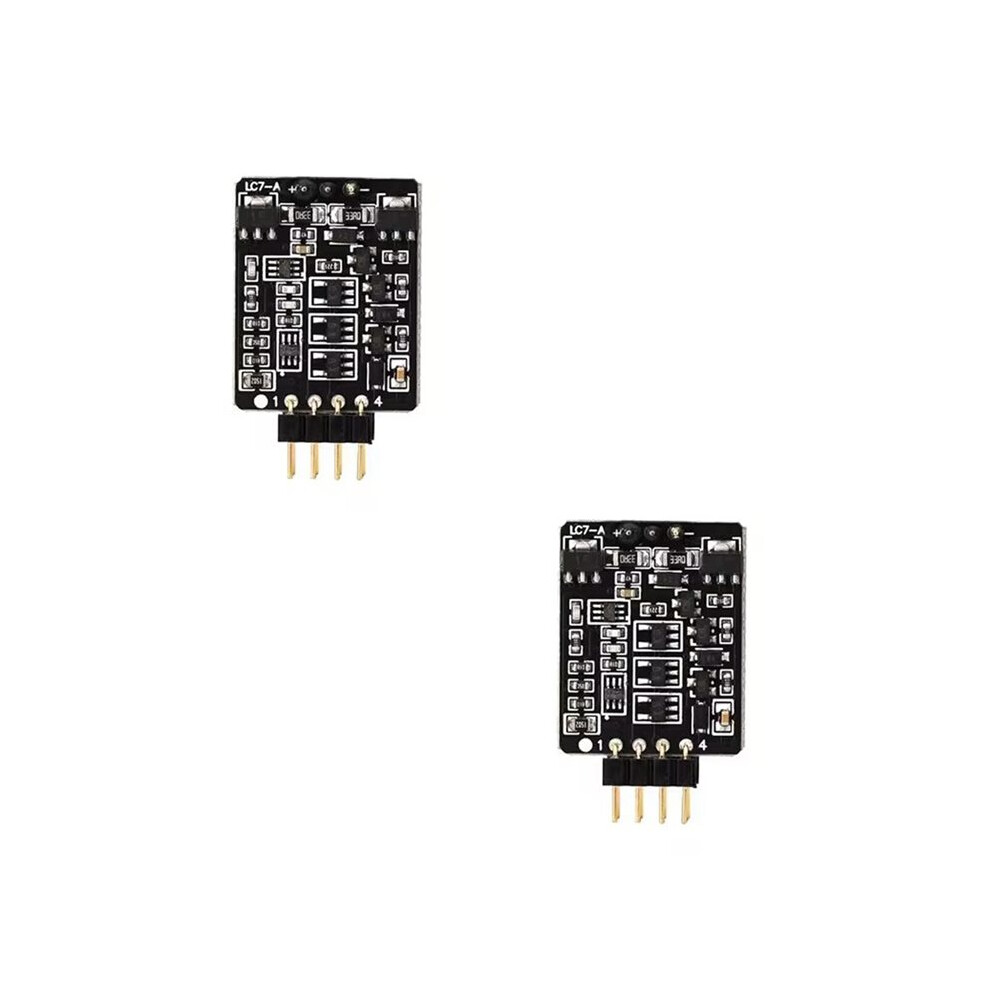

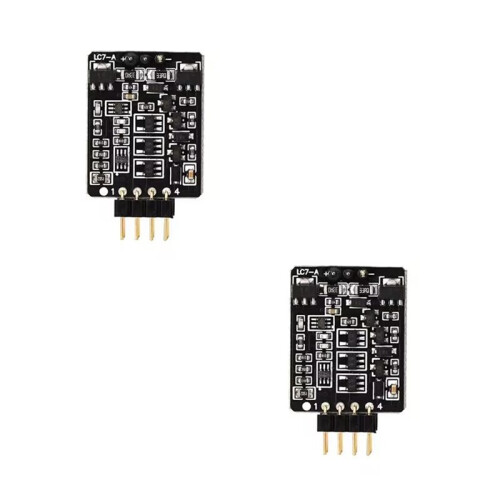

2PCS LC7 Dual Op Amp Class A JFET High Current Discrete Double Operational Amplifiers with Low Distortion

2PCS LC7 Dual Op Amp Class A JFET High Current Discrete Double Operational Amplifiers with Low Distortion Beskrivelse

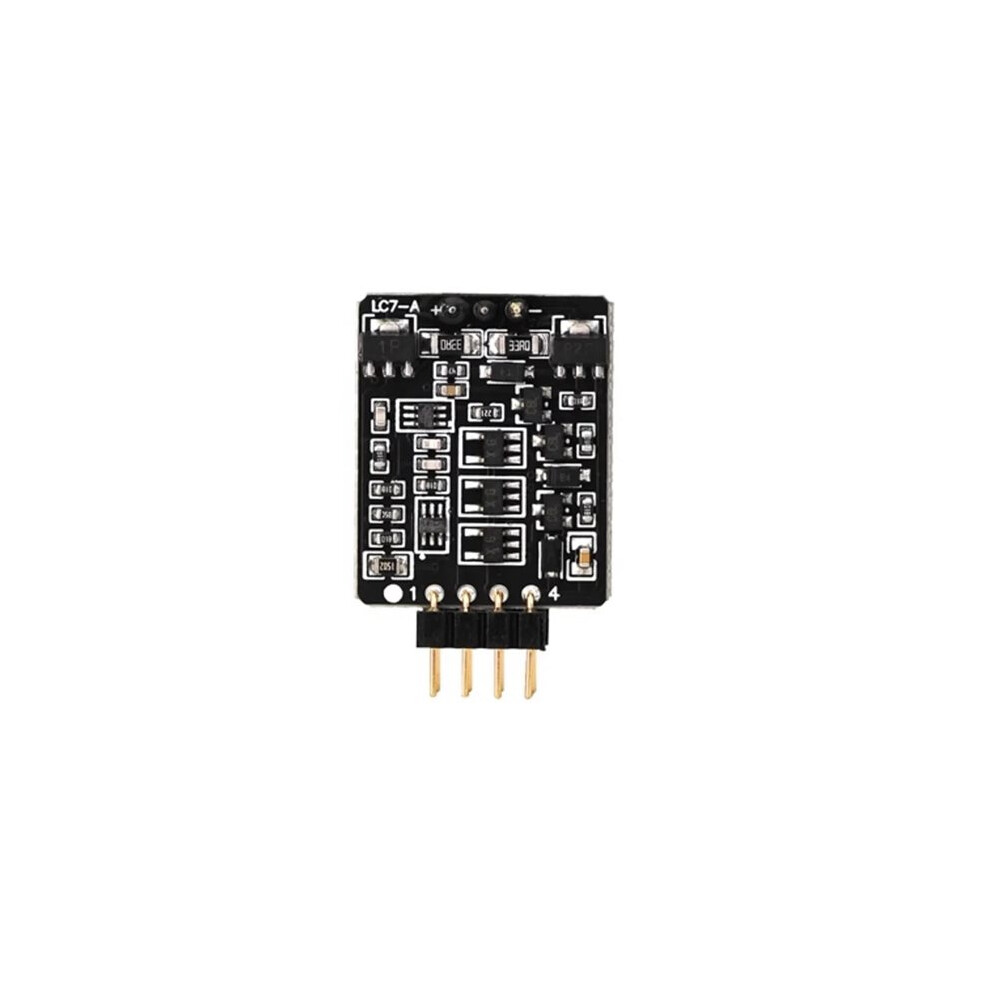

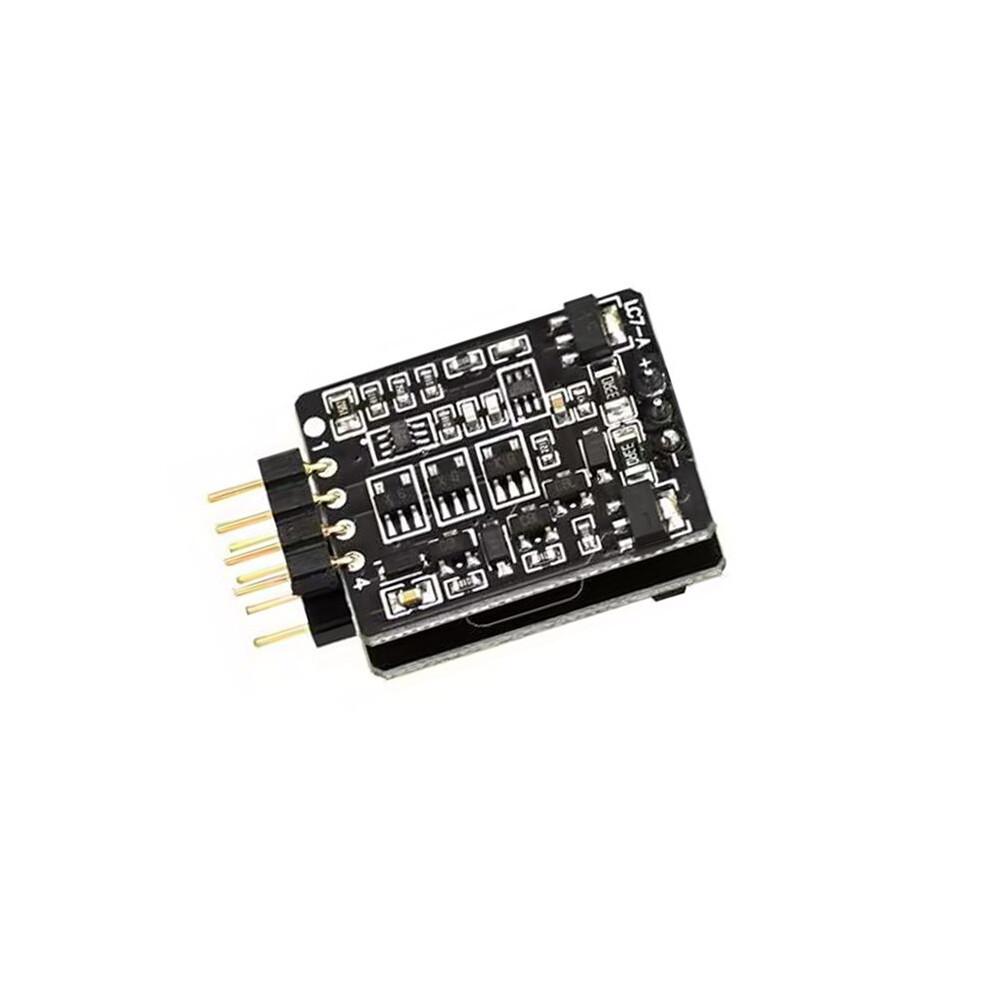

The new LC7 dual operational amplifier modules is Lower noise and distortion discrete operational amplifier, suitable for front-end amplification, DACIV conversion, LPF filtering
Various uses such as wave filters.
Its design dimensions effectively avoid decoupling capacitors both sides of the socket, ensuring smooth installation and operation.

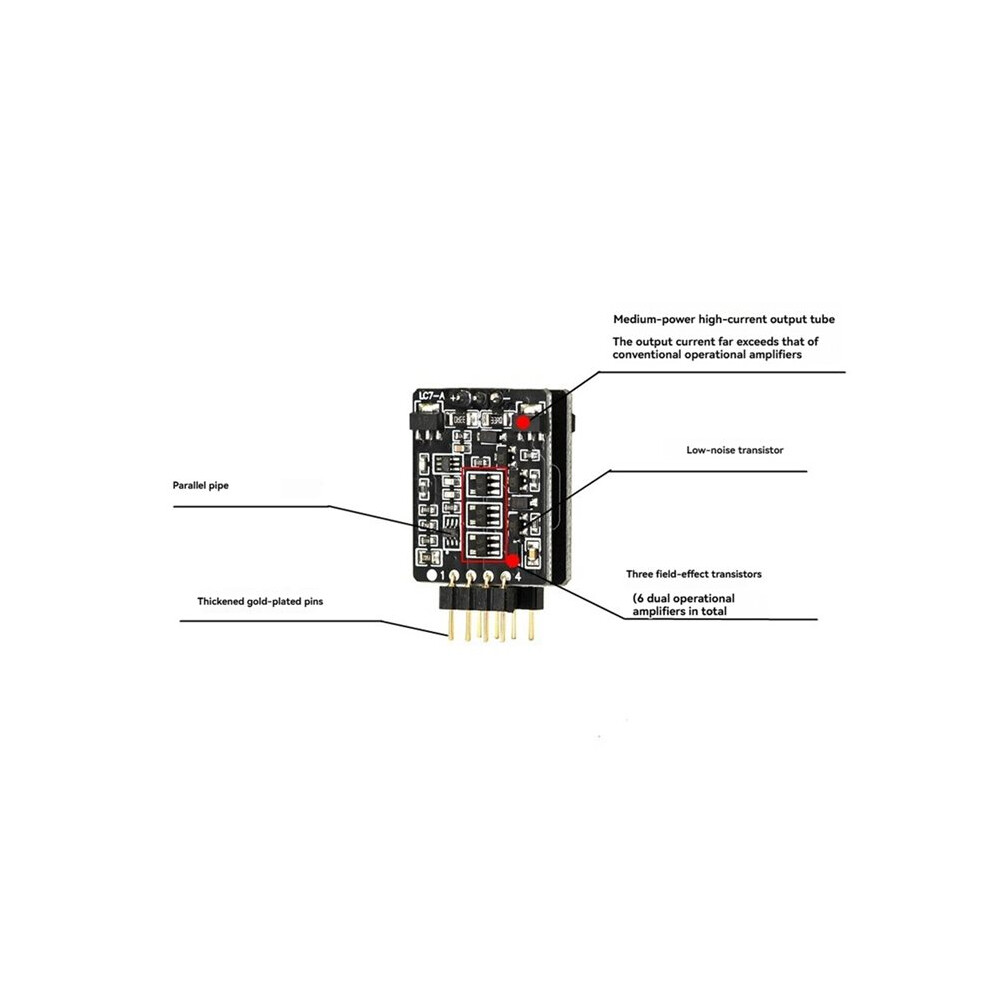

Use 6 in total expensive low-noise JFET2SK2145 as input differential amplifiers Amplification, transistor as mirror constant current source, 1% resistor. This version does not have an adjustable potentiometer and can also be used To maintain an extremely low output offset voltage (less than 10mV).
Megaohm level high impedance input enhances the ability to amplify and capture weak signals without losing details. When maintaining low noise and distortion, the measured THD+N is 0.00003% @ 1KHz (due to the instrument's own loss, True degree+noise 0.00006%).

With high output current, the distortion is less than 0.002% when the output current is 100mA, which is higher than previous modules
Reduced by 10 times, while the output current of a regular operational amplifier has already burned out or been protected.
High compatibility, can be used for IV, LPF, and amplifier circuits, and can also be used for buffering and 1x amplification to ensure stable operation
Make it.

Model: LC7 , LC7-A
Noise: 5nV
Operational amplifier type: Dual operational amplifier
Signal to noise ratio: 140dB
Resolution: -132dB
Distortion+noise: 0.00003% (The distortion measured by the AP555 instrument's own loop is 0.00006, and after amplification by this operational amplifier, it was measured to be...)
0. 00009%)
Output voltage: less than 10mV
Working voltage: 10 - 22V
Static current: 16mA (positive and negative voltage each 16mA)
Maximum outpu
