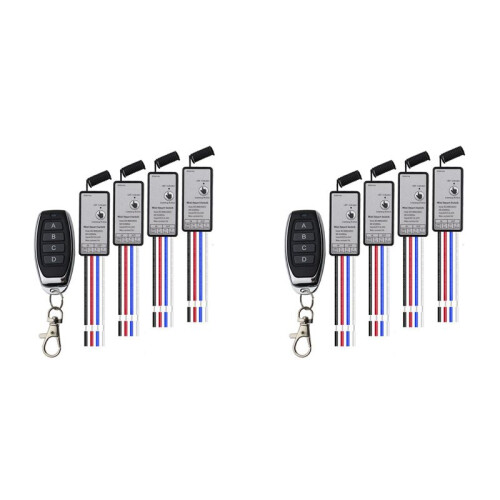

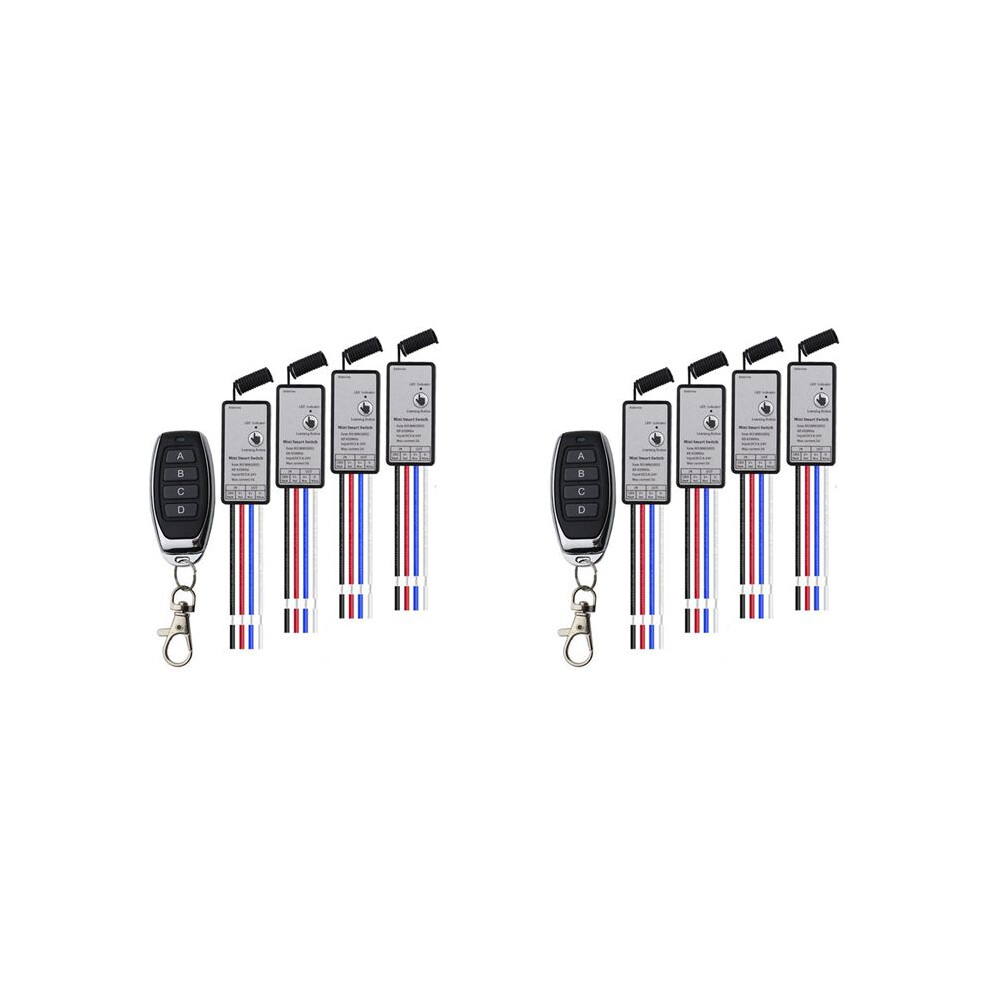

2X 433Mhz Relay Wireless RF Remote Control Power Transmitter DC5V-24V 1CH LED Lamp Controller Micro-Receiver

2X 433Mhz Relay Wireless RF Remote Control Power Transmitter DC5V-24V 1CH LED Lamp Controller Micro-Receiver Beskrivelse

Application environment: Remote control ,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars
Features: Wireless control LED lamp string, Christmas tree light string, light control . Long range working voltage
Ultra low power,High sensitive response.
Operating Voltage: 3.6V-24V
Encoding : EV1527 Learning code

Colour: Black
material: plastic
Note:
We would suggest you to purchase our remote control for the better working performance.
Specification:
Working voltage: 3.6V~24V
Maximum load: 2A
Static current: Less than 5 mA
Working frequency: 433MHz
Reception sensitivity: Less than -108dBm
Size: 25.5 mm x 13mm x 5mm (length x width x high)
size support coding format 1527 learning code
Input: 3.6V ~ 24V
Output: 3.6V ~ 24V
Modulation mode:ASK (superheterodyne)
Appearance size: 42.2mmx 20mm x12. 5mm (length x width x high)
Number of stored remote controls: 20
Working mode: Momentary, Toggle, Latching Mode
Learning style: Learning Button
Working temperature: -20 degrees 80 degrees.
Specifications Of The Remote Control:
Operating frequency: 433.92MHz
Power by 3V Coin Cell Button Battery (Battery included ),
Material: PVC.
Button: 4 buttons
Size: 55mm x 30mm
Operating voltage: 3V
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Lea
