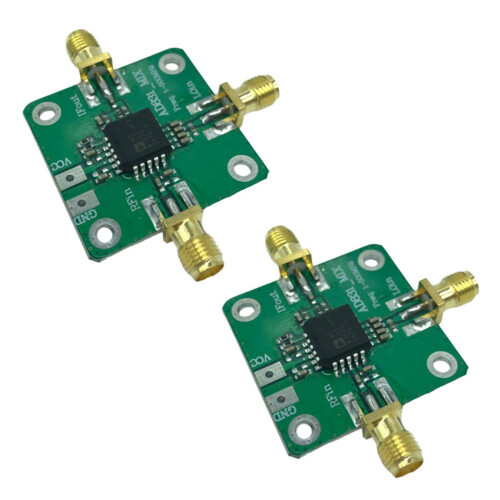

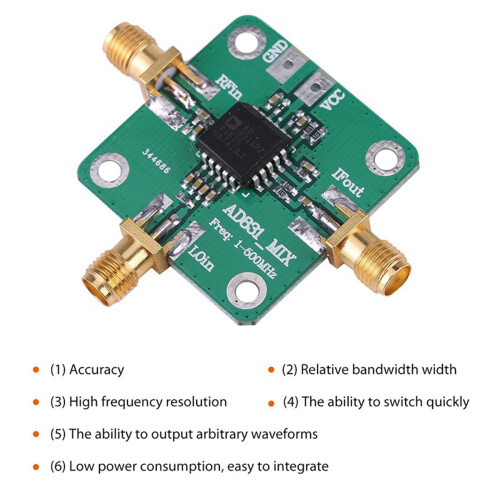

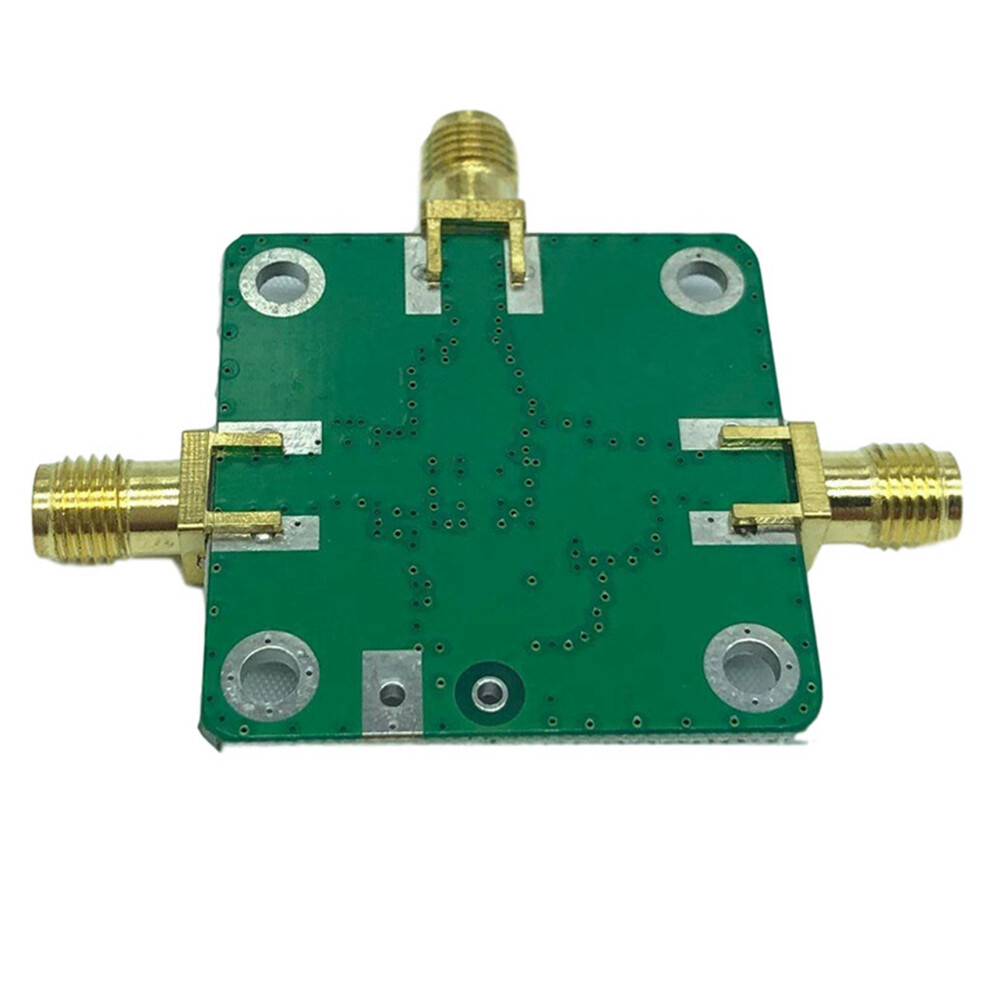

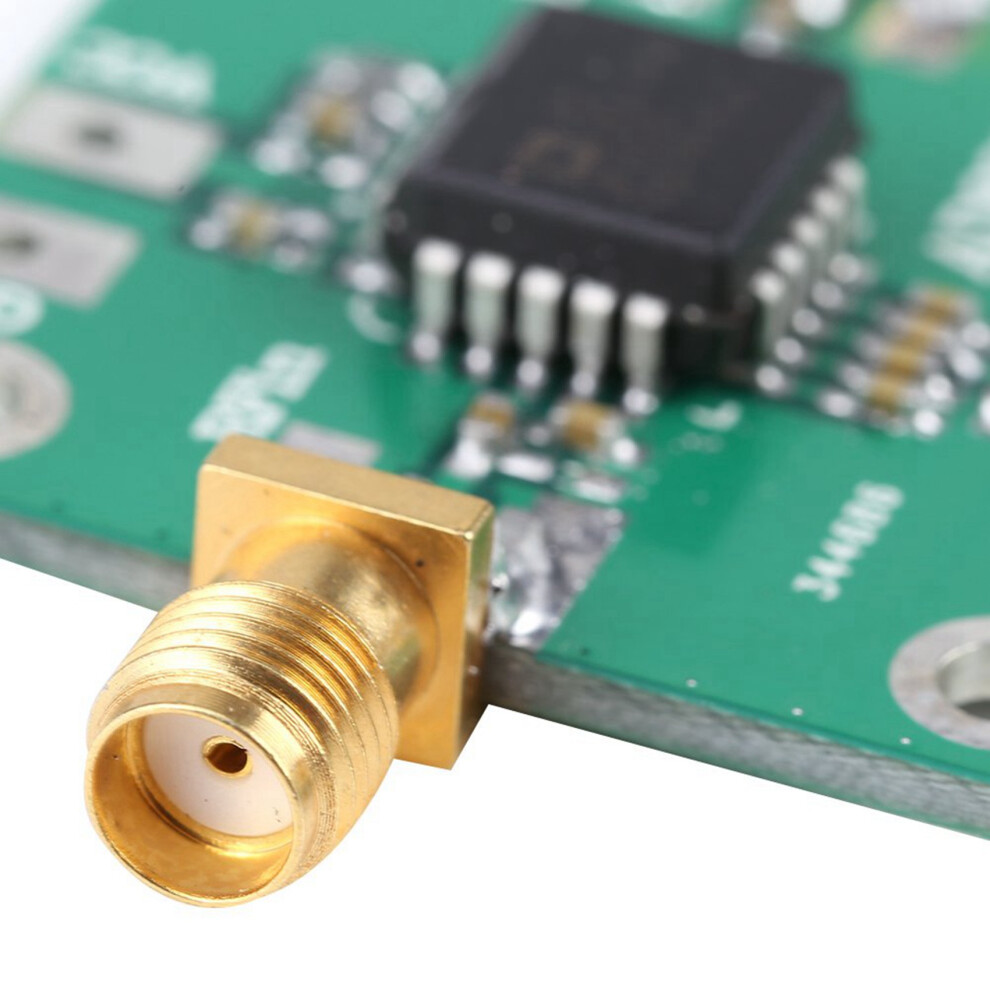

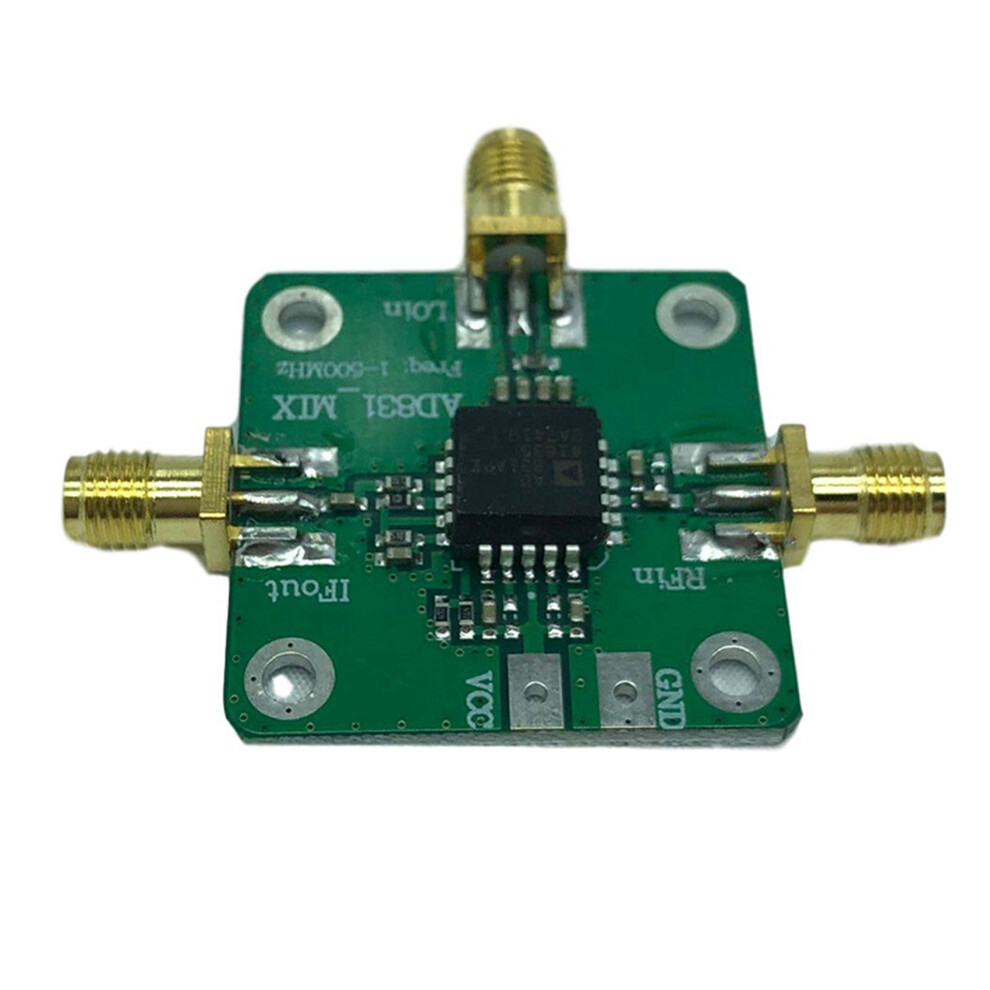

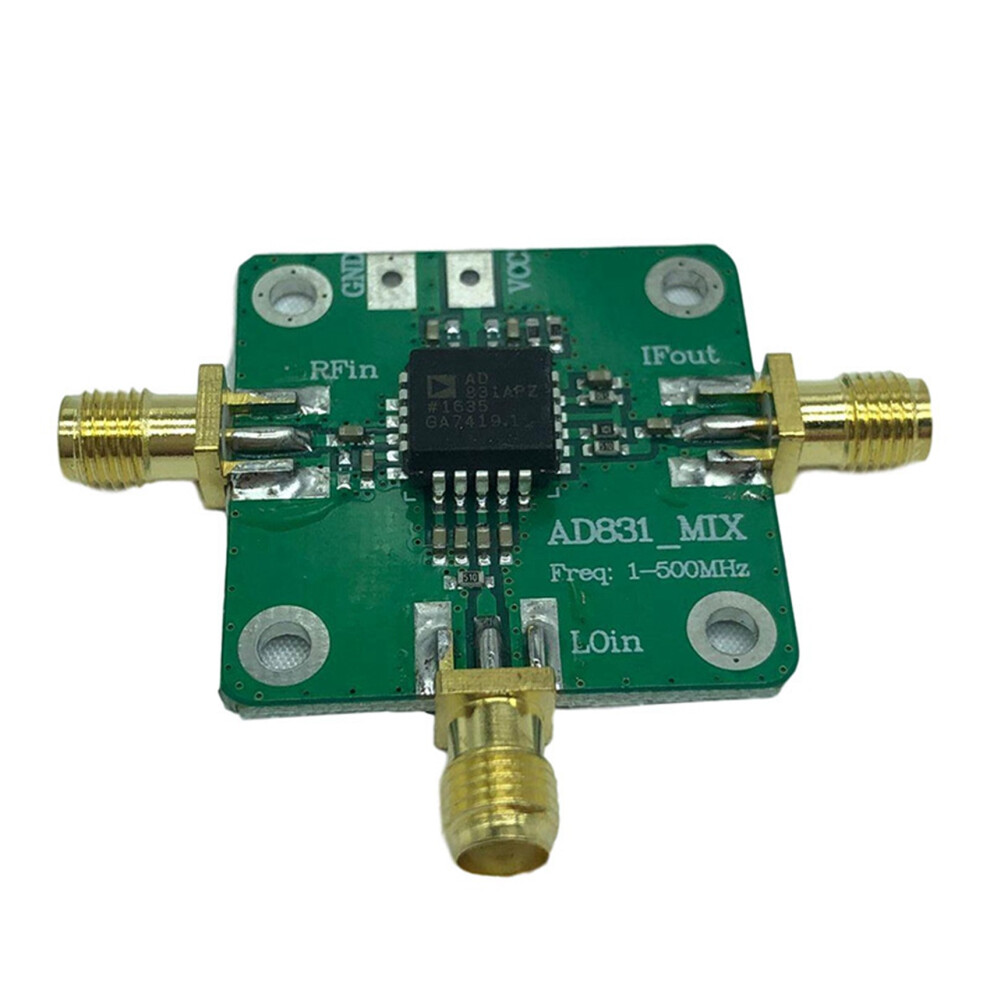

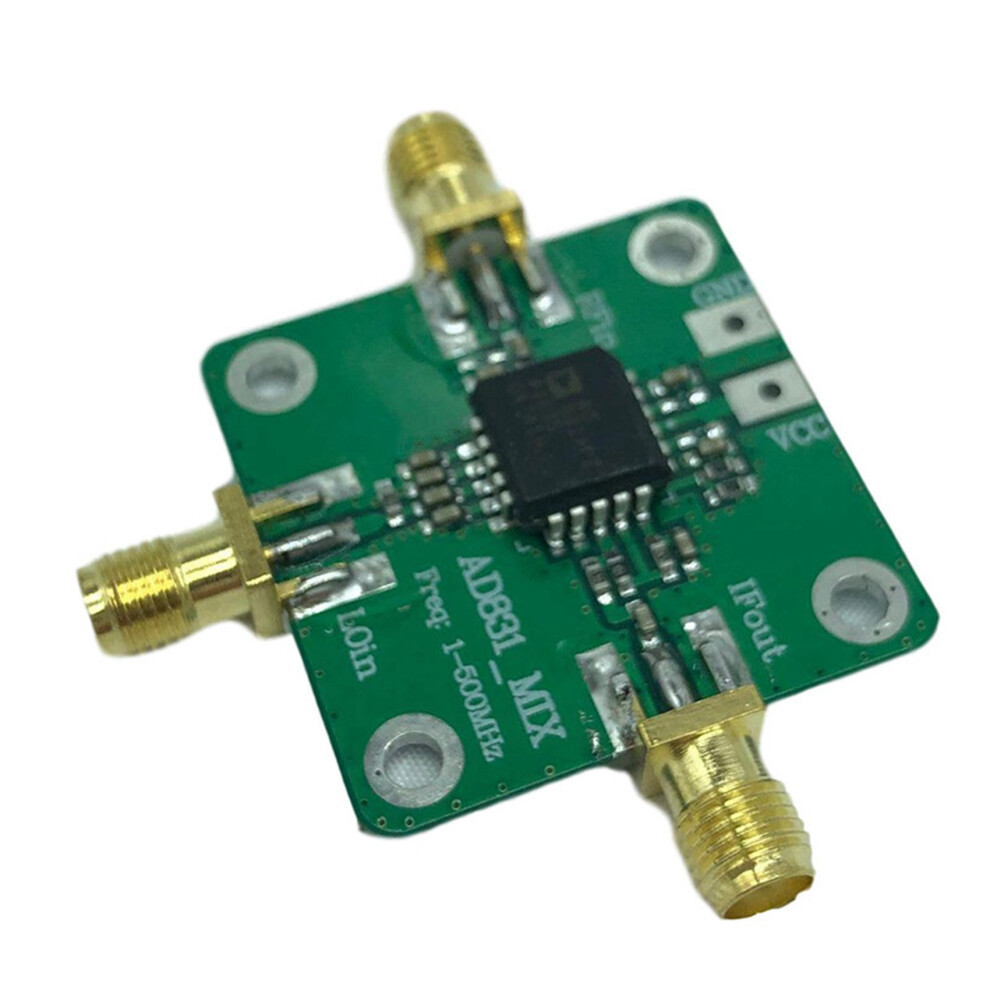

2X AD831 High Frequency Transducer RF Mixer Module 500MHz Bandwidth RF Frequency Converter

2X AD831 High Frequency Transducer RF Mixer Module 500MHz Bandwidth RF Frequency Converter Beskrivelse

1. AD831 is a low distortion, wide dynamic range, single-chip mixer, suitable for RF-IF down conversion in and VHF receivers, second mixer in DMR base stations, -baseband conversion, and quadrature modulation And demodulation and Doppler frequency shift detection in ultrasound imaging and other applications
2. AD831 provides +24 dBm third-order intercept point, which can achieve -10 dBm LO power consumption. It does not require high-power LO drivers, and there is no corresponding shielding and isolation problems. Therefore, compared with passive mixers, it can improve System performance, reduce system cost. .

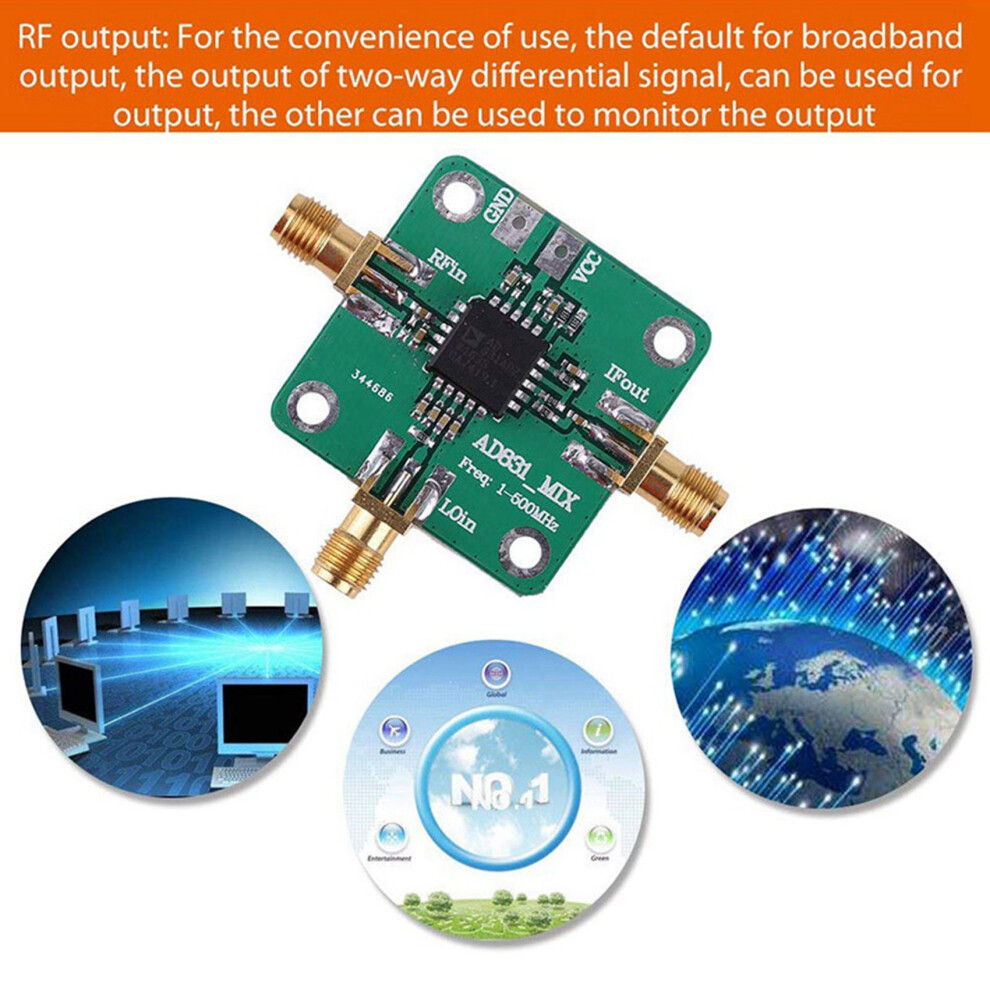

3. The mixer is designed to be powered by a single power supply, and the RF, IF and LO have isolation capacitors for easy use. The operating frequency of the RF and LO inputs can be as high as 500MHz. The IF output is a single-ended voltage output. It has an output bandwidth of 250 MHz.
4. A single resistor connected between pins OUT and FB is used to set the gain. The amplifier has low offset characteristics, so it can be used for coupling applications such as -baseband frequency conversion and quadrature amplitude demodulation
5. With the output amplifier of the mixer and the best source impedance, the SSB noise figure of the mixer is 10.3 dB at 70 MHz. Unlike passive mixers, AD831 has no insertion loss, no external duplexer, and no passive termination.AD8362 has two working modes: power measurement and controller. In Figure 1, in the power measurement mode, VOUT and VSET

Product parameters:
RF input: 0.1-500MHz
RF input: +10dBm (1dB compression point)
Local oscillator input: 0.1-500MHz
Local oscillator input: -10dBm
IF output: 0.1-200MHz
Power supply voltage: 9-11V single-ended power supply
Weight: 11 grams
Colour:Green
Material:PCB
Size:33x33mm
Package
