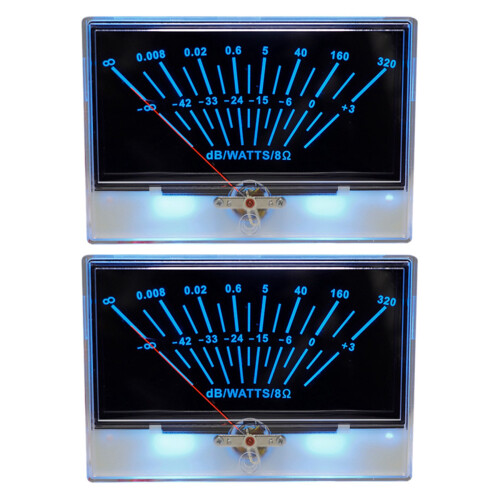

2X Driver Board P-134 VU Meter Drive Board VU Meter Audio Backlight Analog Digital Power Meter

2X Driver Board P-134 VU Meter Drive Board VU Meter Audio Backlight Analog Digital Power Meter Beskrivelse

VU Meter Features:Standard test conditions temperature: 20 Celsius, humidity 70% . Can also be tested under normal temperature and humidity.The influenza degree pointer at the zero scale to the maximum scale sensitivity of 1000 uA 10% (full scale position);Internal impedance :800 ohm 10%;Insulation impedance meter outside the box the electrical circuit with 500V 50M ohm meter shell
Electrical insulation of the circuit impedance is 500V voltage test of the insulation value. Pointer to overlap with the zero-scale tolerance of 1mm balanced meter using a standard position and tilt 90 degrees to allow the error range of 1mm;Pointer to mount the current instant three times the full scale current, and slowly reduced to the the electric influenza degree 1/2 reading,
The pointer will return to the scale plate within 1/3 scale friction meter coupled with the current, and slowly increase or decrease to a certain value, indicating the point of error range of 1mm,Brake instantly scale plate 2/3 of the current value of the pointer indicates the location of the required for a second or less.
VU Meter Special Test:Tests each interval of five seconds to ten times the full scale current input overload, the action is repeated nine times for each of 0.5 seconds .After this test, 7-14 to maintain normal.Vibration test meter packaged in the vibration plate 1,000 times per minute, and down 4mm shock In each direction for 10 minutes.
After this test 7-14 to maintain normal impact test meter packaged 30-cm height of fall in 3cm thick wooden board, three-direction test.After this test, 7-14 to maintain normal reliability test the current input of 100,000 calibration points within the limits of current sense is still the standard environmental impact test temperature of 50 Celsius, humidity 85%, for 100 hours, after thi
