2X DY-SV8F Voice Playback Module MP3 Player UART I/O Trigger Amplifier Class D 5W 8M Storage Flash /TF for

2X DY-SV8F Voice Playback Module MP3 Player UART I/O Trigger Amplifier Class D 5W 8M Storage Flash /TF for Beskrivelse

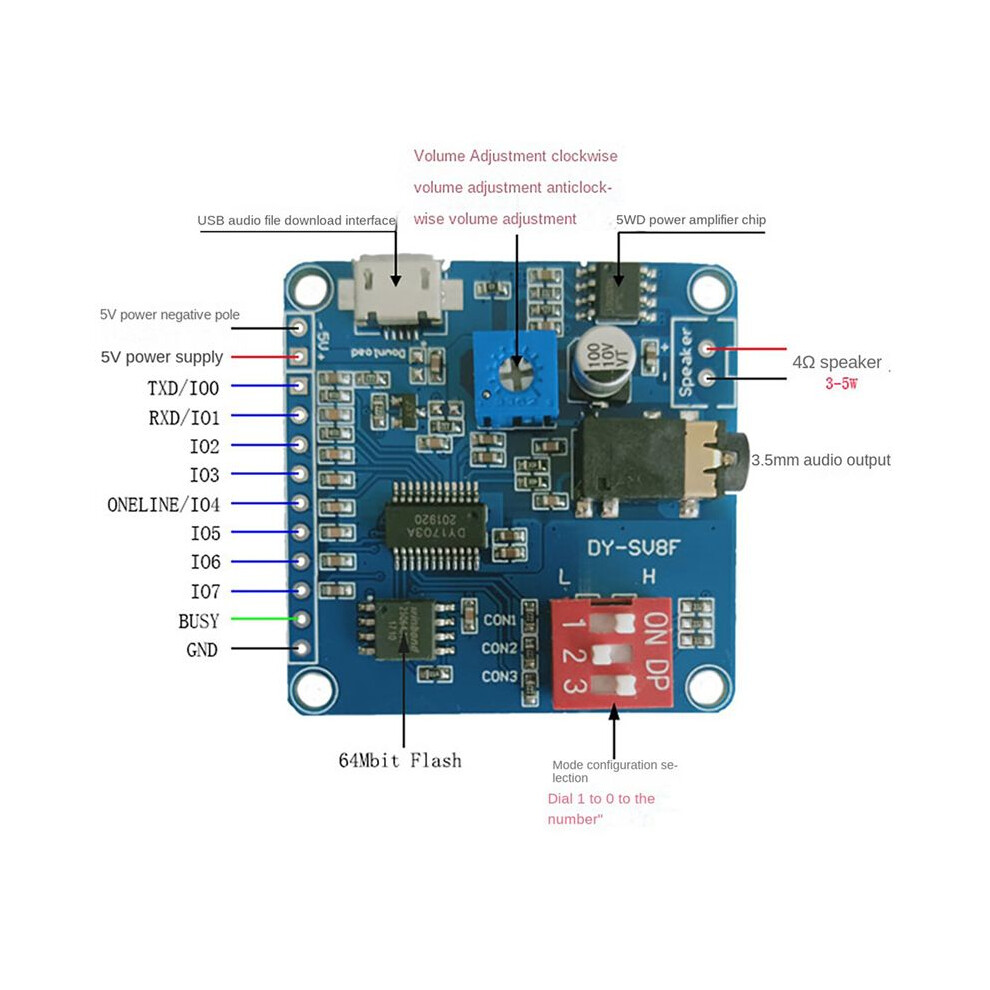

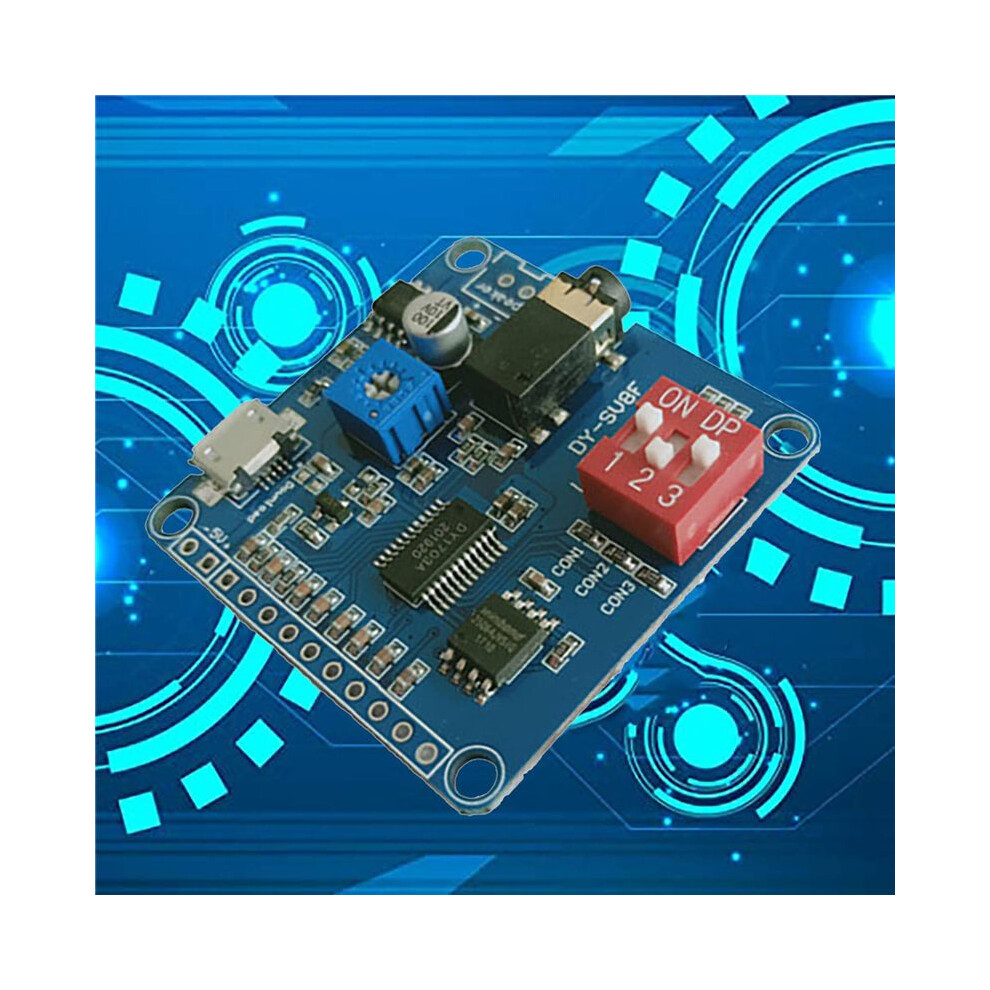

DY-SV8F is an intelligent voice playback module that integrates IO segment trigger, UART serial port control, ONE_line single-bus serial port control, standard MP3 and other 7 working modes, simple DIP settings; onboard 5W class D power amplifier, can directly Drive 4 ohm, 3~5W speakers; support MP3, WAV decoding format, onboard 64Mbit (8M bytes) Flash storage, can connect to computer via USB cable to update Flash storage audio files.
Support MP3, WAV decoding format.
Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
24-bit DAC output, dynamic range supports 90dB, signal-to-noise ratio supports 85dB.
Onboard 64Mbit (8M bytes) FLASH memory, no memory card required.

Comes with 5W class D power amplifier, which can directly drive 4 ohm, 3~5W speakers.
The UART serial port controls the voice broadcast function, which can control , pause, song selection, volume addition and subtraction, etc. The maximum selection of songs is 65535 songs, and the baud rate is 9600 bit/s.
Support IO trigger playback function, 8 IO individually trigger 8 tracks or 8 IO trigger 255 tracks in combination.
Support One_line single-bus serial port control, which can control functions such as , pause, song selection, volume addition and subtraction.
Support 3 configuration IOs for to 7 working modes selection, DIP settings, easy to operate.
Product Name:DY-SV8F Voice Playback Module
Product Number:DY-SV8F
Work Voltage: 5V
Working Temperature range:-20~85
Working Humidity range: 0%-95%RH

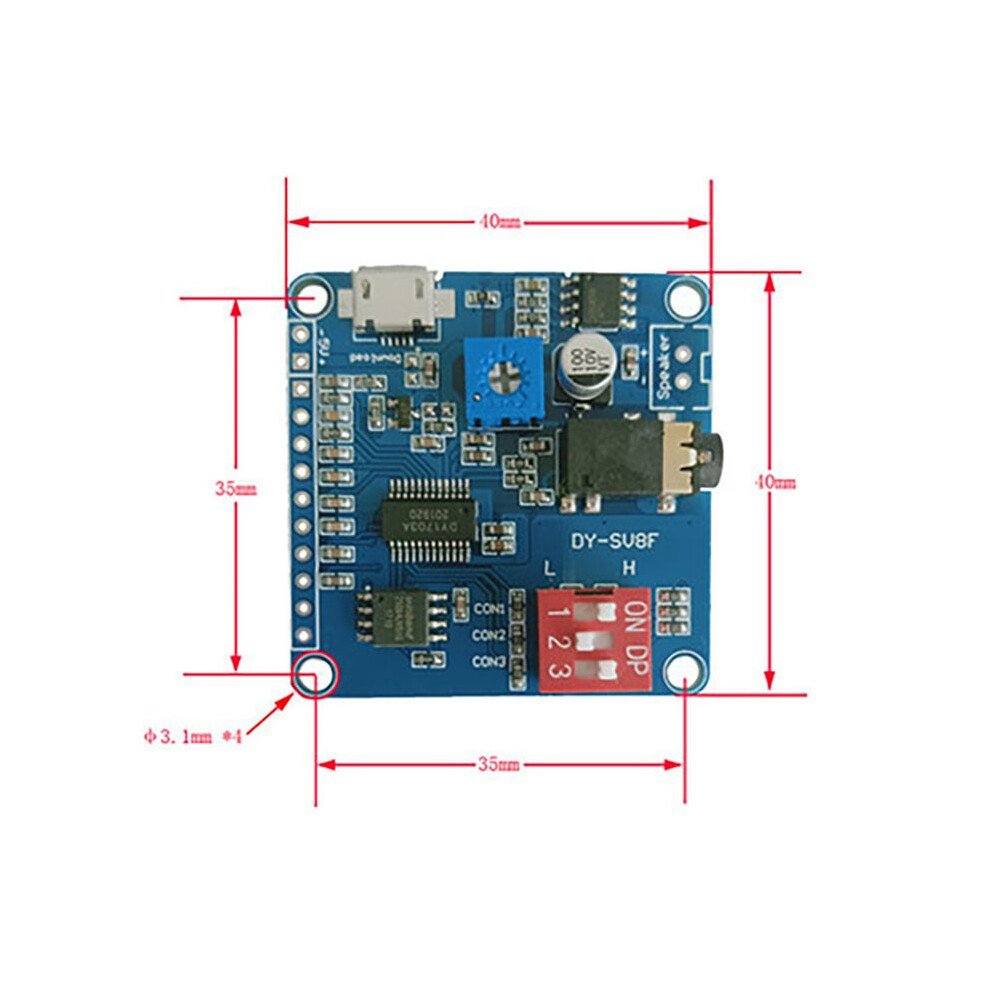

Size:35x35x4.5mm
Colour:
Material: PCB+metal

Package Contents:

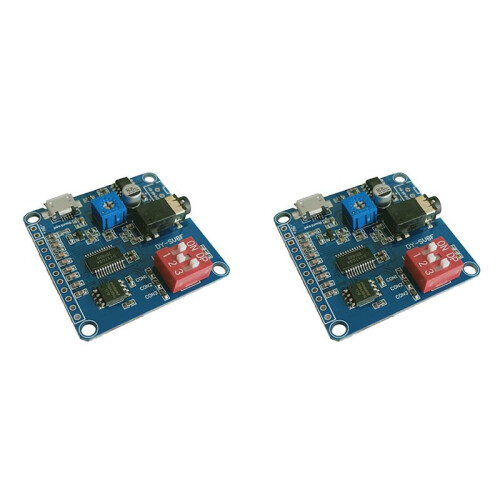

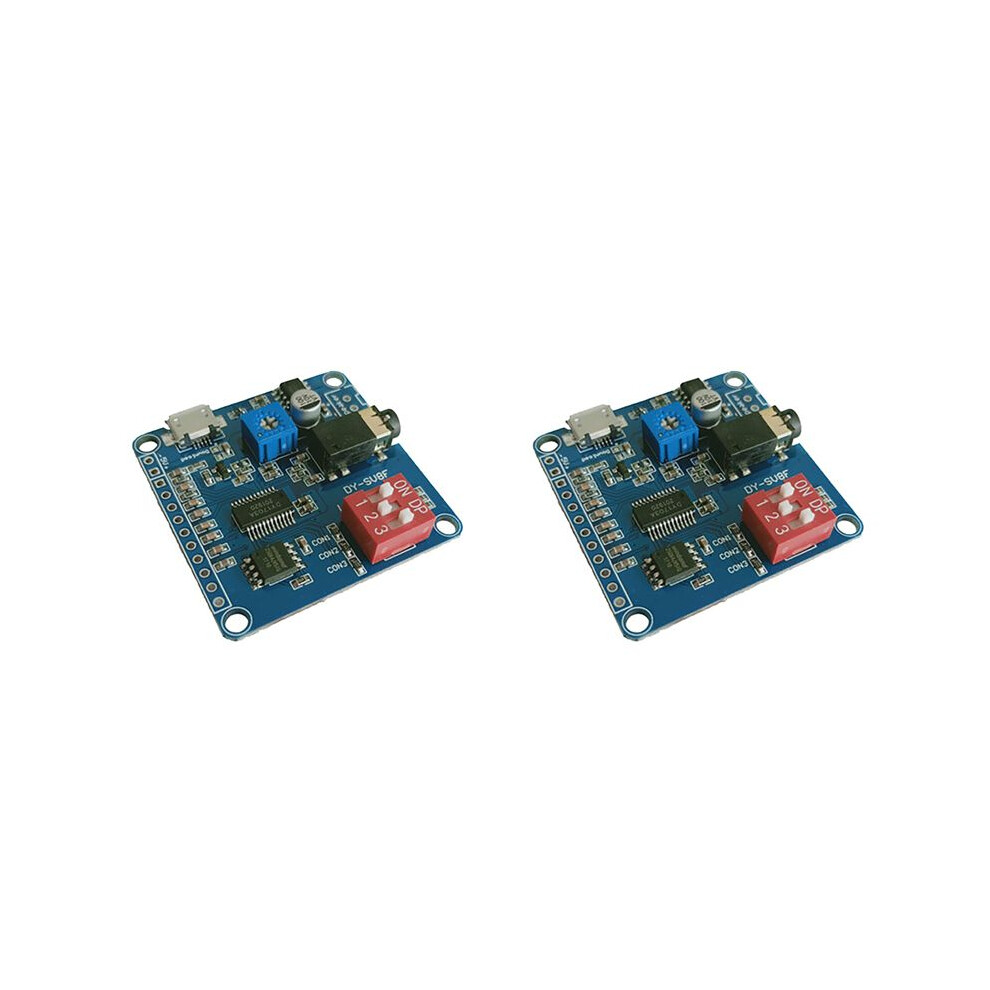

2 x DY-SV8F Voice Playback Module
