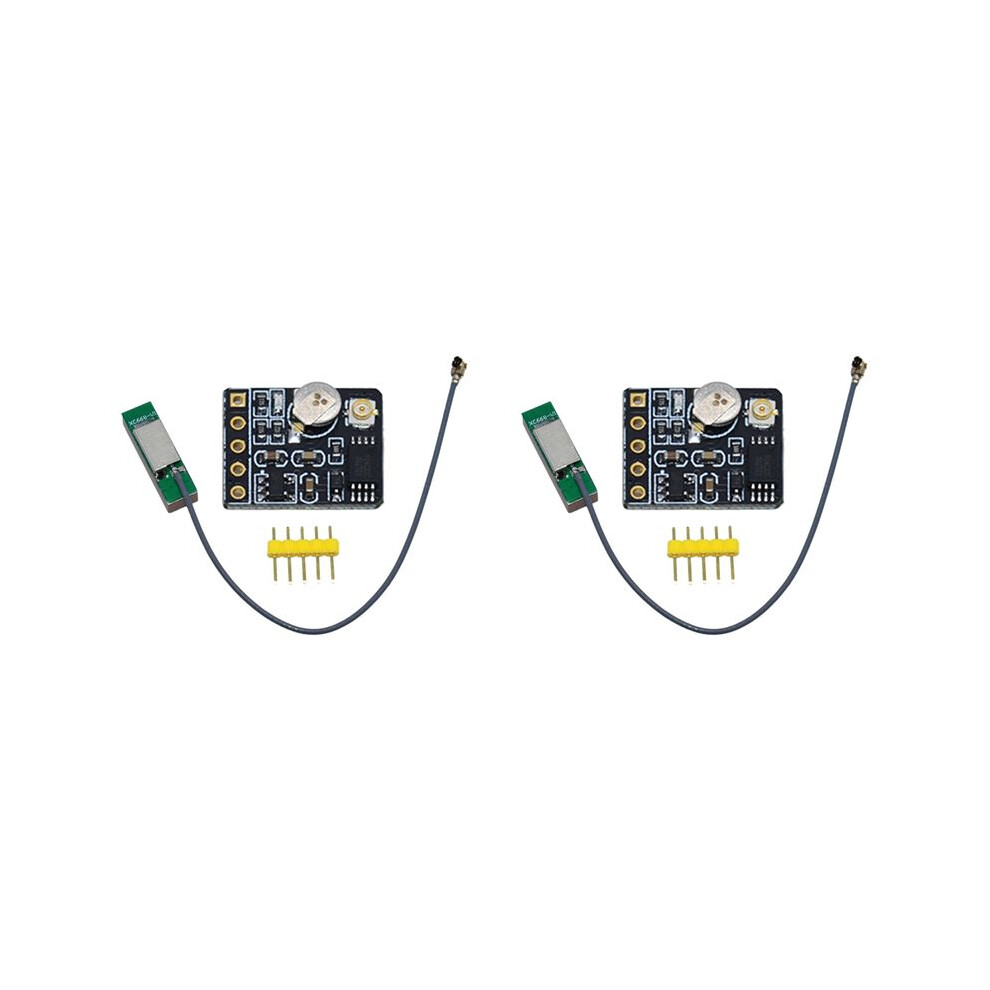

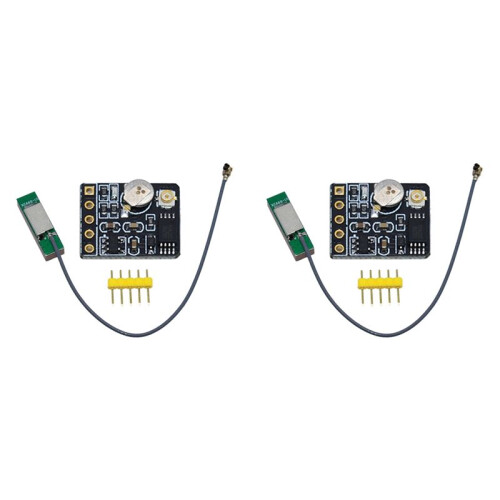

2X GPS+BDS Dual Mode Module Flight Control Satellite Positioning Navigator Atgm336H Replacement for NEO-M8N

2X GPS+BDS Dual Mode Module Flight Control Satellite Positioning Navigator Atgm336H Replacement for NEO-M8N Beskrivelse

ATGM336H-5N series module is the general name of the small size high performance BDS/GNSS full positioning and navigation module series. This series of module products are based Zhongke Micro's fourth-generation low-power GNSS SOC single-chip-AT6558.
Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite Navigation System), US GPS, Russia's GLONASS, EU's GALILEO, Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS).
AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip, including 32 tracking channels, can receive GNSS signals of six satellite navigation systems at the same , and realize joint positioning, navigation and timing.
This series of modules ATGM336H-5N has the advantages of high sensitivity, low power consumption, low cost, etc. It is suitable for car navigation, handheld positioning, wearable devices, and can directly replace Ublox MAX series modules.
Output protocol: ATGM332D-5N series modules use UART as the main output channel and output according to the NMEA0183 protocol format. For details, please refer to "CASIC Multimode Satellite Navigation Receiver Protocol Specification".

Excellent positioning and navigation functions, support single-system positioning of BDS/GPS/GLONASS satellite navigation systems, and any combination of multi-system joint positioning, and support QZSS and SBAS systems
A-GNSS support
Cold Start Capture Sensitivity: -148dBm
Tracking sensitivity: -162dBm
Positioning accuracy: 2.5 meters (CEP50, open field)
to first fix: 32 seconds
Low power consumption: continuous operationless than 25mA (@3.3V)
Built-in antenna detection and antenna short-circuit protection
Colour: black
Material: metal + ABS
Size: 2x2x2CM

Package Contents:
