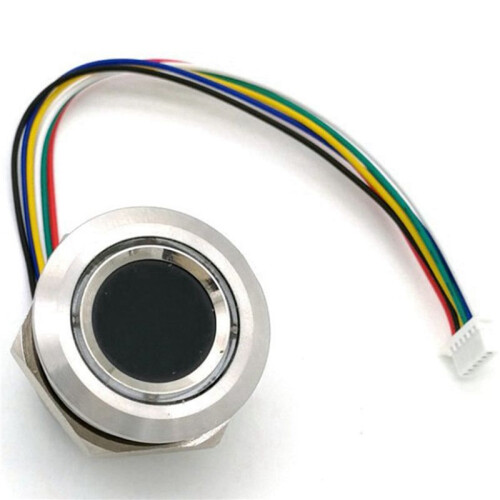

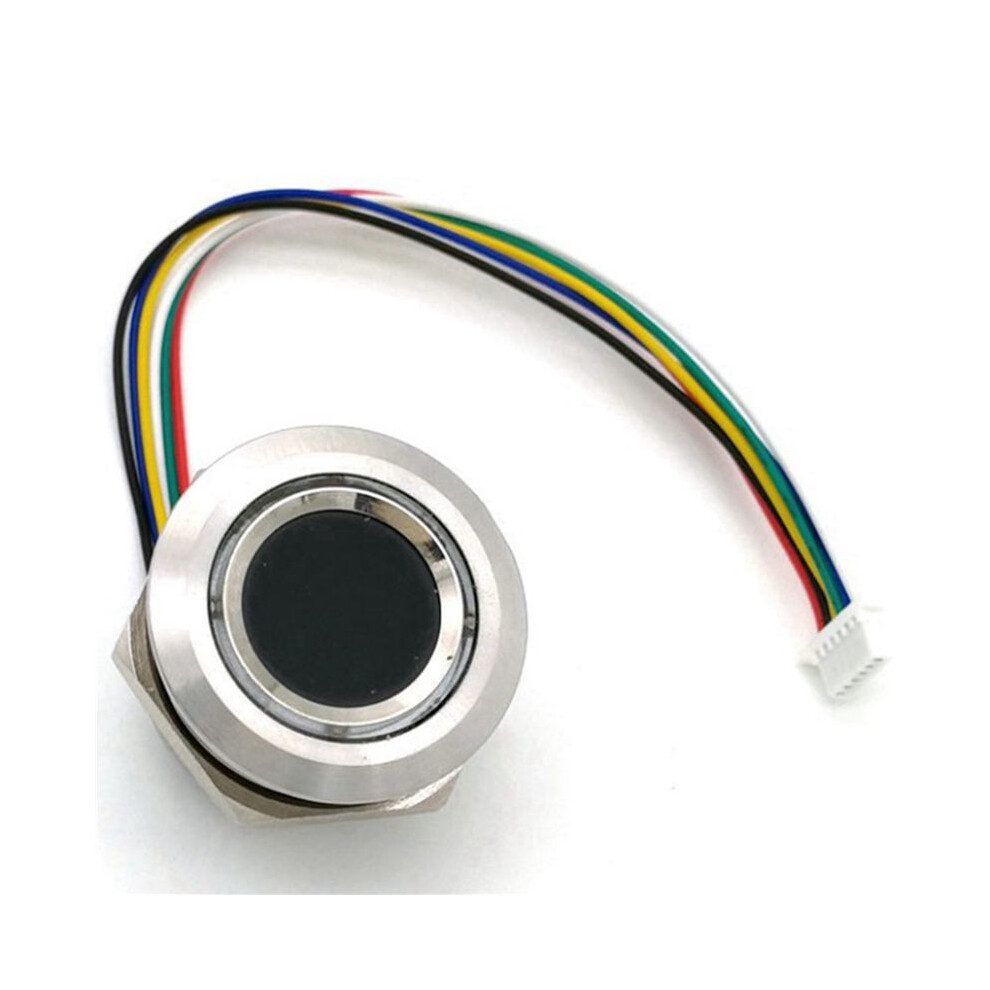

2X K216 Fingerprint Control Board+R503 Fingerprint Module Two-Color Ring Indicator Light Access Control

2X K216 Fingerprint Control Board+R503 Fingerprint Module Two-Color Ring Indicator Light Access Control Beskrivelse

Instructions for control board: 1. SET Button: 1.1 Press SET button shortly,system in register state and indicator light flash fast, press two times for each fingerprint, fingerprint register successful when hearing music.
Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.(Fingerprint capacity is 100 pieces when press SET button,the registered fingerprints are stored in database 01)
1.2 When back to factory default, press SET button until hear "Di" long beep and music,means initialization operation successful
2. Remote Control: 2.1 Red indictor lighted means in programming stated, music means operation successful, default password: 123456,password length: 6numbers.2.2 Change password: Press * password * 1 * new password * new password. 2.3 Register fingerprint: Press * password * 2 * DD# , DD from 00 to 02(00, 01 and 02 refer tothree different fingerprint databases), each database can store fingerprint 100 pieces; Exit fingerprint in register state when press * button or waiting for 10s.

Empty fingerprint: Press * password * 3 * password#
Control Work Mode:
Press * password * 4 * 00# Fingerprint module Contact standby function
Press * password * 4 * 01# Fingerprint module Contact standby function OFF(Normally Mode)
Delay for closing relay: Press * password * 5 * SS #; SS from 00 to 20, SS means the closing for relay(from 0.5s to 20s), e.g.: 00 means 0.5s, 20 means 20s; Default is 5s.
Delete fingerprint: Press * password * 6 * DD#, DD from 00 to 02 (00, 01 and 02 refer tothree different fingerprint databases).
PasswordUsing: Press * password and relay closed, press # and relay opened.
3 FunctionSet:
When chose 2,
closing of the relay is 5s after pass fingerprint(5s is default , and it can be a
