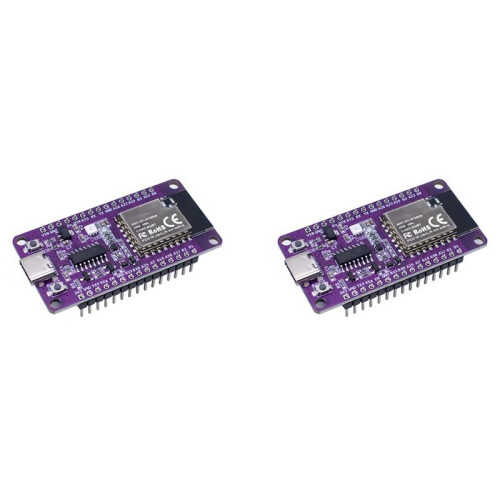

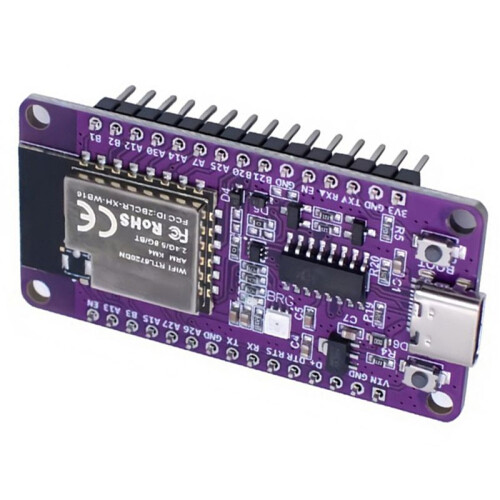

2X RTL8720DN Dual-Band WiFi BLE Module NICEMCU BW16 Development Board Onboard Antenna, Soldered

2X RTL8720DN Dual-Band WiFi BLE Module NICEMCU BW16 Development Board Onboard Antenna, Soldered Beskrivelse

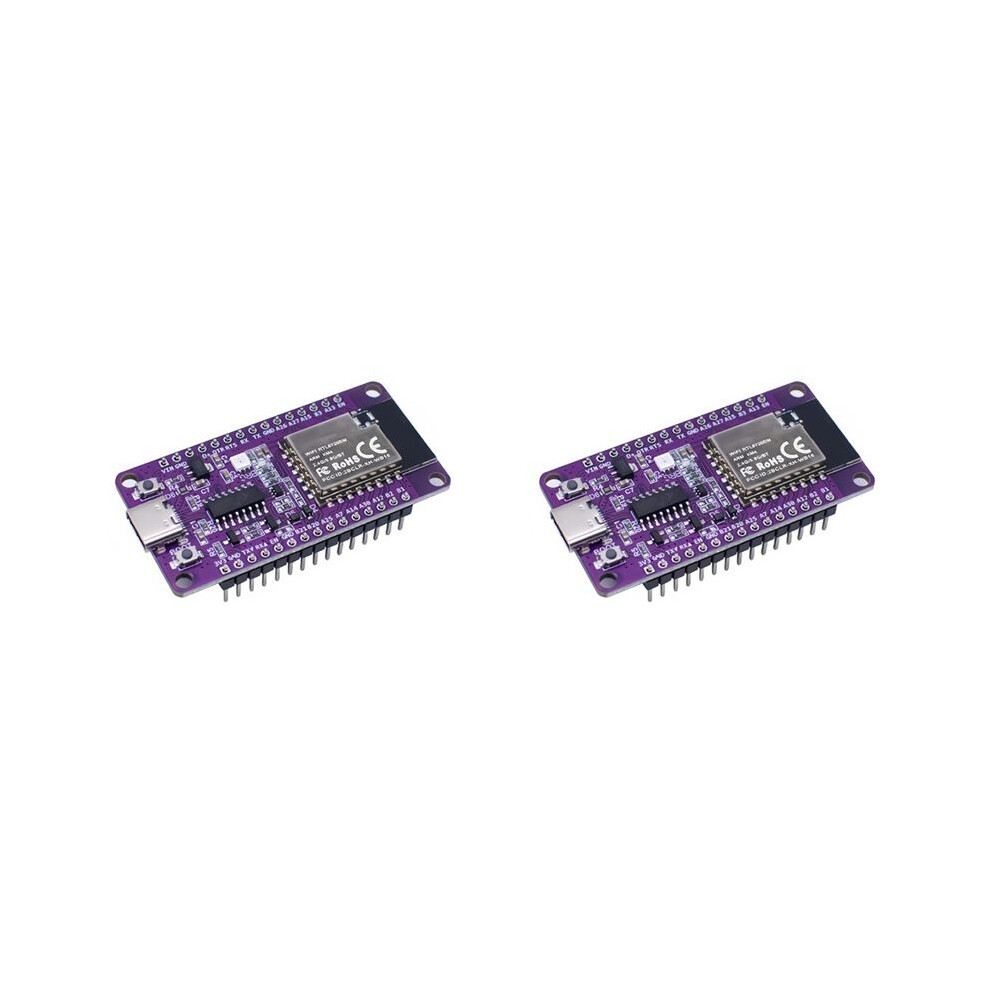

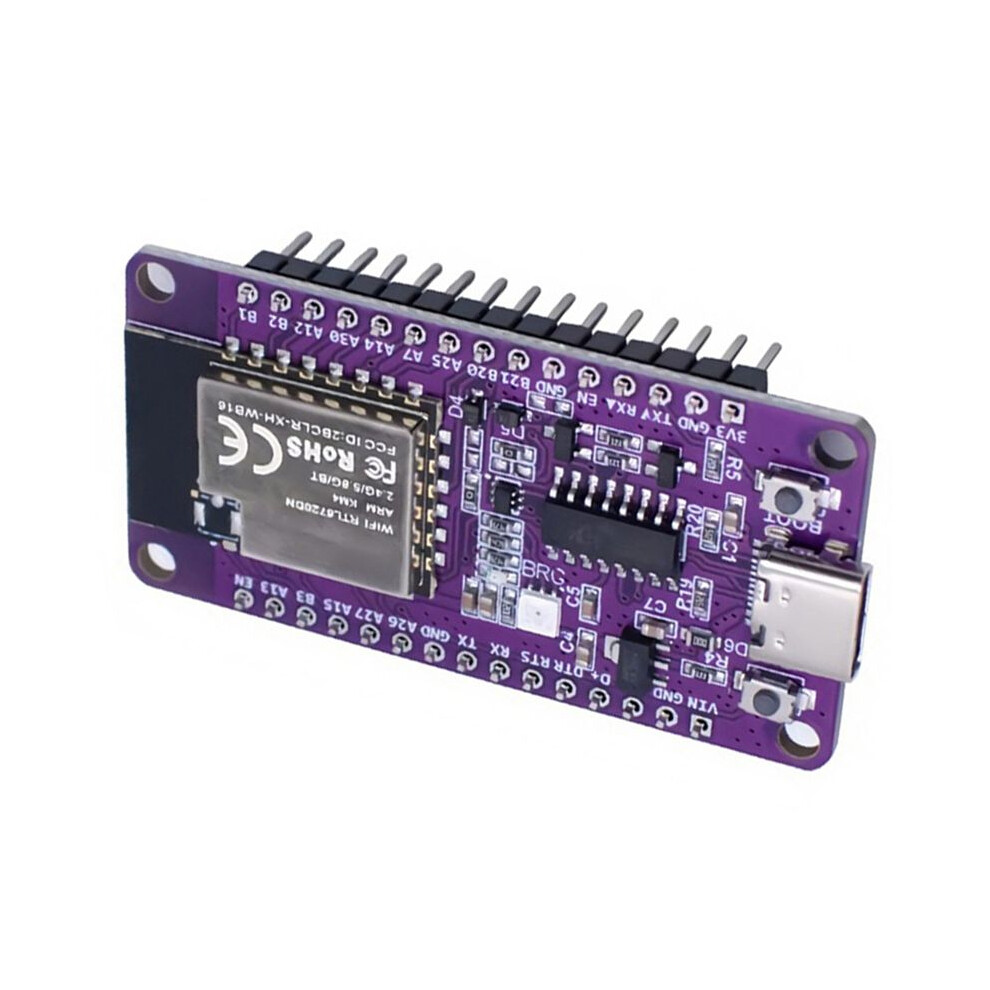

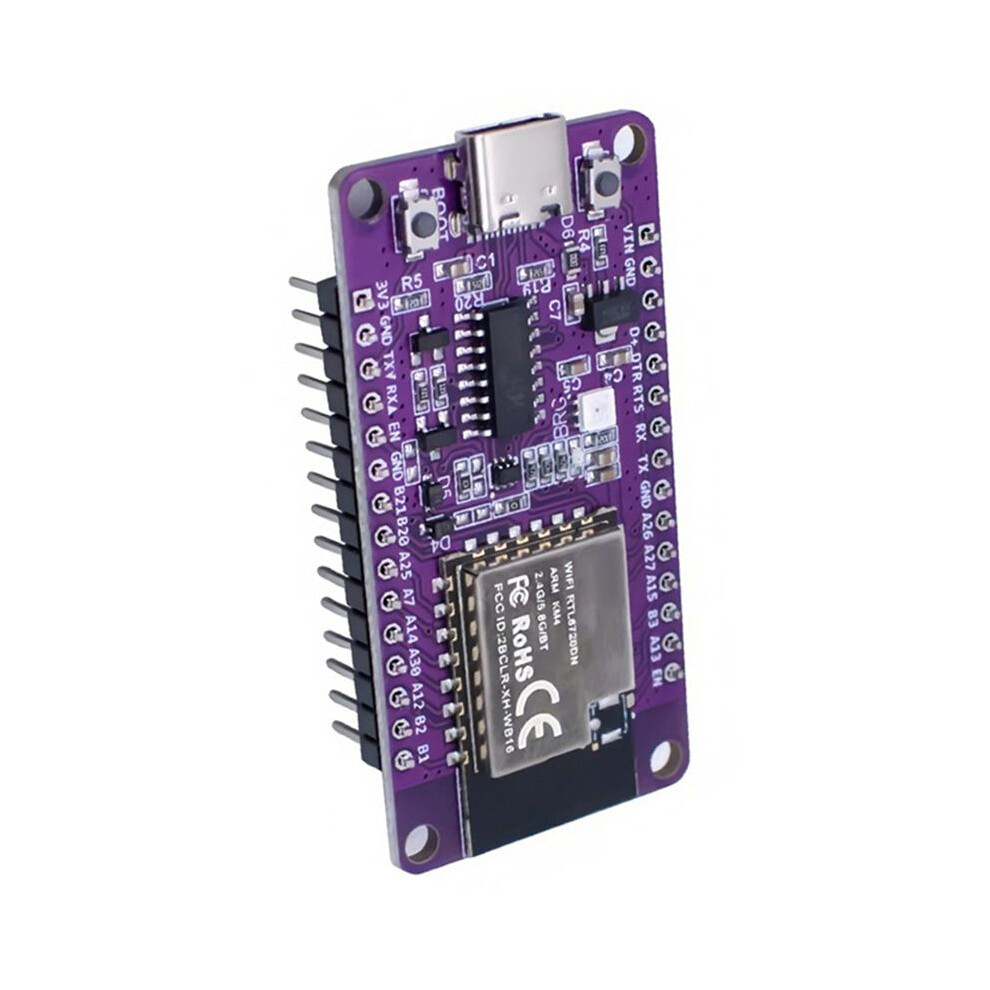

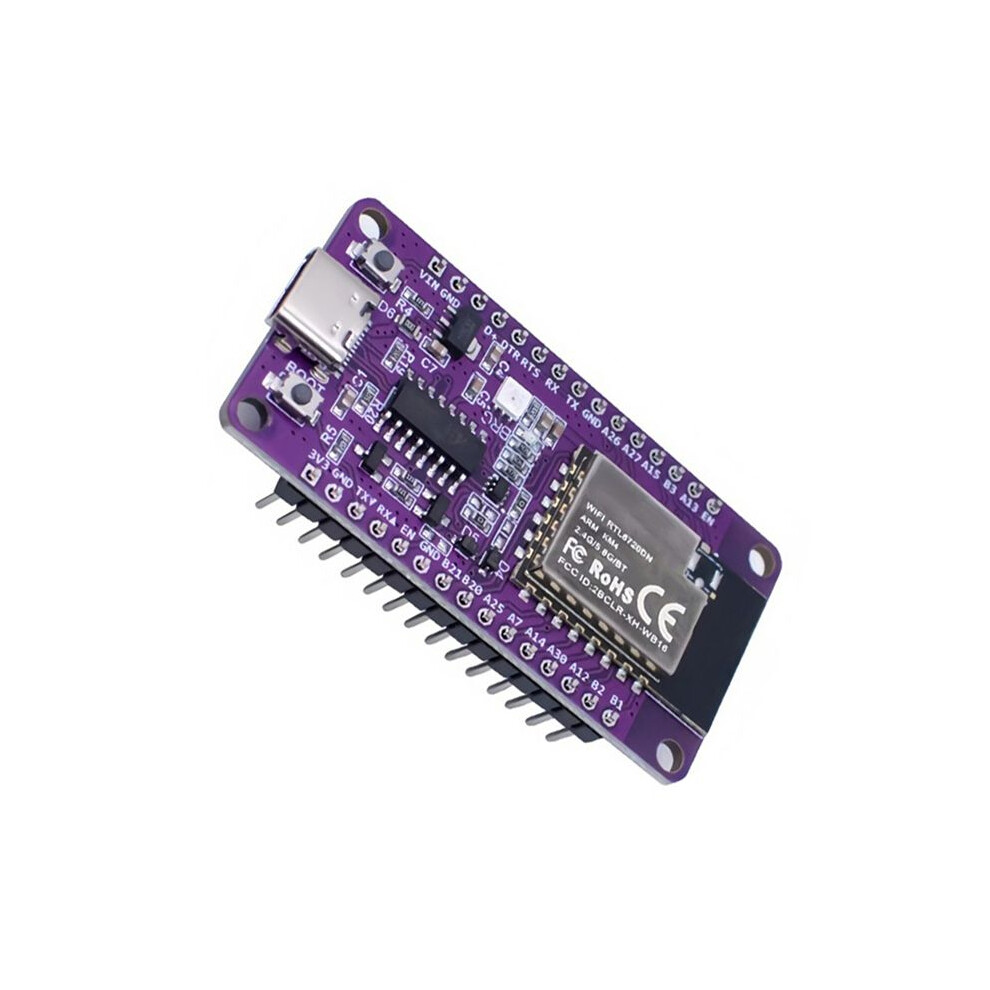

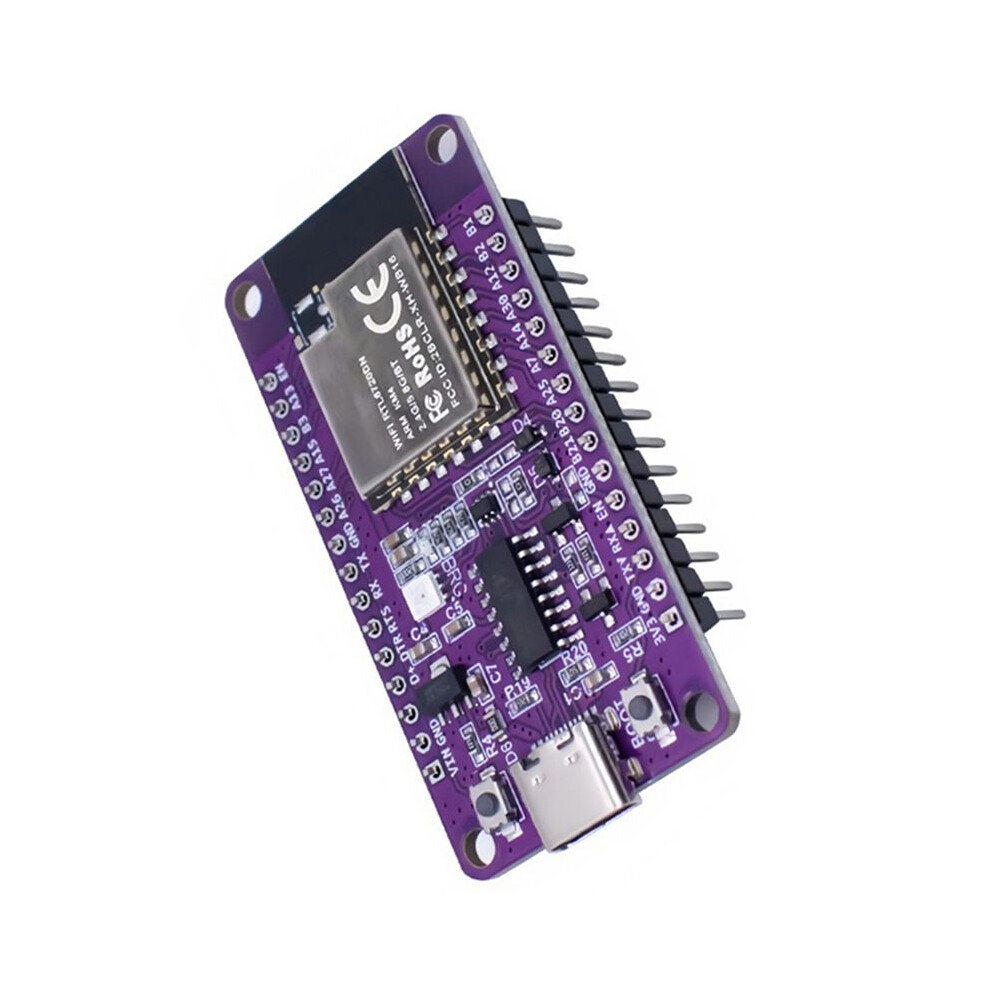

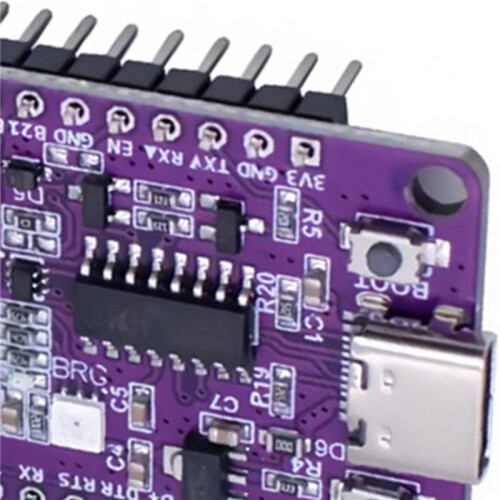

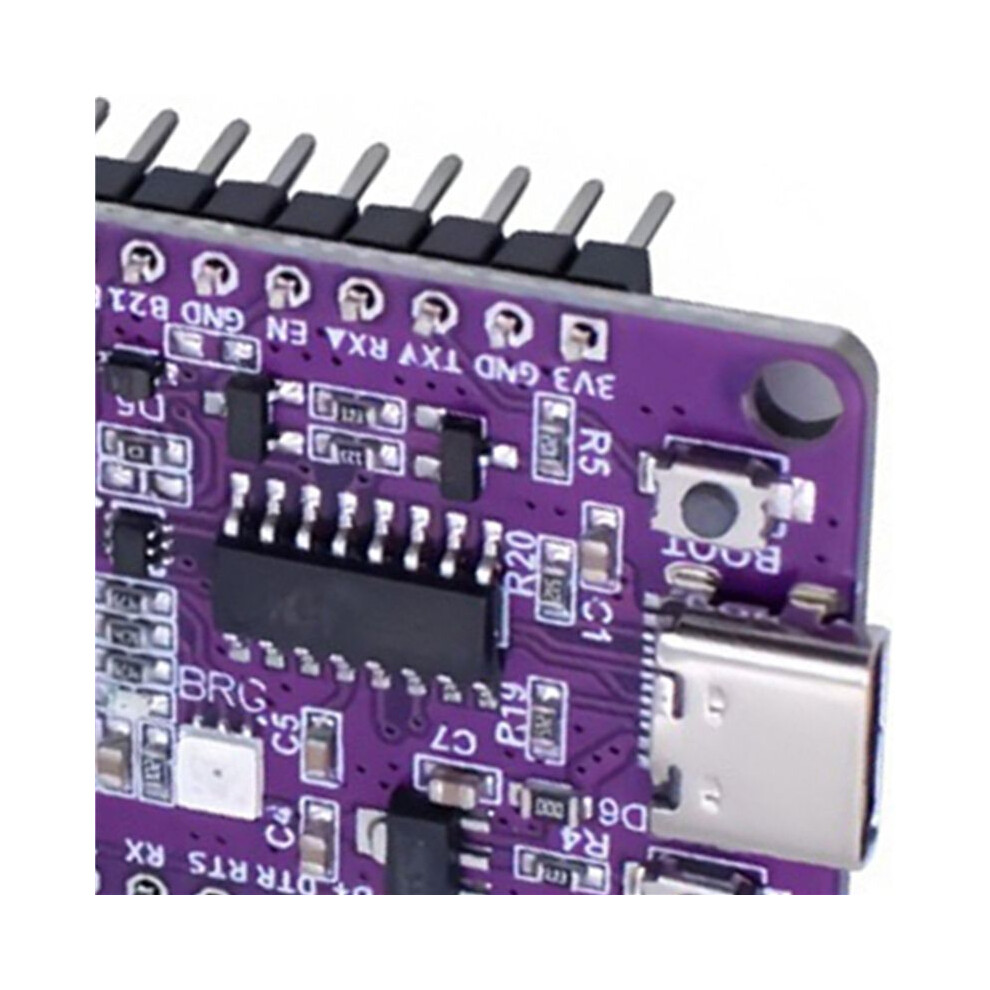

NICEMCU BW16 development board is a core development board designed for BW16 module, the development board continues the classic design of NodeMCU development board, leading to all 1/O to of pins both sides, -board RGB seven color lights, developers can also connect peripherals according to their own needs.
BW16 is a dual-band Wi-Fi+ SoC module based RTL8720DN chip. It supports dual-band (2.4GHz or 5GHz)WLAN and Low 5.0.
It integrates ARM V8(compatible with for Cortex-M4F) high-performance MCUS, ARM V8M(compatible with for Cortex-MO) low-power MCUS, WLAN(802.11a/b/g/n), , baseband and RF baseband, and also provides a set of configurable GPIO . For the control of different peripheral devices.

Development board model: NICEMCU BW16
Suitable for module: BW16
Encapsulation: DIP-30(2.54 pitch standard pin)
Antenna form: Onboard antenna
Spectrum range: 2400-2483.5MHz or 5180-5825MHz
WiFi: Support 802.1lavB/g/n
: BLE5.0
Working environment: -40C-85C
Storage Environment: -40C-125C,Less than 90%RH
Power supply range: Supply voltage 5V, current Greater than 500mA
Support Interface: UART/GPIO/ADC/PWM/HC/SPI/SWD
Number of 10 : 15 GPlOs including (TXO/RX0 and TX1/RX1)
Security: AES/DES/SHA
Flash: Default 4MB
specification:B:Soldered
Colour:
Material:PCB
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.

Package Contents:
2 x NICEMCU BW16 Development Board
