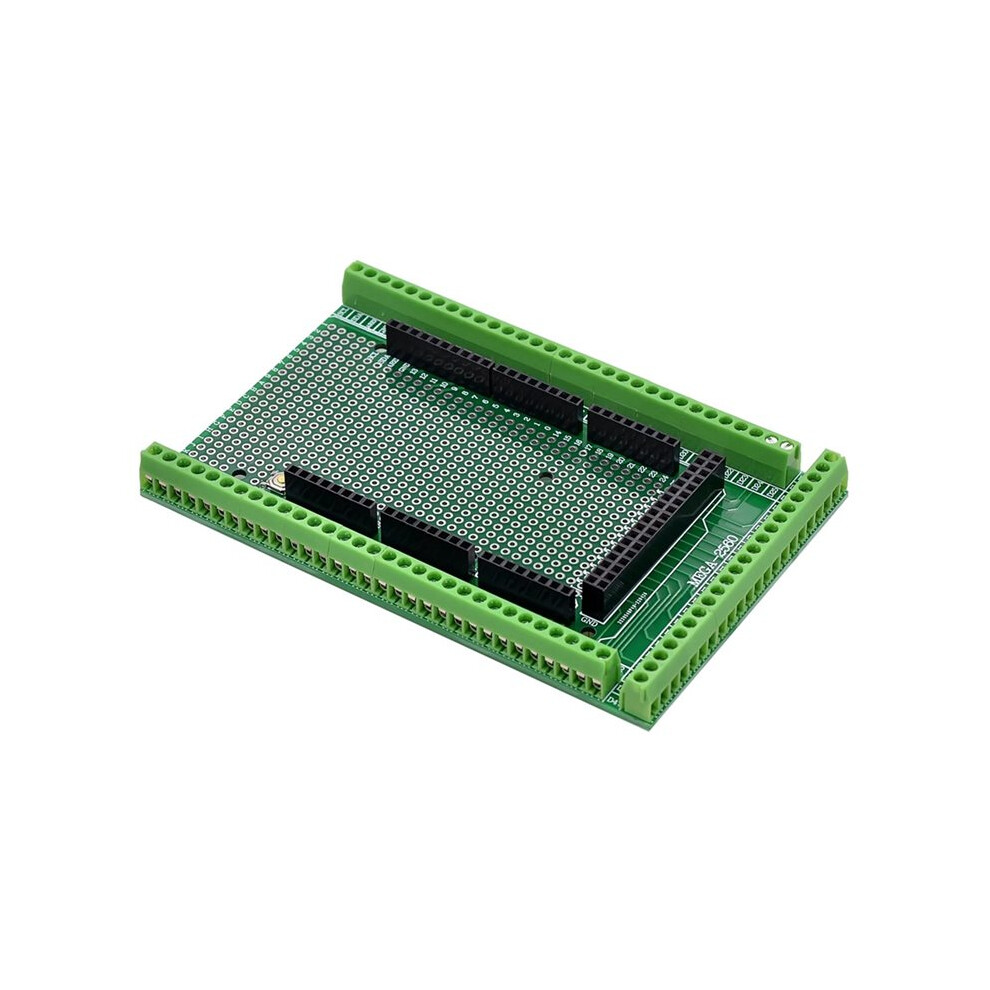

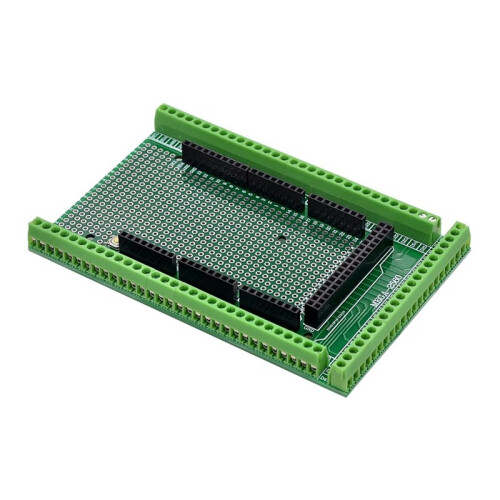

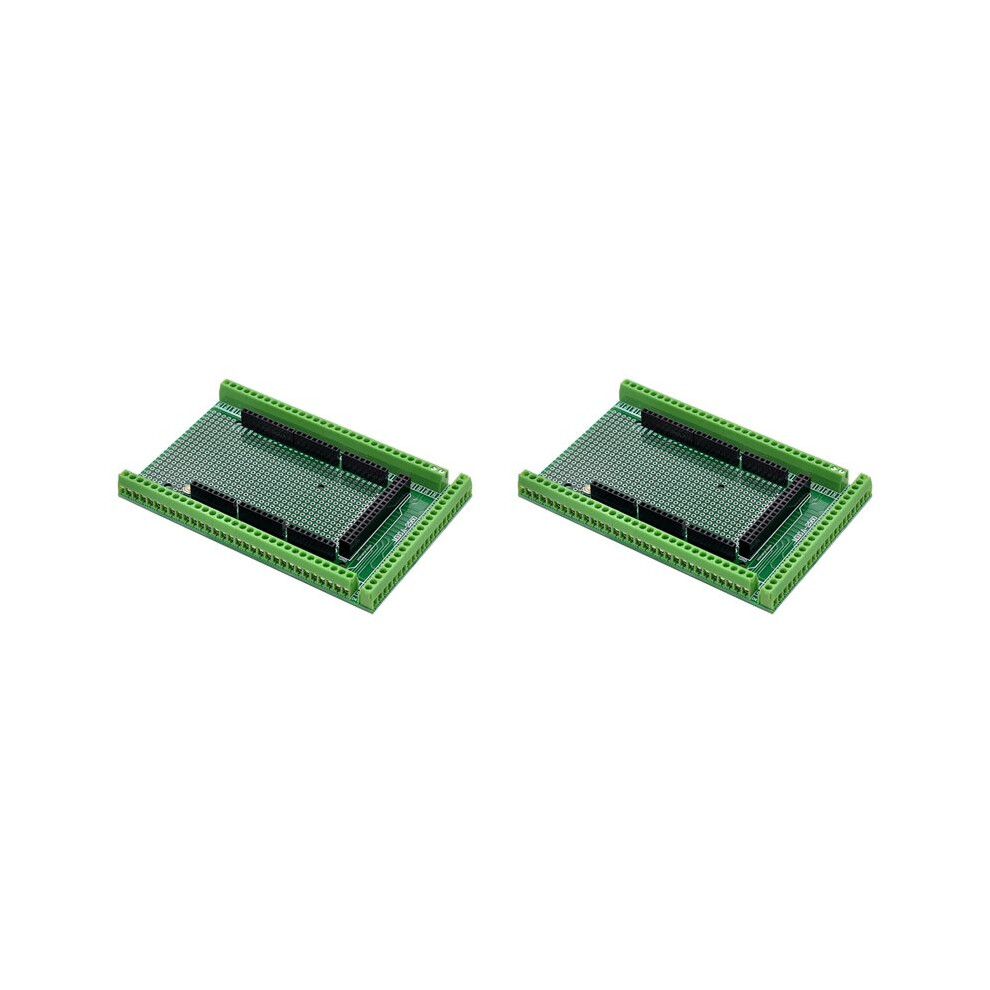

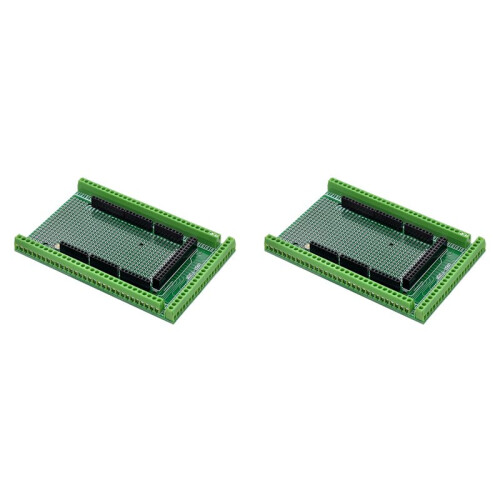

2X Terminal Expansion Board for R3 / MEGA-2560 Terminal Expansion Board Assembly Compatible with MEGA2560 Module

2X Terminal Expansion Board for R3 / MEGA-2560 Terminal Expansion Board Assembly Compatible with MEGA2560 Module Beskrivelse

1.MEGA-2560 R31 Prototype Screw Terminal Block Shield Board Kit For

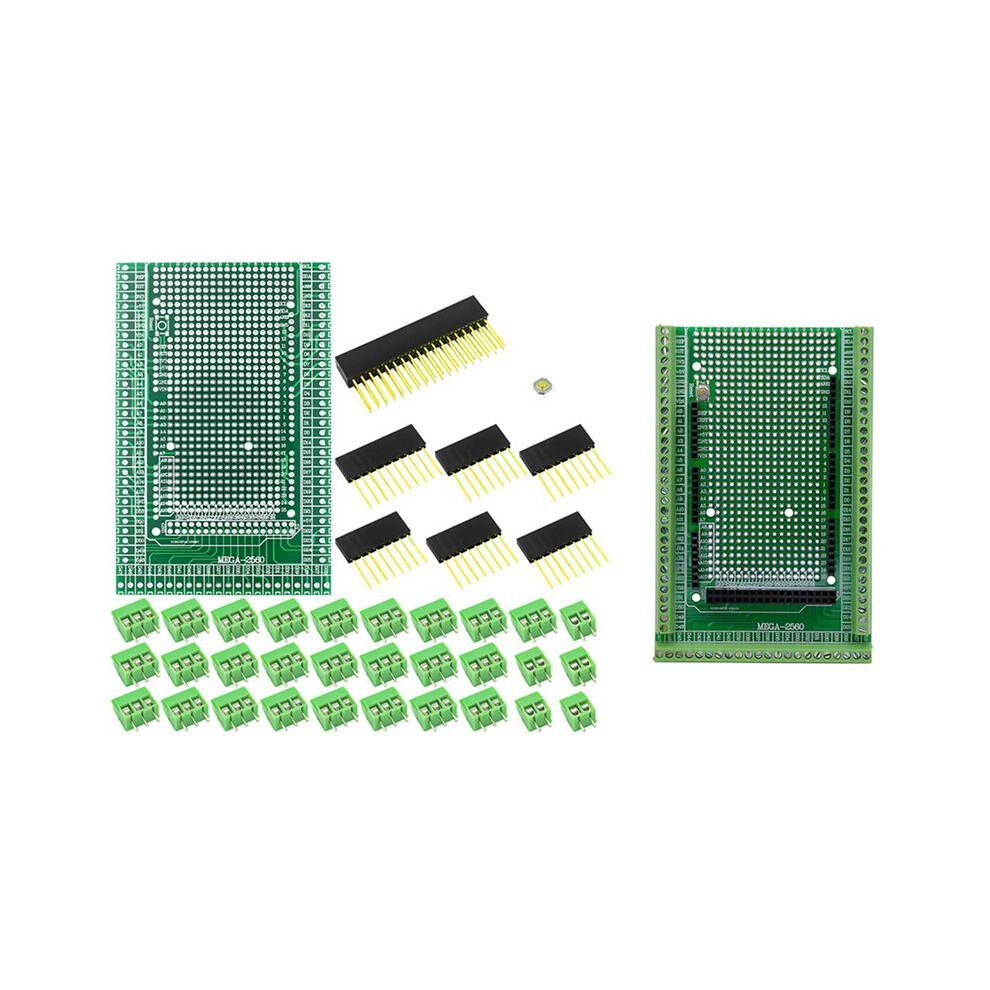

2.Includes Prototype PCB, Terminal Blocks, Female Header Sockets
3.The Terminal Module Adopts High Quality Material, Fine Workmanship Treatment, Durable To Use
4.Made Of Screw Terminal Block. Pcb Carrier And FR-4 Glass Fiber PCB
5.Not Assembled Yet.You Can Use Variety Ways To Mount,Flexible To Use,Durable And Practical To Use

Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Terminal Block:
Pitch: 3. 5mm terminal blocks, total 84 pins (3pole x24pcs, 2polex6pcs)
Wire range: 26inch16AWG, strip length 5mm, screws M2 steel, pin header and cage brass

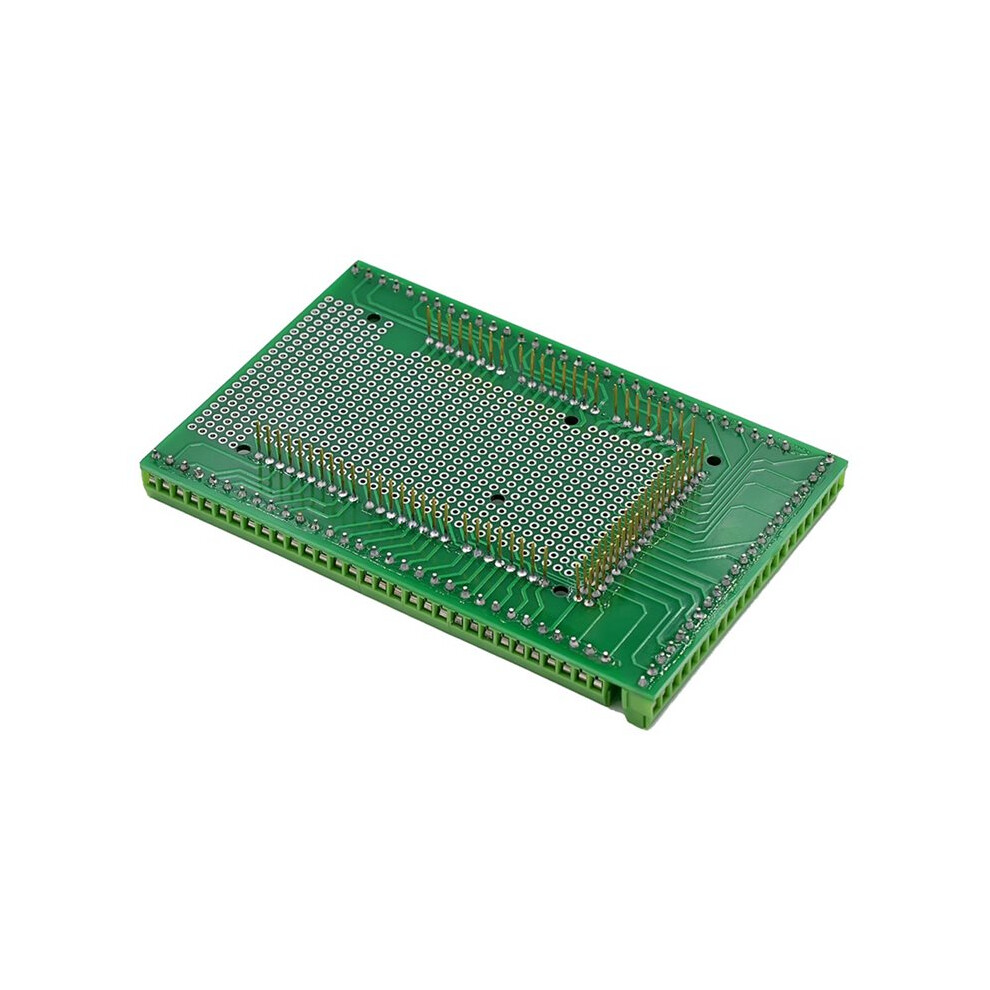

PCB:
Pads grid /pitch: 2.54mm, hole diameter: 0.8mm (Approx.)
Terminal block pitch: 3.5mm, hole diameter: 1. 2mm (Approx.)

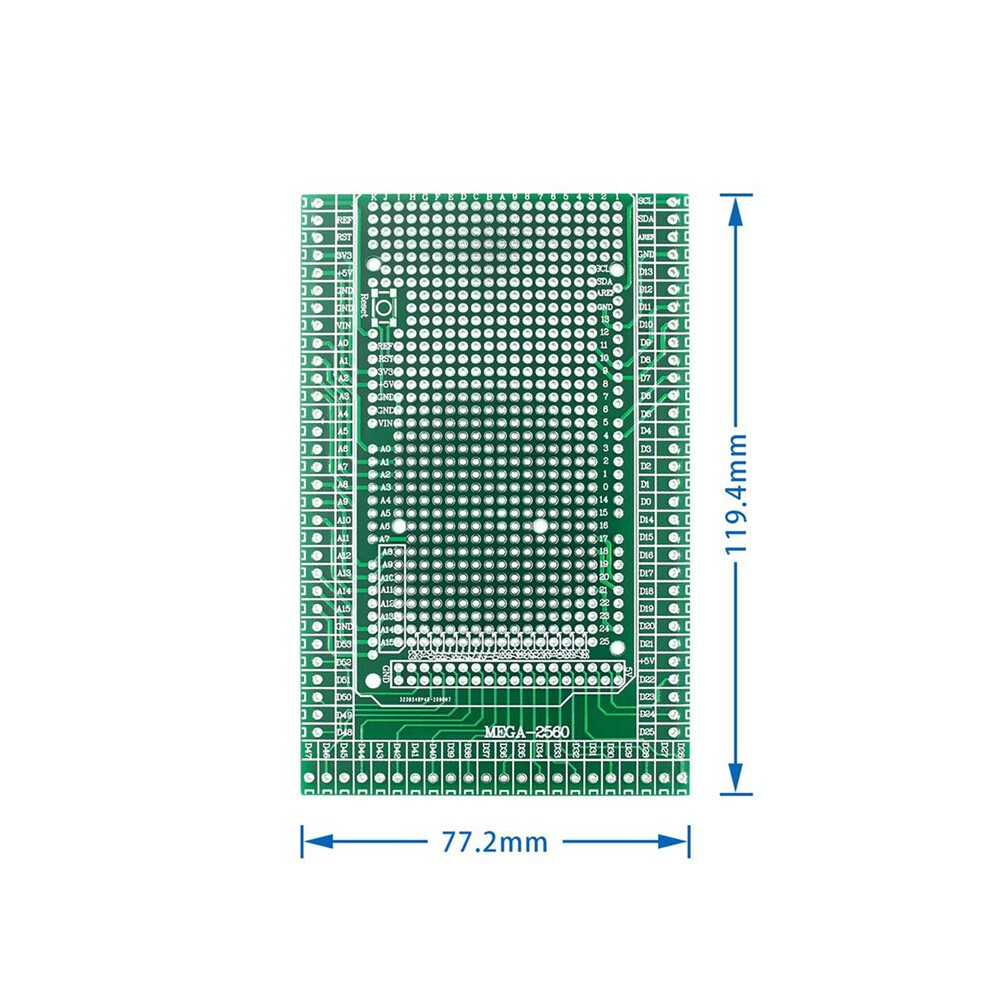

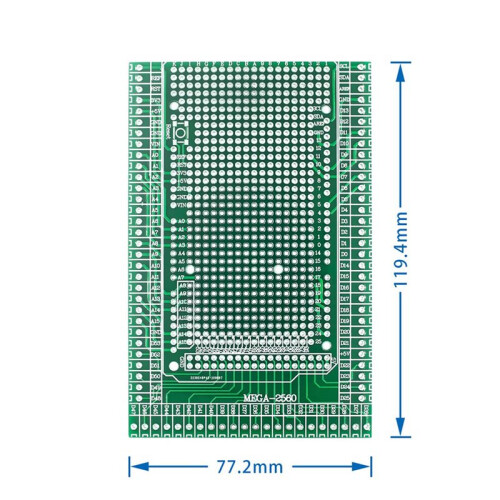

Dimension: 12.024x7.72cm (Approx.)
Female Header Socket:
Pitch: 2.54mm, pin length: 15mm (Approx.)
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Colour:As Shown
Material:PCB

Package Contents:
2 x Terminal Expansion Board (Finished Product)
