3.3G 64CH VRX FPV Wireless Image Transmission Receiver Frequency Support Range 3060-3500MHz/Automatic Search
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 127,000 anmeldelser med vurderingen “Fremragende”
589,66 kr.
972,94 kr.
Spar 39%!
+157,09 kr. levering
1%
Tjen 5,90 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (157,09 kr.) | tir. 30. jun. - man. 6. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Kameraværktøj og reservedele
Populær
Populær
Populær
Beskrivelse og detaljer
Oversigt
- 1. Highly Integrated Design: The single-chip design enables the module to be compact, power-efficient, and highly sensitive.
- 2. Easy-to-Use Connection: Simply connect the antenna to easily receive audio and video signals.
- 3. Wide-Band Reception: Supports a wide frequency range of 3060-3500MHz, ensuring stable and reliable signals.
- 4. Excellent Video Performance: The video output impedance is 75Ω, providing clear and stable image quality.
- 5. Excellent Environmental Adaptability: The push-button design allows for easy operation and adapts to various environmental conditions.
3.3G 64CH VRX FPV Wireless Image Transmission Receiver Frequency Support Range 3060-3500MHz/Automatic Search Beskrivelse
1. Highly Integrated Design: The single-chip design enables the module to be compact, power-efficient, and highly sensitive.

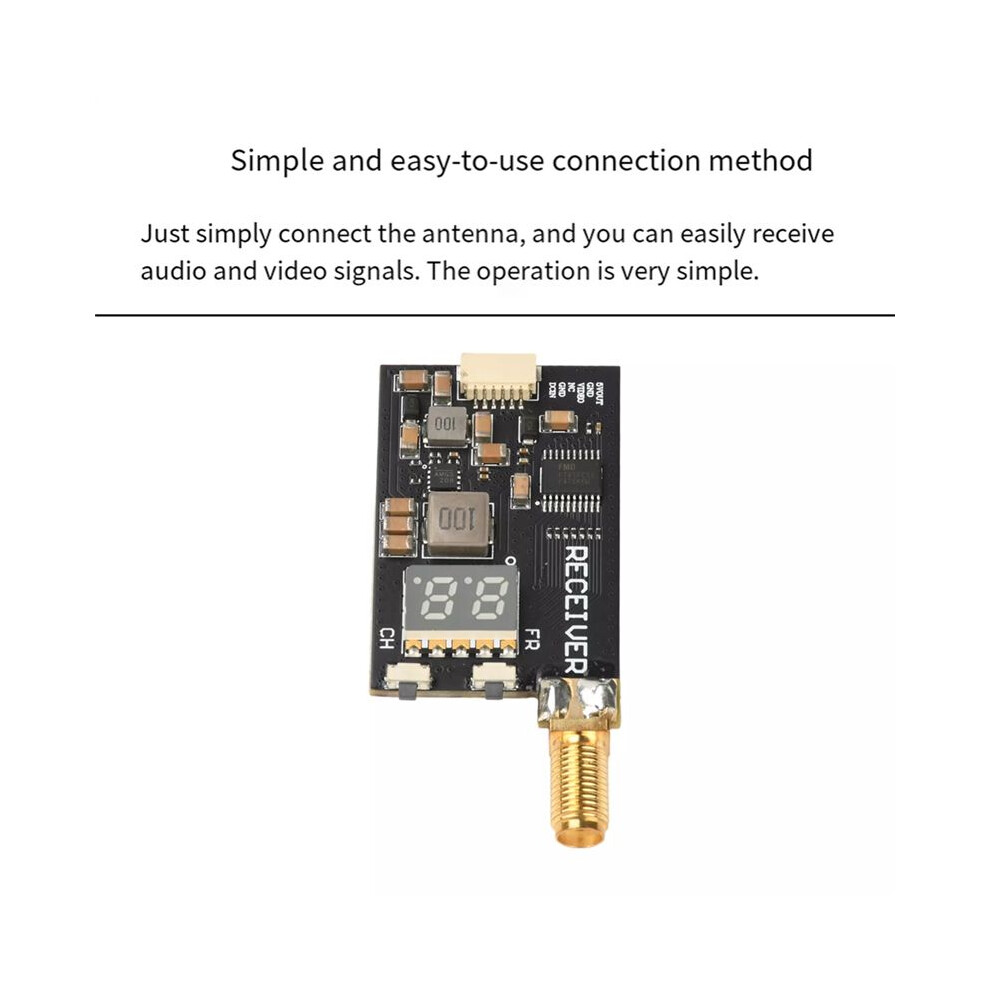

2. Easy-to-Use Connection: Simply connect the antenna to easily receive audio and video signals.
3. Wide-Band Reception: Supports a wide frequency range of 3060-3500MHz, ensuring stable and reliable signals.

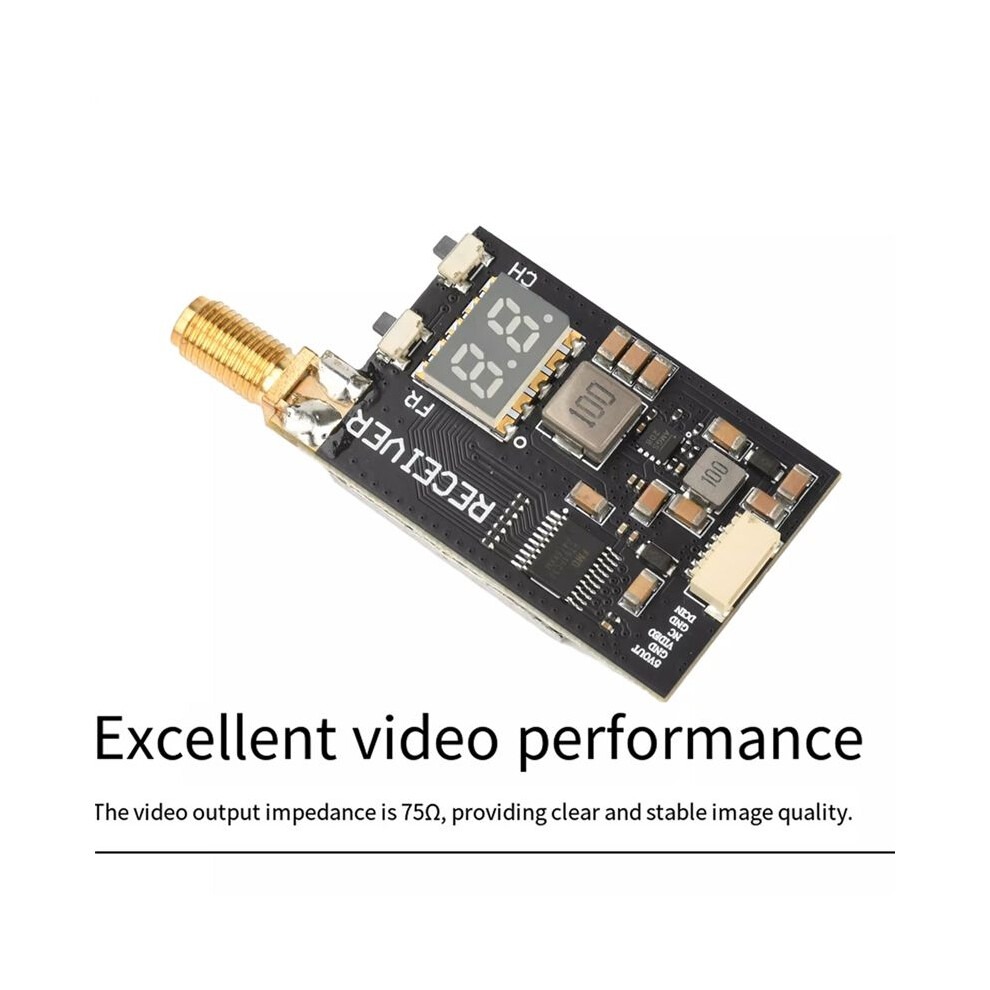

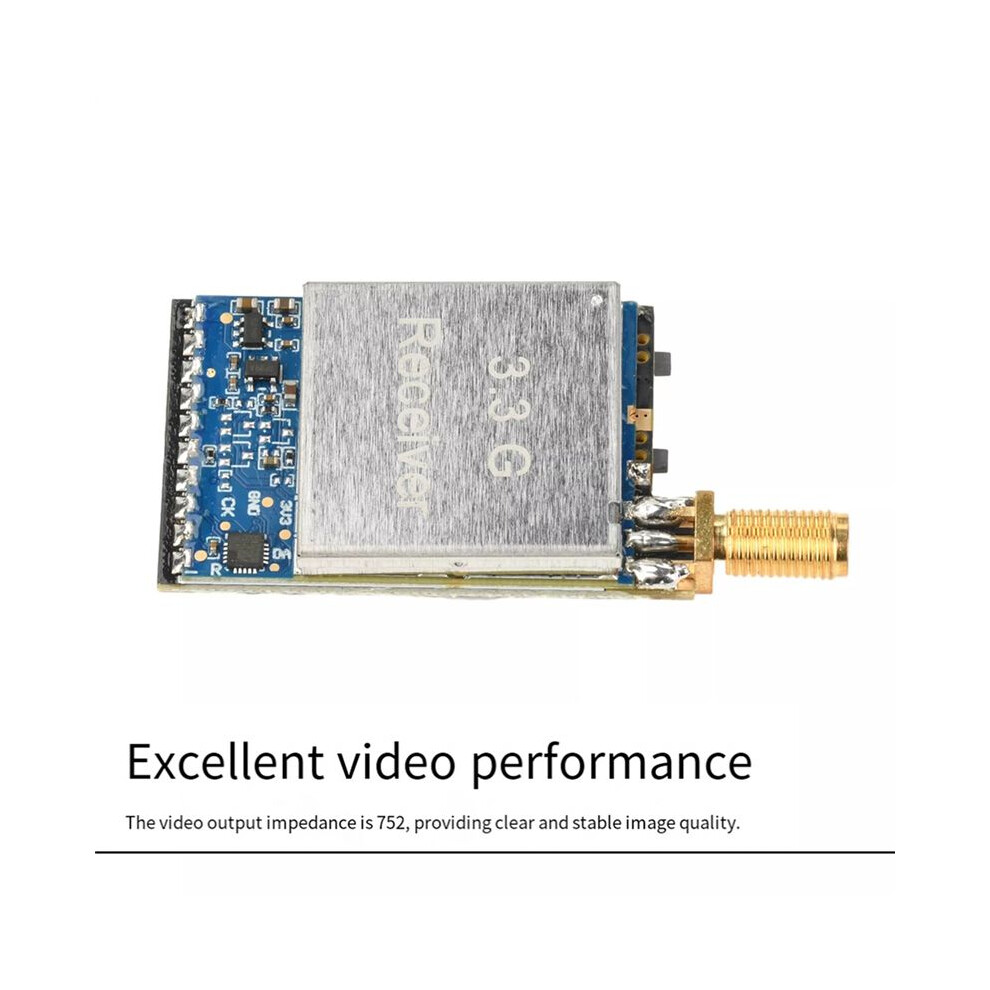

4. Excellent Video Performance: The video output impedance is 75Ω, providing clear and stable image quality.

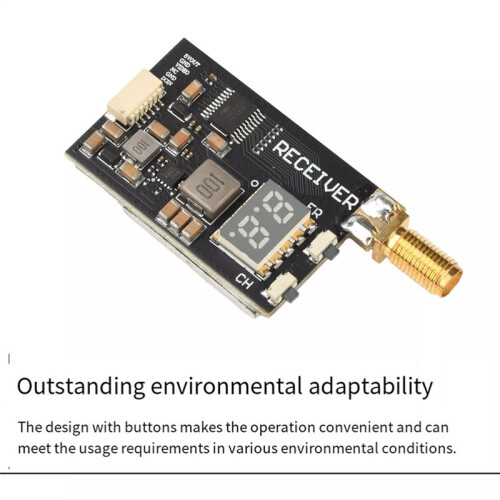

5. Excellent Environmental Adaptability: The push-button design allows for easy operation and adapts to various environmental conditions.
Supply Voltage: 5.0V
Channel Number: 64
Channel Selection: Short Key
Receive Frequency Range: 3060-3500MHz
Input Impedance: 50Ω, Typ.
Receive Sensitivity: -93dBm2
Supply Current: 120mA
Operating Voltage Range: 8-26V [8, 12, 26V (Minimum, Typical, Maximum)]
Video Bandwidth: 0-8.0MHz
Signal-to-Noise Ratio: 38dB, Min
Video Output Level: 10.2Vp-p, Typ.
Video Output Impedance: 75Ω, Typ.
Video Output Level: 10.2Vp-p, Typ.
Antenna Connector: RPSMA Connector
Operating Temperature: -10-+85
Storage Temperature: -30-+85
Operating Humidity: 85%RH
Button Description and Frequency Channel Table
Press the "FR" button to select frequency group 12345678. Short press the "CH" button to select channel 12345678.
Color:As Shown
Material:PCB
Package Contents:
1 * Wireless Image Transmission Receiver
Detaljer
| OPC | PTQPSBT |
|---|---|
| Koder | 4711867567860 (EAN) |
Produktdata
| Height | 4cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.08kg |
| Colour | As Shown |
| Material | PCB |
