3V Relay Board Power for Relay Module Opto Isolation High Level Trigger Development Board 6Pack

3V Relay Board Power for Relay Module Opto Isolation High Level Trigger Development Board 6Pack Beskrivelse

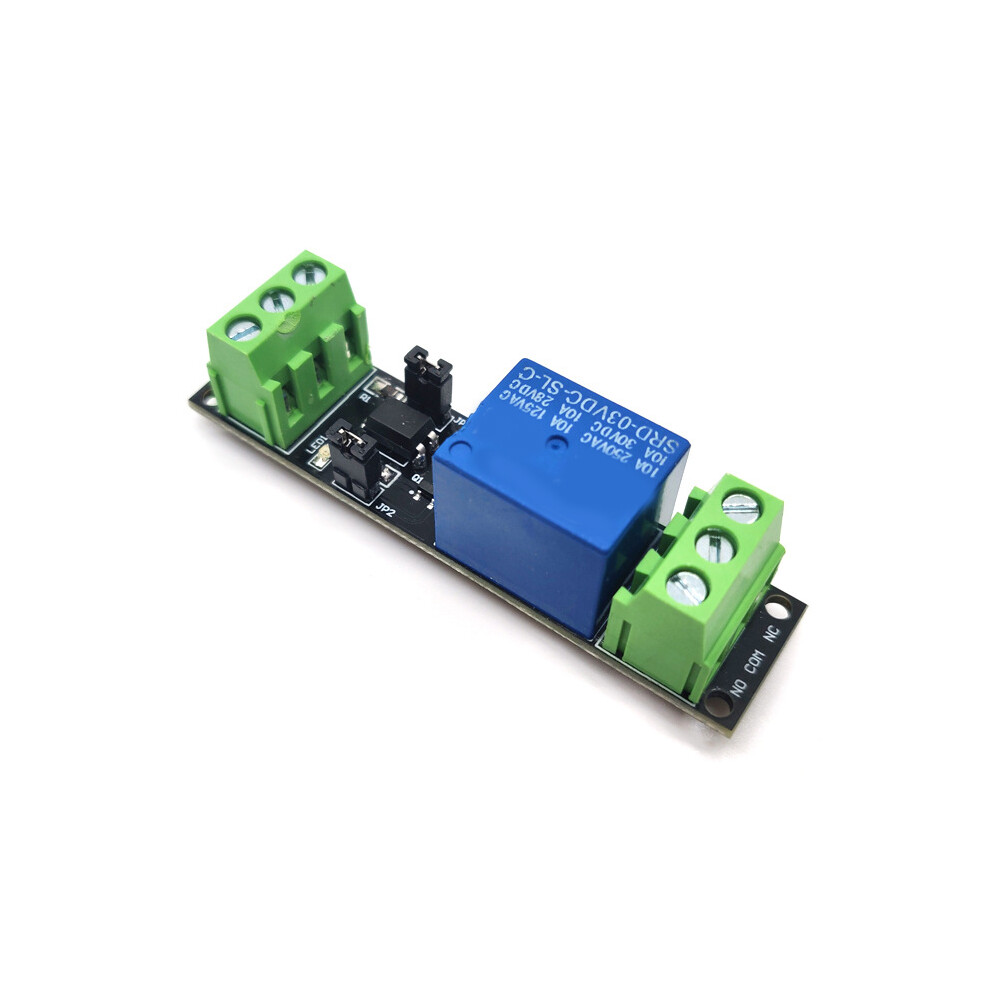

Opto-isolator Control Our 3v 1 channel relay module supports photocoupler isolation control, has the output signal indicator,the signal input port can connect SCM IO port, high level signal drive. Strong driving ability, stable performance.
Dual Power Option Design Our 3V/3.3V power relay module use double power selection design that has strong anti-interference ability and high photoelectric isolation protection reliability.
Diode Continuous Flow Protection Relay module with diode continuous flow protection, response is less than 20 milliseconds,long life of relay can be absorbed 100,000 times continuously.
30VDC 250VAC Load Equiped with high-current relay, AC250V 10A ; DC30V 10A, each relay has normally open and normally closed contact. Can be selected by jumper relay and TTL or ground.
Safer & More Solid The external connection adopts rotary compression terminal to make the connection stronger.
Color: black + green +
Material: PCB
Package: 6pcs

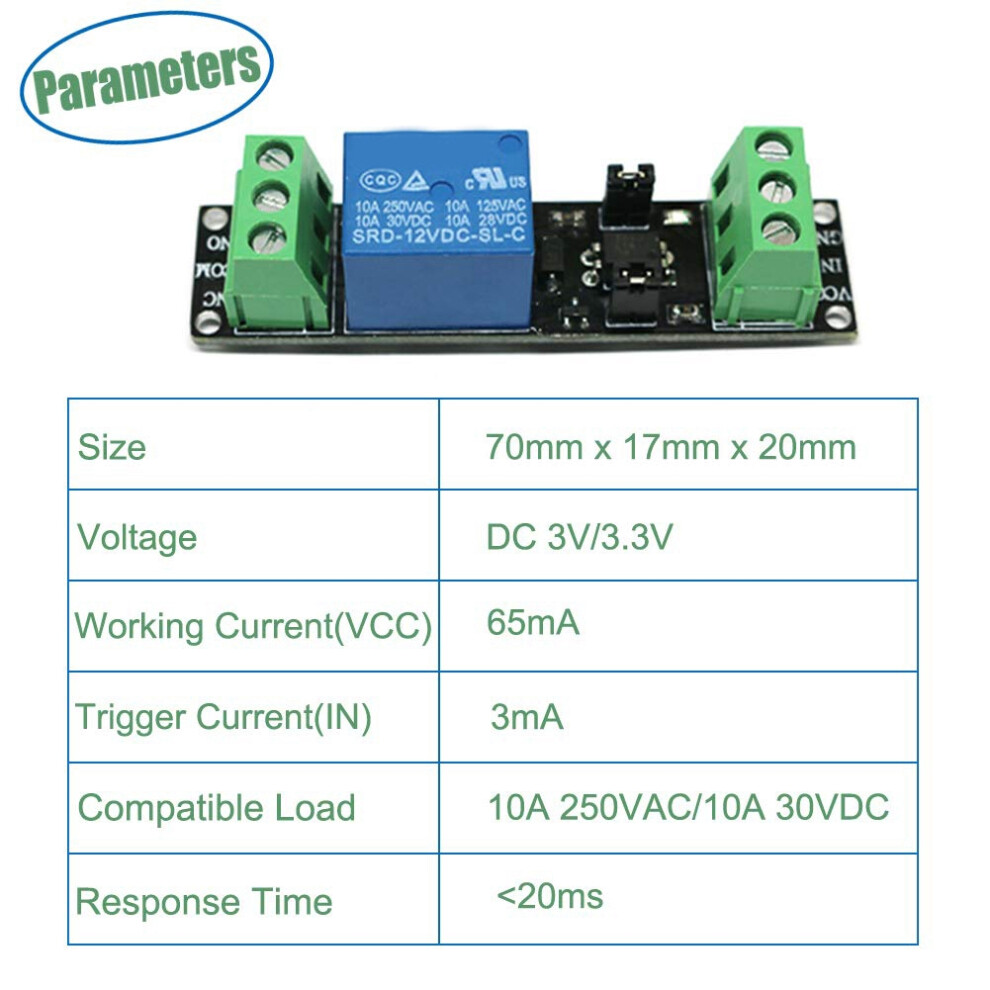

Voltage: 3v/3.3v

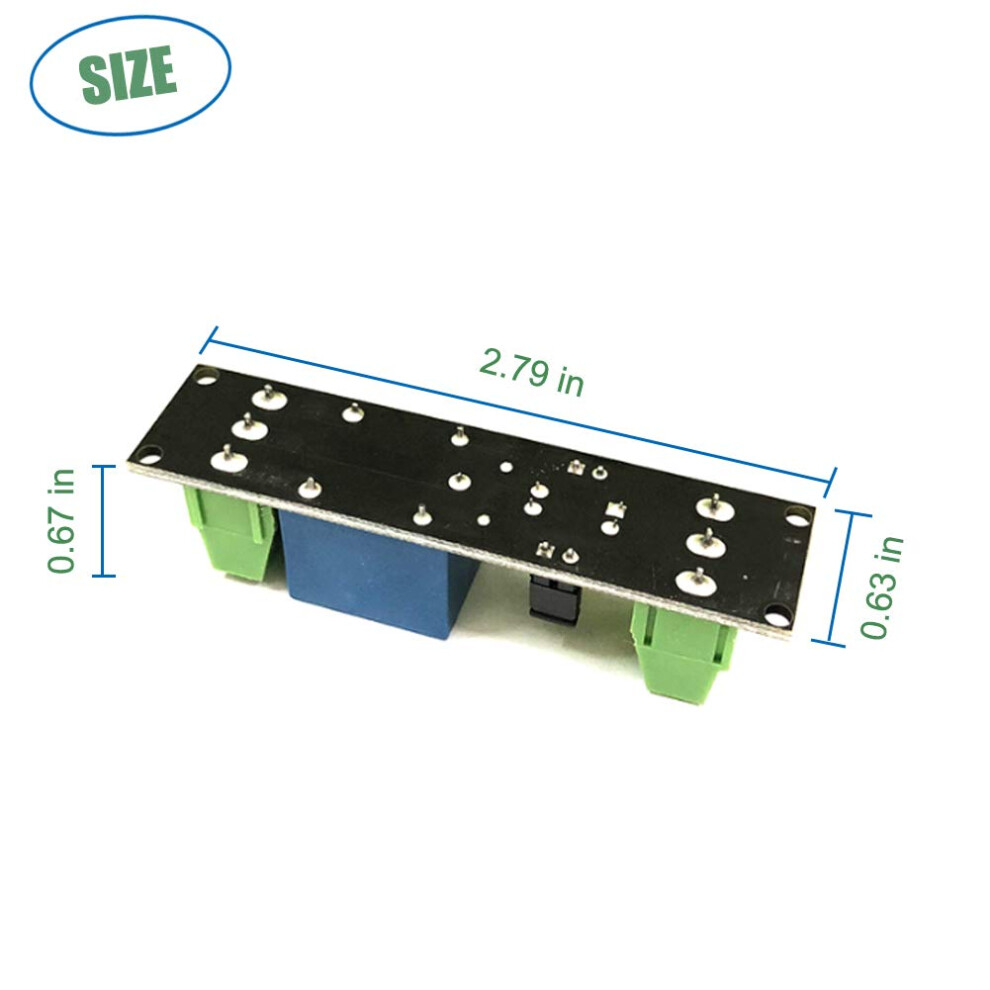

Size: 2.79 inch X 0.63 inch X 0.67 inch
Working Current: 65mA
Trigger Current: 3mA
Load Current: 10A max
Single Socket Length: 7.5mm
Response : Less than 20ms
Power Interface：
VCC(+): Connect to the positive pole
IN: High level control relay suction
GND(-): Connect to the negative pole
Load Interface:
NO: Normally open interface
COM: Relay common interface
NC: Normally closed interface
Feature:
The relay module has the output signal indicator light indication;
2. The signal input port can connect SCM IO port, high level signal drive;
3. Dual power supply design with anti-interference ability
and high reliability of photoelectric isolation protection ;
4. With diode continuous flow protection;
5. Response is less than 20 milliseconds;
6. Long life of relay can be absorbed 100,000 times continuously;
7. The external connection uses th
