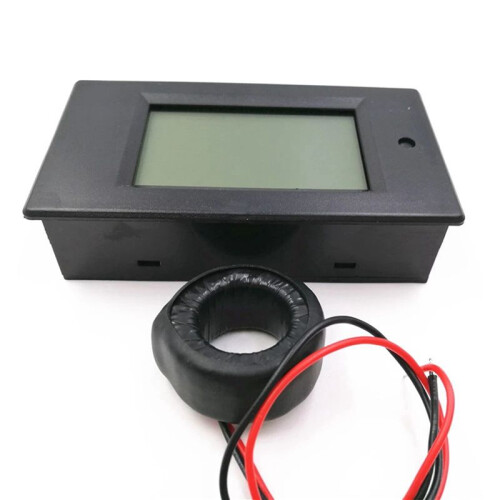

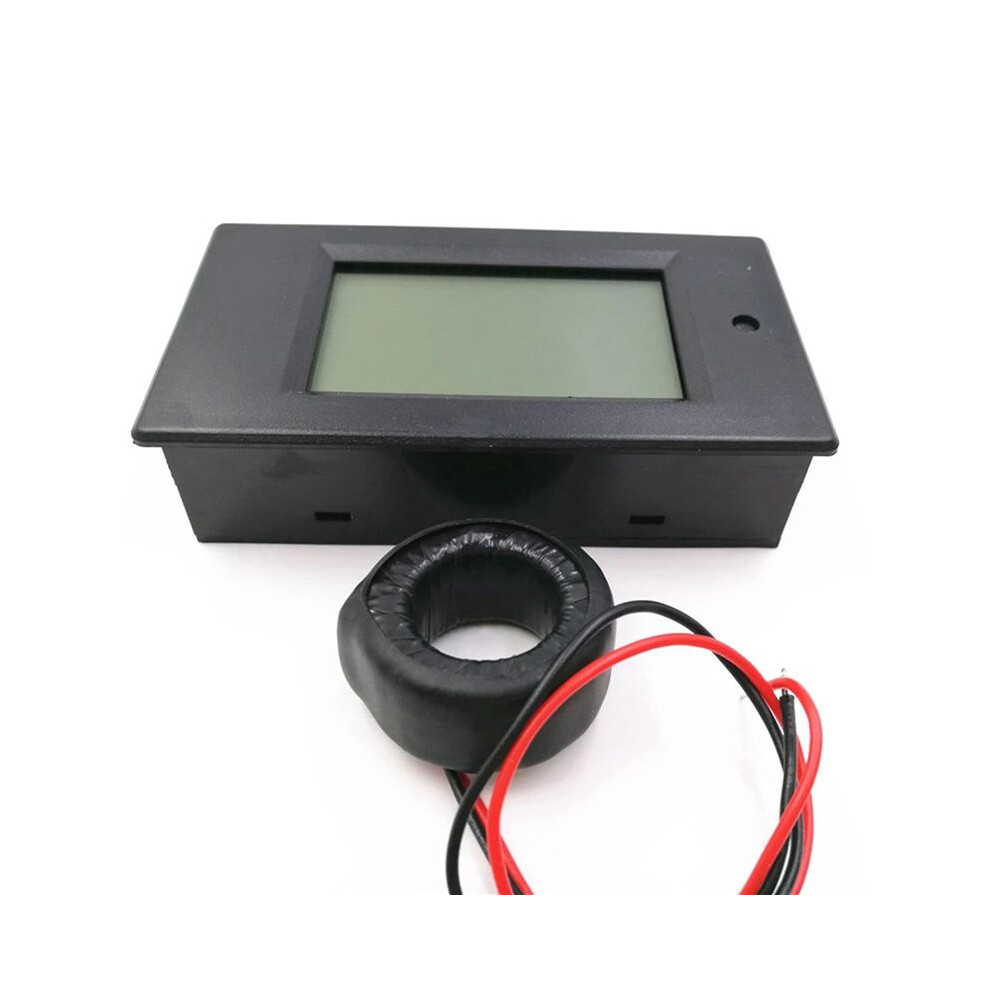

3X AC 80-260V 100A PZEM-061 LCD Display Digital Current Voltage Power Ammeter Voltmeter

3X AC 80-260V 100A PZEM-061 LCD Display Digital Current Voltage Power Ammeter Voltmeter Beskrivelse

Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 100A/22000W
Operating frequency: 45-65Hz
Measurement accuracy: 1.0 grade

Function:
Electrical parameter measurement function (voltage, current, active power, )
Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
Power alarm threshold preset function (can set power alarm threshold).
The reset function of key.
Store data when power off.
Large-screen LCD (display voltage, current, active power, at the same )
Backlight function.
Display format:
Power: test range: 0~22kW
Within 1kW, the display format is 0.0~999.9W;
Within 1kW~10kW, the display format is 1000~9999W;
10kW and above, the display format is 0.1~22.0kW.
: test range: 0~9999kWh
Within 10KWh, the display format is 0~9999Wh;
10kWh and above, the display format is 10~9999kWh.
Voltage: test range: 80~260V
Display format: 80~260V
Current: test range: 0~100A
Display format: 0.00~99.99A
Precautions:
This module is suitable for indoor, please do not use outdoor.
Applied load should not exceed the rated power.

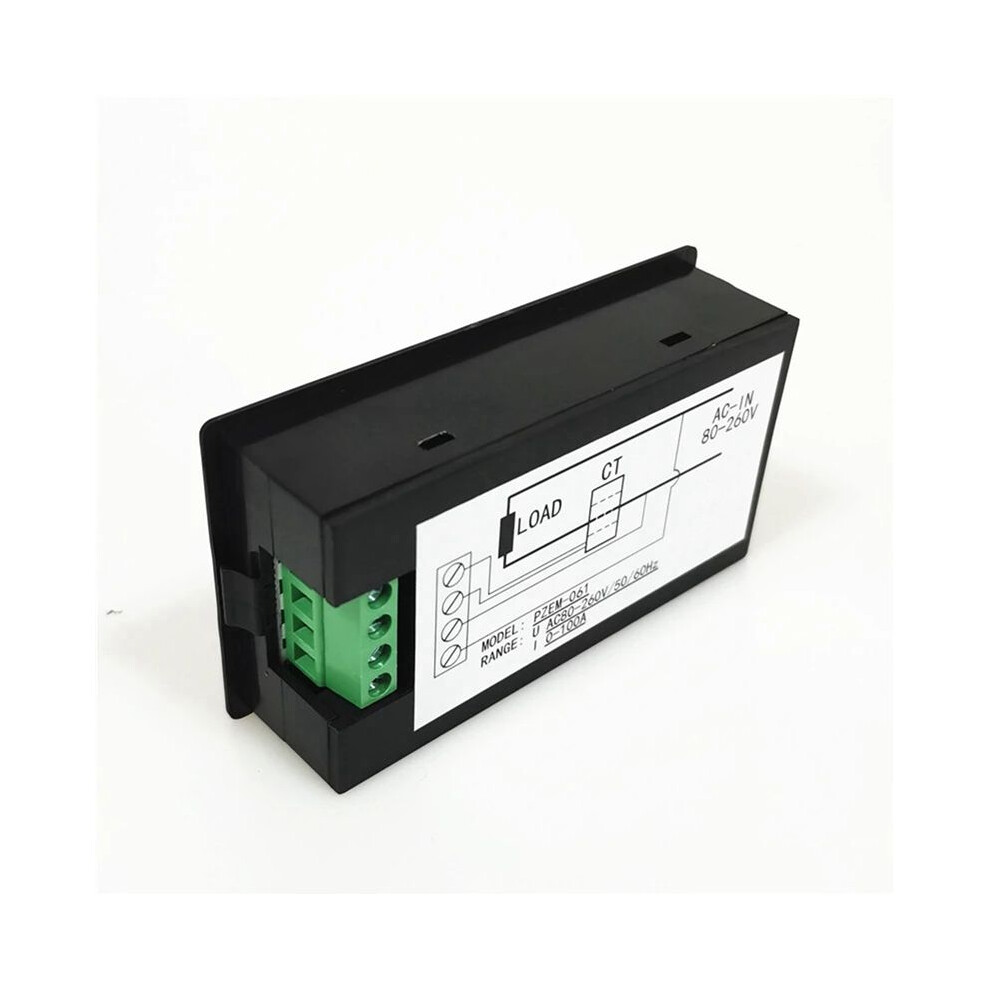

Wiring order can't be wrong.
It can't be used in some circuit such as inverter or silicon controlled.
Colour: black
Material: composite materials
Size: 9x5 (mm)

Package Contents:
3 x PZEM-061 AC Voltmeter Ammeter
3 x Coil CT
