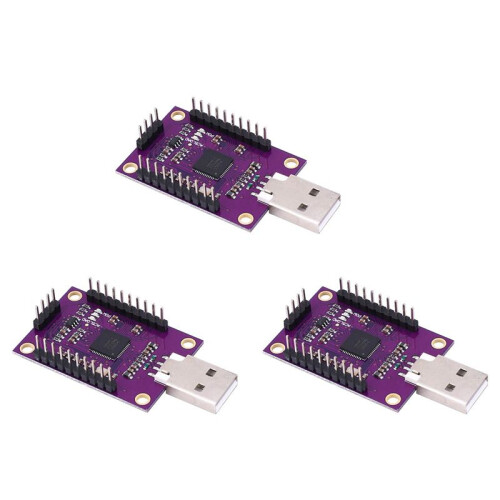

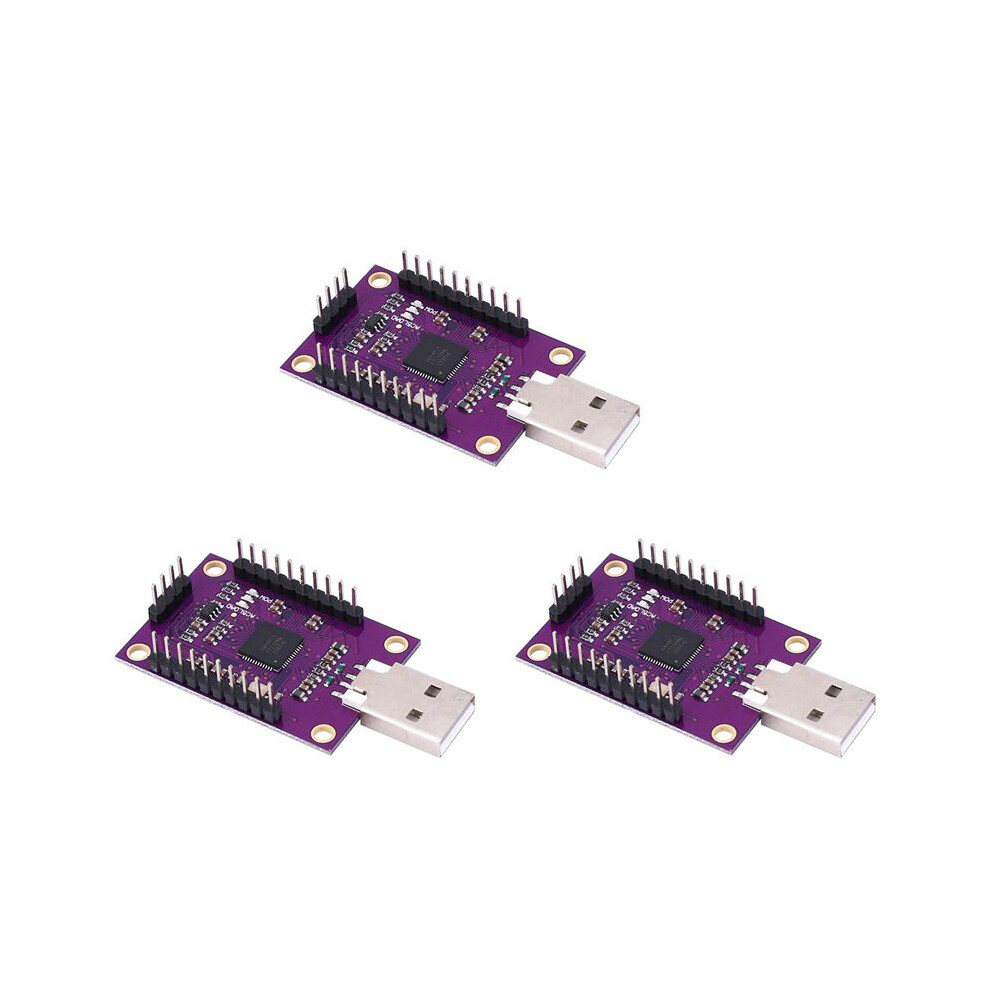

3X CJMCU FT232H High-Speed Multifunction Module USB to JTAG UART/FIFO SPI/I2C Module
Lignende produkter, vi tror du vil kunne lide
Would you like us to let you know when it's back?
Oversigt
- CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- It has the capability of being configured in a variety of industry standard serial or parallel interfaces.
- Entire USB protocol handled on the chip. No USB specific firmware programming required.
- Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
- UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
3X CJMCU FT232H High-Speed Multifunction Module USB to JTAG UART/FIFO SPI/I2C Module Beskrivelse
CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
It has the capability of being configured in a variety of industry standard serial or parallel interfaces.
Entire USB protocol handled the chip. No USB specific firmware programming required.
Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
UART transfer data rate to 12Mbaud. (RS232 Data Rate limited by external level shifter).
Material: ABS
colour:
Package Contents:
3 x Module
9 x Pin
Detaljer
| OPC | PTRFWDD |
|---|---|
| Mærke | Semoic |
| Koder | 4711252456762 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.0225kg |
| Colour | Purple |
| Material | ABS |
