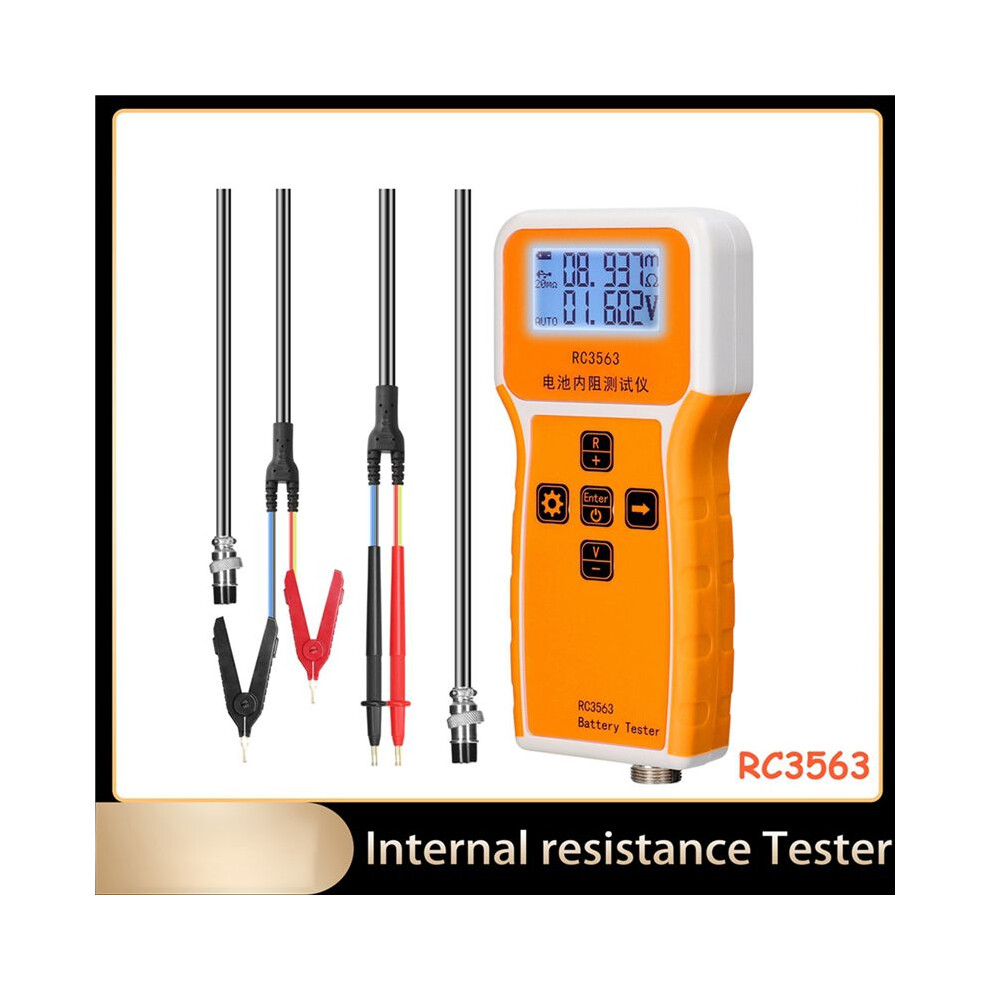

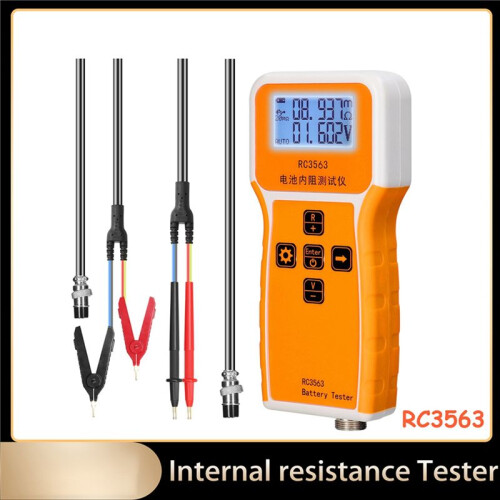

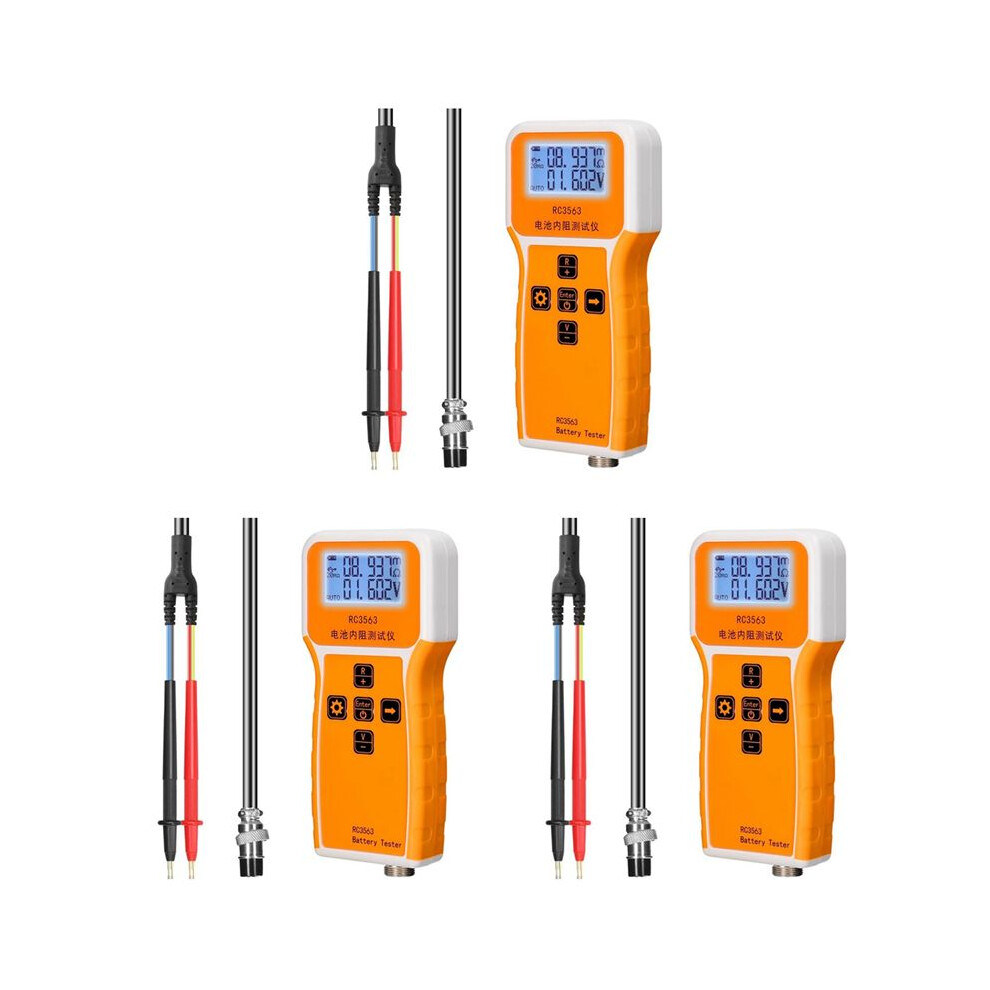

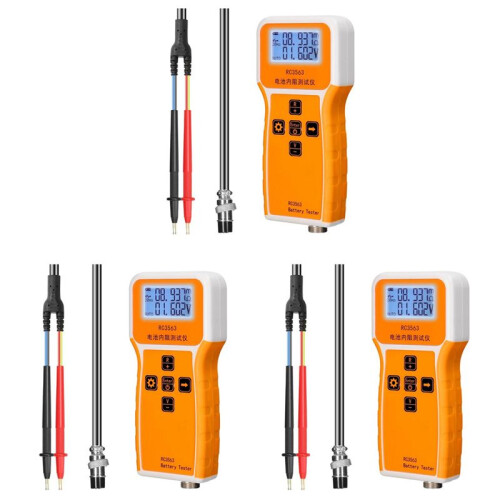

3X RC3563 Battery Voltage Internal Resistance Tester Trithium Lithium Iron Phosphate 18650 Battery Tester,Tester Probe

3X RC3563 Battery Voltage Internal Resistance Tester Trithium Lithium Iron Phosphate 18650 Battery Tester,Tester Probe Beskrivelse

The battery internal resistance tester can measure the battery internal resistance and voltage at the same .

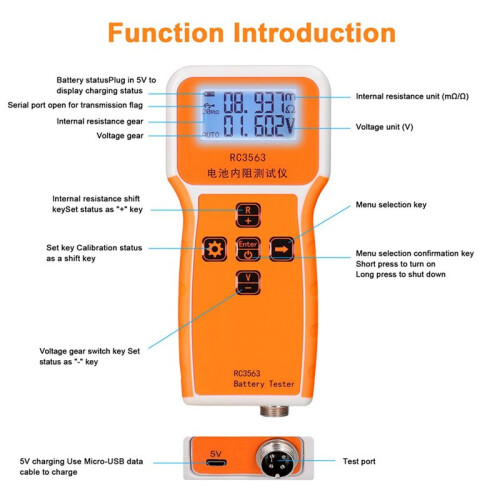

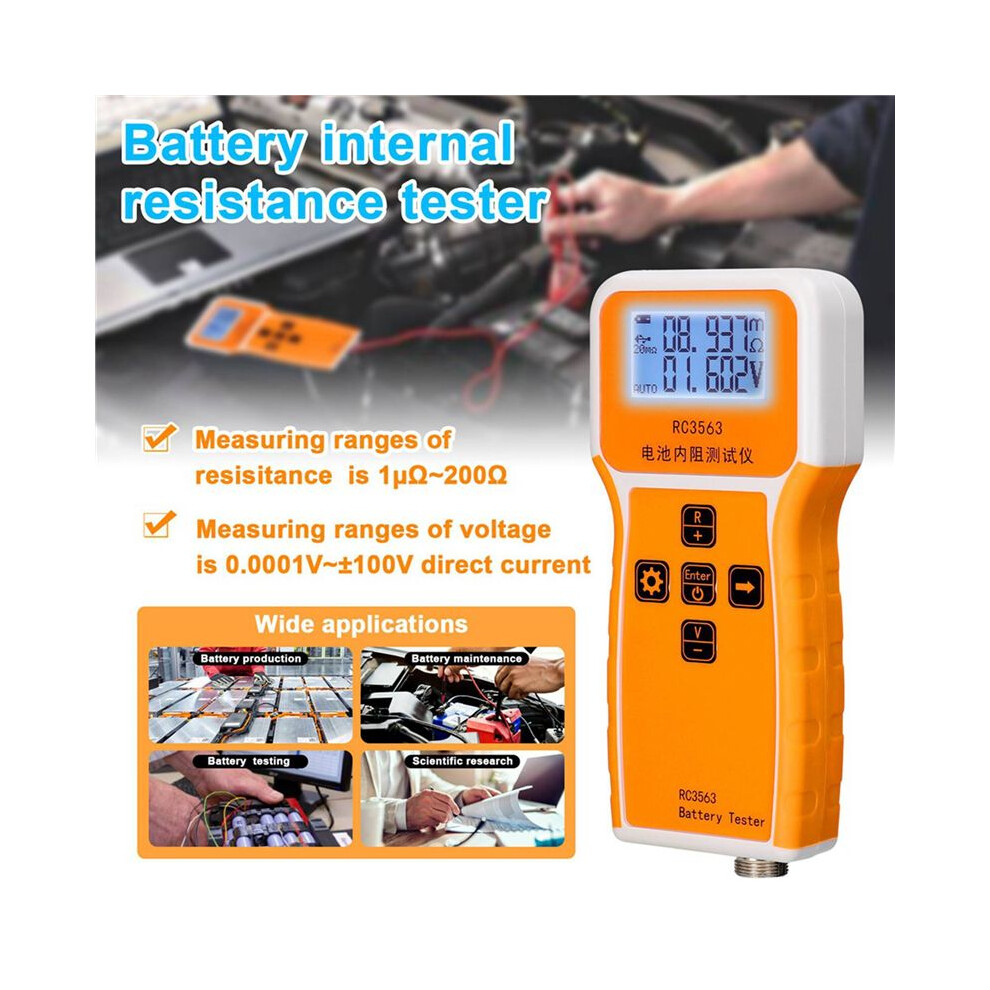

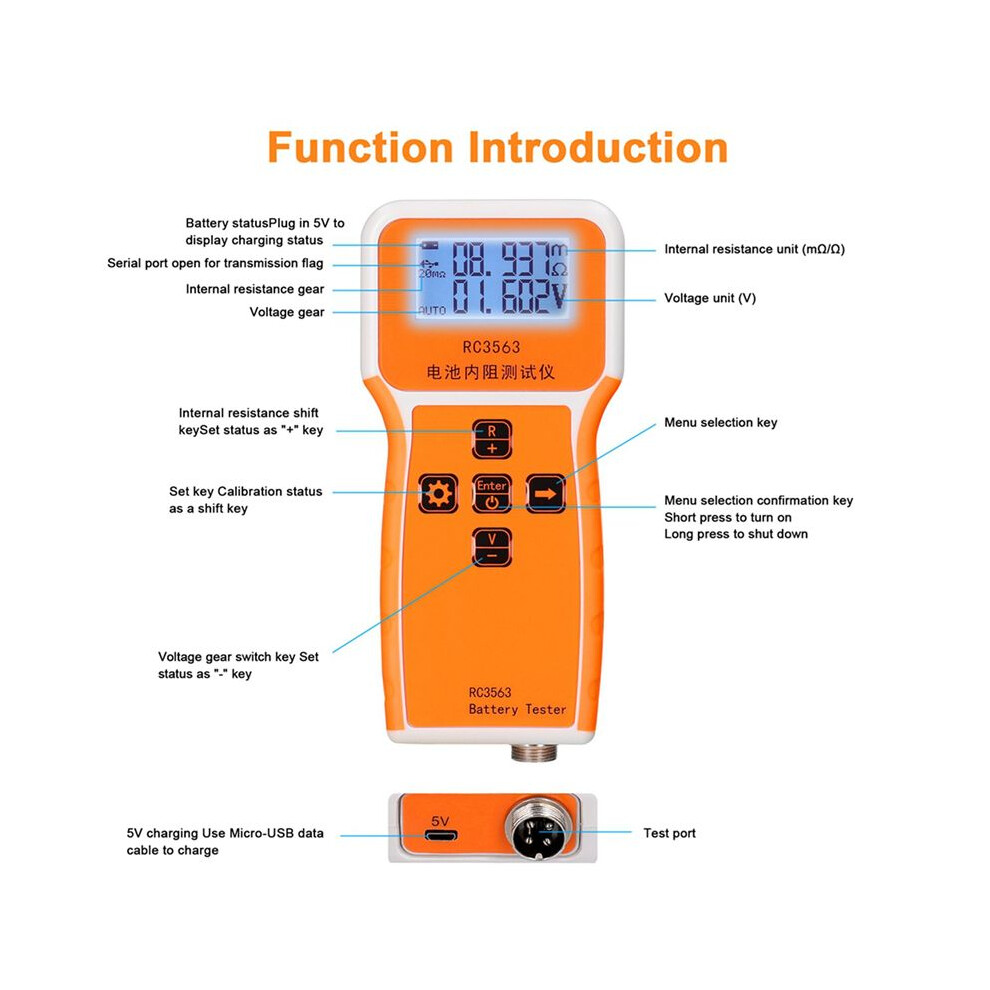

This product adopts intelligent control, LCD display, and implanting Kalman filter mathematical algorithm, with high efficiency, low cost, light weight and saving. Wide applications: This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of resistors and low-resistance high-precision resistance.
This tester adopts intelligent control and large display, also with built-in 1000mAh lithium battery to provide long service , you can recharge it in .
Portable size and easy to carry, you can take it with you to anywhere you want to use.

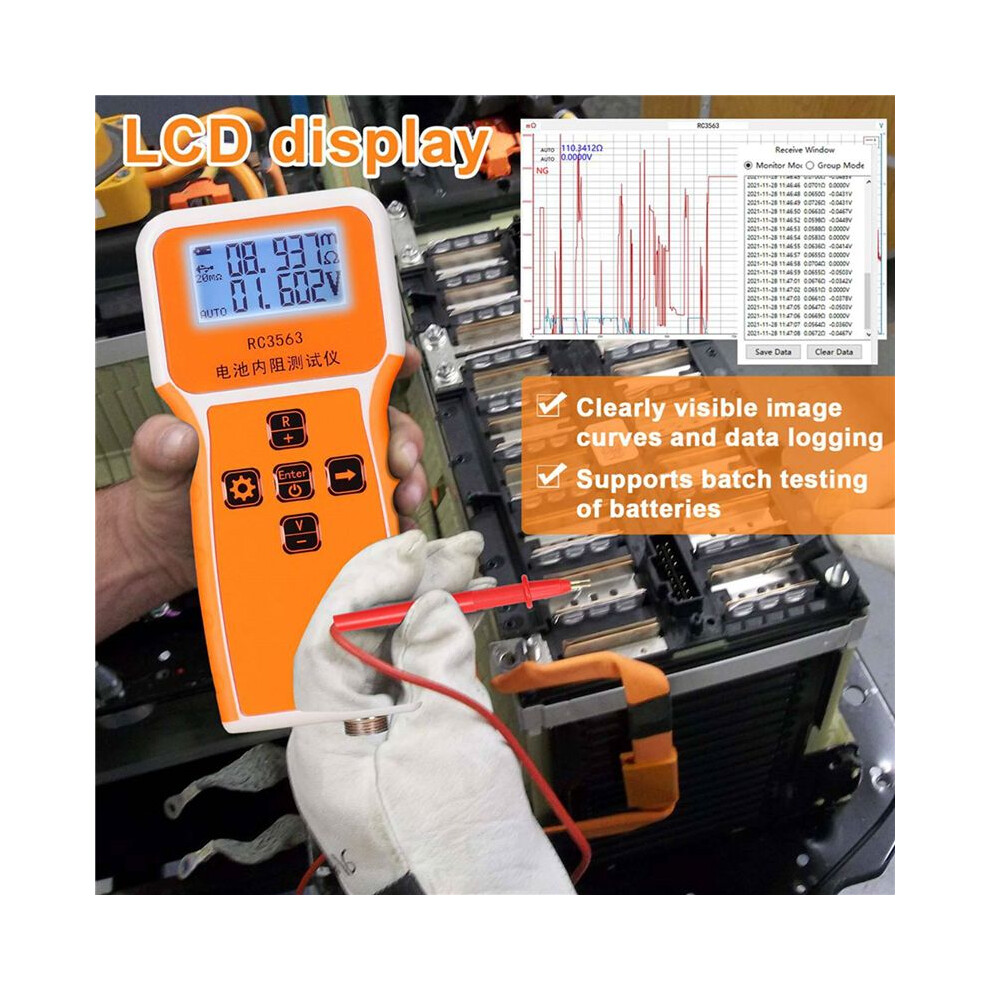

This product supports serial , and the measuring ranges of resistance is 1μΩ~200Ω, and the measuring ranges of voltage is 0.0001V~100V direct current. Added serial port communication function, free powerful computer analysis software. Serial port needs to be opened in the machine to be able to communicate with the computer, the default is closed, the baud rate is 115200.

Battery: 1 x lithium battery, 1000mAh (included)

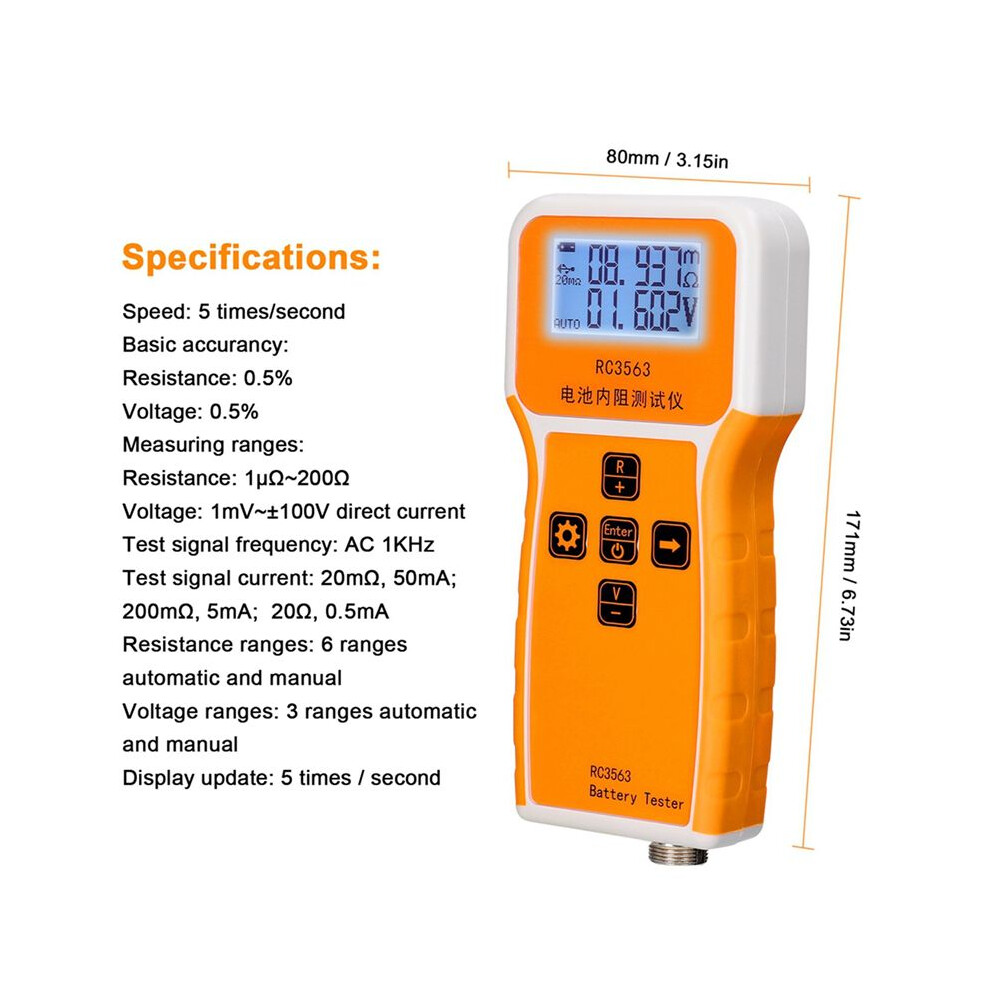

Speed: 5 times/second
Adjustment: Correction for resistance and voltage separately
Basic accuracy:
Resistance: 0.5%
Voltage: 0.5%
Measuring ranges:
Resistance: 1μΩ~200Ω
Voltage: 1mV~100V direct current
Test signal frequency: AC 1KHz
Test signal current: 20mΩ, 50mA; 200mΩ, 5mA; 20Ω, 0.5mA
Resistance ranges: 6 ranges automatic and manual
Voltage ranges: 3 ranges automatic and manual
Display update: 5 times / second
Auto shutdown: 10 minutes delay, automatic shutdown without any operation
Language: Chinese and English can be switched at will
Item size: 171 X 80 X
