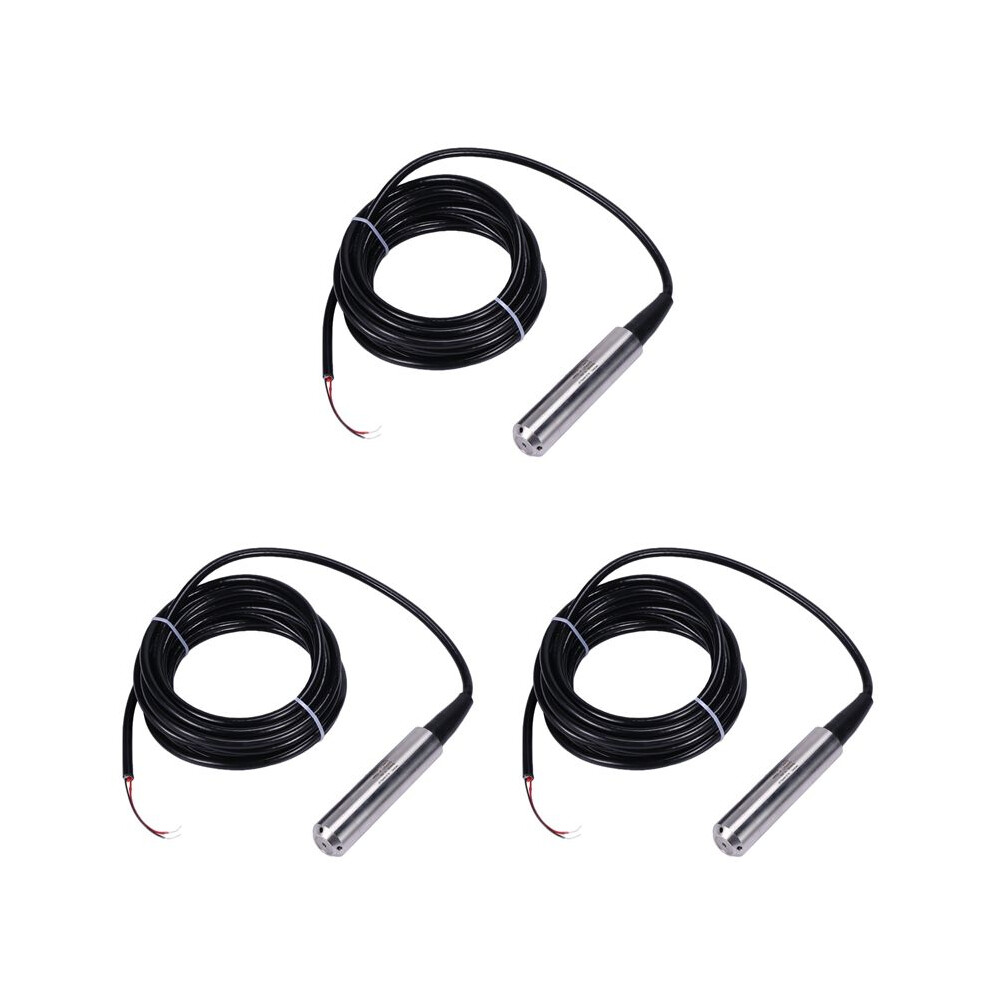

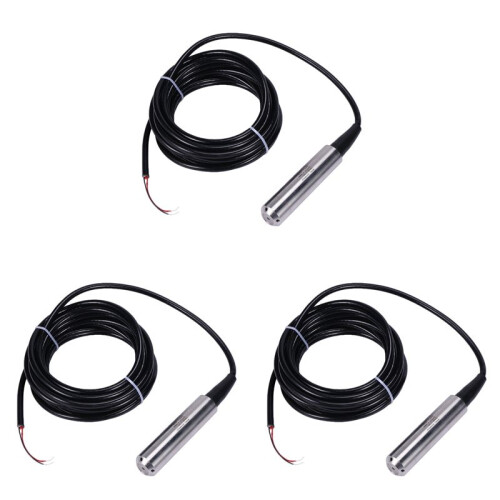

3X Submersible Water 4-20MA Liquid Level Transmitter Sensor Fuel Tank Level Sensor Metal Water Liquid Level Sensor

3X Submersible Water 4-20MA Liquid Level Transmitter Sensor Fuel Tank Level Sensor Metal Water Liquid Level Sensor Beskrivelse

Prevent surge voltage, over voltage, over current and reverse polarity protection;
Test to ensure that it is resistant to overload and shock, and accurately ensures overload capability;
Implement anti-electromagnetic interference capability to avoid problems in complex electromagnetic environments;
Imported OEM parts are used all sensitive chips to maintain long-term stability.
Type: Humidity sensor

Model: Other
Uses: position sensor
: Other
Measuring range: 0-5mH2O / 50kPa;
Measuring medium: water;
Power supply: 24VDC;
Output signal: 4-20mA;
Accuracy: +/-0.5% FS;
Overload capability: twice the full-scale pressure;
Operating temperature: -20 Celsius-120 Celsius
Compensation temperature range: -10 Celsius-80 Celsius
ZTC : (typical): +/- 0.02% FS / c
STC : (typical): +/- 0.02% FS / c;
Long-term stability: (typical): +/-0.1% FS / year;
Waterproof rating: IP68;
Load resistance: less than (U-10) / 0.02 Ohm;
Explosion type: Exia II CT6
Range: 3 meters
colour:Silver, black
Material:metal
size:Length: 5m

Package Contents:
3 x Liquid Level Sensor
